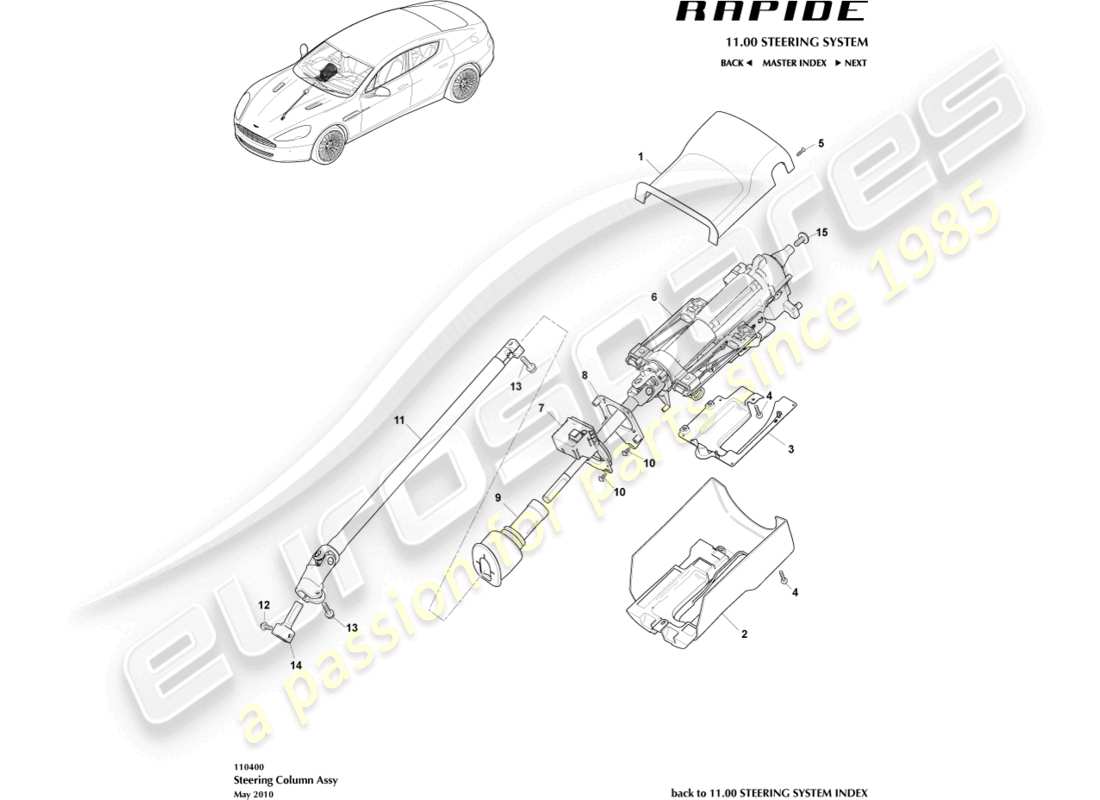

110400 - STEERING COLUMN ASSEMBLY

Aston Martin Rapide (2011) Steering Column Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: AD43-3C695-BBW
                              SHROUD ASSY, STEERING COLUMN UPPER
                              SHROUD ASSEMBLY, STEERING COLUMN UPPER Genuine Aston Martin - New (to order)
                              # 2
                              MPN: AD43-3K512-BCW
                              SHROUD ASSY, STEERING COLUMN LOWER
                              from £386.62
                              from £386.62
                              SHROUD ASSEMBLY, STEERING COLUMN LOWER Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 8D33-3E721-AB
                              PLATE, STEERING COLUMN, LOAD SPREAD
                              from £3.29
                              from £3.29
                              PLT STNG COL Genuine Aston Martin - New (to order)
                              PLT STNG COL Genuine Aston Martin - Used In stock
                              # 4
                              MPN: 703736
                              SCREW, 4.2 X 19 WASHER HEAD
                              from £0.47
                              from £0.47
                              SCREW-4.2X19 WSH HD Genuine Aston Martin - New (to order)
                              # 5
                              MPN: 701549
                              SCREW, M4 X 16 SOCKET, CSK HD
                              from £0.47
                              from £0.47
                              SCREW 4.2X13 STP COUNTERSUNK Genuine Aston Martin - New (to order)
                              # 6
                              MPN: AD43-3C529-AA
                              COLUMN ASSY
                              COLUMN ASSEMBLY Genuine Aston Martin - New (to order)
                              # 7
                              MPN: 4G43-3F818-AA
                              SENSOR ASSY, STEERING ROTATION
                              from £126.46
                              from £126.46
                              SNS ASSEMBLY - STNG ROT Genuine Aston Martin - New (to order)
                              SNS ASSEMBLY - STNG ROT Genuine Aston Martin - Used In stock
                              # 8
                              MPN: 4G43-ALR3219-BA
                              BRACKET
                              from £2.46
                              from £2.46
                              BRACKET-MOUNTING Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 4G43-3D677-BA
                              GAITER, RHD
                              RHD
                              from £18.17
                              from £18.17
                              SE ASY-STNG COL OPG Genuine Aston Martin - New (to order)
                              SE ASY-STNG COL OPG Genuine Aston Martin - Used In stock
                              # 9
                              MPN: 4G43-3D677-AA
                              GAITER, LHD
                              LHD
                              from £33.72
                              from £33.72
                              SE ASY-STNG COL OPG Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 701354
                              SCREW, M3.5 X 13
                              from £0.47
                              from £0.47
                              SCREW M3.5X13 PAN FLANGE Genuine Aston Martin - New (to order)
                              # 11
                              MPN: 4G43-3C662-AD
                              SHAFT ASSY, STEERING COLUMN INTERMEDIATE
                              Supersession
                              Supersession
                              Genuine Aston Martin (no longer available to order)
                              # 12
                              MPN: 4G43-3C684-AB
                              BOLT, STEERING COLUMN CLAMP
                              from £1.90
                              from £1.90
                              BOLT - STEERING COL CLAMP Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 703138
                              BOLT, M8 X 25 PATCH
                              from £0.47
                              from £0.47
                              BOLT, M8X 25 PATCH Genuine Aston Martin - New (to order)
                              # 14
                              MPN: 4G43-3N997-AC
                              COUPLING, STEERING COLUMN SHAFT
                              from £36.54
                              from £36.54
                              CPL-STNG COL SHFT Genuine Aston Martin - New (to order)
                              CPL-STNG COL SHFT Genuine Aston Martin - Used In stock
                              # 15
                              MPN: 701355
                              SCREW, M10 X 21.8
                              from £0.72
                              from £0.72
                              SCREW M10X1.5X21.8 Genuine Aston Martin - New (to order)
