aston martin rapide (2012) load compartment trim parts diagram

010508-B3 - Load Compartment Trim

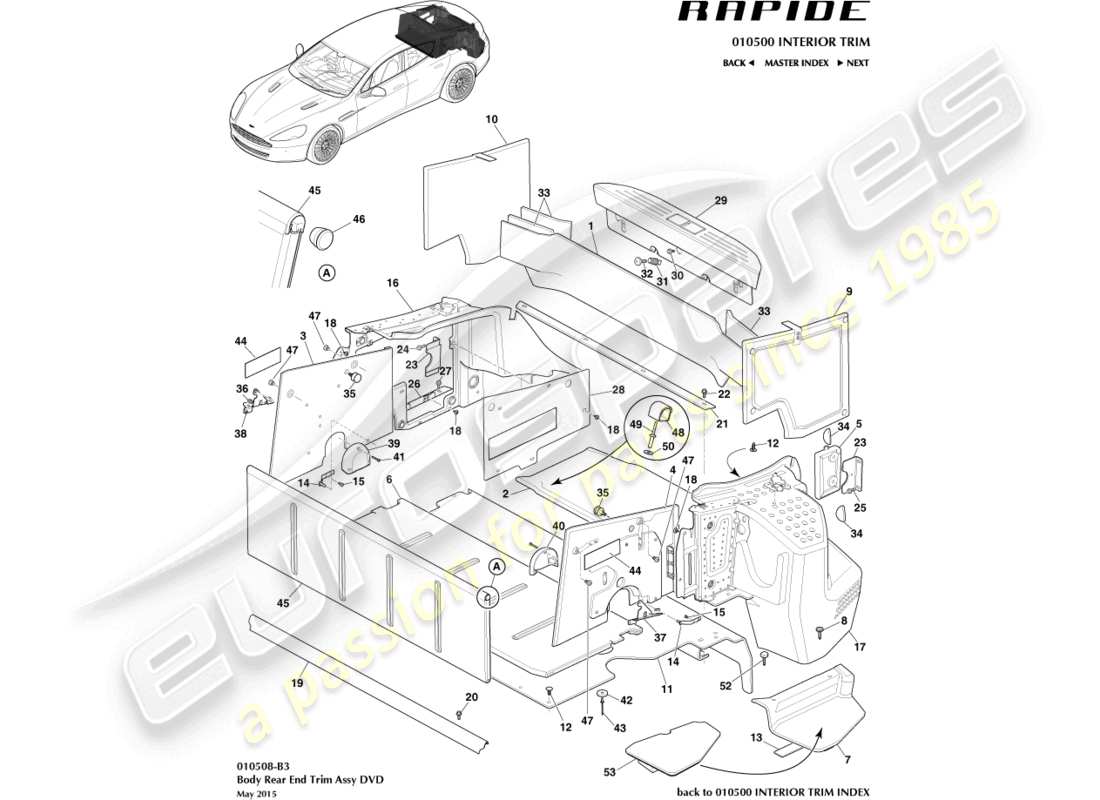

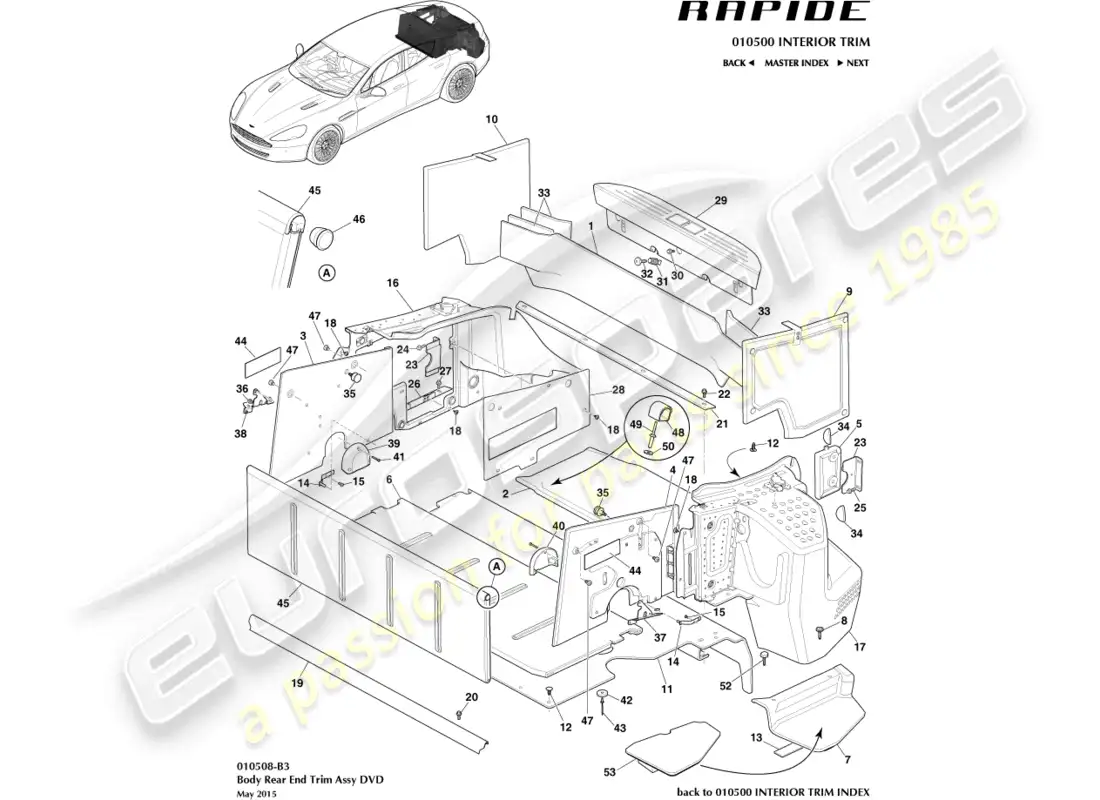

Aston Martin Rapide (2012) Load Compartment Trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: AD43-130A58-GA
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT REAR
                                                        Black
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT REAR Genuine Aston Martin - New (to order)
                                                        # 1
                                                        MPN: AD43-130A58-AEW
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT REAR
                                                        COLOURS
                                                        from £607.07
                                                        from £607.07
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT REAR Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: AD43-130A60-ABW
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR REAR CENTRE
                                                        Up To VIN F04011
                                                        from £828.83
                                                        from £828.83
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR REAR CENTRE Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: CD43-130A60-GA
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR REAR CENTRE
                                                        From VIN F04012, Black
                                                        from £526.02
                                                        from £526.02
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR REAR CENTRE Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: CD43-130A60-ADW
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR REAR CENTRE
                                                        From VIN F04012, Colours
                                                        from £440.65
                                                        from £440.65
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR REAR CENTRE Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: AD43-45422-ABW
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, RH (DVD)
                                                        Up To VIN F04011, With 2 Magnets
                                                        from £213.26
                                                        from £213.26
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, RH (DVD) Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: FD43-45422-GA
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, RH (DVD)
                                                        From VIN F04012, With 1 Magnet, Black
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, RH (DVD) Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: FD43-45422-ABW
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, RH (DVD)
                                                        From VIN F04012, With 1 Magnet, Colours
                                                        from £602.96
                                                        from £602.96
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, RH (DVD) Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: AD43-45423-ABW
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, LH
                                                        Up To VIN F04011, With 2 Magnets
                                                        from £213.26
                                                        from £213.26
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, LH Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: FD43-45423-GA
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, LH
                                                        From VIN F04012, With 1 Magnet, Black
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, LH Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: FD43-45423-ABW
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, LH
                                                        From VIN F04012, With 1 Magnet, Colours
                                                        from £602.96
                                                        from £602.96
                                                        TRIM ASSEMBLY, LUGGAGE COMPARTMENT SIDE, LH Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: AD43-45431-ABW
                                                        CARPET PANEL ASSEMBLY, LOWER INFILL, LH
                                                        Up to 16MY
                                                        from £493.72
                                                        from £493.72
                                                        CARPET PANEL ASSEMBLY, LOWER INFILL, LH Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: AD43-45456-ABW
                                                        CARPET ASSEMBLY,LUGGAGE COMPARTMENT FLOOR FRONT
                                                        Up To VIN F04011
                                                        from £831.41
                                                        from £831.41
                                                        CARPET ASSEMBLY,LUGGAGE COMPARTMENT FLOOR FRONT Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: CD43-45456-ACW
                                                        CARPET ASSEMBLY,LUGGAGE COMPARTMENT FLOOR FRONT
                                                        From VIN F04012 To 16MY
                                                        Supersession
                                                        Supersession
                                                        Genuine Aston Martin (no longer available to order)
                                                        # 6
                                                        MPN: CD43-45456-ADW
                                                        CARPET ASSEMBLY,LUGGAGE COMPARTMENT FLOOR FRONT
                                                        From 16MY, Less Rubbing Strips, Colours
                                                        from £1,014.30
                                                        from £1,014.30
                                                        This part replaces part number CD43-45456-ACW
                                                        CARPET ASSEMBLY,LUGGAGE COMPARTMENT FLOOR FRONT (made to order vin number and picture of old part required ) Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: CD43-45456-GA
                                                        CARPET ASSEMBLY,LUGGAGE COMPARTMENT FLOOR FRONT
                                                        From 17.5MY, Less Rubbing Strips, Black
                                                        from £1,014.50
                                                        from £1,014.50
                                                        CARPET ASSEMBLY,LUGGAGE COMPARTMENT FLOOR FRONT Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: AD43-454A15-AAW
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR, REAR, LH
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR, REAR, LH Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: HD43-454A15-GA
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR, REAR, LH
                                                        From 17MY, Black
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR, REAR, LH Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: HD43-454A15-AAW
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR, REAR, LH
                                                        From 17MY, Colours
                                                        CARPET ASSEMBLY, LUGGAGE COMPARTMENT FLOOR, REAR, LH Genuine Aston Martin - New (to order)
                                                        # 8
                                                        MPN: 5R13-FA0036-AA
                                                        SCREW AND WASHER, M6X28
                                                        from £1.68
                                                        from £1.68
                                                        SCREW - M6 X 28 Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: AD43-454A23-AAW
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, LH
                                                        Up To VN F04011
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, LH Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: CD43-454A23-ACW
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, LH
                                                        From VIN F04012. Up to 16MY
                                                        from £1,399.52
                                                        from £1,399.52
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, LH Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: AD43-454A22-AAW
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, RH
                                                        Up To VIN F04011
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, RH Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: CD43-454A22-ACW
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, RH
                                                        From VIN F04012, Colours
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, RH Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: CD43-454A22-GA
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, RH
                                                        From 17.5MY, Black
                                                        DOOR ASSEMBLY, LUGGAGE COMPARTMENT, RH Genuine Aston Martin - New (to order)
                                                        # 11
                                                        MPN: AD43-407A76-AAW
                                                        CARPET LOWER ASSEMBLY, LUGGAGE COMPARTMENT
                                                        COLOURS
                                                        from £539.67
                                                        from £539.67
                                                        CARPET LOWER ASSEMBLY, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                                        # 11
                                                        MPN: AD43-407A76-GA
                                                        CARPET LOWER ASSEMBLY, LUGGAGE COMPARTMENT
                                                        From 17.5MY, Black
                                                        from £450.95
                                                        from £450.95
                                                        CARPET LOWER ASSEMBLY, LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                                        # 12
                                                        MPN: 4G43-MXC1800-AA-PK
                                                        FASTENER, FIRTREE
                                                        Supersession
                                                        Supersession
                                                        This part replaces part number 4G43-MXC1800-AA which we have in stock
                                                        Genuine Aston Martin (no longer available to order)
                                                        # 13
                                                        MPN: AD43-45727-AA
                                                        FOAM SUPPORT, LUGGAGE COMPARTMENT REAR FLOOR, LH
                                                        FOAM SUPPORT, LUGGAGE COMPARTMENT REAR FLOOR, LH Genuine Aston Martin - New (to order)
                                                        # 14
                                                        MPN: AD43-454W70-AA
                                                        BRACKET ASSEMBLY
                                                        from £6.17
                                                        from £6.17
                                                        BRACKET ASSEMBLY Genuine Aston Martin - New (to order)
                                                        # 15
                                                        MPN: 703735
                                                        SCREW, M5X12
                                                        2 per brkt
                                                        from £0.47
                                                        from £0.47
                                                        SCREW-M5X12 PAN HEAD Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: AD43-F31148-ACW
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, RH
                                                        Up to 16MY, Colours
                                                        from £752.22
                                                        from £752.22
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, RH Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: AD43-F31148-AEW
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, RH
                                                        16MY on, Colours
                                                        from £765.76
                                                        from £765.76
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, RH Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: AD43-F31148-GA
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, RH
                                                        Black
                                                        from £470.29
                                                        from £470.29
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, RH Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: AD43-F31149-ACW
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, LH
                                                        Up to 16MY
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, LH Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: GD43-F31149-ABW
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, LH
                                                        16MY on
                                                        from £528.81
                                                        from £528.81
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, LH Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: HD43-F31149-AAW
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, LH
                                                        From 17MY, Colours
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, LH Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: HD43-F31149-GA
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, LH
                                                        From 17.5MY, Black
                                                        from £306.11
                                                        from £306.11
                                                        CARPET ASSEMBLY, LAMP MOULDING COVER, LH Genuine Aston Martin - New (to order)
                                                        # 18
                                                        MPN: 701157-PK
                                                        SCREW, 4.2X13 LARGE WASHER HEAD
                                                        from £1.59
                                                        from £1.59
                                                        SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                                                        # 19
                                                        MPN: AD43-454A16-AA
                                                        RETAINING PANEL LUGGAGE COMPARTMENT, FRONT
                                                        from £67.53
                                                        from £67.53
                                                        RETAINING PANEL LUGGAGE COMPARTMENT, FRONT Genuine Aston Martin - New (to order)
                                                        # 19
                                                        MPN: KD43-454A16-AA
                                                        RETAINING PANEL LUGGAGE COMPARTMENT, FRONT
                                                        AMR, Black
                                                        RETAINING PANEL LUGGAGE COMPARTMENT, FRONT Genuine Aston Martin - New (to order)
                                                        # 20
                                                        MPN: 703265
                                                        SCREW, M6X16
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                        # 21
                                                        MPN: AD43-130W46-AA
                                                        RETAINER,LUGGAGE COMPARTMENT FLOOR REAR CENTRE
                                                        from £24.77
                                                        from £24.77
                                                        RETAINER,LUGGAGE COMPARTMENT FLOOR REAR CENTRE Genuine Aston Martin - New (to order)
                                                        # 22
                                                        MPN: 703151
                                                        SCREW AND WASHER, M6X16
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                        LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                                                        # 23
                                                        MPN: AD43-41852-AB
                                                        BRACKET, REAR FIXING
                                                        Up to 16MY
                                                        from £14.84
                                                        from £14.84
                                                        BRACKET, REAR FIXING Genuine Aston Martin - New (to order)
                                                        # 24
                                                        MPN: 703265
                                                        SCREW, M6X16
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                        # 25
                                                        MPN: 703203
                                                        SCREW, M6X20
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                                        LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                                        # 26
                                                        MPN: AD43-427A48-AA
                                                        BRACKET ASSEMBLY, DOOR LOWER SUPPORT, RH
                                                        from £36.40
                                                        from £36.40
                                                        BRACKET ASSEMBLY, DOOR LOWER SUPPORT, RH Genuine Aston Martin - New (to order)
                                                        # 27
                                                        MPN: 703265
                                                        SCREW, M6X16
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                        # 28
                                                        MPN: AD43-40122-AB
                                                        COVER PLATE, DVD CHANGER, RH
                                                        Up to 14MY
                                                        from £20.58
                                                        from £20.58
                                                        COVER PLATE, DVD CHANGER, RH Genuine Aston Martin - New (to order)
                                                        # 29
                                                        MPN: AD43-42626-ABW
                                                        PLATE ASSEMBLY, SCUFF LUGGAGE COMPARTMENT
                                                        PLATE ASSEMBLY, SCUFF LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                                        # 29
                                                        MPN: KD43-42626-AAW
                                                        PLATE ASSEMBLY, SCUFF LUGGAGE COMPARTMENT
                                                        AMR
                                                        from £611.38
                                                        from £611.38
                                                        PLATE ASSEMBLY, SCUFF LUGGAGE COMPARTMENT Genuine Aston Martin - New (to order)
                                                        # 30
                                                        MPN: 703265
                                                        SCREW, M6 X 16
                                                        from £0.47
                                                        from £0.47
                                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                                        # 31
                                                        MPN: 4G43-N805935-AA
                                                        PLUG AND GRIP, 17MM
                                                        from £0.54
                                                        from £0.54
                                                        17MM PLUG & GRIP Genuine Aston Martin - New (to order)
                                                        # 32
                                                        MPN: 704442
                                                        BOLT, M8X25.5
                                                        from £2.05
                                                        from £2.05
                                                        BOLT, M8X25.5 Genuine Aston Martin - New (to order)
                                                        # 33
                                                        MPN: AD43-45709-AA
                                                        FOAM SUPPORT, LUGGAGE COMPARTMENT REAR CARPET
                                                        FOAM SUPPORT, LUGGAGE COMPARTMENT REAR CARPET Genuine Aston Martin - New (to order)
                                                        # 34
                                                        MPN: 6G33-454A28-AB
                                                        COVER, LAMP BOLT
                                                        from £4.09
                                                        from £4.09
                                                        COVER, LAMP BOLT Genuine Aston Martin - New (to order)
                                                        COVER, LAMP BOLT Genuine Aston Martin - Used In stock
                                                        # 35
                                                        MPN: AD43-18580-AAW
                                                        END STOP ASSEMBLY, FOLDING FLOOR
                                                        END STOP ASSEMBLY, FOLDING FLOOR Genuine Aston Martin - New (to order)
                                                        # 35
                                                        MPN: KD43-18580-CAW
                                                        END STOP ASSEMBLY, FOLDING FLOOR
                                                        19MY AMR
                                                        END STOP ASSEMBLY, FOLDING FLOOR Genuine Aston Martin - New (to order)
                                                        # 36
                                                        MPN: AD43-454B16-AB
                                                        BRACKET, DAMPER STRUT COVER, RH
                                                        BRACKET, DAMPER STRUT COVER, RH Genuine Aston Martin - New (to order)
                                                        # 37
                                                        MPN: AD43-454B17-AB
                                                        BRACKET, DAMPER STRUT COVER, LH
                                                        BRACKET, DAMPER STRUT COVER, LH Genuine Aston Martin - New (to order)
                                                        # 38
                                                        MPN: 4G43-E820201-AA
                                                        NUT, M8
                                                        2 per bracket
                                                        from £1.21
                                                        from £1.21
                                                        NUT HEX SPCL BRASS Genuine Aston Martin - New (to order)
                                                        # 39
                                                        MPN: AD43-454C54-AB
                                                        COVER, DAMPER STRUT, RH
                                                        COVER, DAMPER STRUT, RH Genuine Aston Martin - New (to order)
                                                        # 39
                                                        MPN: KD43-454C54-BA
                                                        COVER, DAMPER STRUT, RH
                                                        19MY AMR
                                                        from £242.67
                                                        from £242.67
                                                        COVER, DAMPER STRUT, RH Genuine Aston Martin - New (to order)
                                                        # 40
                                                        MPN: AD43-454C55-AB
                                                        COVER, DAMPER STRUT, LH
                                                        COVER, DAMPER STRUT, LH Genuine Aston Martin - New (to order)
                                                        # 40
                                                        MPN: KD43-454C55-BA
                                                        COVER, DAMPER STRUT, LH
                                                        19MY AMR
                                                        from £204.37
                                                        from £204.37
                                                        COVER, DAMPER STRUT, LH Genuine Aston Martin - New (to order)
                                                        # 41
                                                        MPN: AD43-C4086-AA
                                                        SCREW, M4X25 CAP HEAD
                                                        3 per cover
                                                        from £0.47
                                                        from £0.47
                                                        SCREW, M4X25 CAP HEAD Genuine Aston Martin - New (to order)
                                                        # 42
                                                        MPN: 4G43-C045F70-AB
                                                        PAD, RETAINER PASSENGER AIR BAG COVER
                                                        from £1.71
                                                        from £1.71
                                                        RETAINER PASS AIRBAG Genuine Aston Martin - New (to order)
                                                        # 43
                                                        MPN: 701356
                                                        Rivet, 4X10 Blind Pan Head
                                                        from £0.47
                                                        from £0.47
                                                        RIVET M4X10 BLIND Genuine Aston Martin - New (to order)
                                                        # 44
                                                        MPN: 77-84981-PK
                                                        PAD, ANTI-RATTLE
                                                        from £20.01
                                                        from £20.01
                                                        FOAM STRIP-10 Genuine Aston Martin - New (to order)
                                                        # 45
                                                        MPN: AD43-45586-ABW
                                                        FLOOR PANEL ASSEMBLY, FOLDING
                                                        Up To VIN F04011
                                                        from £1,360.79
                                                        from £1,360.79
                                                        FLOOR PANEL ASSEMBLY, FOLDING Genuine Aston Martin - New (to order)
                                                        # 45
                                                        MPN: CD43-45586-ACW
                                                        FLOOR PANEL ASSEMBLY, FOLDING
                                                        FROM VIN F04012
                                                        from £665.18
                                                        from £665.18
                                                        FLOOR PANEL ASSEMBLY, FOLDING Genuine Aston Martin - New (to order)
                                                        # 45
                                                        MPN: CD43-45586-ADW
                                                        FLOOR PANEL ASSEMBLY, FOLDING
                                                        From 16MY, Less Rubbing Strips, Colours
                                                        from £813.50
                                                        from £813.50
                                                        FLOOR PANEL ASSEMBLY, FOLDING Genuine Aston Martin - New (to order)
                                                        # 45
                                                        MPN: CD43-45586-GA
                                                        FLOOR PANEL ASSEMBLY, FOLDING
                                                        From 17.5MY, less Rubbing Strips, Black.
                                                        FLOOR PANEL ASSEMBLY, FOLDING Genuine Aston Martin - New (to order)
                                                        # 45
                                                        MPN: KD43-45586-AAW
                                                        FLOOR PANEL ASSEMBLY, FOLDING
                                                        AMR, From 19MY, less Rubbing Strips, Black.
                                                        from £3,057.49
                                                        from £3,057.49
                                                        FLOOR PANEL ASSEMBLY, FOLDING Genuine Aston Martin - New (to order)
                                                        # 46
                                                        MPN: AD43-433A54-AA
                                                        SLUG, STEEL, FLOOR PANEL
                                                        from £5.29
                                                        from £5.29
                                                        SLUG, STEEL, FLOOR PANEL Genuine Aston Martin - New (to order)
                                                        # 47
                                                        MPN: 8G43-487464-AA
                                                        SCREW, M5X6, PAN HEAD
                                                        from £0.47
                                                        from £0.47
                                                        SCREW WASHER M5 X 6 PN Genuine Aston Martin - New (to order)
                                                        # 48
                                                        MPN: CD43-0937-AA
                                                        STRAP ASSEMBLY, UMBRELLA
                                                        from £224.32
                                                        from £224.32
                                                        STRAP ASSEMBLY, UMBRELLA Genuine Aston Martin - New (to order)
                                                        # 49
                                                        MPN: 4G43-P2100014B-AA
                                                        RIVET, R-LOK 6.3X4-10
                                                        from £0.47
                                                        from £0.47
                                                        RIVET R-LOK Genuine Aston Martin - New (to order)
                                                        # 50
                                                        MPN: 697517-PK
                                                        WASHER M6 LARGE OD BLACK
                                                        Pack of 20
                                                        from £13.07
                                                        from £13.07
                                                        WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
                                                        # 51
                                                        MPN: 7G43-700712-BB
                                                        UMBRELLA BLACK
                                                        Not illustrated
                                                        Supersession
                                                        Supersession
                                                        Genuine Aston Martin (no longer available to order)
                                                        # 52
                                                        MPN: 4G43-16K808-AB
                                                        BUFFER ASSEMBLY
                                                        from £2.38
                                                        from £2.38
                                                        SUPPORT HOOD BUMPER TO CO Genuine Aston Martin - New (to order)
                                                        # 53
                                                        MPN: GD43-10E982-ABW
                                                        COVER, SAT NAV MODULE
                                                        FROM 16MY
                                                        from £90.63
                                                        from £90.63
                                                        COVER, SAT NAV MODULE Genuine Aston Martin - New (to order)
                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
