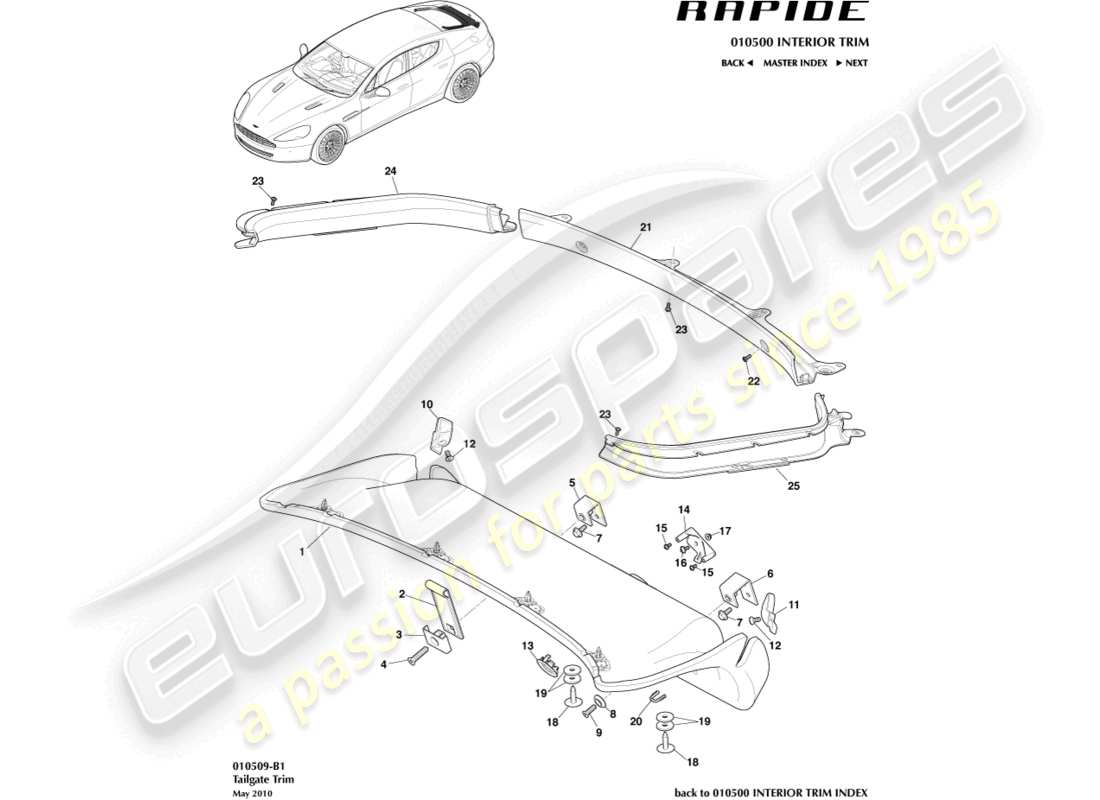

010509-B1 - Tailgate Trim Panel

Aston Martin Rapide (2012) Tailgate Trim Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Key
                                              Price
                                              # 1
                                              MPN: AD43-580374-AGW
                                              TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LOWER
                                              from £996.47
                                              from £996.47
                                              TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LOWER Genuine Aston Martin - New (to order)
                                              # 1
                                              MPN: AD43-580374-GA
                                              TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LOWER
                                              Black. 17.5MY
                                              TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LOWER Genuine Aston Martin - New (to order)
                                              # 1
                                              MPN: AD43-EYC000230-AA
                                              LUGGAGE COMPARTMENT LID TRIM CLIP
                                              from £0.47
                                              from £0.47
                                              LUGGAGE COMPARTMENT LID TRIM CLIP Genuine Aston Martin - New (to order)
                                              # 2
                                              MPN: AD43-434A30-AAW
                                              PULL STRAP ASSY, LUGGAGE COMPARTMENT DOOR
                                              from £610.13
                                              from £610.13
                                              PULL STRAP ASSEMBLY, LUGGAGE COMPARTMENT DOOR Genuine Aston Martin - New (to order)
                                              # 3
                                              MPN: AD43-40168-AA
                                              BRACKET, TAILGATE PULL DOWN STRAP RETENTION
                                              from £9.26
                                              from £9.26
                                              BRACKET, TAILGATE PULL DOWN STRAP RETENTION Genuine Aston Martin - New (to order)
                                              # 4
                                              MPN: 6G33-AA0231-AA
                                              SCREW, M8X34 FLAT CSK TORX BLACK
                                              from £3.39
                                              from £3.39
                                              SCW M8X34 COUNTERSUNK FLAT Genuine Aston Martin - New (to order)
                                              # 5
                                              MPN: AD43-42541-AA
                                              SPACER, PULL DOWN HANDLE, RH
                                              from £30.65
                                              from £30.65
                                              SPACER, PULL DOWN HANDLE, RH Genuine Aston Martin - New (to order)
                                              # 6
                                              MPN: AD43-42542-AA
                                              SPACER, PULL DOWN HANDLE, LH
                                              from £28.27
                                              from £28.27
                                              SPACER, PULL DOWN HANDLE, LH Genuine Aston Martin - New (to order)
                                              # 7
                                              MPN: 703151
                                              SCREW AND WASHER, M6X16
                                              2 per spacer
                                              from £0.47
                                              from £0.47
                                              SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                              LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                                              # 8
                                              MPN: AD43-836025-AA
                                              WASHER, CUP M6X25
                                              WASHER, CUP M6X25 Genuine Aston Martin - New (to order)
                                              # 9
                                              MPN: 703738
                                              SCREW, M6X20
                                              from £0.79
                                              from £0.79
                                              SCREW-M6X20 FLAT HD Genuine Aston Martin - New (to order)
                                              # 10
                                              MPN: AD43-N431B56-BA
                                              WEDGE PLATE, TAILGATE RHS
                                              from £11.14
                                              from £11.14
                                              WEDGE PLATE, TAILGATE RHS Genuine Aston Martin - New (to order)
                                              # 11
                                              MPN: AD43-N431B57-BA
                                              WEDGE PLATE, TAILGATE LHS
                                              from £11.14
                                              from £11.14
                                              WEDGE PLATE, TAILGATE LHS Genuine Aston Martin - New (to order)
                                              # 12
                                              MPN: 703073
                                              SCREW, M6X15
                                              1 per plate
                                              from £0.47
                                              from £0.47
                                              M6 X 16 SCREW Genuine Aston Martin - New (to order)
                                              # 13
                                              MPN: 8D33-13B716-AA
                                              LED MAP LAMP, LENS AND BEZEL
                                              LED MAP LAMP, LENS AND BEZEL Genuine Aston Martin - New (to order)
                                              # 14
                                              MPN: AD43-7413470-AA
                                              BRACKET, LAMP MOUNTING
                                              from £5.55
                                              from £5.55
                                              BRACKET, LAMP MOUNTING Genuine Aston Martin - New (to order)
                                              # 15
                                              MPN: 4G43-80899-AA
                                              SCREW, M4X8
                                              from £0.47
                                              from £0.47
                                              SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                                              # 16
                                              MPN: AD43-FG0210-AA
                                              SCREW, M4X10
                                              from £0.47
                                              from £0.47
                                              SCREW, M4X10 Genuine Aston Martin - New (to order)
                                              # 17
                                              MPN: 700986-PK
                                              NUT, M4
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 18
                                              MPN: 4G43-STC3710-AA-PK
                                              FASTENER, FIR TREE
                                              Supersession
                                              Supersession
                                              Genuine Aston Martin (no longer available to order)
                                              # 19
                                              MPN: 6G33-6C778-AA
                                              WASHER
                                              from £0.48
                                              from £0.48
                                              ISLT OIL COOL MOUNTING Genuine Aston Martin - New (to order)
                                              # 20
                                              MPN: 4G43-N623361-AA
                                              CLIP, U TYPE
                                              from £0.67
                                              from £0.67
                                              CLIP U TYPE Genuine Aston Martin - New (to order)
                                              # 21
                                              MPN: AD43-67770-ABW
                                              TRIM ASSY, LUGGAGE COMPARTMENT LID CENTRE
                                              from £389.01
                                              from £389.01
                                              TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID CENTRE Genuine Aston Martin - New (to order)
                                              # 22
                                              MPN: 703175
                                              SCREW, M4X10
                                              from £0.47
                                              from £0.47
                                              SCREW M4X10 PAN TORX Genuine Aston Martin - New (to order)
                                              # 23
                                              MPN: AD43-FG0210-AA
                                              SCREW, M4X10
                                              from £0.47
                                              from £0.47
                                              SCREW, M4X10 Genuine Aston Martin - New (to order)
                                              # 24
                                              MPN: AD43-68880-ABW
                                              TRIM ASSY, LUGGAGE COMPARTMENT LID RHS
                                              from £285.55
                                              from £285.55
                                              TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID RHS Genuine Aston Martin - New (to order)
                                              # 25
                                              MPN: AD43-68881-ABW
                                              TRIM ASSY, LUGGAGE COMPARTMENT LID LHS
                                              TRIM ASSEMBLY, LUGGAGE COMPARTMENT LID LHS Genuine Aston Martin - New (to order)
