aston martin rapide (2012) ip trimmed panels parts diagram

011201-B19 - IP Trimmed Panels

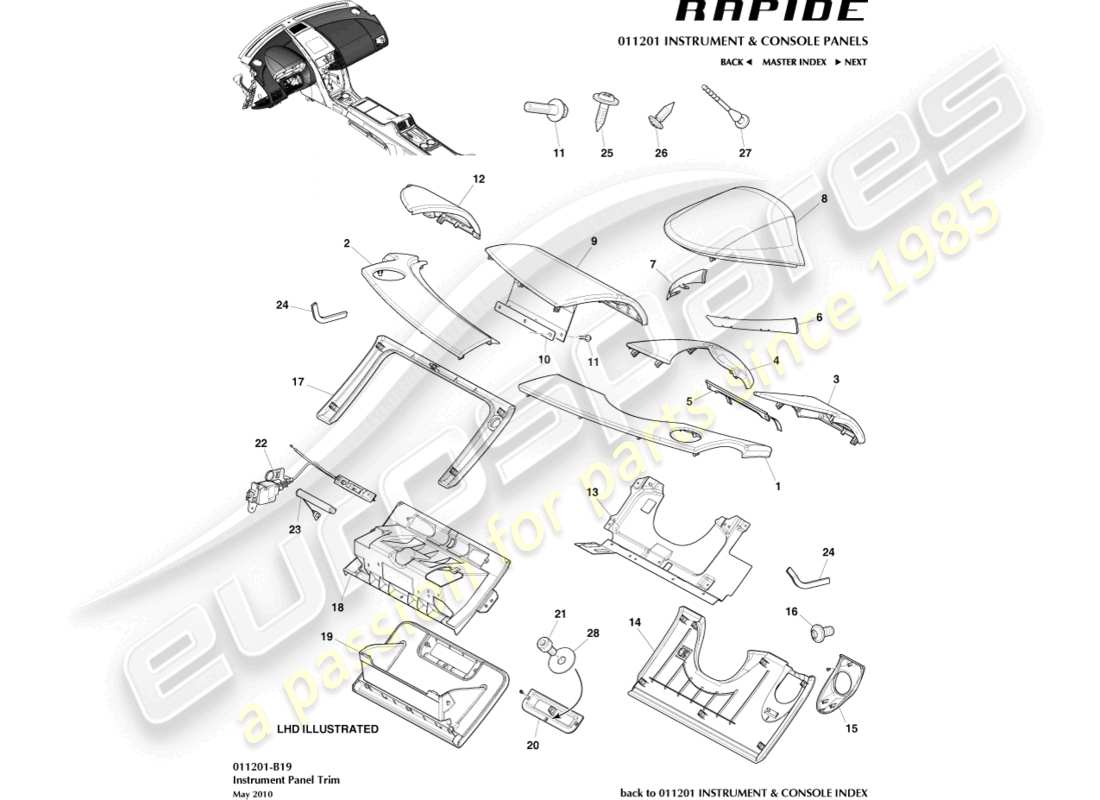

Aston Martin Rapide (2012) IP Trimmed Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: AD43-047B27-BBW
                                            COVER ASSY, UPPER DRIVER SIDE- LHD
                                            from £209.02
                                            from £209.02
                                            COVER ASSEMBLY, UPPER DRIVER SIDE- LHD Genuine Aston Martin - New (to order)
                                            # 1
                                            MPN: AD43-047B26-BBW
                                            COVER ASSY, UPPER DRIVER SIDE- RHD
                                            from £484.24
                                            from £484.24
                                            COVER ASSEMBLY, UPPER DRIVER SIDE- RHD Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: AD43-047B25-BBW
                                            COVER ASSY, UPPER PASSENGER SIDE- LHD
                                            from £228.10
                                            from £228.10
                                            COVER ASSEMBLY, UPPER PASSENGER SIDE- LHD Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: AD43-047B24-BBW
                                            COVER ASSY, UPPER PASSENGER SIDE- RHD
                                            from £488.72
                                            from £488.72
                                            COVER ASSEMBLY, UPPER PASSENGER SIDE- RHD Genuine Aston Martin - New (to order)
                                            # 3
                                            MPN: AD43-045R23-BBW
                                            PANEL ASSY, UPPER DRIVER SIDE OUTER- LHD
                                            from £353.86
                                            from £353.86
                                            PANEL ASSEMBLY, UPPER DRIVER SIDE OUTER- LHD Genuine Aston Martin - New (to order)
                                            # 3
                                            MPN: AD43-045R22-BBW
                                            PANEL ASSY, UPPER DRIVER SIDE OUTER- RHD
                                            from £292.36
                                            from £292.36
                                            PANEL ASSEMBLY, UPPER DRIVER SIDE OUTER- RHD Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: AD43-045R25-ABW
                                            PANEL ASSY, UPPER DRIVER SIDE INNER- LHD
                                            from £268.74
                                            from £268.74
                                            PANEL ASSEMBLY, UPPER DRIVER SIDE INNER- LHD Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: AD43-045R24-ABW
                                            PANEL ASSY, UPPER DRIVER SIDE INNER- RHD
                                            from £1,443.72
                                            from £1,443.72
                                            PANEL ASSEMBLY, UPPER DRIVER SIDE INNER- RHD Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: AD43-3T501-BBW
                                            COVER, STEERING COLUMN UPPER SHROUD
                                            COVER, STEERING COLUMN UPPER SHROUD Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: 4G43-C045C90-AC
                                            PANEL, CLUSTER OPENING FINISHER LH
                                            from £59.37
                                            from £59.37
                                            PANEL, CLUSTER OPENING FINISHER LH Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: 4G43-C045C90-BC
                                            PANEL, CLUSTER OPENING FINISHER RH
                                            from £59.37
                                            from £59.37
                                            PANEL, CLUSTER OPENING FINISHER RH Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: AD43-10862-BBW
                                            HOOD ASSY, INSTRUMENT CLUSTER
                                            from £822.74
                                            from £822.74
                                            HOOD ASSEMBLY, INSTRUMENT CLUSTER Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: AD43-C044H58-BBW
                                            PANEL ASSY, AIRBAG- LHD
                                            from £1,011.18
                                            from £1,011.18
                                            PANEL ASSEMBLY, AIRBAG- LHD Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: AD43-C044H59-BBW
                                            PANEL ASSY, AIRBAG- RHD
                                            from £913.37
                                            from £913.37
                                            PANEL ASSEMBLY, AIRBAG- RHD Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: 6G33-4073A-AA
                                            CLAMP, PASSENGER AIRBAG
                                            from £3.56
                                            from £3.56
                                            CLAMP, PASSENGER AIRBAG Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: 703025
                                            SCREW M6X25 HEX FLNG HD
                                            Panel, Airbag LHD
                                            from £0.47
                                            from £0.47
                                            SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: AD43-C04634-ABW
                                            PANEL ASSY, UPPER PASSENGER SIDE- LHD
                                            from £678.75
                                            from £678.75
                                            PANEL ASSEMBLY, UPPER PASSENGER SIDE- LHD Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: AD43-C04635-AAW
                                            PANEL ASSY, UPPER PASSENGER SIDE- RHD
                                            PANEL ASSEMBLY, UPPER PASSENGER SIDE- RHD Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: 4G43-60K51-CA
                                            PROTECTOR, KNEE- LHD
                                            from £36.20
                                            from £36.20
                                            KNEE PROTECTOR LHD Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: 4G43-60K51-DA
                                            PROTECTOR, KNEE- RHD
                                            from £36.20
                                            from £36.20
                                            KNEE PROTECTOR RHD Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: AD43-C04325-BBW
                                            PANEL ASSY, LOWER DRIVER SIDE- LHD
                                            from £375.59
                                            from £375.59
                                            PANEL ASSEMBLY, LOWER DRIVER SIDE- LHD Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: AD43-C04326-BBW
                                            PANEL ASSY, LOWER DRIVER SIDE- RHD
                                            from £375.59
                                            from £375.59
                                            PANEL ASSEMBLY, LOWER DRIVER SIDE- RHD Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: KD43-C04326-BAW
                                            PANEL ASSY, LOWER DRIVER SIDE- RHD
                                            19MY, AMR
                                            PANEL ASSEMBLY, LOWER DRIVER SIDE- RHD Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: 4G43-11A665-AD
                                            BEZEL, LIGHT SWITCH
                                            from £9.74
                                            from £9.74
                                            This part replaces part number 4G43-11A665-ACW which we have in stock
                                            BEZEL, LIGHT SWITCH Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: 4G43-80899-AA
                                            SCREW M4X8
                                            Light Switch Bezel
                                            from £0.47
                                            from £0.47
                                            SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: AD43-C043K92-BBW
                                            PANEL ASSY, LOWER PASSENGER SIDE- LHD
                                            PANEL ASSEMBLY, LOWER PASSENGER SIDE- LHD Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: AD43-C043K93-BBW
                                            PANEL ASSY, LOWER PASSENGER SIDE- RHD
                                            from £362.05
                                            from £362.05
                                            PANEL ASSEMBLY, LOWER PASSENGER SIDE- RHD Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: KD43-C043K93-BAW
                                            PANEL ASSY, LOWER PASSENGER SIDE- RHD
                                            19MY, AMR
                                            PANEL ASSEMBLY, LOWER PASSENGER SIDE- RHD Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 6G33-56241-AE
                                            SHIELD, GLOVEBOX SIGHT
                                            Up to 15MY
                                            from £33.04
                                            from £33.04
                                            This part replaces part number 6G33-56241-AB which we have in stock
                                            SHIELD - SIGHT G/B Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: FD23-56241-AA
                                            SHIELD, GLOVEBOX SIGHT
                                            FROM 15MY
                                            from £77.20
                                            from £77.20
                                            SHIELD, GLOVEBOX SIGHT Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: FD43-C06010-ABW
                                            COMPARTMENT ASSY, GLOVEBOX
                                            LHD
                                            from £452.69
                                            from £452.69
                                            COMPARTMENT ASSEMBLY, GLOVEBOX Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: KD43-C06010-AAW
                                            COMPARTMENT ASSY, GLOVEBOX
                                            19MY, AMR, LHD
                                            COMPARTMENT ASSEMBLY, GLOVEBOX Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: FD43-C06011-ABW
                                            COMPARTMENT ASSY, GLOVEBOX
                                            RHD
                                            from £452.69
                                            from £452.69
                                            COMPARTMENT ASSEMBLY, GLOVEBOX Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: KD43-C06011-AAW
                                            COMPARTMENT ASSY, GLOVEBOX
                                            19MY, AMR, LHD
                                            COMPARTMENT ASSEMBLY, GLOVEBOX Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 4G43-C06157-AD
                                            Striker, Glovebox Door Latch
                                            from £13.63
                                            from £13.63
                                            STRKR GLV COMPT DR Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 4G43-105104-AA
                                            SCREW M4X8, CAP HD BLACK
                                            Striker, Glovebox Door Latch
                                            from £0.47
                                            from £0.47
                                            SCREW CAP HD M4X8 Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 6G33-F9C070-AA
                                            LATCH ASSY, GLOVEBOX
                                            from £76.75
                                            from £76.75
                                            ACTUATOR ASY-FU/FILL Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 4G43-2K625-AA
                                            CABLE ABUTMENT, GLOVEBOX
                                            from £11.13
                                            from £11.13
                                            ABUTMENT CABLE G/C Genuine Aston Martin - New (to order)
                                            ABUTMENT CABLE G/C Genuine Aston Martin - Used In stock
                                            # 22
                                            MPN: 4G43-68-10703
                                            CABLE, FUEL FILLER FLAP RELEASE
                                            from £17.16
                                            from £17.16
                                            CABLE, FUEL FILLER FLAP RELEASE Genuine Aston Martin - New (to order)
                                            CABLE, FUEL FILLER FLAP RELEASE Genuine Aston Martin - Used In stock
                                            # 23
                                            MPN: 4G43-C06102-AB
                                            DAMPER AND STRING ASSY, GLOVEBOX
                                            from £17.94
                                            from £17.94
                                            DAMPER Genuine Aston Martin - New (to order)
                                            DAMPER Genuine Aston Martin - Used In stock
                                            # 24
                                            MPN: 77-84981-PK
                                            FOAM STRIPS
                                            from £20.01
                                            from £20.01
                                            FOAM STRIP-10 Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: 701157-PK
                                            SCREW ST 4.2X16 LARGE WASHER HD
                                            from £1.59
                                            from £1.59
                                            SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                                            # 26
                                            MPN: 701441-PK
                                            SCREW ST 4.2X13 PAN FLANG THREAD
                                            from £1.31
                                            from £1.31
                                            SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: 4G43-69-10112
                                            BUMPER, GLOVEBOX DOOR UPPER
                                            from £1.04
                                            from £1.04
                                            BUFFER-GLOVE BOX DR Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 9D33-46662-AA
                                            WASHER, 14MM, 43 ID 14 OD 0.8 THK
                                            from £0.47
                                            from £0.47
                                            14 MM WASHER Genuine Aston Martin - New (to order)
