aston martin rapide (2012) engine sealing parts diagram

03-1000-E1 - Engine Sealing

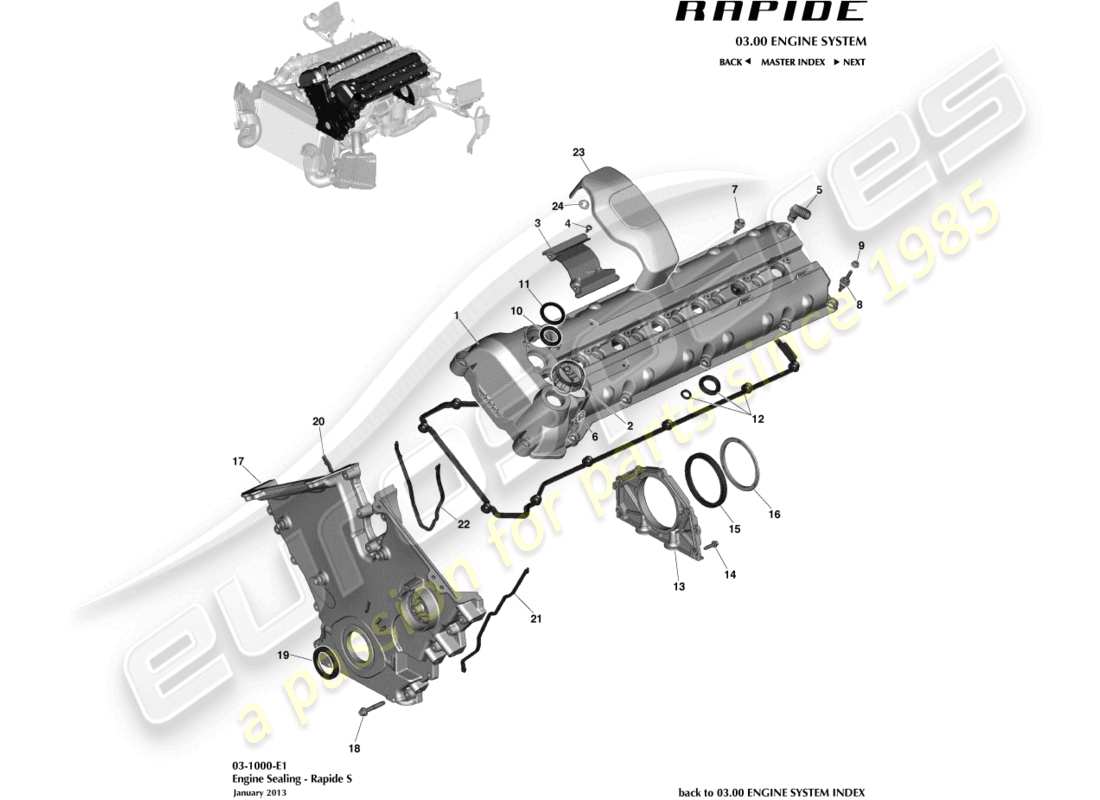

Aston Martin Rapide (2012) Engine Sealing Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: CD33-6A513-AB
                                COVER ASSEMBLY, LH
                                Up To 15MY, AM11. Includes items 5,7,8,10,11 and 12
                                COVER, LH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: ED23-6A513-AA
                                COVER ASSEMBLY, LH
                                From 15MY, AM29. Includes items 5,7,8,10,11 and 12
                                from £1,555.60
                                from £1,555.60
                                COVER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: CD33-6583-AB
                                COVER ASSEMBLY, RH
                                Up To 15MY, AM11. Includes items 5,7,8,10,11 and 12
                                COVER, RH Genuine Aston Martin - New (to order)
                                # 1
                                MPN: ED23-6583-AA
                                COVER ASSEMBLY, RH
                                From 15MY, AM29. Includes items 5,7,8,10,11 and 12
                                COVER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                # 2
                                MPN: CD33-6766-AA
                                OIL FILLER CAP
                                from £30.71
                                from £30.71
                                OIL FILLER CAP Genuine Aston Martin - New (to order)
                                # 3
                                MPN: CD33-6P068-AB
                                COIL COVER, SPARK PLUG
                                Up to 17MY
                                from £7.80
                                from £7.80
                                COIL COVER, SPARK PLUG Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 706471
                                SCREW, 5X16, COIL COVER FIXING
                                Up to 17MY
                                from £5.62
                                from £5.62
                                SCREW, 5X16, COIL COVER FIXING Genuine Aston Martin - New (to order)
                                # 5
                                MPN: CD33-95487-AA
                                VENT PIPE
                                VENT PIPE Genuine Aston Martin - New (to order)
                                # 6
                                MPN: CD33-5867827-AA
                                BOLLHOF MALE STUD
                                from £2.81
                                from £2.81
                                SNAPLOC SCREW Genuine Aston Martin - New (to order)
                                # 9
                                MPN: 703169
                                NUT, M6, HEX FLANGE
                                from £0.71
                                from £0.71
                                This part replaces part number 703168
                                NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                # 12
                                MPN: CD33-38565-AA
                                GASKET KIT
                                Gaskets Not Available Separately
                                from £94.61
                                from £94.61
                                GASKET KIT Genuine Aston Martin - New In stock
                                # 13
                                MPN: 01-85003
                                RETAINER, CRANK SEAL
                                from £139.79
                                from £139.79
                                RETAINER, CRANKSHAFT OIL SEAL Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 697745
                                BOLT, M6X22, HEX HEAD
                                BOLT, M6X22, HEX HEAD Genuine Aston Martin - New (to order)
                                # 15
                                MPN: 1R12-01-10434
                                SEAL, OIL, CRANKSHAFT REAR
                                from £26.78
                                from £26.78
                                SEAL, OIL, CRANKSHAFT REAR Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 4G43-01-10194
                                SLINGER, REAR SEAL
                                from £18.37
                                from £18.37
                                SLINGER, REAR SEAL Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 8G43-6D080-AC
                                COVER, ENGINE FRONT
                                Up to 15MY
                                from £602.96
                                from £602.96
                                COVER, ENGINE FRONT Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 8G43-6D080-DA
                                COVER, ENGINE FRONT
                                15MY on
                                from £797.89
                                from £797.89
                                COVER, ENGINE FRONT Genuine Aston Martin - New (to order)
                                # 18
                                MPN: 702853
                                BOLT AND WASHER, M8X47.5, HEX FLG
                                Supersession
                                Supersession
                                Genuine Aston Martin (no longer available to order)
                                # 19
                                MPN: 03-85067
                                SEAL, CRANKSHAFT FRONT
                                from £18.89
                                from £18.89
                                OIL SEAL-C/SHAFT-FRT Genuine Aston Martin - New In stock
                                # 20
                                MPN: 03-85066
                                GASKET, FRONT COVER
                                from £70.09
                                from £70.09
                                GASKET-FRT COVER-RH Genuine Aston Martin - New In stock
                                # 21
                                MPN: 03-85064
                                GASKET, ENGINE FRONT COVER
                                from £62.49
                                from £62.49
                                GASKET-FRT COVER-LH Genuine Aston Martin - New (to order)
                                # 22
                                MPN: 03-85065
                                GASKET, FRONT COVER, CENTRE
                                from £70.09
                                from £70.09
                                GASKET, FRONT COVER, CENTRE Genuine Aston Martin - New In stock
                                # 23
                                MPN: CD33-13C026-AA
                                COVER, OIL CONTROL VALVE SOLENOID
                                from £10.20
                                from £10.20
                                COVER, OIL CONTROL VALVE SOLENOID Genuine Aston Martin - New (to order)
                                # 24
                                MPN: CD33-3296-AA
                                FEMALE BOLLHOFF FIXING
                                from £0.51
                                from £0.51
                                FEMALE BOLLHOFF FIXING Genuine Aston Martin - New (to order)
