aston martin rapide (2012) air charging parts diagram

03-1200-00 - Air Charging

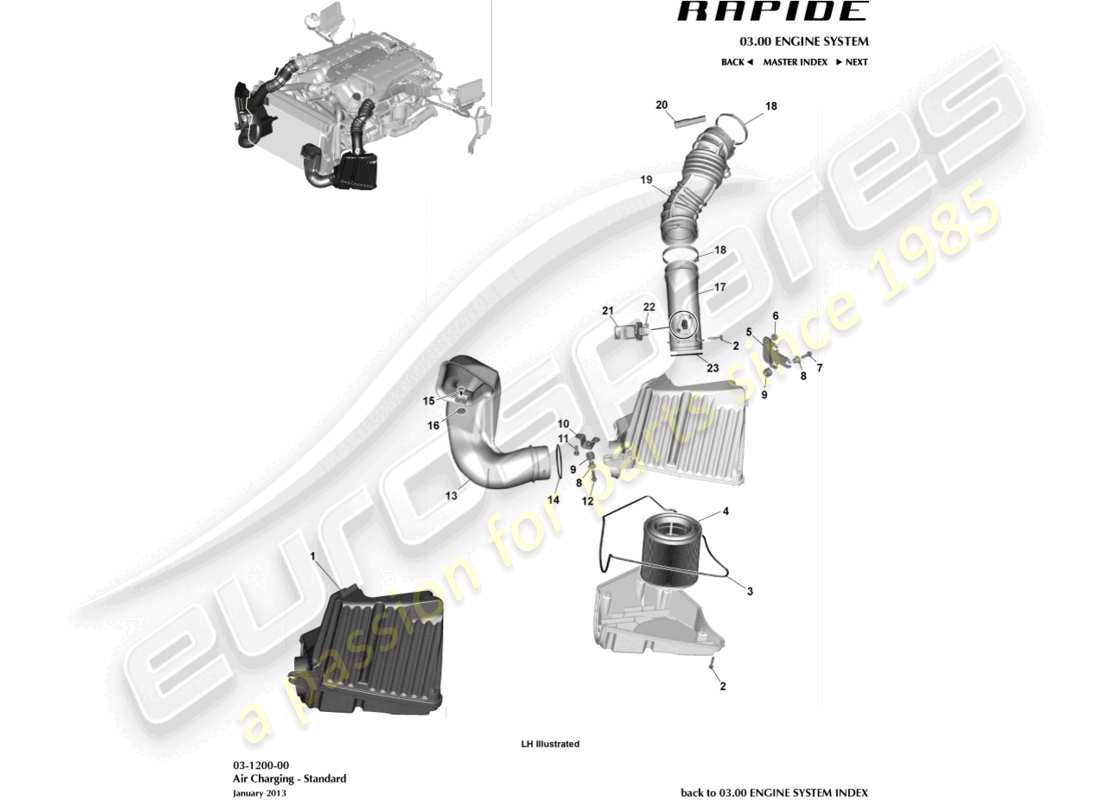

Aston Martin Rapide (2012) Air Charging Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 4G43-9600-CD
                                    AIRBOX ASSY, LHS
                                    from £222.50
                                    from £222.50
                                    AIRBOX ASSY-LHS Genuine Aston Martin - New (to order)
                                    # 1
                                    MPN: 4G43-9600-BD
                                    AIRBOX ASSY, RHS
                                    from £222.50
                                    from £222.50
                                    AIRBOX ASSY-RHS Genuine Aston Martin - New (to order)
                                    # 2
                                    MPN: 4G43-0410-AA
                                    SCREW, SELF TAP
                                    from £1.37
                                    from £1.37
                                    SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 4G43-9C664-AB
                                    GASKET, AIR CLEANER
                                    from £11.32
                                    from £11.32
                                    GSKT-A/CLNR ELEM Genuine Aston Martin - New In stock
                                    # 4
                                    MPN: 4G43-9601-AB-PK
                                    FILTER, AIR CLEANER
                                    Pack of 2
                                    from £49.95
                                    from £49.95
                                    This part replaces part number A4G43-9601-AB
                                    Genuine Aston Martin (no longer available to order)
                                    Alternative (#4G43-9601-AB) AIR FILTER (single) Genuine Aston Martin - New In stock
                                    # 5
                                    MPN: 4G43-9B609-AC
                                    BRACKET, AIR CLEANER OUTER
                                    from £52.09
                                    from £52.09
                                    BRACKET, AIR CLEANER OUTER Genuine Aston Martin - New (to order)
                                    BRACKET, AIR CLEANER OUTER Genuine Aston Martin - Used In stock
                                    # 6
                                    MPN: 703161
                                    NUT, M8, HEX FLANGE HEAD
                                    from £0.54
                                    from £0.54
                                    NUT HEX M8 FLANGE Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: 703025
                                    SCREW, M6 X 25, HEX FLANGE HEAD
                                    from £0.47
                                    from £0.47
                                    SCREW M6X1.0X25 HEX Genuine Aston Martin - New (to order)
                                    # 8
                                    MPN: 4G43-5144-AA
                                    SPACER
                                    from £8.47
                                    from £8.47
                                    SPACER Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 4G43-9697-CA
                                    GROMMET
                                    from £7.84
                                    from £7.84
                                    GROMMET Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: CD33-9B609-FA
                                    BRACKET, AIR CLEANER OUTER
                                    from £16.68
                                    from £16.68
                                    BRACKET, AIR CLEANER OUTER Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: 703203
                                    SCREW, M6 X 20, HEX FLANGE HEAD
                                    from £0.47
                                    from £0.47
                                    SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                    LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                    # 12
                                    MPN: 703199
                                    BOLT, M6 X 30, HEX FLANGE HEAD
                                    from £0.47
                                    from £0.47
                                    BOLT M6X30 HEX FLANGE Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 4G43-9A675-CD
                                    DUCT, AIR INTAKE, LH
                                    Includes Items 14 and 16
                                    from £51.02
                                    from £51.02
                                    DUCT - AIR INTAKE LH Genuine Aston Martin - New (to order)
                                    DUCT - AIR INTAKE LH Genuine Aston Martin - Used In stock
                                    # 13
                                    MPN: 4G43-9A675-BD
                                    DUCT, AIR INTAKE, RH
                                    Includes Items 14 and 16
                                    from £51.02
                                    from £51.02
                                    DUCT - AIR INTAKE RH Genuine Aston Martin - New (to order)
                                    DUCT - AIR INTAKE RH Genuine Aston Martin - Used In stock
                                    # 14
                                    MPN: 4G43-6C704-AA
                                    O-RING, ENGINE DUCT
                                    from £13.09
                                    from £13.09
                                    O-RING ENG DUCT Genuine Aston Martin - New (to order)
                                    # 15
                                    MPN: 4G43-MXC1800-AA-PK
                                    FASTENER, FIR TREE
                                    Pack of 20
                                    Supersession
                                    Supersession
                                    This part replaces part number 4G43-MXC1800-AA which we have in stock
                                    Genuine Aston Martin (no longer available to order)
                                    # 16
                                    MPN: 4G43-9N967-AA
                                    GROMMET, AIR CLEANER
                                    from £63.01
                                    from £63.01
                                    GROMMET, AIR CLEANER Genuine Aston Martin - New (to order)
                                    # 17
                                    MPN: 4G43-12B612-AB
                                    DUCT, AIR INTAKE
                                    Up To 15MY, Includes Item 23
                                    from £5.61
                                    from £5.61
                                    BDY-ENG ELECTRIC MS AI Genuine Aston Martin - New (to order)
                                    BDY-ENG ELECTRIC MS AI Genuine Aston Martin - Damaged In stock
                                    # 17
                                    MPN: ED23-12B612-AA
                                    DUCT, AIR INTAKE
                                    From 15MY, Includes Item 23
                                    from £15.87
                                    from £15.87
                                    DUCT, AIR INTAKE Genuine Aston Martin - New (to order)
                                    # 18
                                    MPN: 4G43-9N832-BB
                                    CLAMP, DUCT
                                    from £8.09
                                    from £8.09
                                    CLAMP, DUCT TO AIR BOX Genuine Aston Martin - New (to order)
                                    # 19
                                    MPN: CD33-9C623-AB
                                    DUCT ASSY, AIR CLEANER TO ENGINE LH
                                    Includes Item 18
                                    from £252.06
                                    from £252.06
                                    DUCT ASSEMBLY, AIR CLEANER TO ENGINE LH Genuine Aston Martin - New (to order)
                                    # 19
                                    MPN: CD33-9C623-BB
                                    DUCT ASSY, AIR CLEANER TO ENGINE RH
                                    Includes Item 18
                                    from £252.10
                                    from £252.10
                                    DUCT ASSEMBLY, AIR CLEANER TO ENGINE RH Genuine Aston Martin - New (to order)
                                    # 20
                                    MPN: 4G43-18K261-AA
                                    EDGE PROTECTION STRIP
                                    from £3.49
                                    from £3.49
                                    PROTECTION STRIP Genuine Aston Martin - New (to order)
                                    # 21
                                    MPN: 4G43-08-10933
                                    SENSOR ASSY, ENGINE MASS AIR FLOW
                                    Up to 15MY
                                    from £84.38
                                    from £84.38
                                    SNS ASSEMBLY ENG ELETR Genuine Aston Martin - New (to order)
                                    # 21
                                    MPN: ED23-12B579-AA
                                    SENSOR ASSY, ENGINE MASS AIR FLOW
                                    FROM 15MY
                                    from £153.61
                                    from £153.61
                                    SENSOR ASSEMBLY, ENGINE MASS AIR FLOW Genuine Aston Martin - New (to order)
                                    # 22
                                    MPN: 4G43-0410-BB
                                    SCREW, SELF TAP
                                    from £3.88
                                    from £3.88
                                    SCREW, SELF TAP Genuine Aston Martin - New (to order)
                                    # 23
                                    MPN: 4G43-6C704-BA
                                    O-RING, ENGINE DUCT
                                    from £14.55
                                    from £14.55
                                    O-RING ENG DCT INTR Genuine Aston Martin - New (to order)
