aston martin rapide (2012) evaporative emissions parts diagram

031300 - Evaporative Emissions

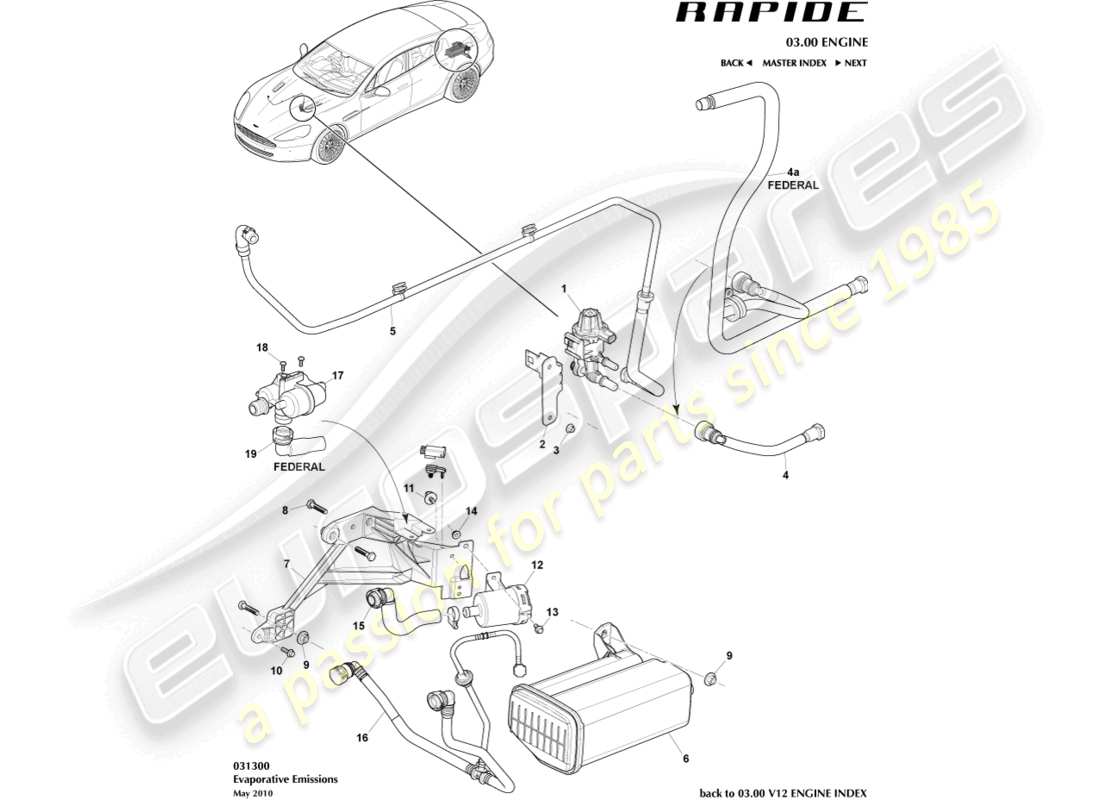

Aston Martin Rapide (2012) Evaporative Emissions Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 0
                                MPN: AD43-9E857-BA
                                CANNISTER AND BRACKET ASSY - NON FEDERAL
                                Items 6,7,8,12 and 15
                                from £329.55
                                from £329.55
                                CANNISTER AND BRACKET ASSEMBLY - NON FEDERAL Genuine Aston Martin - New (to order)
                                # 0
                                MPN: AD43-9E857-AB
                                CANNISTER AND BRACKET ASSY - FEDERAL
                                Federal, items 6,7,8,12,17,18 and 19
                                from £338.73
                                from £338.73
                                CANNISTER AND BRACKET ASSEMBLY - FEDERAL Genuine Aston Martin - New (to order)
                                # 1
                                MPN: 4L24-9G641-BB
                                VALVE ASSY, FU/ VPR
                                from £24.27
                                from £24.27
                                Genuine Aston Martin (no longer available to order)
                                VALVE ASSEMBLY FUEL VAPOUR VENT Genuine Aston Martin - Used In stock
                                # 2
                                MPN: 4G43-9G743-AA
                                BRACKET, ELECT FUEL VPR MGT
                                from £2.92
                                from £2.92
                                BRACKET ELE FU VPR MOUNTING Genuine Aston Martin - New (to order)
                                BRACKET ELE FU VPR MOUNTING Genuine Aston Martin - Used In stock
                                # 3
                                MPN: 702295
                                NUT, FLG, M5
                                from £0.47
                                from £0.47
                                NUT M5 HEX FLANGE Genuine Aston Martin - New (to order)
                                # 4
                                MPN: AD23-9B051-AA
                                TUBE, VAPOUR VALVE INLET
                                from £13.55
                                from £13.55
                                TUBE-FU/VPR VLV INLET Genuine Aston Martin - New (to order)
                                TUBE-FU/VPR VLV INLET Genuine Aston Martin - Used In stock
                                # 4a
                                MPN: 4G43-9B051-AD
                                TUBE, VAPOUR VALVE INLET
                                Federal
                                from £46.51
                                from £46.51
                                TUB-FU/VPR VLV INLET Genuine Aston Martin - New (to order)
                                TUB-FU/VPR VLV INLET Genuine Aston Martin - Used In stock
                                # 5
                                MPN: 4G43-9D289-BD
                                EVMV TO VAC HARNESS
                                from £58.86
                                from £58.86
                                PIPE, VALVE TO MANIFOLD Genuine Aston Martin - New (to order)
                                PIPE, VALVE TO MANIFOLD Genuine Aston Martin - Used In stock
                                # 6
                                -
                                CANNISTER, CARBON
                                # 7
                                MPN: AD43-9C177-AA
                                BRACKET, FUEL TANK VENT VALVE
                                BRACKET, FUEL TANK VENT VALVE Genuine Aston Martin - New (to order)
                                # 8
                                -
                                BOLT, M8X35 HEX HD
                                BRACKET, FUEL TANK VENT VALVE
                                # 9
                                MPN: 703161
                                NUT WASHER M8 HEX 10
                                from £0.54
                                from £0.54
                                NUT HEX M8 FLANGE Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 703203
                                SCREW, M6X20
                                from £0.47
                                from £0.47
                                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                # 11
                                MPN: 699711
                                RETAINER, HELLERMAN 10MM
                                from £1.15
                                from £1.15
                                P CLIP DIAMETER 23X15XM6 Genuine Aston Martin - New (to order)
                                # 12
                                MPN: 4G43-9B995-AA
                                FILTER, FUEL/VAPOUR STRG CAN
                                from £11.57
                                from £11.57
                                FLTR FU/VPR STEERING CNS Genuine Aston Martin - New (to order)
                                FLTR FU/VPR STEERING CNS Genuine Aston Martin - Used In stock
                                # 13
                                MPN: 700606
                                SCREW M6X16
                                from £0.47
                                from £0.47
                                SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 702944
                                NUT M6
                                from £0.58
                                from £0.58
                                NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                                LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                                # 15
                                MPN: AD43-9G271-BA
                                HOSE ASSY
                                HOSE, DMTL TO FILTER Genuine Aston Martin - New (to order)
                                # 16
                                MPN: AD43-9A228-AB
                                TUBE ASSY, FUEL TANK VENT VALVE TO STRG CANNISTER
                                from £125.83
                                from £125.83
                                VAPOUR LINE, CANISTER TO TANK Genuine Aston Martin - New (to order)
                                # 17
                                MPN: 6H52-9C111-BA
                                PUMP, ON BOARD DIAGNOSTIC LEAK CHECK
                                Federal
                                PUMP, DIAGNOSTIC LEAK CHECK Genuine Aston Martin - New (to order)
                                # 18
                                -
                                SCREW, M5X12
                                Federal, part of bracket assy
                                # 19
                                MPN: AD43-9G271-AA
                                HOSE ASSY
                                Federal,
                                HOSE, VENT DMTL FILTER Genuine Aston Martin - New (to order)
