aston martin rapide (2012) brake lines & hoses, lhd parts diagram

060603-C1 - Brake Lines & Hoses, LHD

Aston Martin Rapide (2012) Brake Lines & hoses, LHD Parts Diagram

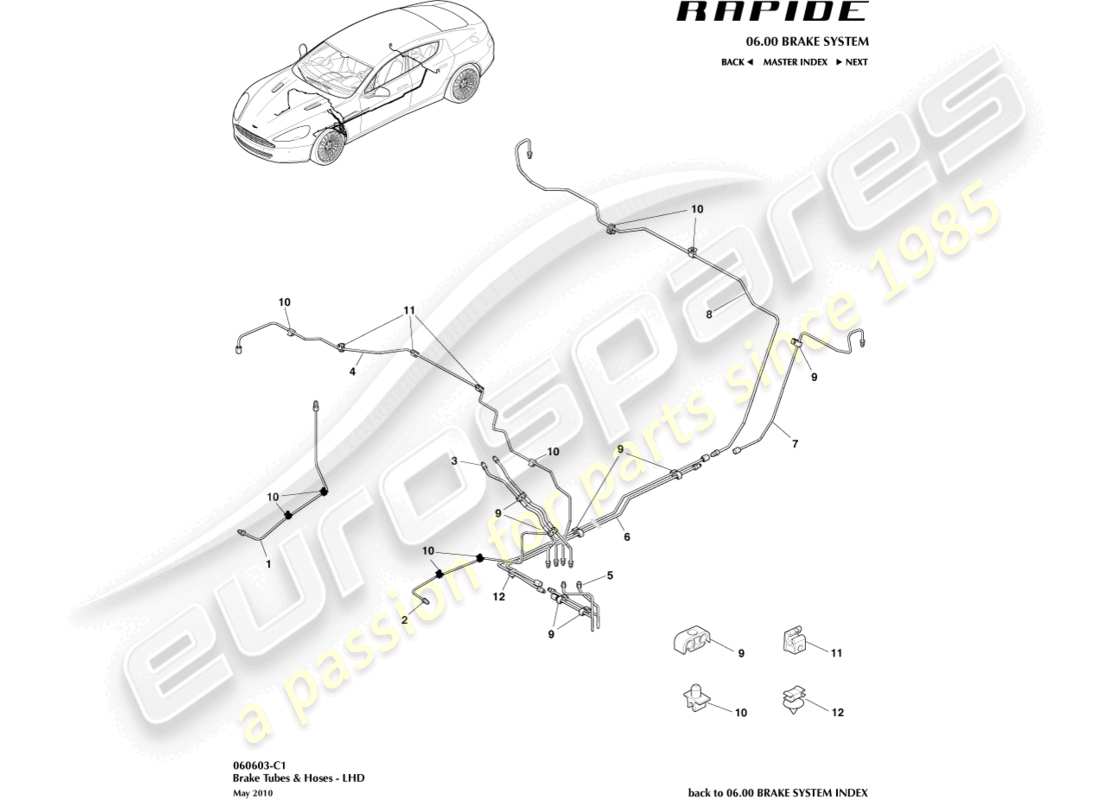

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 4G43-2263-AD
              TUBE ASSY, FRONT RH CALIPER
              from £8.71
              from £8.71
              TUB ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
              # 2
              MPN: AD43-2264-AB
              HOSE ASSY, FRONT LH CALIPER
              from £16.43
              from £16.43
              HOSE ASSEMBLY, FRONT LH CALIPER Genuine Aston Martin - New (to order)
              # 3
              MPN: AD43-2M022-AA
              HOSE ASSY, BRAKE MSTR CYLINDER LHD
              Includes Clips
              from £104.83
              from £104.83
              HOSE ASSEMBLY, BRAKE MSTR CYLINDER LHD Genuine Aston Martin - New (to order)
              # 4
              MPN: AD43-2263-BA
              TUBE ASSY, FRONT WHEEL BRAKE RH
              Includes Clips
              TUBE ASSEMBLY, FRONT WHEEL BRAKE RH Genuine Aston Martin - New (to order)
              # 5
              MPN: AD43-2A478-AA
              HOSE ASSY, REAR WHEEL BRAKE
              Includes Clips
              from £27.29
              from £27.29
              HOSE ASSEMBLY, REAR WHEEL BRAKE Genuine Aston Martin - New (to order)
              # 6
              MPN: AD43-2A478-BA
              HOSE ASSY, REAR WHEEL BRAKE
              Includes Clips
              from £53.90
              from £53.90
              HOSE ASSEMBLY, REAR WHEEL BRAKE Genuine Aston Martin - New (to order)
              # 7
              MPN: AD43-2268-CC
              TUBE ASSY, REAR RH CALIPER
              Includes Clips
              TUBE ASSEMBLY, REAR RH CALIPER Genuine Aston Martin - New (to order)
              # 8
              MPN: AD43-2267-CC
              TUBE ASSY, REAR LH CALIPER
              Includes Clips
              from £20.79
              from £20.79
              TUBE ASSEMBLY, REAR RH CALIPER Genuine Aston Martin - New (to order)
              # 9
              MPN: 4G43-79125-AA
              PIPE CLIP, DOUBLE
              from £1.54
              from £1.54
              CLIP BRAKE PIPE DBL Genuine Aston Martin - New (to order)
              # 10
              MPN: 8D33-ANR1864-AA
              PIPE CLIP, SINGLE
              from £0.82
              from £0.82
              CLIP BRAKE PIPE Genuine Aston Martin - New (to order)
              # 11
              MPN: 4G43-79124-AA
              PIPE CLIP, SINGLE
              from £2.48
              from £2.48
              CLIP BRAKE PIPE Genuine Aston Martin - New (to order)
              # 12
              MPN: 4G43-ANR5999-AA
              PIPE CLIP, DOUBLE
              from £3.05
              from £3.05
              CLIP BRAKE PIPE DBL Genuine Aston Martin - New (to order)
