aston martin rapide (2013) grille opening panel, s parts diagram

010202-B2 - Grille Opening Panel, S

Aston Martin Rapide (2013) Grille Opening Panel, S Parts Diagram

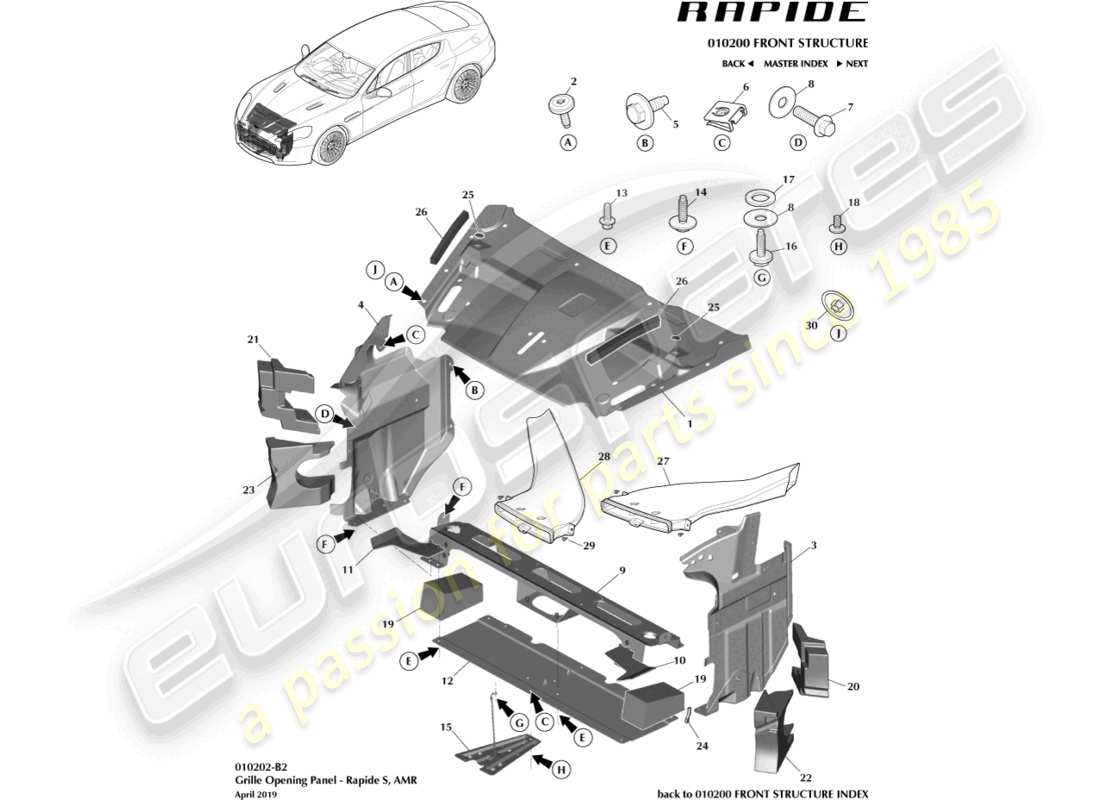

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: DG43-8136-BB
                                          GRILLE ASSEMBLY, RADIATOR CENTRE
                                          PANEL, RADIATOR CLOSING Genuine Aston Martin - New (to order)
                                          # 2
                                          MPN: 6G33-FA0115-AB-PK
                                          SCREW, M6X20, TORX HD
                                          Pack of 20
                                          from £12.00
                                          from £12.00
                                          This part replaces part number 6G33-FA0115-AB
                                          SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: DG43-F01991-AC
                                          PANEL, VENT AIR, LH
                                          Up to 15MY
                                          PANEL, VENT AIR, LH Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: FD43-F01991-AA
                                          PANEL, VENT AIR, LH
                                          FROM 15MY
                                          PANEL, VENT AIR, LH Genuine Aston Martin - New (to order)
                                          # 3
                                          MPN: FD33-F01991-AB
                                          PANEL, VENT AIR, LH
                                          AMR, 19MY on
                                          from £126.15
                                          from £126.15
                                          This part replaces part number FD33-F01991-AA
                                          PANEL, VENT AIR, LH Genuine Aston Martin - New (to order)
                                          # 4
                                          MPN: DG43-F01990-AC
                                          PANEL, VENT AIR, RH
                                          from £140.69
                                          from £140.69
                                          PANEL, VENT AIR, RH Genuine Aston Martin - New (to order)
                                          # 5
                                          MPN: 703139
                                          SCREW AND WASHER, M8X20
                                          from £1.90
                                          from £1.90
                                          SCREW/WASHER M8X20 Genuine Aston Martin - New (to order)
                                          # 6
                                          MPN: 7G43-10609E-AA-PK
                                          CLIP, SPRING, M6, U TYPE
                                          Pack of 10
                                          from £5.08
                                          from £5.08
                                          CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
                                          FRONT UNDERTRAY CLIP Genuine Ferrari Part - New (to order)
                                          # 7
                                          MPN: 703201
                                          SCREW, M8X30, HEX FLANGE HD
                                          from £0.47
                                          from £0.47
                                          SCREW M8X30 HEX FLNG Genuine Aston Martin - New (to order)
                                          # 8
                                          MPN: 697452
                                          WASHER, M8X24X1.8, BLACK
                                          from £4.39
                                          from £4.39
                                          WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: DD43-8052-AA
                                          RADIATOR SUPPORT BEAM, UPPER
                                          Up to 18MY
                                          from £136.88
                                          from £136.88
                                          RADIATOR SUPPORT BEAM, UPPER Genuine Aston Martin - New (to order)
                                          # 9
                                          MPN: DG43-8052-AA
                                          RADIATOR SUPPORT BEAM, UPPER
                                          AMR, 19MY on
                                          from £179.23
                                          from £179.23
                                          COVER ASSEMBLY RADIATOR SUPPORT LOWER Genuine Aston Martin - New (to order)
                                          # 10
                                          MPN: DD43-30907-AB
                                          CHIN STIFFENER, LH
                                          from £14.84
                                          from £14.84
                                          CHIN STIFFENER, LH Genuine Aston Martin - New (to order)
                                          # 11
                                          MPN: DD43-30908-AB
                                          CHIN STIFFENER, RH
                                          from £18.57
                                          from £18.57
                                          CHIN STIFFENER, RH Genuine Aston Martin - New (to order)
                                          # 12
                                          MPN: 8G43-2943751-AB
                                          RADIATOR SUPPORT BEAM, LOWER
                                          from £41.30
                                          from £41.30
                                          RADIATOR SUPPORT BEAM LOWER Genuine Aston Martin - New (to order)
                                          # 13
                                          MPN: 703265
                                          SCREW, M6X16, HEX FLANGE HD
                                          from £0.47
                                          from £0.47
                                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                          # 14
                                          MPN: 703152-PK
                                          SCREW AND WASHER, M6X20
                                          Pack of 10
                                          from £3.17
                                          from £3.17
                                          SCREW/WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: DG43-38B30-AC
                                          CHIN STIFFENER, CENTRAL, CARBON FIBRE SPOILER
                                          from £92.77
                                          from £92.77
                                          CHIN STIFFENER, CENTRAL, CARBON FIBRE SPOILER Genuine Aston Martin - New (to order)
                                          # 15
                                          MPN: ED43-38B30-AA
                                          CHIN STIFFENER, CENTRAL, PAINTED SPOILER
                                          14.5MY
                                          from £54.72
                                          from £54.72
                                          CHIN STIFFENER, CENTRAL, PAINTED SPOILER Genuine Aston Martin - New (to order)
                                          # 16
                                          MPN: 702839-PK
                                          SCREW AND WASHER, M6X20
                                          Pack of 10
                                          from £3.14
                                          from £3.14
                                          SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                          # 17
                                          MPN: 8G33-6078574-AA
                                          FLAT WASHER, NYLON
                                          from £0.47
                                          from £0.47
                                          FLAT WASHER-NYLON Genuine Aston Martin - New (to order)
                                          # 18
                                          MPN: 703143
                                          BUTTON SCREW, M6X12, TORX HD
                                          from £1.07
                                          from £1.07
                                          SCRW & WSHR-M6 X 12 Genuine Aston Martin - New (to order)
                                          # 19
                                          MPN: 8D33-42761-AA
                                          FOAM, COVER ASSEMBLY, RADIATOR SUPPORT
                                          from £44.30
                                          from £44.30
                                          COVER ASY-RAD SUPPORT FOA Genuine Aston Martin - New (to order)
                                          # 20
                                          MPN: CD33-17E671-AA
                                          BUMPER FOAM, UPPER, LH
                                          from £100.72
                                          from £100.72
                                          FOAM, BUMPER, UPPER, LH Genuine Aston Martin - New (to order)
                                          # 21
                                          MPN: CD33-17E670-AA
                                          BUMPER FOAM, UPPER, RH
                                          from £100.72
                                          from £100.72
                                          FOAM, BUMPER, UPPER, RH Genuine Aston Martin - New (to order)
                                          # 22
                                          MPN: DD43-334611-AA
                                          BUMPER INTF. FOAM, LH
                                          from £265.89
                                          from £265.89
                                          BUMPER INTF. FOAM, LH Genuine Aston Martin - New (to order)
                                          # 23
                                          MPN: DD43-334610-AA
                                          BUMPER INTF. FOAM, RH
                                          from £265.89
                                          from £265.89
                                          BUMPER INTF. FOAM, RH Genuine Aston Martin - New (to order)
                                          # 24
                                          MPN: 4G43-L41041-AA
                                          EDGE STRIP, BLACK
                                          from £6.27
                                          from £6.27
                                          EDGE STRIP Genuine Aston Martin - New (to order)
                                          # 25
                                          MPN: DG43-11028-AA
                                          BLANKING PLUG
                                          from £0.66
                                          from £0.66
                                          BLANKING PLUG Genuine Aston Martin - New (to order)
                                          # 26
                                          MPN: CG43-403D62-AA
                                          SEAL, UPPER PANEL
                                          from £2.75
                                          from £2.75
                                          SE UPPER PANEL VEN AIR Genuine Aston Martin - New (to order)
                                          # 27
                                          MPN: 8D33-2D207-AB
                                          DUCT, BRAKE COOLING, LH
                                          AMR, 19MY on
                                          from £103.27
                                          from £103.27
                                          DCT BRK CNTR COOL LH Genuine Aston Martin - New (to order)
                                          # 28
                                          MPN: 8D33-2D206-AB
                                          DUCT, BRAKE COOLING, RH
                                          AMR, 19MY on
                                          from £103.27
                                          from £103.27
                                          DCT BRK CNTR COOL RH Genuine Aston Martin - New (to order)
                                          # 29
                                          MPN: 703069
                                          SCREW, M6X16, HEX FLG
                                          AMR, 19MY on
                                          from £0.47
                                          from £0.47
                                          SCREW M6X16 Genuine Aston Martin - New (to order)
                                          # 30
                                          MPN: CD33-A15K610-AA
                                          TORX CAP, TX30, OD 16.2MM
                                          from £0.47
                                          from £0.47
                                          TORX CAP, TX30, OD 16.2MM Genuine Aston Martin - New (to order)
