aston martin rapide (2013) front door trim panel parts diagram

010505-B1 - Front Door Trim Panel

Aston Martin Rapide (2013) Front Door Trim Panel Parts Diagram

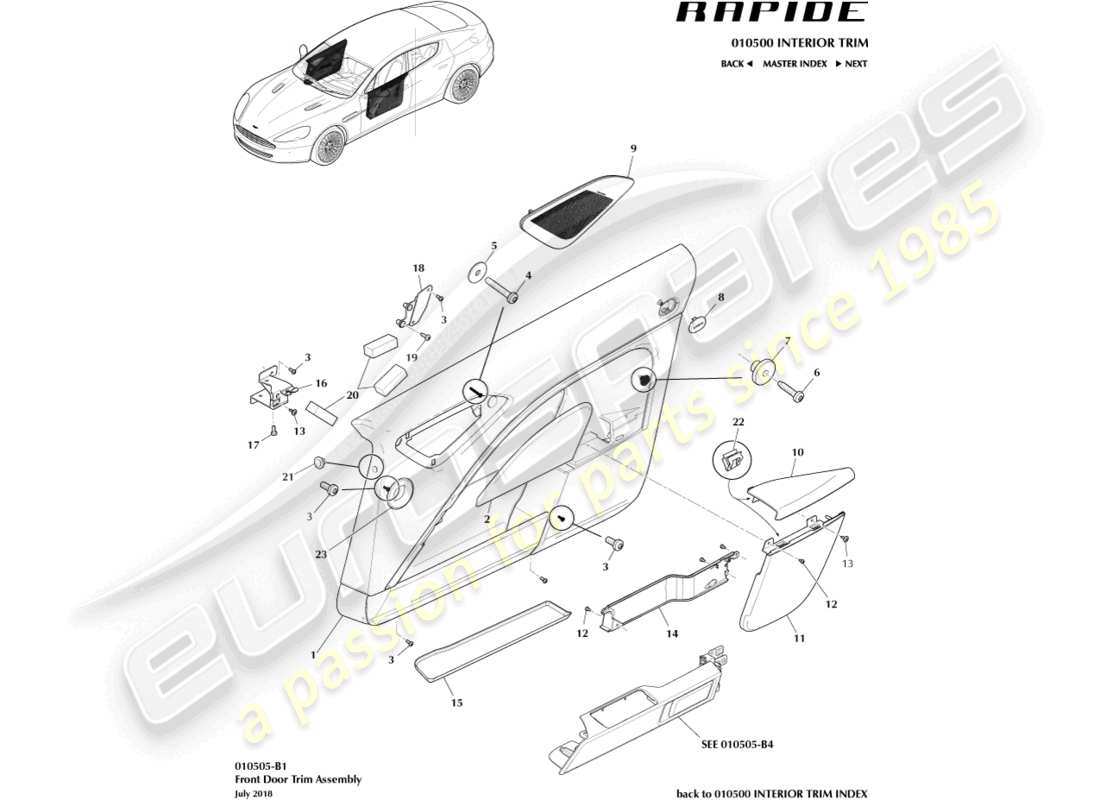

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: AD43-23942-AFW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH
                    Up To 15MY, With Leather Insert
                    from £1,977.88
                    from £1,977.88
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: AD43-23943-AFW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH
                    Up To 15MY, With Leather Insert
                    from £1,770.40
                    from £1,770.40
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: FD43-23942-ACW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH
                    From 15MY, With Leather Insert
                    from £1,977.88
                    from £1,977.88
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: FD43-23943-ACW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH
                    From 15MY, With Leather Insert
                    from £1,823.00
                    from £1,823.00
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: AD43-23942-BBW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH
                    Up To 15MY, Less Wood Upper Insert
                    from £3,039.98
                    from £3,039.98
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: AD43-23943-BBW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH
                    Up To 15MY, Less Wood Upper Insert
                    from £3,039.98
                    from £3,039.98
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: FD43-23942-BCW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH
                    From 15MY, Less Wood Upper Insert
                    from £2,153.61
                    from £2,153.61
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: FD43-23943-BCW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH
                    From 15MY, Less Wood Upper Insert
                    from £2,699.66
                    from £2,699.66
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: KD43-23942-AAW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH
                    From 19MY, AMR
                    from £8,491.18
                    from £8,491.18
                    PANEL ASSEMBLY, FRONT DOOR TRIM, RH Genuine Aston Martin - New (to order)
                    # 1
                    MPN: KD43-23943-AAW
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH
                    From 19MY, AMR
                    from £8,491.18
                    from £8,491.18
                    PANEL ASSEMBLY, FRONT DOOR TRIM, LH Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AD43-87-10075
                    KIT, UPPER INSERT, 2 PIECES
                    Walnut veneer
                    from £493.54
                    from £493.54
                    KIT, UPPER INSERT, 2 PIECES Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AD43-87-10077
                    KIT, UPPER INSERT, 2 PIECES
                    Piano Black Veneer
                    from £418.25
                    from £418.25
                    KIT, UPPER INSERT, 2 PIECES Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AD43-87-10079
                    KIT, UPPER INSERT, 2 PIECES
                    Mahogany veneer
                    from £418.25
                    from £418.25
                    KIT, UPPER INSERT, 2 PIECES Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AD43-87-10081
                    KIT, UPPER INSERT, 2 PIECES
                    Tamo Ash Veneer
                    from £452.38
                    from £452.38
                    KIT, UPPER INSERT, 2 PIECES Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AD43-87-10083
                    KIT, UPPER INSERT, 2 PIECES
                    Bamboo veneer
                    from £418.25
                    from £418.25
                    KIT, UPPER INSERT, 2 PIECES Genuine Aston Martin - New (to order)
                    # 2
                    MPN: FD43-87-10152
                    KIT, UPPER INSERT, 2 PIECES
                    From 15MY, Carbon Twill
                    from £871.74
                    from £871.74
                    KIT, UPPER INSERT, 2 PIECES Genuine Aston Martin - New (to order)
                    # 2
                    MPN: FD43-87-10154
                    KIT, UPPER INSERT, 2 PIECES
                    From 15MY, Ice Mocha
                    KIT, UPPER INSERT, 2 PIECES Genuine Aston Martin - New (to order)
                    # 2
                    MPN: GD43-87-10168
                    KIT, UPPER INSERT, 2 PIECES
                    From 15MY, Carbon Cuprum
                    from £1,917.38
                    from £1,917.38
                    KIT, UPPER INSERT, 2 PIECES Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AD43-23885-AAW
                    UPPER INSERT, LH
                    Leather Trimmed
                    from £131.76
                    from £131.76
                    UPPER INSERT, LH Genuine Aston Martin - New (to order)
                    # 2
                    MPN: AD43-23884-AAW
                    UPPER INSERT, RH
                    Leather Trimmed
                    from £131.76
                    from £131.76
                    UPPER INSERT, RH Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 702084
                    SCREW M5X12 PAN HD
                    Supersession
                    Supersession
                    Genuine Aston Martin (no longer available to order)
                    # 4
                    MPN: 703177
                    SCREW M5X30 PAN HD
                    per panel assembly
                    from £0.93
                    from £0.93
                    SCREW M5X30 TORX Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 700384
                    WASHER M5 STEEL BLACK
                    per panel assembly
                    WASHER, M5 (PT OF FIXING KIT) Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 704328
                    SCREW M5X20 PAN HD
                    per panel assembly
                    from £0.47
                    from £0.47
                    SCREW-M5X20 TORX PAN Genuine Aston Martin - New (to order)
                    # 7
                    MPN: AD43-11B390-AA
                    BOBBIN, FRONT DOOR MOUNTING
                    per panel assembly
                    from £84.79
                    from £84.79
                    BOBBIN, FRONT DOOR MOUNTING Genuine Aston Martin - New (to order)
                    # 8
                    MPN: AD43-23747-AAW
                    SRS INSERT ASSEMBLY
                    per panel assembly
                    from £131.86
                    from £131.86
                    SRS INSERT ASSEMBLY Genuine Aston Martin - New (to order)
                    # 9
                    MPN: AD43-18978-AB
                    SPEAKER GRILL, FRONT DOOR RH
                    Bang and Olufsen, Iridium
                    from £511.75
                    from £511.75
                    SPEAKER GRILLE, DOOR TRIM, RH, IRIDIUM Genuine Aston Martin - New (to order)
                    # 9
                    MPN: AD43-18979-AB
                    SPEAKER GRILL, FRONT DOOR LH
                    Bang and Olufsen, Iridium
                    from £511.75
                    from £511.75
                    SPEAKER GRILLE, DOOR TRIM, LH, IRIDIUM Genuine Aston Martin - New (to order)
                    # 9
                    MPN: CD33-18978-AA
                    SPEAKER GRILL, FRONT DOOR RH
                    Bang and Olufsen, Black
                    from £541.25
                    from £541.25
                    SPEAKER GRILLE, DOOR TRIM, RH, BLACK Genuine Aston Martin - New (to order)
                    # 9
                    MPN: CD33-18979-AA
                    SPEAKER GRILL, FRONT DOOR LH
                    Bang and Olufsen, Black
                    from £541.25
                    from £541.25
                    SPEAKER GRILLE, DOOR TRIM, LH, BLACK Genuine Aston Martin - New (to order)
                    # 9
                    MPN: GD43-18978-CA
                    SPEAKER GRILL, FRONT DOOR RH
                    From 16MY, ASK, Silver
                    SPEAKER GRILL, FRONT DOOR RH Genuine Aston Martin - New (to order)
                    # 9
                    MPN: GD43-18979-CA
                    SPEAKER GRILL, FRONT DOOR LH
                    From 16MY, ASK, Silver
                    SPEAKER GRILL, FRONT DOOR LH Genuine Aston Martin - New (to order)
                    # 10
                    MPN: AD43-24002-ABW
                    PAD, ARM REST, RH
                    from £163.19
                    from £163.19
                    PAD, ARM REST, RH Genuine Aston Martin - New (to order)
                    # 10
                    MPN: KD43-24002-ABW
                    PAD, ARM REST, RH
                    19MY, AMR
                    PAD, ARM REST, RH Genuine Aston Martin - New (to order)
                    # 10
                    MPN: AD43-24003-AAW
                    PAD, ARM REST, LH
                    from £50.79
                    from £50.79
                    PAD, ARM REST, LH Genuine Aston Martin - New (to order)
                    # 10
                    MPN: KD43-24003-AAW
                    PAD, ARM REST, LH
                    19MY, AMR
                    PAD, ARM REST, LH Genuine Aston Martin - New (to order)
                    # -
                    -
                    VELOUR ANTI-SQUEAK TAPE
                    220mm
                    # 11
                    MPN: AD43-24000-ABW
                    PAD, INNER, RH
                    from £191.95
                    from £191.95
                    PAD, INNER, RH Genuine Aston Martin - New (to order)
                    # 11
                    MPN: KD43-24000-AAW
                    PAD, INNER, RH
                    19MY, AMR
                    PAD, INNER, RH Genuine Aston Martin - New (to order)
                    # 11
                    MPN: AD43-24001-ABW
                    PAD, INNER, LH
                    from £191.95
                    from £191.95
                    PAD, INNER, LH Genuine Aston Martin - New (to order)
                    # 11
                    MPN: KD43-24001-AAW
                    PAD, INNER, LH
                    19MY, AMR
                    PAD, INNER, LH Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 703178
                    SCREW M4X8 PAN 6 LOBE
                    per side
                    from £0.47
                    from £0.47
                    M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 701157-PK
                    SCREW ST4.2X16 LARGE WASHER HD
                    per side
                    from £1.68
                    from £1.68
                    SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                    # 14
                    MPN: AD43-24242-AA
                    INSERT, FRONT DOOR GRAB RH
                    from £67.59
                    from £67.59
                    INSERT, FRONT DOOR GRAB RH Genuine Aston Martin - New (to order)
                    # 14
                    MPN: AD43-24243-AA
                    INSERT, FRONT DOOR GRAB LH
                    from £63.70
                    from £63.70
                    INSERT, FRONT DOOR GRAB LH Genuine Aston Martin - New (to order)
                    # 15
                    MPN: AD43-101396-AA
                    MAT, FRONT DOOR POCKET RH
                    from £70.83
                    from £70.83
                    MAT, FRONT DOOR POCKET RH Genuine Aston Martin - New (to order)
                    # 15
                    MPN: AD43-101397-AA
                    MAT, FRONT DOOR POCKET LH
                    from £70.83
                    from £70.83
                    MAT, FRONT DOOR POCKET LH Genuine Aston Martin - New (to order)
                    # 16
                    MPN: AD43-14C924-AC
                    BRACKET, MOUNTING, FRT DOOR GRAB HANDLE RH
                    BRACKET, MOUNTING, FRONT DOOR GRAB HANDLE RH Genuine Aston Martin - New (to order)
                    # 16
                    MPN: AD43-14C925-AC
                    BRACKET, MOUNTING, FRT DOOR GRAB HANDLE LH
                    BRACKET, MOUNTING, FRONT DOOR GRAB HANDLE LH Genuine Aston Martin - New (to order)
                    # 17
                    MPN: 701553
                    SCREW M6X16 PAN HD 6
                    from £0.47
                    from £0.47
                    SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                    # 18
                    MPN: AD43-12A954-AA
                    BRACKET, MOUNTING, FRT DOOR GRAB HANDLE REAR RH
                    from £11.94
                    from £11.94
                    BRACKET, MOUNTING, FRONT DOOR GRAB HANDLE REAR RH Genuine Aston Martin - New (to order)
                    # 18
                    MPN: AD43-12A955-AA
                    BRACKET, MOUNTING, FRT DOOR GRAB HANDLE REAR LH
                    from £11.58
                    from £11.58
                    BRACKET, MOUNTING, FRONT DOOR GRAB HANDLE REAR LH Genuine Aston Martin - New (to order)
                    # 19
                    MPN: 702294
                    SCREW M6X16 PAN HD
                    from £0.47
                    from £0.47
                    SCREW M6X1.00X16 PAN Genuine Aston Martin - New (to order)
                    # 20
                    MPN: FG43-M4D4515-AA
                    FOAM STRIP
                    from £0.47
                    from £0.47
                    This part replaces part number 4G43-M4D4515-BA
                    PAD, SEALING 30X30 Genuine Aston Martin - New (to order)
                    # 21
                    MPN: 6G33-N804263-AA
                    22MM BUNG
                    Up To VIN F04504
                    from £1.23
                    from £1.23
                    22MM BUNG Genuine Aston Martin - New (to order)
                    # 22
                    MPN: 706114
                    CLIP - DOOR TRIM PADS
                    from £6.88
                    from £6.88
                    This part replaces part number DD33-68172-AA
                    CLIP - DOOR TRIM PADS Genuine Aston Martin - New (to order)
                    # 23
                    MPN: 9G43-C237898-AA
                    BEZEL, DEMIST PIPE
                    Iridium Silver, except AMR
                    BEZEL, DEMIST PIPE Genuine Aston Martin - New (to order)
                    # 23
                    MPN: HY53-C237898-AA
                    BEZEL, DEMIST PIPE
                    Black, AMR
                    from £530.37
                    from £530.37
                    BEZEL, DEMIST PIPE Genuine Aston Martin - New (to order)
                    # -
                    -
                    FOAM STRIP BLACK
