aston martin rapide (2013) sill applique, amr parts diagram

010805-10 - Sill Applique, AMR

Aston Martin Rapide (2013) Sill Applique, AMR Parts Diagram

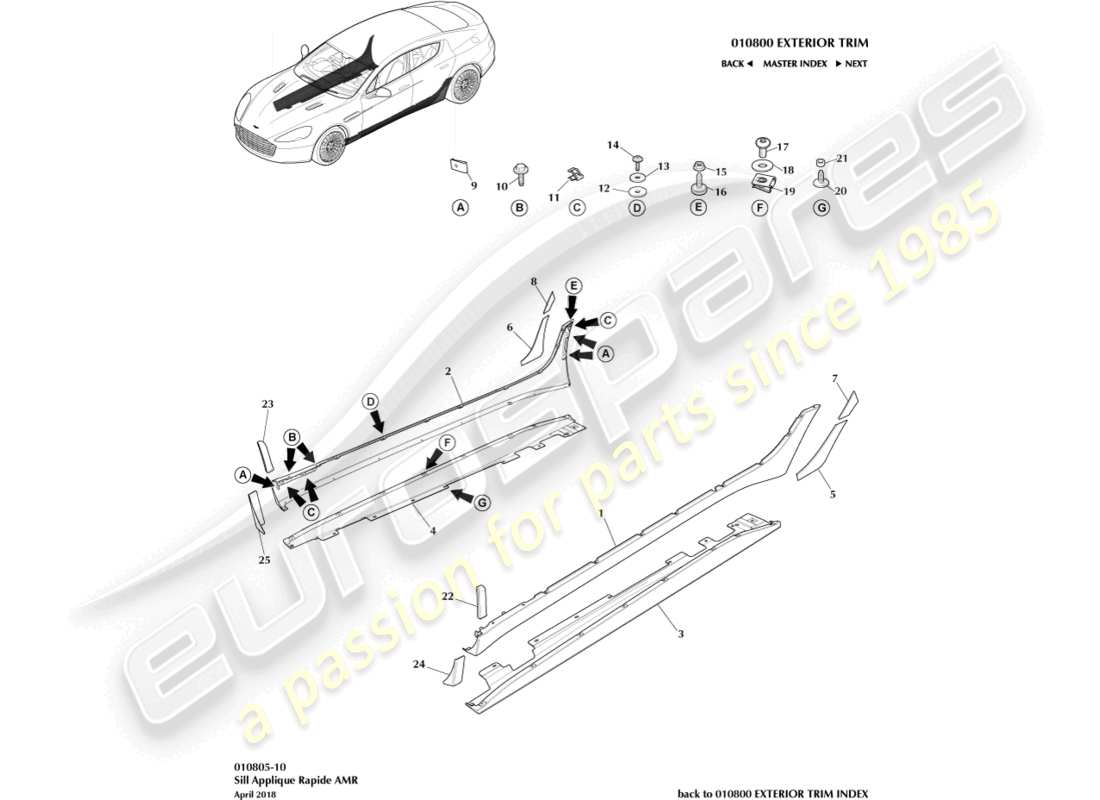

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: KD43-10609-AA
                    SILL APPLIQUE, LH
                    from £4,489.21
                    from £4,489.21
                    SILL APPLIQUE, LH Genuine Aston Martin - New (to order)
                    # 2
                    MPN: KD43-10608-AA
                    SILL APPLIQUE, RH
                    from £4,489.21
                    from £4,489.21
                    SILL APPLIQUE, RH Genuine Aston Martin - New (to order)
                    # 3
                    MPN: KD43-10611-AA
                    SILL BLADE, LH
                    from £4,671.95
                    from £4,671.95
                    SILL BLADE, LH Genuine Aston Martin - New (to order)
                    # 3
                    MPN: KD43-10611-BA
                    SILL BLADE, LH
                    With Graphic
                    from £4,671.94
                    from £4,671.94
                    SILL BLADE, LH Genuine Aston Martin - New (to order)
                    # 4
                    MPN: KD43-10610-AA
                    SILL BLADE, RH
                    from £4,671.95
                    from £4,671.95
                    SILL BLADE, RH Genuine Aston Martin - New (to order)
                    # 4
                    MPN: KD43-10610-BA
                    SILL BLADE, RH
                    With Graphic
                    from £4,671.94
                    from £4,671.94
                    SILL BLADE, RH Genuine Aston Martin - New (to order)
                    # 5
                    MPN: KD43-10625-AA
                    TAPE, SILL REAR, LH
                    Gloss
                    from £67.59
                    from £67.59
                    TAPE, SILL REAR, LH Genuine Aston Martin - New (to order)
                    # 5
                    MPN: KD43-10625-BA
                    TAPE, SILL REAR, LH
                    matt
                    from £56.94
                    from £56.94
                    TAPE, SILL REAR, LH Genuine Aston Martin - New (to order)
                    # 6
                    MPN: KD43-10624-AA
                    TAPE, SILL REAR, RH
                    Gloss
                    from £67.59
                    from £67.59
                    TAPE, SILL REAR, RH Genuine Aston Martin - New (to order)
                    # 6
                    MPN: KD43-10624-BA
                    TAPE, SILL REAR, RH
                    matt
                    from £56.94
                    from £56.94
                    TAPE, SILL REAR, RH Genuine Aston Martin - New (to order)
                    # 7
                    MPN: KD43-10631-AA
                    TAPE, REAR QUARTER, LH
                    Gloss
                    from £10.63
                    from £10.63
                    TAPE, REAR QUARTER, LH Genuine Aston Martin - New (to order)
                    # 7
                    MPN: KD43-10631-BA
                    TAPE, REAR QUARTER, LH
                    matt
                    from £9.13
                    from £9.13
                    TAPE, REAR QUARTER, LH Genuine Aston Martin - New (to order)
                    # 8
                    MPN: KD43-10630-AA
                    TAPE, REAR QUARTER, RH
                    Gloss
                    from £10.83
                    from £10.83
                    TAPE, REAR QUARTER, RH Genuine Aston Martin - New (to order)
                    # 8
                    MPN: KD43-10630-BA
                    TAPE, REAR QUARTER, RH
                    matt
                    from £9.13
                    from £9.13
                    TAPE, REAR QUARTER, RH Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 702511-PK
                    NUT, J SPRING 4.8X0.70
                    Pack of 10
                    from £3.92
                    from £3.92
                    NUT-SPG 4.8X0.70(10) Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 702839-PK
                    SCREW AND WASHER M6X20 HEX HD
                    Pack of 10
                    from £3.14
                    from £3.14
                    SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 702520-PK
                    CLIP, 8.5X16X1.7
                    Pack of 20
                    from £2.42
                    from £2.42
                    CLIP 8.5X16X1.7 (20) Genuine Aston Martin - New (to order)
                    FRONT BUMPER CLIP (SMALL) Genuine Ferrari Part - New (to order)
                    # 12
                    MPN: 8G33-6078574-AA
                    FLAT WASHER, NYLON, 22.2X12.9X1.5
                    from £0.47
                    from £0.47
                    FLAT WASHER-NYLON Genuine Aston Martin - New (to order)
                    # 13
                    MPN: 8G43-8979-AA
                    WASHER M5X20X1.5
                    from £0.47
                    from £0.47
                    WASHER M5X20X1.5 THK Genuine Aston Martin - New (to order)
                    # 14
                    MPN: 701573
                    SCREW AND WASHER, M4X16
                    Supersession
                    Supersession
                    Genuine Aston Martin (no longer available to order)
                    # 15
                    MPN: 702944
                    NUT, M6 HEX FLG
                    from £0.58
                    from £0.58
                    NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                    LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                    # 16
                    MPN: 6G33-FA0115-AB-PK
                    SCREW, M6X20 PAN HD TORX
                    Pack of 20
                    from £12.00
                    from £12.00
                    This part replaces part number 6G33-FA0115-AB
                    SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                    # 17
                    MPN: 703149
                    SCREW, M6X16 PAN FLG TORX
                    from £0.47
                    from £0.47
                    SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                    # 18
                    MPN: 4G43-16C694-AB-PK
                    WASHER, NYLON
                    Pack of 10
                    from £6.17
                    from £6.17
                    WASHER-NYLON(PACK 10 Genuine Aston Martin - New (to order)
                    # 19
                    MPN: 7G43-10609E-AA-PK
                    CLIP, SPRING M6 U TYPE 1.5-4.0, BLACK
                    Pack of 10
                    from £5.08
                    from £5.08
                    CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
                    FRONT UNDERTRAY CLIP Genuine Ferrari Part - New (to order)
                    # 20
                    MPN: 702514
                    SCREW, M6X14 PAN HD PATCH
                    from £0.56
                    from £0.56
                    SCREW M6 X 14 HD INT Genuine Aston Martin - New In stock
                    FRONT UNDERTRAY BOLT Genuine Ferrari Part - New (to order)
                    # 21
                    MPN: AD43-5144-AA
                    SPACER
                    from £0.87
                    from £0.87
                    SPACER Genuine Aston Martin - New (to order)
                    # 22
                    MPN: KD43-10627-AA
                    TAPE, FRONT WING, LH
                    Gloss
                    from £60.94
                    from £60.94
                    TAPE, FRONT WING, LH Genuine Aston Martin - New (to order)
                    # 22
                    MPN: KD43-10627-BA
                    TAPE, FRONT WING, LH
                    matt
                    from £51.34
                    from £51.34
                    TAPE, FRONT WING, LH Genuine Aston Martin - New (to order)
                    # 23
                    MPN: KD43-10626-AA
                    TAPE, FRONT WING, RH
                    Gloss
                    from £60.94
                    from £60.94
                    TAPE, FRONT WING, RH Genuine Aston Martin - New (to order)
                    # 23
                    MPN: KD43-10626-BA
                    TAPE, FRONT WING, RH
                    matt
                    from £51.34
                    from £51.34
                    TAPE, FRONT WING, RH Genuine Aston Martin - New (to order)
                    # 24
                    MPN: KD43-10633-AA
                    TAPE, FRONT SILL, LH
                    Gloss
                    from £60.94
                    from £60.94
                    TAPE, FRONT SILL, LH Genuine Aston Martin - New (to order)
                    # 24
                    MPN: KD43-10633-BA
                    TAPE, FRONT SILL, LH
                    matt
                    from £51.34
                    from £51.34
                    TAPE, FRONT SILL, LH Genuine Aston Martin - New (to order)
                    # 25
                    MPN: KD43-10632-AA
                    TAPE, FRONT SILL, RH
                    Gloss
                    from £60.94
                    from £60.94
                    TAPE, FRONT SILL, RH Genuine Aston Martin - New (to order)
                    # 25
                    MPN: KD43-10632-BA
                    TAPE, FRONT SILL, RH
                    matt
                    from £51.34
                    from £51.34
                    TAPE, FRONT SILL, RH Genuine Aston Martin - New (to order)
