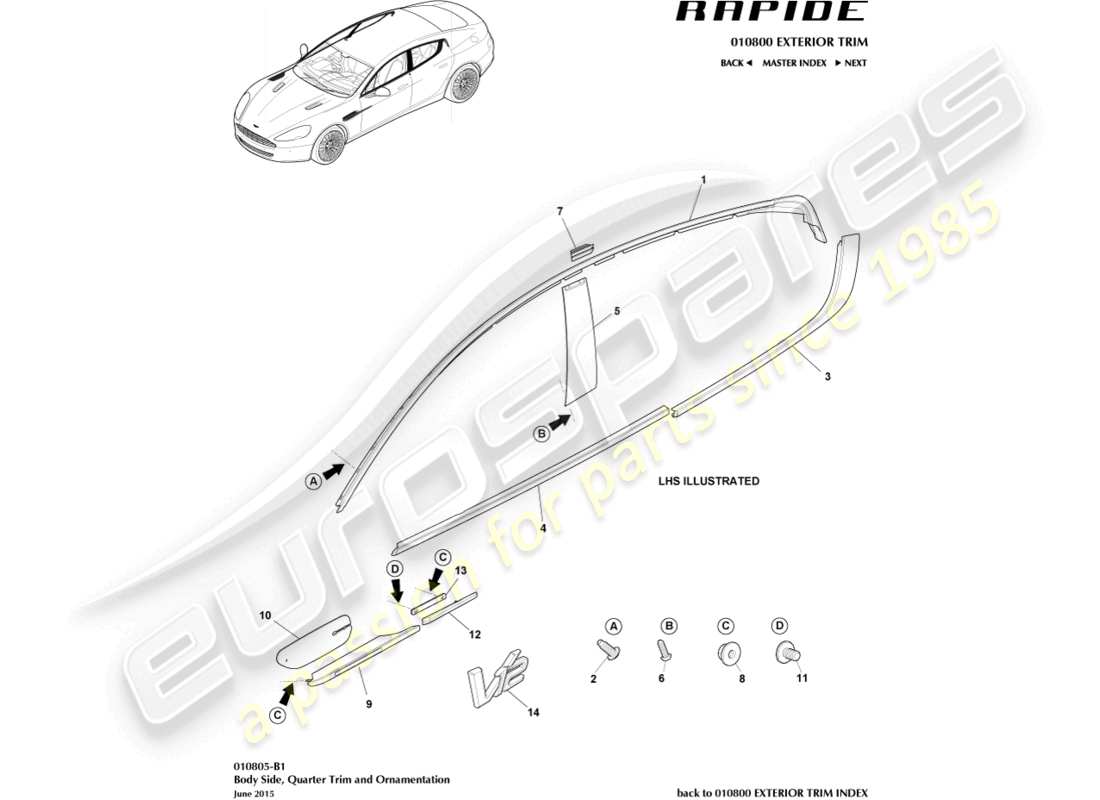

aston martin rapide (2013) body side trim parts diagram

010805-B1 - Body Side Trim

Aston Martin Rapide (2013) Body Side Trim Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: ED43-C519A38-AB
                SEAL ASSEMBLY RH, ROOF FINISHER
                from £477.78
                from £477.78
                SEAL ASSEMBLY RH, ROOF FINISHER Genuine Aston Martin - New (to order)
                # 1
                MPN: KD43-C519A38-AA
                SEAL ASSEMBLY RH, ROOF FINISHER
                19MY on, AMR
                from £1,751.75
                from £1,751.75
                SEAL ASSEMBLY RH, ROOF FINISHER Genuine Aston Martin - New (to order)
                # 1
                MPN: ED43-C519A39-AB
                SEAL ASSEMBLY LH, ROOF FINISHER
                from £526.21
                from £526.21
                SEAL ASSEMBLY LH, ROOF FINISHER Genuine Aston Martin - New (to order)
                # 1
                MPN: KD43-C519A39-AA
                SEAL ASSEMBLY LH, ROOF FINISHER
                19MY on, AMR
                from £1,751.75
                from £1,751.75
                SEAL ASSEMBLY LH, ROOF FINISHER Genuine Aston Martin - New (to order)
                # 2
                MPN: 6G33-51756-AA-PK
                SCREW, M5X13, PAN HEAD
                Pack of 10
                from £2.78
                from £2.78
                SCREW-M5X13 PN HD(10 Genuine Aston Martin - New (to order)
                # 3
                MPN: ED43-20568-AA
                FINISHER OUTER WAIST ASSEMBLY RH, REAR DOOR
                Supersession
                Supersession
                Genuine Aston Martin (no longer available to order)
                # 3
                MPN: KD43-20568-AA
                FINISHER OUTER WAIST ASSEMBLY RH, REAR DOOR
                19MY on, AMR
                from £849.80
                from £849.80
                FINISHER OUTER WAIST ASSEMBLY RH, REAR DOOR Genuine Aston Martin - New (to order)
                # 3
                MPN: ED43-20569-AA
                FINISHER OUTER WAIST ASSEMBLY LH, REAR DOOR
                FINISHER OUTER WAIST ASSEMBLY LH, REAR DOOR Genuine Aston Martin - New (to order)
                # 3
                MPN: KD43-20569-AA
                FINISHER OUTER WAIST ASSEMBLY LH, REAR DOOR
                19MY on, AMR
                from £849.80
                from £849.80
                FINISHER OUTER WAIST ASSEMBLY LH, REAR DOOR Genuine Aston Martin - New (to order)
                # 4
                MPN: ED43-20562-AA
                FINISHER OUTER WAIST ASSEMBLY RH, FRONT DOOR
                from £206.53
                from £206.53
                FINISHER OUTER WAIST ASSEMBLY RH, FRONT DOOR Genuine Aston Martin - New (to order)
                # 4
                MPN: KD43-20562-AA
                FINISHER OUTER WAIST ASSEMBLY RH, FRONT DOOR
                19MY on, AMR
                from £729.52
                from £729.52
                FINISHER OUTER WAIST ASSEMBLY RH, FRONT DOOR Genuine Aston Martin - New (to order)
                # 4
                MPN: ED43-20563-AA
                FINISHER OUTER WAIST ASSEMBLY LH, FRONT DOOR
                from £206.53
                from £206.53
                FINISHER OUTER WAIST ASSEMBLY LH, FRONT DOOR Genuine Aston Martin - New (to order)
                # 4
                MPN: KD43-20563-AA
                FINISHER OUTER WAIST ASSEMBLY LH, FRONT DOOR
                19MY on, AMR
                from £729.52
                from £729.52
                FINISHER OUTER WAIST ASSEMBLY LH, FRONT DOOR Genuine Aston Martin - New (to order)
                # 5
                MPN: AD43-280B10-BB
                FINISHER ASSEMBLY RH, B PILLAR
                Up to 16MY
                from £974.52
                from £974.52
                FINISHER ASSEMBLY RH, B PILLAR Genuine Aston Martin - New (to order)
                # 5
                MPN: AD43-280B11-BB
                FINISHER ASSEMBLY LH, B PILLAR
                Up to 16MY
                from £974.52
                from £974.52
                FINISHER ASSEMBLY LH, B PILLAR Genuine Aston Martin - New (to order)
                # 5
                MPN: FD43-280B10-AA
                FINISHER ASSEMBLY RH, B PILLAR
                FROM 16MY
                from £281.15
                from £281.15
                FINISHER ASSEMBLY RH, B PILLAR Genuine Aston Martin - New (to order)
                # 5
                MPN: FD43-280B11-AA
                FINISHER ASSEMBLY LH, B PILLAR
                FROM 16MY
                from £295.24
                from £295.24
                FINISHER ASSEMBLY LH, B PILLAR Genuine Aston Martin - New (to order)
                # 6
                MPN: AD43-0410-CA
                SCREW, M3.5X12 SELF TAP
                from £3.83
                from £3.83
                SCREW, M3.5X12 SELF TAP Genuine Aston Martin - New (to order)
                # 7
                MPN: ED43-72760-AA
                WEATHERSTRIP, FINISHER RH
                from £584.42
                from £584.42
                WEATHERSTRIP, FINISHER RH Genuine Aston Martin - New (to order)
                # 7
                MPN: ED43-72761-AA
                WEATHERSTRIP, FINISHER LH
                from £584.42
                from £584.42
                WEATHERSTRIP, FINISHER LH Genuine Aston Martin - New (to order)
                # 8
                MPN: 702944
                NUT, M6
                from £0.58
                from £0.58
                NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                # 9
                MPN: AD43-280B62-AA
                SIDE STRAKE FENDER ASSEMBLY, RH
                SIDE STRAKE FENDER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 9
                MPN: KD43-280B62-CA
                SIDE STRAKE FENDER ASSEMBLY, RH
                Black, 19MY, AMR
                from £565.13
                from £565.13
                SIDE STRAKE FENDER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 9
                MPN: KD43-280B62-BB
                SIDE STRAKE FENDER ASSEMBLY, RH
                Carbon, 19MY, AMR
                from £2,359.14
                from £2,359.14
                SIDE STRAKE FENDER ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 9
                MPN: AD43-280B63-AA
                SIDE STRAKE FENDER ASSEMBLY, LH
                SIDE STRAKE FENDER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 9
                MPN: KD43-280B63-CA
                SIDE STRAKE FENDER ASSEMBLY, LH
                Black, 19MY, AMR
                from £565.13
                from £565.13
                SIDE STRAKE FENDER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 9
                MPN: KD43-280B63-BB
                SIDE STRAKE FENDER ASSEMBLY, LH
                Carbon, 19MY, AMR
                from £2,359.14
                from £2,359.14
                SIDE STRAKE FENDER ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 10
                MPN: AD43-280B83-AA
                STRAKE, MESH ASSEMBLY, RH
                Platinum
                from £90.51
                from £90.51
                STRAKE, MESH ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 10
                MPN: AD43-280B83-BB
                STRAKE, MESH ASSEMBLY, RH
                TITANIUM
                from £90.51
                from £90.51
                STRAKE, MESH ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 10
                MPN: KD43-280B83-AA
                STRAKE, MESH ASSEMBLY, RH
                19MY, AMR
                from £140.48
                from £140.48
                STRAKE, MESH ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 10
                MPN: AD43-280B84-AA
                STRAKE, MESH ASSEMBLY, LH
                Platinum
                from £90.51
                from £90.51
                STRAKE, MESH ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 10
                MPN: AD43-280B84-BB
                STRAKE, MESH ASSEMBLY, LH
                TITANIUM
                from £45.37
                from £45.37
                STRAKE, MESH ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 10
                MPN: KD43-280B84-AA
                STRAKE, MESH ASSEMBLY, LH
                19MY, AMR
                from £140.48
                from £140.48
                STRAKE, MESH ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 11
                MPN: 703266
                SCREW, M6X10
                from £0.54
                from £0.54
                SCREWM6X10 PAN HEAD Genuine Aston Martin - New (to order)
                # -
                -
                NYLON WASHER
                # 12
                MPN: AD43-018K28-AB
                SIDE STRAKE DOOR ASSEMBLY, RH
                from £245.88
                from £245.88
                SIDE STRAKE DOOR ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 12
                MPN: KD43-018K28-CA
                SIDE STRAKE DOOR ASSEMBLY, RH
                Black, 19MY, AMR
                from £297.78
                from £297.78
                SIDE STRAKE DOOR ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 12
                MPN: KD43-018K28-BA
                SIDE STRAKE DOOR ASSEMBLY, RH
                Carbon, 19MY, AMR
                from £1,594.55
                from £1,594.55
                SIDE STRAKE DOOR ASSEMBLY, RH Genuine Aston Martin - New (to order)
                # 12
                MPN: AD43-018K29-AB
                SIDE STRAKE DOOR ASSEMBLY, LH
                from £326.01
                from £326.01
                SIDE STRAKE DOOR ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 12
                MPN: KD43-018K29-CA
                SIDE STRAKE DOOR ASSEMBLY, LH
                Black, 19MY, AMR
                from £269.00
                from £269.00
                SIDE STRAKE DOOR ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 12
                MPN: KD43-018K29-BA
                SIDE STRAKE DOOR ASSEMBLY, LH
                Carbon, 19MY, AMR
                from £1,594.55
                from £1,594.55
                SIDE STRAKE DOOR ASSEMBLY, LH Genuine Aston Martin - New (to order)
                # 13
                MPN: AD43-018K27-AA
                RE-BAR, DOOR STRAKE
                from £6.12
                from £6.12
                RE-BAR, DOOR STRAKE Genuine Aston Martin - New (to order)
                # 14
                MPN: AD23-43548-AA
                BADGE, V12
                BADGE, V12 Genuine Aston Martin - New (to order)
