aston martin rapide (2013) badging parts diagram

010807-B1 - Badging

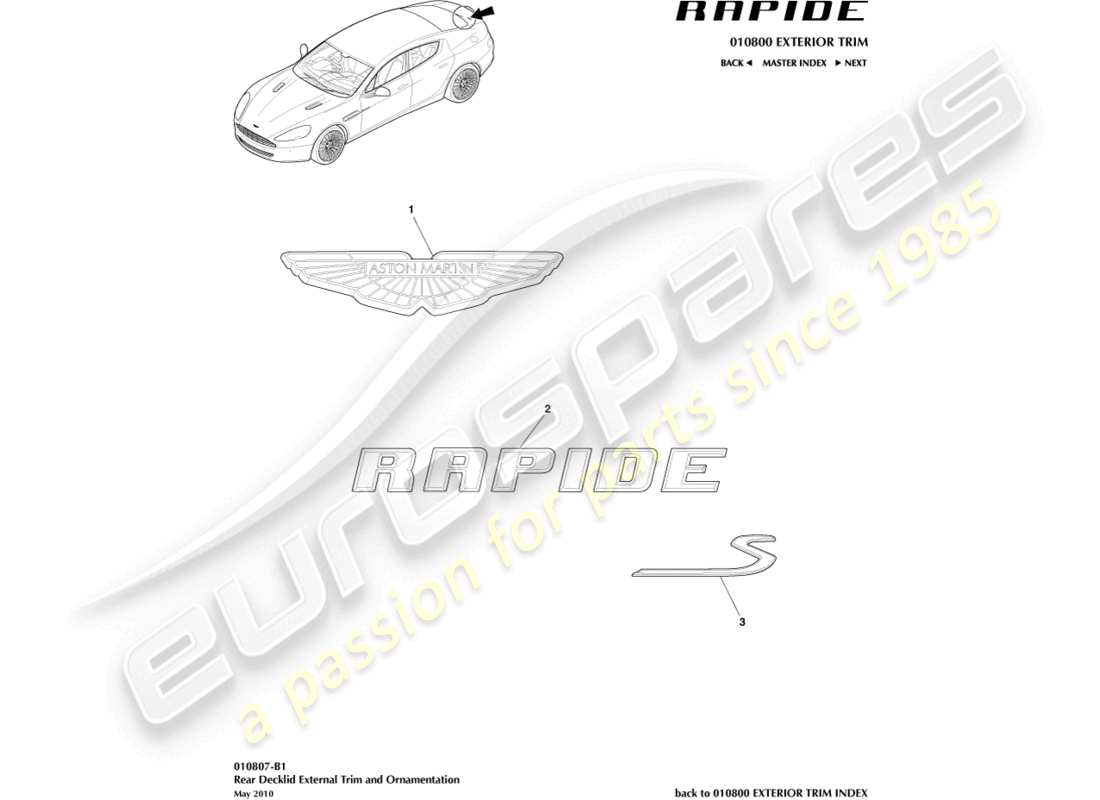

Aston Martin Rapide (2013) Badging Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: 4G43-407A74-BB
    BADGE, EXTERIOR AM WING
    Green/Cream
    from £55.51
    from £55.51
    BADGE ASSEMBLY - AML Genuine Aston Martin - New (to order)
    BADGE ASSEMBLY - AML Genuine Aston Martin - Used In stock
    # 1
    MPN: EG43-407A74-AA
    BADGE ASSEMBLY, Aston Martin WINGS
    Centenary Edition
    from £688.31
    from £688.31
    BADGE, Aston Martin WINGS Genuine Aston Martin - New (to order)
    # 1
    MPN: 8D33-407A74-BB
    BADGE ASSY, Aston Martin
    19MY, Black/Cream
    from £100.92
    from £100.92
    BADGE ASSEMBLY AML Genuine Aston Martin - New (to order)
    # 1
    MPN: FG33-407A74-AB
    BADGE ASSEMBLY, Aston Martin WINGS
    19MY, Carbon
    from £1,591.56
    from £1,591.56
    BADGE ASSEMBLY - AML Genuine Aston Martin - New (to order)
    # 2
    MPN: AD43-001B40-BA
    BADGE REAR, RAPIDE
    from £159.77
    from £159.77
    BADGE REAR, RAPIDE Genuine Aston Martin - New (to order)
    # 3
    MPN: DD43-43549-AA
    S BADGE, REAR
    Rapide S
    from £50.22
    from £50.22
    S BADGE, REAR Genuine Aston Martin - New (to order)
