aston martin rapide (2013) rear console parts diagram

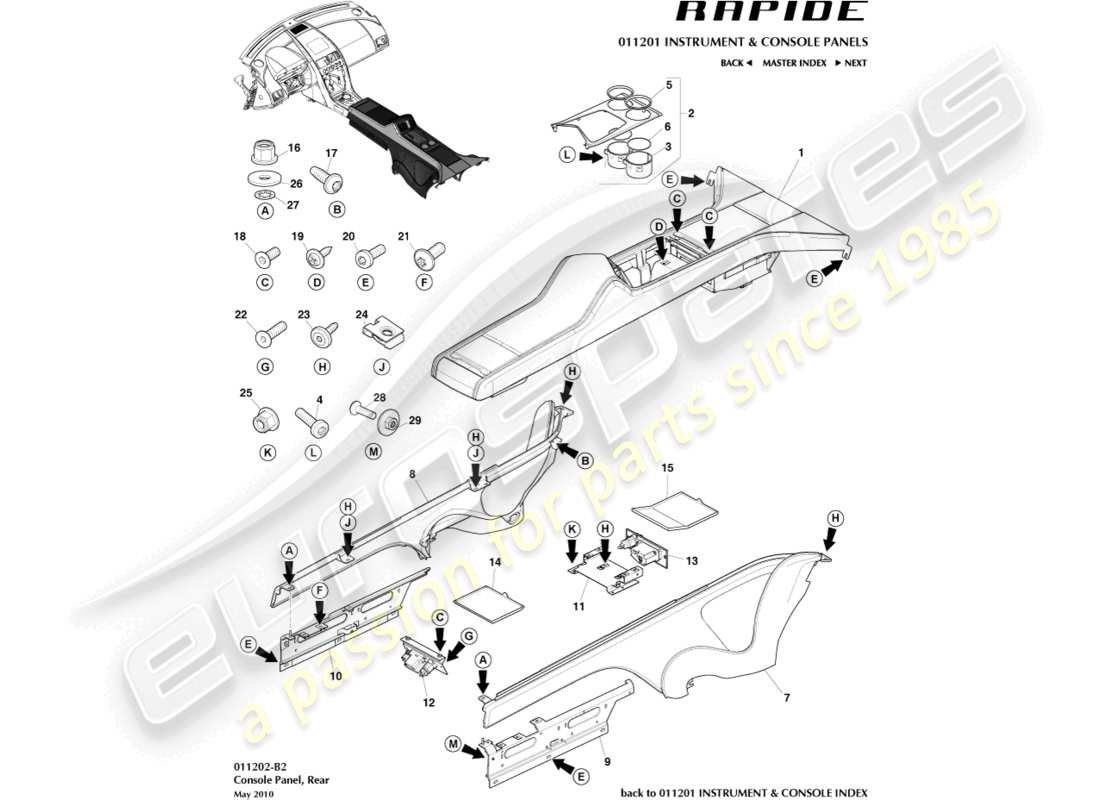

011202-B2 - REAR CONSOLE

Aston Martin Rapide (2013) Rear Console Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: AD43-045C76-AHW
                                            CONSOLE ASSEMBLY, UPPER COMPARTMENT
                                            Iridium Air Vent
                                            from £4,185.11
                                            from £4,185.11
                                            CONSOLE ASSEMBLY, UPPER COMPARTMENT Genuine Aston Martin - New (to order)
                                            # 1
                                            MPN: FD43-045C76-AAW
                                            CONSOLE ASSEMBLY, UPPER COMPARTMENT
                                            Piano Black Air Vent
                                            from £3,664.64
                                            from £3,664.64
                                            CONSOLE ASSEMBLY, UPPER COMPARTMENT Genuine Aston Martin - New (to order)
                                            # 1
                                            MPN: FD43-045C76-BAW
                                            CONSOLE ASSEMBLY, UPPER COMPARTMENT
                                            Ice Mocha Air Vent
                                            CONSOLE ASSEMBLY, UPPER COMPARTMENT Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: AD43-04463-AAW
                                            PLATE ASSEMBLY, CONSOLE PANEL
                                            from £2,749.53
                                            from £2,749.53
                                            PLATE ASSEMBLY, CONSOLE PANEL Genuine Aston Martin - New (to order)
                                            # 3
                                            MPN: CD43-13560-AAW
                                            CUPHOLDER ASSEMBLY
                                            from £183.68
                                            from £183.68
                                            CUPHOLDER ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: 6G33-104101-BA
                                            SCREW, THREAD FORMING
                                            3 per Cup Holder
                                            from £0.47
                                            from £0.47
                                            SCREW-M4 THRD FORM Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: AD43-29745-AA
                                            FINISHER, CUP HOLDER
                                            from £51.36
                                            from £51.36
                                            FINISHER, CUP HOLDER Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: 8047
                                            TAPE, ANTI SQUEAK, 10MM
                                            Roll 50m
                                            TAPE, ANTI SQUEAK, 10MM Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: AD43-040K60-AA
                                            BASE INSERT, CUP HOLDER
                                            from £23.72
                                            from £23.72
                                            CUP HOLDER INSERT BASE Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: AD43-047K63-AEW
                                            CONSOLE ASSEMBLY, LOWER SIDE LH
                                            from £781.80
                                            from £781.80
                                            CONSOLE ASSEMBLY, LOWER SIDE LH Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: AD43-047K64-AEW
                                            CONSOLE ASSEMBLY, LOWER SIDE RH
                                            from £781.80
                                            from £781.80
                                            CONSOLE ASSEMBLY, LOWER SIDE RH Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: AD43-046A57-AF
                                            BRACKET ASSEMBLY, CONSOLE FRONT LH
                                            Up to 15MY
                                            from £156.20
                                            from £156.20
                                            BRACKET ASSEMBLY, CONSOLE FRONT LH Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: FD43-046A57-AB
                                            BRACKET ASSEMBLY, CONSOLE FRONT LH
                                            FROM 15MY
                                            BRACKET ASSEMBLY, CONSOLE FRONT LH Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: AD43-046A56-AF
                                            BRACKET ASSEMBLY, CONSOLE FRONT RH
                                            Up to 15MY
                                            from £156.20
                                            from £156.20
                                            BRACKET ASSEMBLY, CONSOLE FRONT RH Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: FD43-046A56-AB
                                            BRACKET ASSEMBLY, CONSOLE FRONT RH
                                            FROM 15MY
                                            from £171.47
                                            from £171.47
                                            BRACKET ASSEMBLY, CONSOLE FRONT RH Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: AD43-044G67-AC
                                            BRACKET, CONSOLE CENTRE
                                            BRACKET, CONSOLE CENTRE Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: AD43-045L26-AD
                                            PLATE ASSEMBLY, CONSOLE PANEL FRONT
                                            Less Switches
                                            from £54.24
                                            from £54.24
                                            PLATE ASSEMBLY, CONSOLE PANEL FRONT Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: AD43-044E96-BA
                                            PLATE ASSEMBLY, CONSOLE PANEL WITH AUX INPUT
                                            from £813.30
                                            from £813.30
                                            PLATE ASSEMBLY, CONSOLE PANEL WITH AUX INPUT Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: AD43-047A03-AB
                                            INSERT, CONSOLE STOWAGE FRONT
                                            from £24.92
                                            from £24.92
                                            INSERT, CONSOLE STOWAGE FRONT Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: AD43-046C18-AA
                                            INSERT, CONSOLE STOWAGE REAR
                                            from £11.99
                                            from £11.99
                                            INSERT, CONSOLE STOWAGE REAR Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: 702840
                                            NUT/WASHER ASSEMBLY M6 NYLOK
                                            from £0.47
                                            from £0.47
                                            NUT/WASHER ASSEMBLY M6 Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: 701447
                                            SCREW, M4X12 PAN HD
                                            from £0.47
                                            from £0.47
                                            SCREW 4X12 PAN Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: 703725
                                            SCREW, M4X10 FLAT CSK SOCKET
                                            from £0.87
                                            from £0.87
                                            SCREW-M4X10 COUNTERSUNK SOCKET Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 701157-PK
                                            SCREW, ST4.2X16 LARGE WASHER HD CSK
                                            from £1.59
                                            from £1.59
                                            SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 702637
                                            SCREW, M6X20 SKT HD BTN
                                            from £0.47
                                            from £0.47
                                            SCREW M6X20 SOCKET HD Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 703149
                                            SCREW, M6X16 FLG HD
                                            from £0.47
                                            from £0.47
                                            SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 4G43-103081-BA
                                            SCREW, M4X16 CSK
                                            Black
                                            from £0.47
                                            from £0.47
                                            SCREW COUNTERSUNK M4 X 16 Genuine Aston Martin - New (to order)
                                            # 23
                                            MPN: 6G33-FA0115-AB
                                            SCREW AND WASHER M6X19 PAN HD
                                            Supersession
                                            Supersession
                                            Genuine Aston Martin (no longer available to order)
                                            # 24
                                            MPN: 701448
                                            NUT, ST4.2X2.1-3.1 U TYPE SPLIT SPRING
                                            from £0.47
                                            from £0.47
                                            NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                                            SPLITTER NUTS Genuine Ferrari Part - New (to order)
                                            # 25
                                            MPN: 703164
                                            NUT, M6 HEX FLG
                                            from £0.47
                                            from £0.47
                                            M6 LOCKNUT FLANGE NYL Genuine Aston Martin - New (to order)
                                            # 26
                                            MPN: 697517-PK
                                            WASHER M6 LARGE OD BLACK
                                            Pack of 20
                                            from £13.07
                                            from £13.07
                                            WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
                                            # 27
                                            MPN: 704620
                                            WASHER M6 INTERNAL SHAKEPROOF
                                            WASHER-M6 INT S/PRF Genuine Aston Martin - New (to order)
                                            # 28
                                            MPN: 4G43-3L657-AA
                                            SCREW M5X20 CSK SKT SS BLK
                                            from £0.47
                                            from £0.47
                                            SCW M5X20 COUNTERSUNK HD SS Genuine Aston Martin - New (to order)
                                            # 29
                                            MPN: W715351-S437
                                            NUT & WASHER M5 HEX FL8
                                            NUT AND WASHER, M5 Genuine Aston Martin - New (to order)
                                            # -
                                            -
                                            BUMPON, SQUARE
                                            lower console to carpet
