aston martin rapide (2013) fuel charging & controls parts diagram

03-0400-E1 - Fuel Charging & Controls

Aston Martin Rapide (2013) Fuel Charging & Controls Parts Diagram

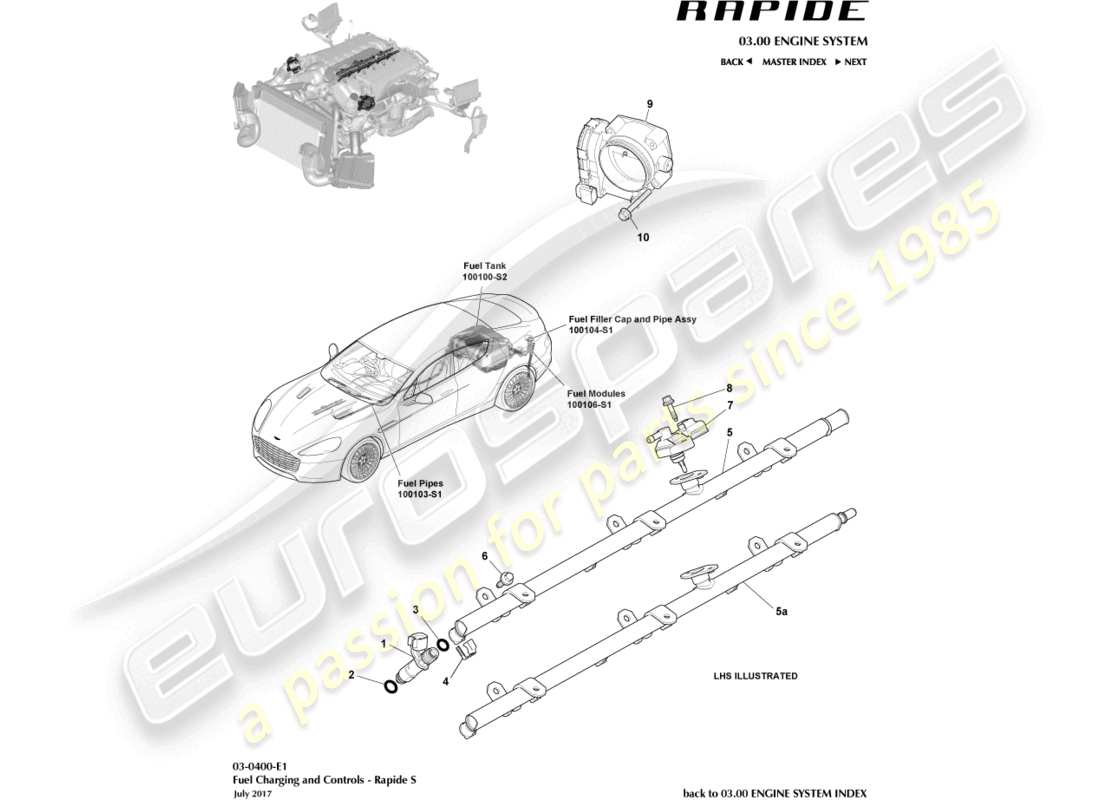

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: CD33-9F593-AA
              INJECTOR, FUEL
              Includes Items 2 and 3
              from £33.44
              from £33.44
              INJECTOR, FUEL Genuine Aston Martin - New (to order)
              # 4
              MPN: 6R83-9N976-AA
              CLIP, FUEL INJECTOR
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 5
              MPN: 4G4E-9D280-BA
              FUEL RAIL ASSY, LH
              Up to September 2017
              FUEL RAIL ASSEMBLY, LH Genuine Aston Martin - New (to order)
              # 5
              MPN: 4G4E-9D280-AA
              FUEL RAIL ASSY, RH
              Up to September 2017
              FUEL RAIL ASSEMBLY, RH Genuine Aston Martin - New (to order)
              # 5a
              MPN: 4G4E-9D280-BB
              FUEL RAIL ASSY, LH
              From September 2017
              FUEL RAIL ASSEMBLY, LH Genuine Aston Martin - New (to order)
              # 5a
              MPN: 4G4E-9D280-AB
              FUEL RAIL ASSY, RH
              From September 2017
              FUEL RAIL ASSEMBLY, RH Genuine Aston Martin - New (to order)
              # 6
              MPN: 703693
              BOLT AND WASHER, M6X18
              from £0.47
              from £0.47
              BOLT&WASHER M6X18 Genuine Aston Martin - New (to order)
              # 7
              MPN: 6G43-34-10063
              Sensor Assy, Temp/Pressure
              from £162.04
              from £162.04
              SNSOR ASSEMBLY TEM/PRESS Genuine Aston Martin - New (to order)
              # 8
              MPN: 704570
              BOLT AND WASHER, M5X20
              BOLT AND WASHER, M5X20 Genuine Aston Martin - New (to order)
              # 9
              MPN: CD33-9E926-BA
              BODY ASSY, AIR INTAKE
              from £748.91
              from £748.91
              BODY ASSEMBLY, AIR INTAKE Genuine Aston Martin - New (to order)
              # 10
              MPN: 703144
              BOLT, M6X45, FLANGED TORX PAN HEAD
              from £1.42
              from £1.42
              BOLT M6X45 PAN Genuine Aston Martin - New (to order)
              # 10
              MPN: CD33-9E936-AA

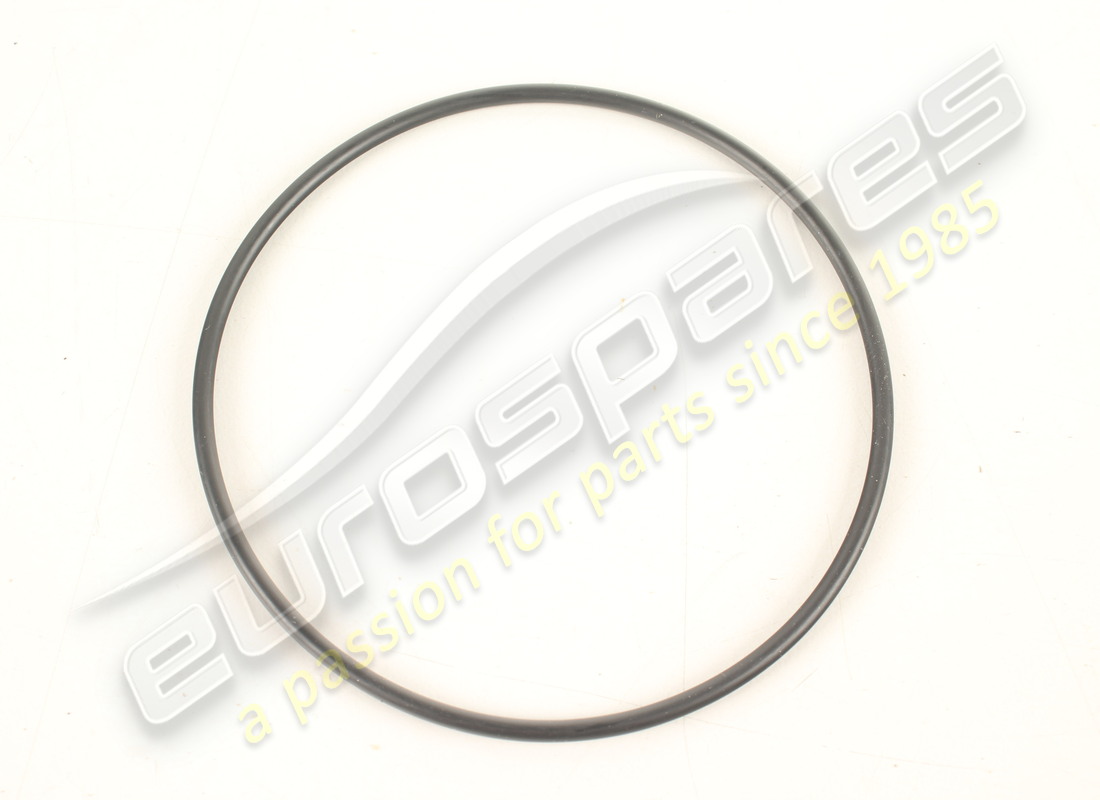

              O RING, THROTTLE SEALING
              from £3.43
              from £3.43
              O RING, THROTTLE SEALING Genuine Aston Martin - New In stock
