aston martin rapide (2013) engine lubrication parts diagram

030200-E1 - Engine Lubrication

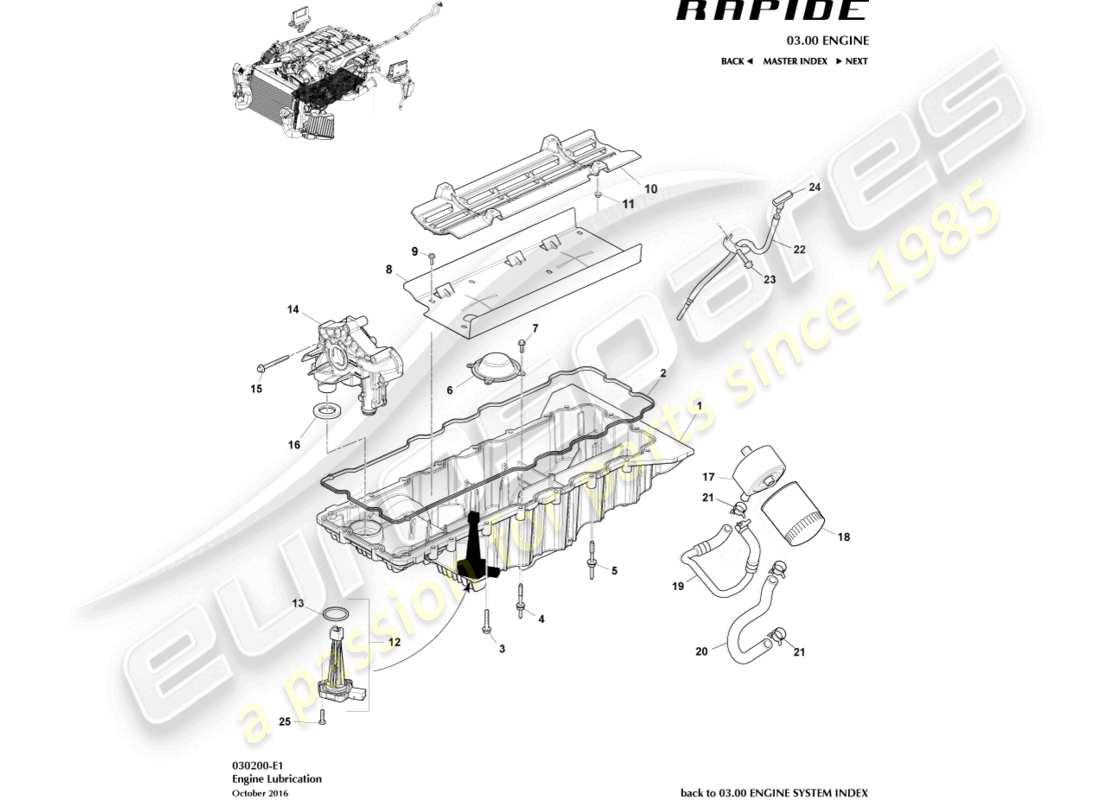

Aston Martin Rapide (2013) Engine Lubrication Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: 8D33-6675-DA
                                            OIL PAN ASSY
                                            from £1,824.74
                                            from £1,824.74
                                            OIL PAN ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 1
                                            MPN: 8D33-6676-DA
                                            OIL PAN
                                            OIL PAN Genuine Aston Martin - New (to order)
                                            # -
                                            -
                                            DRAIN PLUG, M12
                                            Minimum order quantity of 8
                                            # 2
                                            MPN: 04-85092
                                            GASKET, OIL PAN
                                            from £64.31
                                            from £64.31
                                            GASKET, OIL PAN Genuine Aston Martin - New In stock
                                            # 3
                                            MPN: 702605
                                            BOLT, M8X45
                                            from £19.37
                                            from £19.37
                                            BOLT, M8X45 Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: 702604
                                            STUD AND WASHER
                                            from £18.04
                                            from £18.04
                                            STUD&WSHR M6X20+M8X4 Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: 702604
                                            STUD AND WASHER M6X30+M8X47.5 HEX
                                            from £18.04
                                            from £18.04
                                            STUD&WSHR M6X20+M8X4 Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: 4G4E-6622-BA
                                            SCREEN AND COVER ASSY, OIL PUMP
                                            from £109.47
                                            from £109.47
                                            SCREEN AND COVER ASSEMBLY, OIL PUMP Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: 8D33-6686-AD
                                            BAFFLE, OIL PAN
                                            from £126.15
                                            from £126.15
                                            BAFFLE, OIL PAN Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: 702601
                                            BOLT, FLG, M6X18.5
                                            from £0.47
                                            from £0.47
                                            SCREW M56X20 HF 8N Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: 4G4E-6B660-BA
                                            BAFFLE, WINDAGE TRAY
                                            from £165.87
                                            from £165.87
                                            BAFFLE, WINDAGE TRAY Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: 703168
                                            NUT, FLG, M6
                                            Supersession
                                            Supersession
                                            Genuine Aston Martin (no longer available to order)
                                            # 12
                                            MPN: 4G43-04-10972
                                            SENSOR ASSY, ENGINE LOW OIL
                                            from £59.17
                                            from £59.17
                                            SNSR ASSY-ENG LOWOIL Genuine Aston Martin - New (to order)
                                            # 13
                                            MPN: 8W93-87030-BA
                                            O RING, ENGINE LOW OIL LEVEL SENSOR
                                            ALWAYS REPLACE. DO NOT RE-USE
                                            from £22.68
                                            from £22.68
                                            O RING, ENGINE LOW OIL LEVEL SENSOR Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: 8G43-04-11112
                                            PUMP ASSY, ENGINE OIL
                                            from £1,484.68
                                            from £1,484.68
                                            SERVICE ASSY-OIL PMP Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: 702552
                                            BOLT, M8X70
                                            from £0.68
                                            from £0.68
                                            BOLT M8 X 70 Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: 4G43-04-10196
                                            SEAL, OIL PUMP PICK UP TUBE
                                            from £61.29
                                            from £61.29
                                            SEAL, OIL PUMP PICKUP TUBE TO PAN Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: 8G43-6A642-BA
                                            COOLER ASSY, ENGINE OIL
                                            COOLER ASSEMBLY, ENGINE OIL Genuine Aston Martin - New (to order)
                                            # -
                                            -
                                            INSERT, OIL COOLER MOUNTING BOLT
                                            # 18
                                            MPN: 4G43-44-10818-PK
                                            OIL FILTER
                                            Pack of 12
                                            OIL FILTER (pack of 12) Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: 4G4E-6N867-BB
                                            TUBE AND HOSE ASSY
                                            from £37.89
                                            from £37.89
                                            TUBE AND HOSE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 4G4E-8B451-BA
                                            HOSE
                                            from £42.96
                                            from £42.96
                                            HOSE Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 702858
                                            CLAMP, 24 DIA
                                            2 per hose
                                            from £2.14
                                            from £2.14
                                            HOSE CLAMP 23.9-27.1 Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 4G4E-6754-AD
                                            TUBE ASSY, OIL LEVEL INDICATOR
                                            from £36.01
                                            from £36.01
                                            TUBE ASSEMBLY, OIL LEVEL INDICATOR Genuine Aston Martin - New (to order)
                                            # 23
                                            MPN: 701745
                                            BOLT, M8 FLANGE HEAD, DIPSTICK TUBE
                                            from £0.47
                                            from £0.47
                                            BOLT, M8 FLANGE HEAD, DIPSTICK TUBE Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: 8D33-6750-CA
                                            DIPSTICK
                                            from £29.67
                                            from £29.67
                                            OIL LEVEL INDICATOR ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 24
                                            MPN: 4G43-6K804-AA
                                            LABEL, ENGINE OIL DIPSTICK
                                            Not illustrated
                                            from £4.71
                                            from £4.71
                                            LABEL, ENGINE OIL DIPSTICK Genuine Aston Martin - New (to order)
                                            # 25
                                            MPN: 700607
                                            SCREW, M6X20, HEX FLG HD
                                            from £0.47
                                            from £0.47
                                            SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
