aston martin rapide (2013) fuel tank assy parts diagram

100100-S1 - Fuel Tank Assy

Aston Martin Rapide (2013) Fuel Tank Assy Parts Diagram

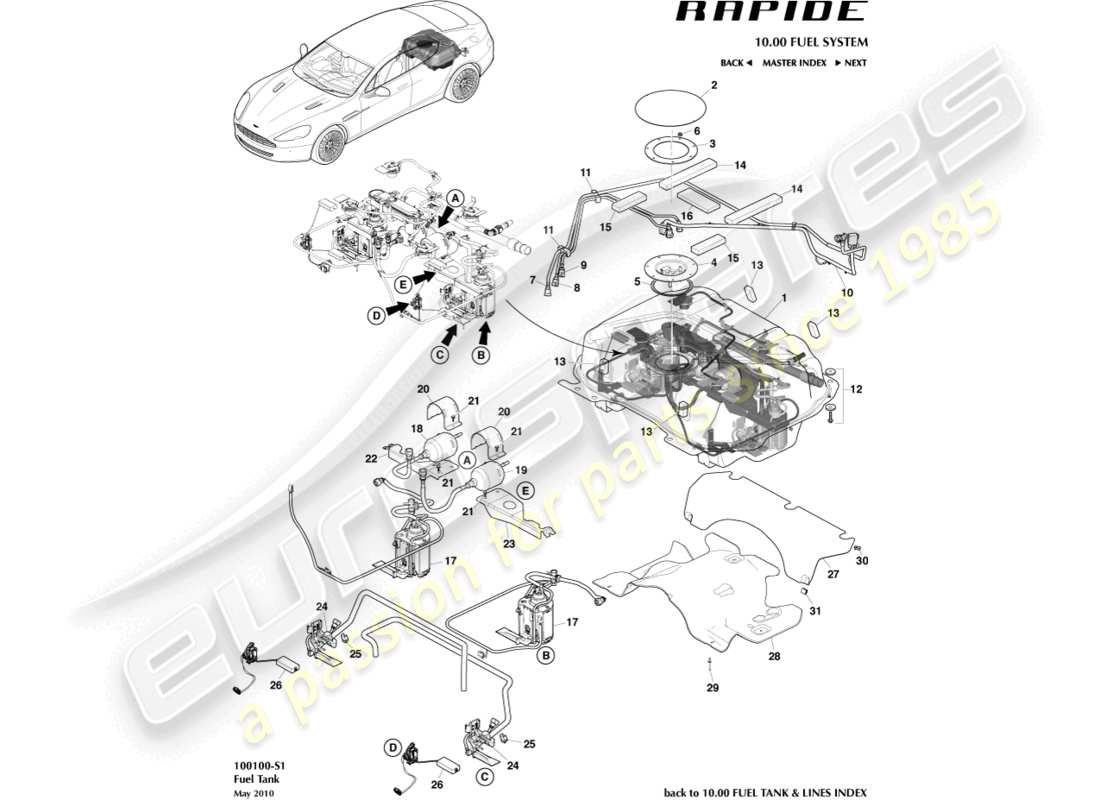

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 1
                                                      MPN: AD43-9K007-AD
                                                      TANK ASSEMBLY, FUEL
                                                      from £4,422.40
                                                      from £4,422.40
                                                      TANK ASSEMBLY, FUEL Genuine Aston Martin - New (to order)
                                                      # 2
                                                      MPN: 4G43-9074-EA
                                                      COVER, FUEL TANK
                                                      from £13.85
                                                      from £13.85
                                                      PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - New (to order)
                                                      PLATE ASSEMBLY, FUEL TANK COVER Genuine Aston Martin - Used In stock
                                                      # 3
                                                      MPN: 4G43-32133-BA
                                                      CLAMP PLATE, FUEL TANK
                                                      from £5.69
                                                      from £5.69
                                                      CLAMP PLATE Genuine Aston Martin - New (to order)
                                                      CLAMP PLATE Genuine Aston Martin - Used In stock
                                                      # 4
                                                      MPN: AD43-9A309-AB
                                                      HATCH, FUEL TANK
                                                      HATCH, FUEL TANK Genuine Aston Martin - New (to order)
                                                      # 5
                                                      MPN: 4G43-9073-AA
                                                      GASKET
                                                      Replace each time Cover Plate is removed.
                                                      from £20.84
                                                      from £20.84
                                                      GSKT-FU/TNK COVER PLT Genuine Aston Martin - New (to order)
                                                      # 6
                                                      MPN: 703169
                                                      NUT, FLG, M6 LOCK
                                                      from £0.71
                                                      from £0.71
                                                      This part replaces part number 703168
                                                      NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                                                      # 7
                                                      MPN: AD43-9D667-BA
                                                      TUBE ASSY, FUEL VAPOUR PURGE
                                                      from £134.35
                                                      from £134.35
                                                      TUBE ASSEMBLY, FUEL VAPOUR PURGE Genuine Aston Martin - New (to order)
                                                      # 8
                                                      MPN: AD43-9J280-BA
                                                      TUBE ASSY, FUEL SUPPLY R
                                                      from £33.46
                                                      from £33.46
                                                      TUBE ASSEMBLY, FUEL SUPPLY R Genuine Aston Martin - New (to order)
                                                      # 9
                                                      MPN: AD43-9J280-AA
                                                      TUBE ASSY, FUEL SUPPLY L
                                                      from £32.78
                                                      from £32.78
                                                      TUBE ASSEMBLY, FUEL SUPPLY L Genuine Aston Martin - New (to order)
                                                      # 10
                                                      MPN: AD43-14407-AC
                                                      HARNESS, FUEL TANK LINK
                                                      from £222.60
                                                      from £222.60
                                                      HARNESS, FUEL TANK LINK Genuine Aston Martin - New (to order)
                                                      # 11
                                                      MPN: 4G43-9294-AA
                                                      CLIP, FUEL LINE TO ENGINE
                                                      from £1.93
                                                      from £1.93
                                                      CLP FUL LN TO ENG Genuine Aston Martin - New (to order)
                                                      # 12
                                                      MPN: AD43-P9B154-BA
                                                      BOLT ASSY, FUEL TANK FIXING
                                                      from £2.60
                                                      from £2.60
                                                      BOLT ASSEMBLY, FUEL TANK FIXING Genuine Aston Martin - New (to order)
                                                      # 13
                                                      MPN: 4G43-482550-AA
                                                      FOAM PAD
                                                      from £13.59
                                                      from £13.59
                                                      FOAM PAD-TNK UPPER Genuine Aston Martin - New (to order)
                                                      # 15
                                                      MPN: AD43-M2D28-AA
                                                      INSULATING STRIP, RUBBER
                                                      Use item 14
                                                      INSULATING STRIP, RUBBER Genuine Aston Martin - New (to order)
                                                      # 16
                                                      MPN: AD43-M2D28-CB
                                                      INSULATING STRIP, RUBBER
                                                      INSULATING STRIP, RUBBER, CENTRE Genuine Aston Martin - New (to order)
                                                      # 17
                                                      MPN: AD43-34-10177
                                                      FUEL PUMPS (2) KIT
                                                      Kit also includes harness DD43-37-10175 which will require fitting. Refer to Accessory Installation Instruction DD43-37-10176 on DCS
                                                      from £1,113.15
                                                      from £1,113.15
                                                      FUEL PUMPS (2) KIT Genuine Aston Martin - New (to order)
                                                      # 18
                                                      MPN: AD43-9155-BA
                                                      FILTER ASSEMBLY
                                                      LHS
                                                      from £150.28
                                                      from £150.28
                                                      FILTER ASSEMBLY Genuine Aston Martin - New (to order)
                                                      # 19
                                                      MPN: AD43-9155-AA
                                                      FILTER ASSEMBLY
                                                      RHS
                                                      from £126.76
                                                      from £126.76
                                                      FILTER ASSEMBLY Genuine Aston Martin - New (to order)
                                                      # 20
                                                      MPN: 8G43-9180-AA
                                                      BRACKET, FILTER ASSEMBLY
                                                      BRACKET, FUEL FILTER Genuine Aston Martin - New (to order)
                                                      # 21
                                                      MPN: 4G43-M1A292-BA
                                                      FILTER ASSY, FUEL RH
                                                      FILTER ASSEMBLY, FUEL RH Genuine Aston Martin - New (to order)
                                                      # 22
                                                      MPN: AD43-9346-DB
                                                      BRACKET, FUEL PUMP MOUNTING RH
                                                      BRACKET, FUEL PUMP MOUNTING RH Genuine Aston Martin - New (to order)
                                                      # 23
                                                      MPN: AD43-9346-CB
                                                      BRACKET, FUEL PUMP MOUNTING LH
                                                      BRACKET, FUEL PUMP MOUNTING LH Genuine Aston Martin - New (to order)
                                                      # 24
                                                      MPN: AD43-9275-AA
                                                      JET PUMP ASSEMBLY
                                                      from £83.51
                                                      from £83.51
                                                      JET PUMP ASSEMBLY Genuine Aston Martin - New (to order)
                                                      # 25
                                                      MPN: 701181
                                                      CLIP
                                                      from £1.82
                                                      from £1.82
                                                      CLIP 16X6.5X1.5-6 Genuine Aston Martin - New (to order)
                                                      # 26
                                                      MPN: 4G43-9E275-AA
                                                      SENDER ASSY, FUEL TANK
                                                      from £66.10
                                                      from £66.10
                                                      SE-FU/TNK SDR Genuine Aston Martin - New (to order)
                                                      # 27
                                                      MPN: AD43-112B24-DA
                                                      INSULATION, BOOT FLOOR
                                                      INSULATION, BOOT FLOOR, FUEL TANK Genuine Aston Martin - New (to order)
                                                      # 28
                                                      MPN: AD43-9A032-AB
                                                      SHIELD, FUEL TANK
                                                      SHIELD, FUEL TANK Genuine Aston Martin - New (to order)
