aston martin rapide (2014) front door hinge assembly parts diagram

010301-G1 - Front Door Hinge Assembly

Aston Martin Rapide (2014) Front Door Hinge Assembly Parts Diagram

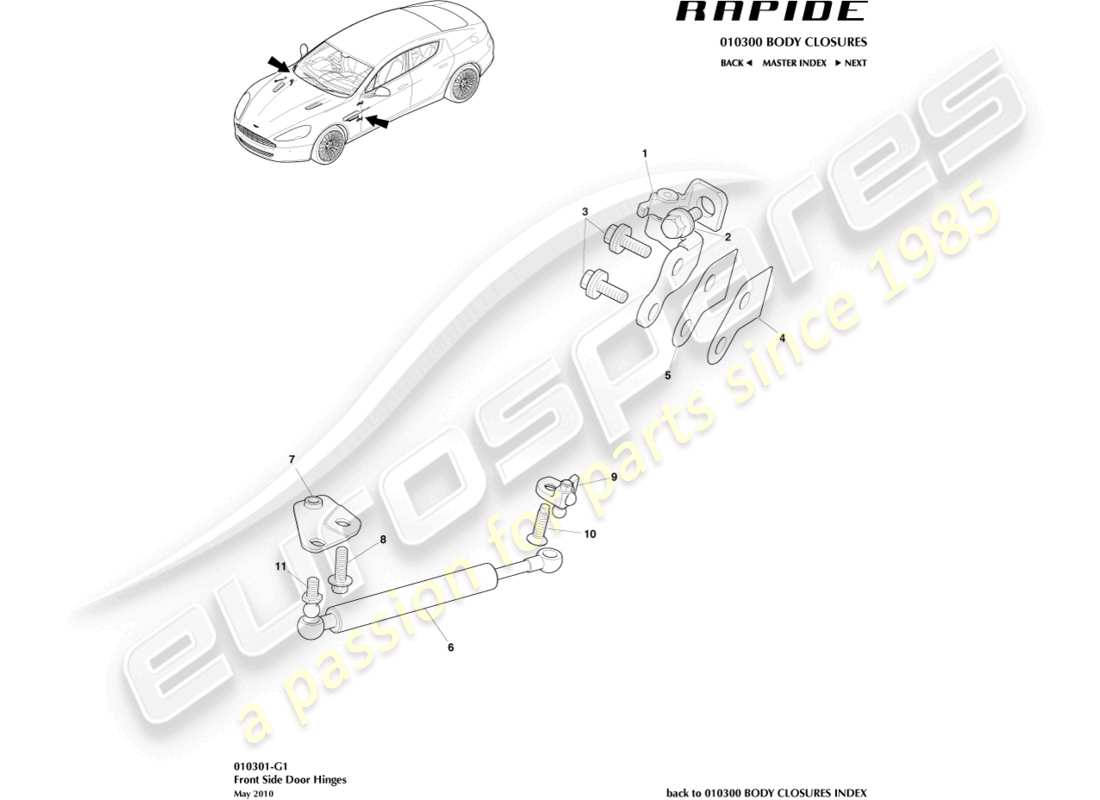

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 4G43-65-10055
                  HINGE ASSEMBLY, FRONT DOOR, RH
                  from £10.65
                  from £10.65
                  DOOR HINGE-FRONT RH Genuine Aston Martin - New (to order)
                  DOOR HINGE-FRONT RH Genuine Aston Martin - Used In stock
                  # 1
                  MPN: 4G43-65-10056
                  HINGE ASSEMBLY, FRONT DOOR, LH
                  from £10.65
                  from £10.65
                  DOOR HINGE-FRONT LH Genuine Aston Martin - New (to order)
                  DOOR HINGE-FRONT LH Genuine Aston Martin - Used In stock
                  # 2
                  MPN: 702210-PK
                  BOLT, M10 X 30, HINGE TO DOOR
                  from £7.26
                  from £7.26
                  This part replaces part number 702210
                  BOLT-M10X30 PACK 10 Genuine Aston Martin - New (to order)
                  VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
                  # 2
                  MPN: FD33-500120-AA
                  BOLT, M10 X 40, HINGE TO DOOR
                  FROM 15MY
                  from £2.04
                  from £2.04
                  BOLT, M10 X 40, HINGE TO DOOR Genuine Aston Martin - New (to order)
                  # 3
                  MPN: 703155
                  SCREW/WASHER, M8 X 25, HINGE TO BODY
                  from £1.56
                  from £1.56
                  SCREW/WASHER M8X25 Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 4G43-22816-AC
                  SHIM, DOOR HINGE, 0.5MM
                  from £1.59
                  from £1.59
                  SHIM, DOOR HINGE, 0.5MM Genuine Aston Martin - New (to order)
                  # 5
                  MPN: 4G43-22817-AC
                  SHIM, DOOR HINGE, 1.2MM
                  from £1.70
                  from £1.70
                  SHIM, DOOR HINGE, 1.2MM Genuine Aston Martin - New (to order)
                  # 6
                  MPN: AD43-F23504-AB
                  ARM ASSEMBLY, FRONT DOOR CHECK
                  from £24.08
                  from £24.08
                  ARM ASSEMBLY, FRONT DOOR CHECK Genuine Aston Martin - New (to order)
                  # 7
                  MPN: AD43-F27A06-AA
                  BRACKET, FRONT DOOR BALL STUD MOUNTING, RH
                  BRACKET, FRONT DOOR BALL STUD MOUNTING, RH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: DD43-F27A06-AC
                  BRACKET, FRONT DOOR BALL STUD MOUNTING, RH
                  Rapide S
                  from £8.88
                  from £8.88
                  BRACKET, FRONT DOOR BALL STUD MOUNTING, RH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: AD43-F27A07-AA
                  BRACKET, FRONT DOOR BALL STUD MOUNTING, LH
                  BRACKET, FRONT DOOR BALL STUD MOUNTING, LH Genuine Aston Martin - New (to order)
                  # 7
                  MPN: DD43-F27A07-AC
                  BRACKET, FRONT DOOR BALL STUD MOUNTING, LH
                  Rapide S
                  from £8.88
                  from £8.88
                  BRACKET, FRONT DOOR BALL STUD MOUNTING, LH Genuine Aston Martin - New (to order)
                  # 9
                  MPN: AD43-403F42-AA
                  BRACKET, ARM ASSEMBLY EXTENSION, RH
                  BRACKET, ARM ASSEMBLY EXTENSION, RH Genuine Aston Martin - New (to order)
                  # 9
                  MPN: AD43-403F41-AA
                  BRACKET, ARM ASSEMBLY EXTENSION, LH
                  BRACKET, ARM ASSEMBLY EXTENSION, LH Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 700610
                  SCREW, M8 X 25
                  from £0.47
                  from £0.47
                  SCREW M8X25 FLAT COUNTERSUNK Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 1R12-640101-AA
                  BALL STUD
                  Rapide S Qty 4
                  from £3.28
                  from £3.28
                  BALL STUD Genuine Aston Martin - New (to order)
