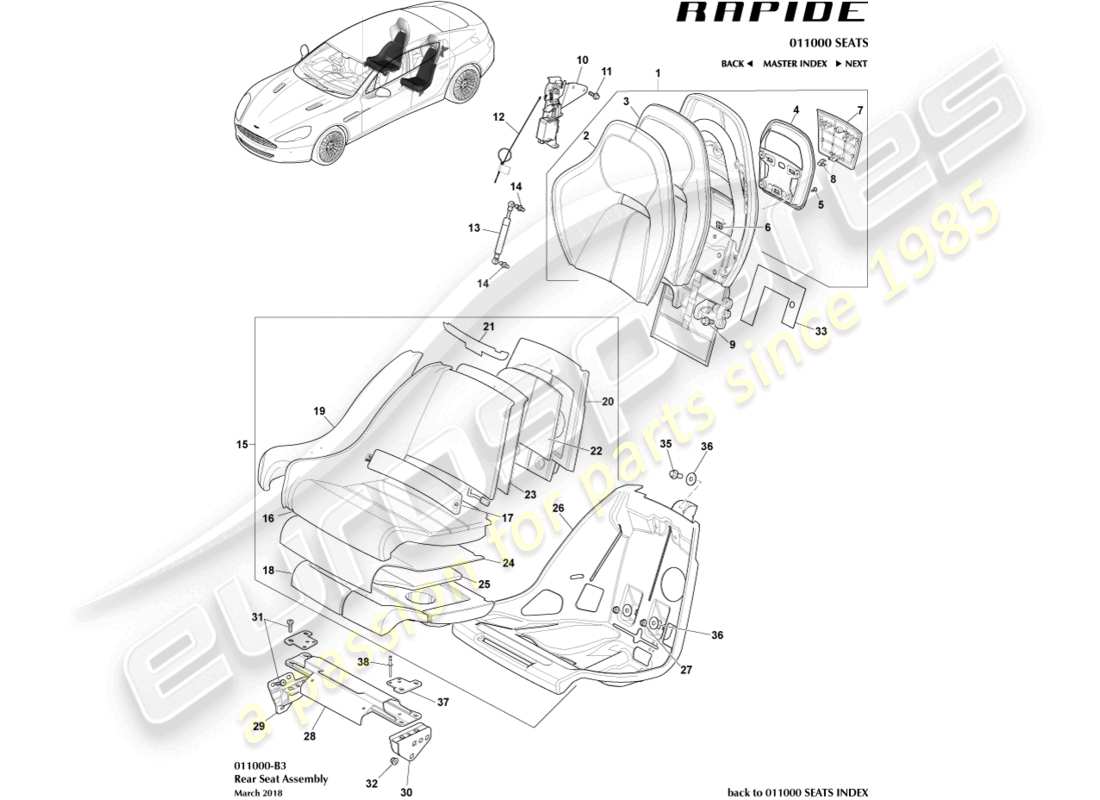

011000-B3 - REAR SEATS

Aston Martin Rapide (2014) Rear Seats Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # -
                                                    MPN: FD43-60080-AAW
                                                    REAR SEAT ASSEMBLY, RH
                                                    Folding Seat Back, VIN required to order
                                                    from £2,784.49
                                                    from £2,784.49
                                                    REAR SEAT ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                                    # -
                                                    MPN: GD43-60080-AAW
                                                    REAR SEAT ASSEMBLY, RH
                                                    Fixed Seat Back, VIN required to order
                                                    REAR SEAT ASSEMBLY, RH Genuine Aston Martin - New (to order)
                                                    # -
                                                    MPN: FD43-60081-AAW
                                                    REAR SEAT ASSEMBLY, LH
                                                    Folding Seat Back, VIN required to order
                                                    from £2,784.49
                                                    from £2,784.49
                                                    REAR SEAT ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                    # -
                                                    MPN: GD43-60081-AAW
                                                    REAR SEAT ASSEMBLY, LH
                                                    Fixed Seat Back, VIN required to order
                                                    REAR SEAT ASSEMBLY, LH Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: AD43-60030-ADW
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH
                                                    Up To VIN F03108, Rapide
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: ED43-60030-ABW
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH
                                                    Up To 15MY, Rapide S
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: FD43-60030-ABW
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH
                                                    From 15MY, Folding Seat
                                                    from £1,000.02
                                                    from £1,000.02
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: GD43-60030-AAW
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH
                                                    From 16MY, Fixed Seat
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: AD43-60031-ADW
                                                    UPPER BACK ASSEMBLY, REAR SEAT, LH
                                                    Up To VIN F03108, Rapide
                                                    UPPER BACK ASSEMBLY, REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: ED43-60031-ABW
                                                    UPPER BACK ASSEMBLY, REAR SEAT, LH
                                                    Up To 15MY, Rapide S
                                                    UPPER BACK ASSEMBLY, REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: FD43-60031-ABW
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH
                                                    From 15MY, Folding Seat
                                                    from £1,188.71
                                                    from £1,188.71
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 1
                                                    MPN: GD43-60031-AAW
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH
                                                    From 16MY, Fixed Seat
                                                    UPPER BACK ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 2
                                                    MPN: FD43-66882-AAW
                                                    COVER ASSEMBLY, REAR SEAT UPPER BACK
                                                    from £1,529.89
                                                    from £1,529.89
                                                    COVER ASSEMBLY, REAR SEAT UPPER BACK Genuine Aston Martin - New (to order)
                                                    # 3
                                                    MPN: AD43-A63870-AB
                                                    PAD ASSEMBLY, REAR SEAT UPPER BACK
                                                    PAD ASSEMBLY, REAR SEAT UPPER BACK Genuine Aston Martin - New (to order)
                                                    # 4
                                                    MPN: AD43-644B20-AD
                                                    FINISHER, SEAT BACK PANEL
                                                    Up to 14.5MY. Brushed Chrome
                                                    from £81.67
                                                    from £81.67
                                                    FINISHER, SEAT BACK PANEL Genuine Aston Martin - New (to order)
                                                    # 4
                                                    MPN: ED43-044H12-AAW
                                                    FINISHER ASSEMBLY, SEAT BACK PANEL
                                                    From 14.5MY. Leather Wrapped
                                                    FINISHER ASSEMBLY, SEAT BACK PANEL Genuine Aston Martin - New (to order)
                                                    # 5
                                                    MPN: 701157-PK
                                                    SCREW, LARGE WASHER HEAD
                                                    from £1.59
                                                    from £1.59
                                                    SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                                                    # 6
                                                    MPN: 701448
                                                    NUT, U TYPE
                                                    from £0.47
                                                    from £0.47
                                                    NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                                                    SPLITTER NUTS Genuine Ferrari Part - New (to order)
                                                    # 7
                                                    MPN: AD43-644B16-AAW
                                                    FINISHER, INNER SQUAB
                                                    FINISHER, INNER SQUAB Genuine Aston Martin - New (to order)
                                                    # 7
                                                    MPN: ED43-600E68-AAW
                                                    FINISHER, INNER SQUAB
                                                    RapideS From 14.5MY
                                                    FINISHER, INNER, SEAT BACK PANEL Genuine Aston Martin - New (to order)
                                                    # 8
                                                    MPN: 702520
                                                    CLIP, 8.5X16X1.7, PUSH-IN
                                                    CLIP, 8.5X16X1.7 Genuine Aston Martin - New (to order)
                                                    # 9
                                                    MPN: 703200
                                                    SCREW, M10X 5
                                                    from £0.47
                                                    from £0.47
                                                    SCREW M10X25 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: AD43-A61390-AD
                                                    LATCH ASSY, REAR SEAT, RH
                                                    Folding Seat
                                                    from £204.05
                                                    from £204.05
                                                    LATCH ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: GD43-A61390-BA
                                                    BRACKET, REAR SEAT, RH
                                                    Fixed Seat
                                                    BRACKET, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: AD43-A61391-AC
                                                    LATCH ASSY, REAR SEAT, LH
                                                    Up To VIN F02999, Folding Seat
                                                    from £185.00
                                                    from £185.00
                                                    LATCH ASSEMBLY, REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: AD43-A61391-AD
                                                    LATCH ASSY, REAR SEAT, LH
                                                    From VIN F03000, Folding Seat
                                                    LATCH ASSEMBLY, REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 10
                                                    MPN: GD43-A61391-BA
                                                    BRACKET, REAR SEAT, LH
                                                    Fixed Seat
                                                    BRACKET, REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 11
                                                    MPN: 700115
                                                    SCREW
                                                    from £2.07
                                                    from £2.07
                                                    SCREW M8X25 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    FRONT HUB SPACER Genuine Ferrari Part - New (to order)
                                                    # 12
                                                    MPN: AD43-432B18-AA
                                                    CORD, LATCH ASSEMBLY
                                                    from £6.81
                                                    from £6.81
                                                    CORD, LATCH ASSEMBLY Genuine Aston Martin - New (to order)
                                                    # 13
                                                    MPN: AD43-64220-AA
                                                    GAS SPRING
                                                    Folding Seat
                                                    from £42.42
                                                    from £42.42
                                                    GAS SPRING Genuine Aston Martin - New (to order)
                                                    # 14
                                                    MPN: 1R12-640101-AA
                                                    BALL PIN
                                                    Folding Seat
                                                    from £3.28
                                                    from £3.28
                                                    BALL STUD Genuine Aston Martin - New (to order)
                                                    # 15
                                                    MPN: AD43-60034-AAW
                                                    CUSHION ASSEMBLY, REAR SEAT, RH
                                                    from £3,875.04
                                                    from £3,875.04
                                                    CUSHION ASSEMBLY, REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 15
                                                    MPN: AD43-60035-AAW
                                                    CUSHION ASSEMBLY, REAR SEAT, LH
                                                    from £3,875.04
                                                    from £3,875.04
                                                    CUSHION ASSEMBLY, REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 16
                                                    MPN: AD43-63804-AAW
                                                    COVER ASSEMBLY, CUSHION REAR SEAT, RH
                                                    Up to 15MY
                                                    from £3,293.13
                                                    from £3,293.13
                                                    COVER ASSEMBLY, CUSHION REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 16
                                                    MPN: FD43-63804-ACW
                                                    COVER ASSEMBLY, CUSHION REAR SEAT, RH
                                                    FROM 15MY
                                                    from £1,424.25
                                                    from £1,424.25
                                                    COVER ASSEMBLY, CUSHION REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 16
                                                    MPN: AD43-63805-AAW
                                                    COVER ASSEMBLY, CUSHION REAR SEAT, LH
                                                    Up to 15MY
                                                    from £1,883.07
                                                    from £1,883.07
                                                    COVER ASSEMBLY, CUSHION REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 16
                                                    MPN: FD43-63805-ACW
                                                    COVER ASSEMBLY, CUSHION REAR SEAT, LH
                                                    FROM 15MY
                                                    from £1,424.25
                                                    from £1,424.25
                                                    COVER ASSEMBLY, CUSHION REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 17
                                                    MPN: AD43-63844-AA
                                                    PAD ASSEMBLY, ISOFIX SQUAB LOWER, RH
                                                    from £424.72
                                                    from £424.72
                                                    PAD ASSEMBLY, ISOFIX SQUAB LOWER, RH Genuine Aston Martin - New (to order)
                                                    # 17
                                                    MPN: AD43-63845-AA
                                                    PAD ASSEMBLY, ISOFIX SQUAB LOWER, LH
                                                    from £324.68
                                                    from £324.68
                                                    PAD ASSEMBLY, ISOFIX SQUAB LOWER, LH Genuine Aston Martin - New (to order)
                                                    # 18
                                                    MPN: AD43-A63840-AB
                                                    PAD ASSEMBLY, CUSHION REAR SEAT, RH
                                                    from £25.44
                                                    from £25.44
                                                    PAD ASSEMBLY, CUSHION REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 18
                                                    MPN: AD43-A63841-AB
                                                    PAD ASSEMBLY, CUSHION REAR SEAT, LH
                                                    from £25.44
                                                    from £25.44
                                                    PAD ASSEMBLY, CUSHION REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 19
                                                    MPN: AD43-A63842-AA
                                                    PAD ASSEMBLY, CUSHION OUTER REAR SEAT, RH
                                                    from £79.09
                                                    from £79.09
                                                    PAD ASSEMBLY, CUSHION OUTER REAR SEAT, RH Genuine Aston Martin - New (to order)
                                                    # 19
                                                    MPN: AD43-A63843-AA
                                                    PAD ASSEMBLY, CUSHION OUTER REAR SEAT, LH
                                                    from £79.09
                                                    from £79.09
                                                    PAD ASSEMBLY, CUSHION OUTER REAR SEAT, LH Genuine Aston Martin - New (to order)
                                                    # 20
                                                    MPN: AD43-A63872-AA
                                                    PAD ASSEMBLY, CUSHION REAR SEAT BACK LOWER, RH
                                                    PAD ASSEMBLY, CUSHION REAR SEAT BACK LOWER, RH Genuine Aston Martin - New (to order)
                                                    # 20
                                                    MPN: AD43-A63873-AA
                                                    PAD ASSEMBLY, CUSHION REAR SEAT BACK LOWER, LH
                                                    PAD ASSEMBLY, CUSHION REAR SEAT BACK LOWER, LH Genuine Aston Martin - New (to order)
                                                    # 21
                                                    MPN: AD43-638R00-AA
                                                    REINFORCEMENT, REAR SEAT CUSHION COVER
                                                    REINFORCEMENT, REAR SEAT CUSHION COVER Genuine Aston Martin - New (to order)
                                                    # 22
                                                    MPN: AD43-A63874-AA
                                                    FOAM INSERT, REAR SQUAB, RH
                                                    Up To 15MY, With Heated Seats
                                                    FOAM INSERT, REAR SQUAB, RH Genuine Aston Martin - New (to order)
                                                    # 22
                                                    MPN: AD43-A63874-AB
                                                    FOAM INSERT, REAR SQUAB, RH
                                                    From 15MY, With Heated Seats
                                                    FOAM INSERT, REAR SQUAB, RH Genuine Aston Martin - New (to order)
                                                    # 22
                                                    MPN: AD43-A63875-AA
                                                    FOAM INSERT, REAR SQUAB, LH
                                                    Up To 15MY, With Heated Seats
                                                    from £9.00
                                                    from £9.00
                                                    FOAM INSERT, REAR SQUAB, LH Genuine Aston Martin - New (to order)
                                                    # 22
                                                    MPN: AD43-A63875-AB
                                                    FOAM INSERT, REAR SQUAB, LH
                                                    From 15MY, With Heated Seats
                                                    FOAM INSERT, REAR SQUAB, LH Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: AD43-66926-AA
                                                    MAT ASSY, HEATER, REAR SQUAB, RH
                                                    WITH HEATED SEATS
                                                    MAT ASSEMBLY, HEATER, REAR SQUAB, RH Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: AD43-66927-AA
                                                    MAT ASSY, HEATER, REAR SQUAB, LH
                                                    WITH HEATED SEATS
                                                    MAT ASSEMBLY, HEATER, REAR SQUAB, LH Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: AD43-14D702-AA
                                                    MAT ASSY, COOLED, REAR SQUAB, RH
                                                    Full Climate Control
                                                    MAT ASSEMBLY, COOLED, REAR SQUAB, RH Genuine Aston Martin - New (to order)
                                                    # 23
                                                    MPN: AD43-14D703-AA
                                                    MAT ASSY, COOLED, REAR SQUAB, LH
                                                    Full Climate Control
                                                    MAT ASSEMBLY, COOLED, REAR SQUAB, LH Genuine Aston Martin - New (to order)
                                                    # 24
                                                    MPN: AD43-66928-AB
                                                    MAT ASSY, HEATER, CUSHION, RH
                                                    WITH HEATED SEATS
                                                    MAT ASSEMBLY, HEATER, CUSHION, RH Genuine Aston Martin - New (to order)
                                                    # 24
                                                    MPN: AD43-66929-AB
                                                    MAT ASSY, HEATER, CUSHION, LH
                                                    WITH HEATED SEATS
                                                    MAT ASSEMBLY, HEATER, CUSHION, LH Genuine Aston Martin - New (to order)
                                                    # 24
                                                    MPN: AD43-14D700-AC
                                                    MAT ASSY, COOLED, CUSHION, RH
                                                    Full Climate Control
                                                    from £529.19
                                                    from £529.19
                                                    MAT ASSEMBLY, COOLED, CUSHION, RH Genuine Aston Martin - New (to order)
                                                    # 24
                                                    MPN: AD43-14D701-AC
                                                    MAT ASSY, COOLED, CUSHION, LH
                                                    Full Climate Control
                                                    from £529.19
                                                    from £529.19
                                                    MAT ASSEMBLY, COOLED, CUSHION, LH Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: AD43-A63846-AA
                                                    FOAM INSERT, REAR SEAT CUSHION, RH
                                                    Up To 15MY, With Heated Seats
                                                    from £13.66
                                                    from £13.66
                                                    FOAM INSERT, REAR SEAT CUSHION, RH Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: AD43-A63846-AB
                                                    FOAM INSERT, REAR SEAT CUSHION, RH
                                                    From 15MY, With Heated Seats
                                                    FOAM INSERT, REAR SEAT CUSHION, RH Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: AD43-A63847-AA
                                                    FOAM INSERT, REAR SEAT CUSHION, LH
                                                    Up To 15MY, With Heated Seats
                                                    from £13.66
                                                    from £13.66
                                                    FOAM INSERT, REAR SEAT CUSHION, LH Genuine Aston Martin - New (to order)
                                                    # 25
                                                    MPN: AD43-A63847-AB
                                                    FOAM INSERT, REAR SEAT CUSHION, LH
                                                    From 15MY, With Heated Seats
                                                    FOAM INSERT, REAR SEAT CUSHION, LH Genuine Aston Martin - New (to order)
                                                    # 26
                                                    MPN: AD43-605B86-AC
                                                    PANEL ASSY, REAR SEAT CUSHION, RH
                                                    from £659.73
                                                    from £659.73
                                                    PANEL ASSEMBLY, REAR SEAT CUSHION, RH Genuine Aston Martin - New (to order)
                                                    # 26
                                                    MPN: AD43-605B87-AC
                                                    PANEL ASSY, REAR SEAT CUSHION, LH
                                                    from £659.73
                                                    from £659.73
                                                    PANEL ASSEMBLY, REAR SEAT CUSHION, LH Genuine Aston Martin - New (to order)
                                                    # 27
                                                    MPN: 703739
                                                    NUT, M8
                                                    from £0.70
                                                    from £0.70
                                                    NUT-M8 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 28
                                                    MPN: GOFD43-314A98-AA
                                                    X MEMBER, REAR SEAT CUSHION
                                                    from £139.31
                                                    from £139.31
                                                    X MEMBER, REAR SEAT CUSHION Genuine Aston Martin - New (to order)
                                                    # 29
                                                    MPN: AD43-314A96-AB
                                                    BRACKET ASSY, SUPPORT CUSHION OUTBOARD, RH
                                                    from £62.70
                                                    from £62.70
                                                    BRACKET ASSEMBLY, SUPPORT CUSHION OUTBOARD, RH Genuine Aston Martin - New (to order)
                                                    # 29
                                                    MPN: AD43-314A97-AB
                                                    BRACKET ASSY, SUPPORT CUSHION OUTBOARD, LH
                                                    from £57.94
                                                    from £57.94
                                                    BRACKET ASSEMBLY, SUPPORT CUSHION OUTBOARD, LH Genuine Aston Martin - New (to order)
                                                    # 30
                                                    MPN: AD43-310A40-AB
                                                    BRACKET ASSY, SUPPORT CUSHION INBOARD, RH
                                                    from £59.90
                                                    from £59.90
                                                    BRACKET ASSEMBLY, SUPPORT CUSHION INBOARD, RH Genuine Aston Martin - New (to order)
                                                    # 30
                                                    MPN: AD43-310A41-AB
                                                    BRACKET ASSY, SUPPORT CUSHION INBOARD, LH
                                                    from £61.72
                                                    from £61.72
                                                    BRACKET ASSEMBLY, SUPPORT CUSHION INBOARD, LH Genuine Aston Martin - New (to order)
                                                    # 31
                                                    MPN: 703172-PK
                                                    SCREW, M8X25
                                                    from £3.13
                                                    from £3.13
                                                    SCREW-M8X25 PAN (10) Genuine Aston Martin - New (to order)
                                                    VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
                                                    # 32
                                                    MPN: 703216-PK
                                                    NUT, M8
                                                    from £11.32
                                                    from £11.32
                                                    NUT-M8 HEX P/T (10) Genuine Aston Martin - New (to order)
                                                    # 33
                                                    MPN: AD43-M1H403-BA
                                                    BLACK OUT PATCH, REAR SEAT HINGE, RH
                                                    Folding Seat
                                                    from £1.21
                                                    from £1.21
                                                    BLACK OUT PATCH, REAR SEAT HINGE, RH Genuine Aston Martin - New (to order)
                                                    # 33
                                                    MPN: AD43-M1H404-BA
                                                    BLACK OUT PATCH, REAR SEAT HINGE, LH
                                                    Folding Seat
                                                    from £1.21
                                                    from £1.21
                                                    BLACK OUT PATCH, REAR SEAT HINGE, LH Genuine Aston Martin - New (to order)
                                                    # 33
                                                    MPN: GD43-19H547-AA
                                                    DUAL LOCK FASTENER, SELF ADHESIVE
                                                    Fixed Seat
                                                    DUAL LOCK FASTENER, SELF ADHESIVE Genuine Aston Martin - New (to order)
                                                    # 34
                                                    MPN: AD43-600B66-AA
                                                    ECU, SEAT CLIMATE
                                                    Full Climate Control
                                                    from £247.89
                                                    from £247.89
                                                    ST CLMT ECU Genuine Aston Martin - New (to order)
                                                    # 35
                                                    MPN: 703121
                                                    SCREW, M8X20 HEX FLG
                                                    from £0.47
                                                    from £0.47
                                                    SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                    # 36
                                                    MPN: 697452
                                                    WASHER, LARGE OD, M8X24X1.8
                                                    from £4.39
                                                    from £4.39
                                                    WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
                                                    # 37
                                                    MPN: FD43-2A416-AA
                                                    BACKING PLATE
                                                    from £9.37
                                                    from £9.37
                                                    BACKING PLATE Genuine Aston Martin - New (to order)
                                                    # 38
                                                    MPN: 6G33-68676-AC
                                                    RIVET, 6.5X14 BLIND
                                                    from £0.70
                                                    from £0.70
                                                    STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
