aston martin rapide (2014) rear spring & damper parts diagram

040300-C2 - Rear Spring & Damper

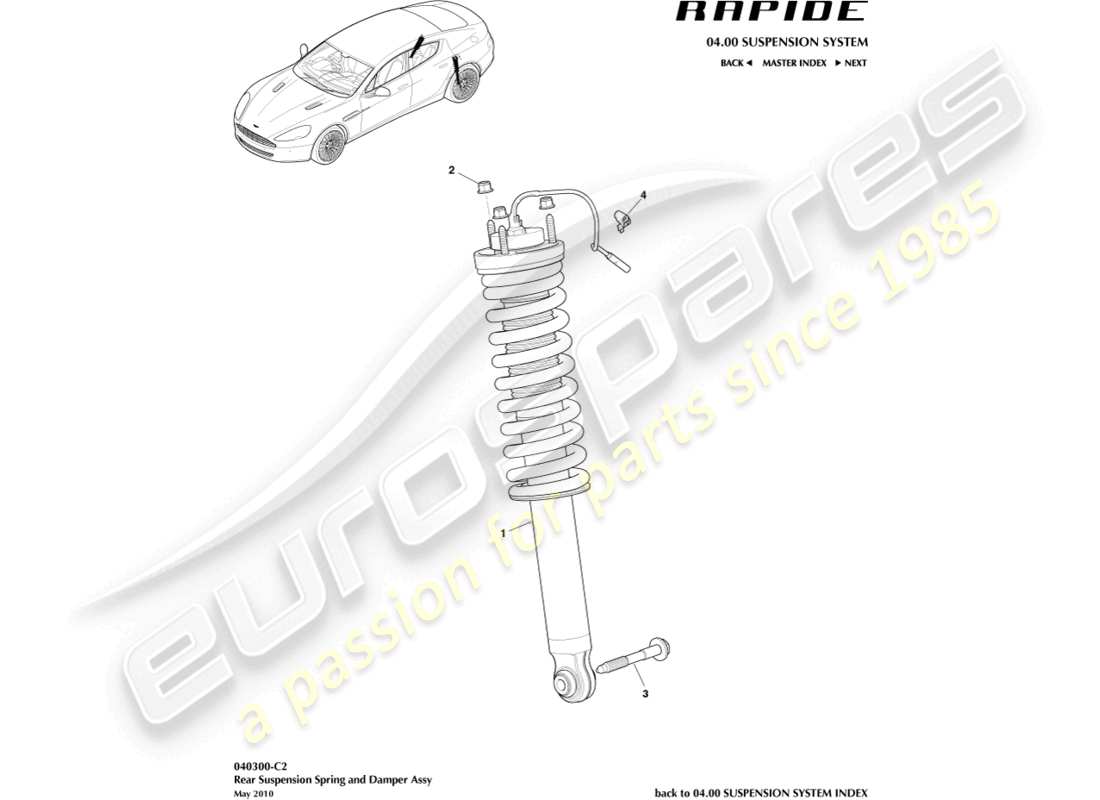

Aston Martin Rapide (2014) Rear Spring & Damper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: AD43-18W002-CC
    SPRING AND DAMPER ASSEMBLY, REAR
    Supersession
    Supersession
    Genuine Aston Martin (no longer available to order)
    # 1
    MPN: DD43-18W002-CA
    SPRING AND DAMPER ASSEMBLY, REAR
    Rapide S, Up To 15MY
    from £941.84
    from £941.84
    SPRING AND DAMPER ASSEMBLY, REAR Genuine Aston Martin - New (to order)
    # 1
    MPN: FD43-18W002-CA
    SPRING AND DAMPER ASSEMBLY, REAR
    Rapide S, From 15MY
    Supersession
    Supersession
    Genuine Aston Martin (no longer available to order)
    # 1
    MPN: KD43-18W002-AA
    SPRING AND DAMPER ASSEMBLY, REAR
    Rapide AMR, From 19MY
    from £1,404.79
    from £1,404.79
    SPRING AND DAMPER ASSEMBLY, REAR Genuine Aston Martin - New (to order)
    # 2
    MPN: 703216-PK
    NUT, M8, HEX FLANGE HEAD
    Pack of 10
    from £11.32
    from £11.32
    NUT-M8 HEX P/T (10) Genuine Aston Martin - New (to order)
    # 3
    MPN: 703154-PK
    BOLT AND WASHER, M14X99, HEX HEAD
    Pack of 2
    from £20.75
    from £20.75
    BOLT &WSHR-M14X99(2) Genuine Aston Martin - New (to order)
    # 4
    MPN: AD43-604805-AA
    CABLE TIE MOUNT, STUD FIXING, 5MM
    from £0.77
    from £0.77
    CABLE TIE MOUNT, STUD FIXING, 5MM Genuine Aston Martin - New (to order)
