aston martin rapide (2016) grille opening panel parts diagram

010202-B1 - Grille Opening Panel

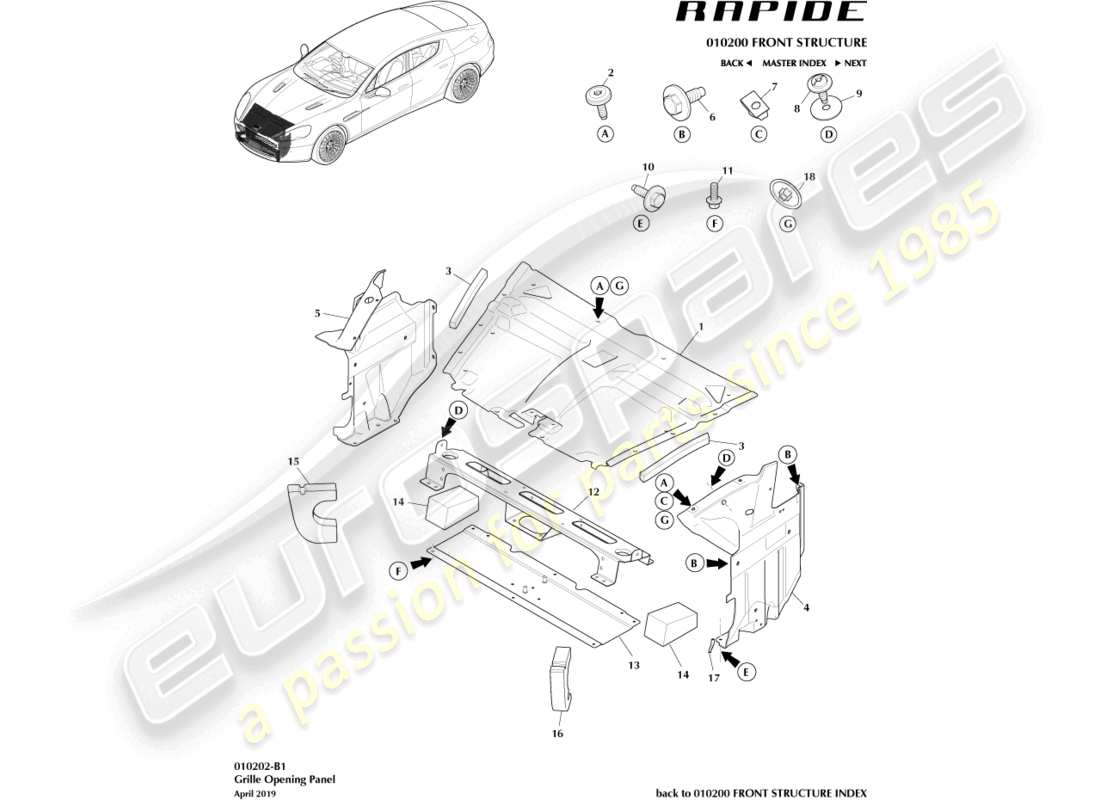

Aston Martin Rapide (2016) Grille Opening Panel Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 8D33-8136-AC
                                      PANEL ASSY, RADIATOR CLOSING
                                      from £760.23
                                      from £760.23
                                      PANEL ASSEMBLY, RADIATOR CLOSING Genuine Aston Martin - New (to order)
                                      # 2
                                      MPN: 6G33-FA0115-AB-PK
                                      SCREW AND WASHER, M6X19
                                      from £12.00
                                      from £12.00
                                      This part replaces part number 6G33-FA0115-AB
                                      SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                      # 3
                                      MPN: 4G43-403D62-AA
                                      SEAL, UPPER PANEL
                                      from £1.83
                                      from £1.83
                                      SEAL, UPPER PANEL Genuine Aston Martin - New (to order)
                                      # 4
                                      MPN: 8G43-F01991-AE
                                      PANEL, AIR VENT, LH
                                      PANEL, AIR VENT, LH Genuine Aston Martin - New (to order)
                                      # 5
                                      MPN: 8G43-F01990-AE
                                      PANEL, AIR VENT, RH
                                      PANEL, AIR VENT, RH Genuine Aston Martin - New (to order)
                                      # 6
                                      MPN: 703139
                                      SCREW AND WASHER, M8X20
                                      from £1.90
                                      from £1.90
                                      SCREW/WASHER M8X20 Genuine Aston Martin - New (to order)
                                      # 7
                                      MPN: 703740
                                      NUT, M6, U TYPE
                                      from £2.17
                                      from £2.17
                                      NUT-M6X1.0 0.8-0.4 Genuine Aston Martin - New (to order)
                                      # 8
                                      MPN: 703156
                                      BOLT AND WASHER, M6X18
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 703743
                                      SCREW/WASHER M6X18 Genuine Aston Martin - New In stock
                                      # 10
                                      MPN: 703152-PK
                                      SCREW AND WASHER, M6X20
                                      from £3.17
                                      from £3.17
                                      SCREW/WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                      # 11
                                      MPN: 703265
                                      SCREW, M6 X 16
                                      from £0.47
                                      from £0.47
                                      SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                      # 12
                                      MPN: 8G43-8052-AD
                                      COVER ASSY, RADIATOR SUPPORT LOWER (AUTO)
                                      from £165.37
                                      from £165.37
                                      COVER ASSEMBLY, RADIATOR SUPPORT, LOWER, AUTO Genuine Aston Martin - New (to order)
                                      # 13
                                      MPN: 8G43-2943751-AB
                                      SUPPORT BEAM LOWER, RADIATOR
                                      from £41.30
                                      from £41.30
                                      RADIATOR SUPPORT BEAM LOWER Genuine Aston Martin - New (to order)
                                      # 14
                                      MPN: 8D33-42761-AA
                                      FOAM PAD, COVER ASSY RADIATOR SUPPORT
                                      from £44.30
                                      from £44.30
                                      COVER ASY-RAD SUPPORT FOA Genuine Aston Martin - New (to order)
                                      # 15
                                      MPN: AD43-F334610-AA
                                      FOAM, RH
                                      from £22.27
                                      from £22.27
                                      FOAM, RH Genuine Aston Martin - New (to order)
                                      # 16
                                      MPN: AD43-F334611-AA
                                      FOAM, LH
                                      from £22.27
                                      from £22.27
                                      FOAM, LH Genuine Aston Martin - New (to order)
                                      # 17
                                      MPN: 4G43-L41041-AA
                                      EDGE STRIP, BLACK
                                      from £6.27
                                      from £6.27
                                      EDGE STRIP Genuine Aston Martin - New (to order)
                                      # 18
                                      MPN: CD33-A15K610-AA
                                      TORX CAP, TX30, OD 16.2MM
                                      from £0.47
                                      from £0.47
                                      TORX CAP, TX30, OD 16.2MM Genuine Aston Martin - New (to order)
