aston martin rapide (2016) tailgate assembly parts diagram

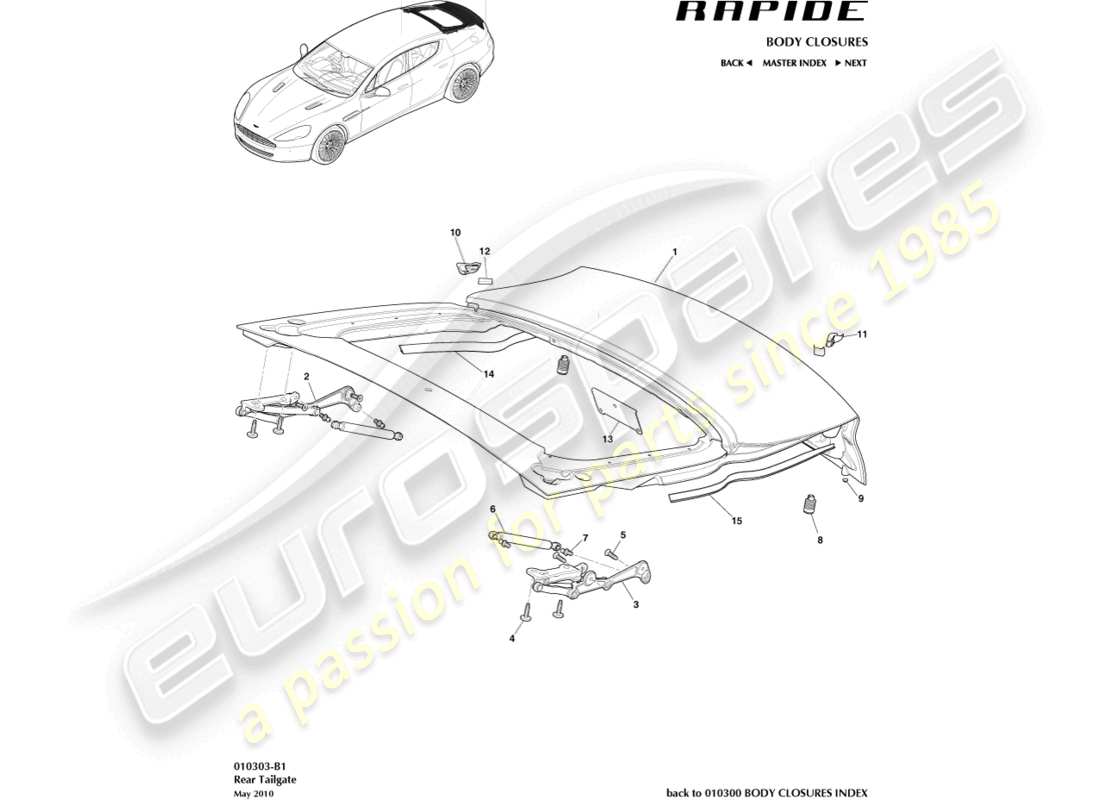

010303-B1 - TAILGATE ASSEMBLY

Aston Martin Rapide (2016) Tailgate Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: AD43-F40110-AA
                              PANEL DECKLID
                              from £6,304.33
                              from £6,304.33
                              PANEL DECKLID Genuine Aston Martin - New (to order)
                              # 1
                              MPN: DD43-F40110-AB
                              PANEL ASSEMBLY, DECKLID
                              Rapide S
                              from £6,304.33
                              from £6,304.33
                              PANEL ASSEMBLY, DECKLID Genuine Aston Martin - New (to order)
                              # 2
                              MPN: AD43-F42700-AA
                              HINGE ASSEMBLY, RH
                              HINGE ASSEMBLY, RH Genuine Aston Martin - New (to order)
                              # 3
                              MPN: AD43-F42701-AA
                              HINGE ASSEMBLY, LH
                              HINGE ASSEMBLY, LH Genuine Aston Martin - New (to order)
                              # 4
                              MPN: 704442
                              BOLT, M8 X 25
                              from £2.05
                              from £2.05
                              BOLT, M8X25.5 Genuine Aston Martin - New (to order)
                              # 5
                              MPN: 703147
                              SCREW, M8 X 25
                              from £0.47
                              from £0.47
                              SCREW, M8 X 25 FLAT COUNTERSUNK Genuine Aston Martin - New (to order)
                              # 6
                              MPN: AD43-406A10-AB
                              GAS STRUT
                              from £31.55
                              from £31.55
                              GAS STRUT Genuine Aston Martin - New In stock
                              # 7
                              MPN: 1R12-640101-AA
                              BALL PIN
                              from £3.28
                              from £3.28
                              BALL STUD Genuine Aston Martin - New (to order)
                              # 8
                              MPN: 6G33-N40452-AB
                              BUMPSTOP ASSEMBLY
                              from £10.26
                              from £10.26
                              BUMPSTOP ASSEMBLY LFT GTE Genuine Aston Martin - New (to order)
                              # 9
                              MPN: XR8T-F03836-AA
                              BUMPON
                              from £1.01
                              from £1.01
                              BUMPON Genuine Aston Martin - New (to order)
                              # 10
                              MPN: AD43-F40628-AA
                              FILLER CAP, RH
                              from £16.97
                              from £16.97
                              FILLER CAP, RH Genuine Aston Martin - New (to order)
                              # 11
                              MPN: AD43-F40627-AA
                              FILLER CAP, LH
                              from £16.97
                              from £16.97
                              FILLER CAP, LH Genuine Aston Martin - New (to order)
                              # 12
                              MPN: AD43-F40640-AA
                              PATCH, FLOWABLE TAPE
                              PATCH, FLOWABLE TAPE Genuine Aston Martin - New (to order)
                              # 13
                              MPN: AD43-F431F78-AA
                              REINFORCEMENT PLATE, LATCH
                              from £9.99
                              from £9.99
                              REINFORCEMENT PLATE, LATCH Genuine Aston Martin - New (to order)
                              # 14
                              MPN: AD43-F25902-AA
                              FLIP SEAL, TAILGATE RH
                              from £101.46
                              from £101.46
                              FLIP SEAL, TAILGATE RH Genuine Aston Martin - New (to order)
                              # 15
                              MPN: AD43-F25903-AA
                              FLIP SEAL, TAILGATE LH
                              from £101.46
                              from £101.46
                              FLIP SEAL, TAILGATE LH Genuine Aston Martin - New (to order)
