011201-B7 - IP Substrate

Aston Martin Rapide (2016) IP Substrate Parts Diagram

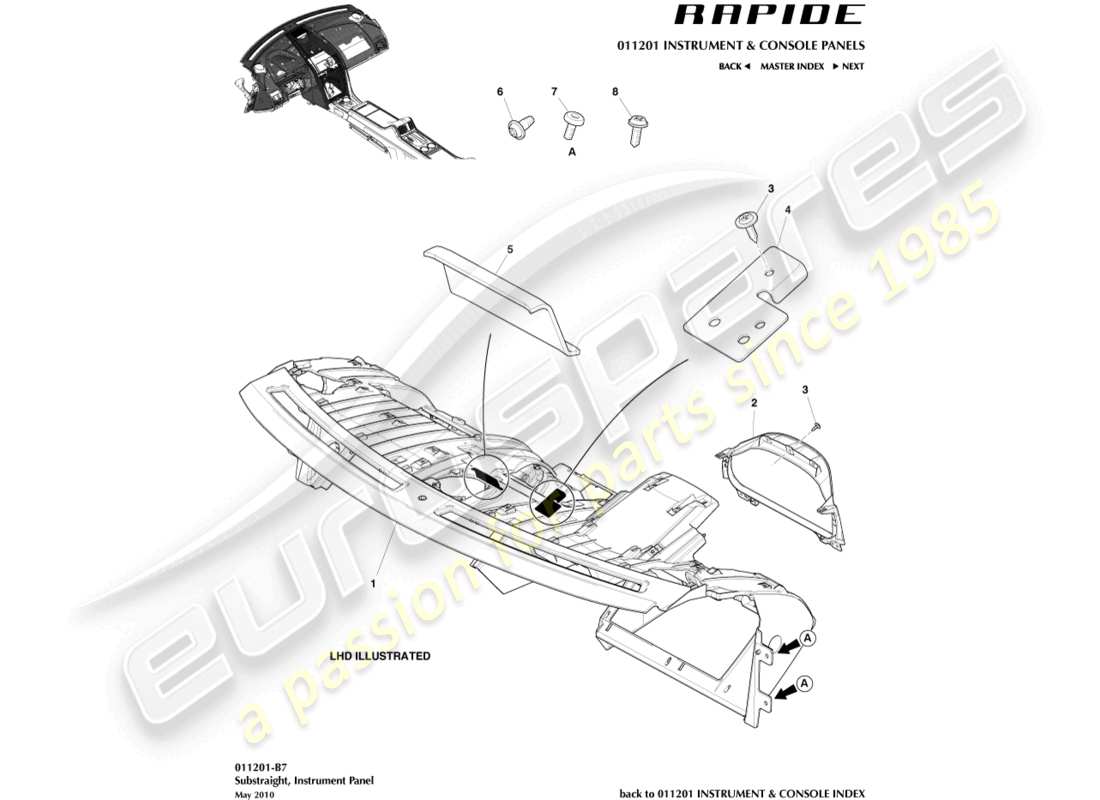

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: AD43-04305-BAW
          INSTRUMENT PANEL, TRIMMED, LHD
          Semi Analine
          from £584.42
          from £584.42
          INSTRUMENT PANEL, TRIMMED, LHD Genuine Aston Martin - New (to order)
          # 1
          MPN: AD43-04304-BAW
          INSTRUMENT PANEL, TRIMMED, RHD
          Semi Analine
          from £584.42
          from £584.42
          INSTRUMENT PANEL, TRIMMED, RHD Genuine Aston Martin - New (to order)
          # 1
          MPN: AD43-04305-CAW
          INSTRUMENT PANEL, TRIMMED, LHD
          Embossed Leather
          from £854.49
          from £854.49
          INSTRUMENT PANEL, TRIMMED, LHD Genuine Aston Martin - New (to order)
          # 1
          MPN: AD43-04304-CAW
          INSTRUMENT PANEL, TRIMMED, RHD
          Embossed Leather
          from £1,066.78
          from £1,066.78
          INSTRUMENT PANEL, TRIMMED, RHD Genuine Aston Martin - New (to order)
          # 1
          MPN: GG43-C04304-AAW
          INSTRUMENT PANEL, TRIMMED, LHD
          18MY on
          from £743.83
          from £743.83
          INSTRUMENT PANEL, TRIMMED, LHD Genuine Aston Martin - New (to order)
          # 1
          MPN: GG33-C04304-BAW
          INSTRUMENT PANEL, TRIMMED, RHD
          18MY on
          from £883.16
          from £883.16
          PANEL ASSEMBLY INSTR RH Genuine Aston Martin - New (to order)
          # 2
          MPN: 4G43-C04606-AD
          BEZEL, CLUSTER OPENING, I/PANEL
          from £60.87
          from £60.87
          BEZEL I/PNL CLUSTER Genuine Aston Martin - New (to order)
          BEZEL I/PNL CLUSTER Genuine Aston Martin - Used In stock
          # 3
          MPN: 701157-PK
          SCREW, ST4.2X16 LARGE WASHER HD
          Pack of 10
          from £1.59
          from £1.59
          SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
          # 4
          MPN: 6G33-19A392-BB
          BRACKET, PHONE INLINE
          from £6.95
          from £6.95
          BRACKET, PHONE INLINE Genuine Aston Martin - New (to order)
          # 5
          MPN: 77-84981-PK
          FOAM PAD
          Pack of 10
          from £20.01
          from £20.01
          FOAM STRIP-10 Genuine Aston Martin - New (to order)
          # 6
          MPN: 703170
          SCREW M4X8 PAN HD
          from £1.27
          from £1.27
          SCREW 4X8 PAN T/H Genuine Aston Martin - New (to order)
          # 7
          MPN: 4G43-17A873-AA
          RIVET, 4.8 MULTI GRIP SPLIT
          from £1.07
          from £1.07
          RIVET 4.8 X 12 Genuine Aston Martin - New (to order)
          # 8
          MPN: 701441-PK
          SCREW ST4.2X13 SMALL WASHER HD
          Pack of 10
          from £1.31
          from £1.31
          SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
