aston martin rapide (2016) front bumper structure parts diagram

011901-B2 - Front Bumper Structure

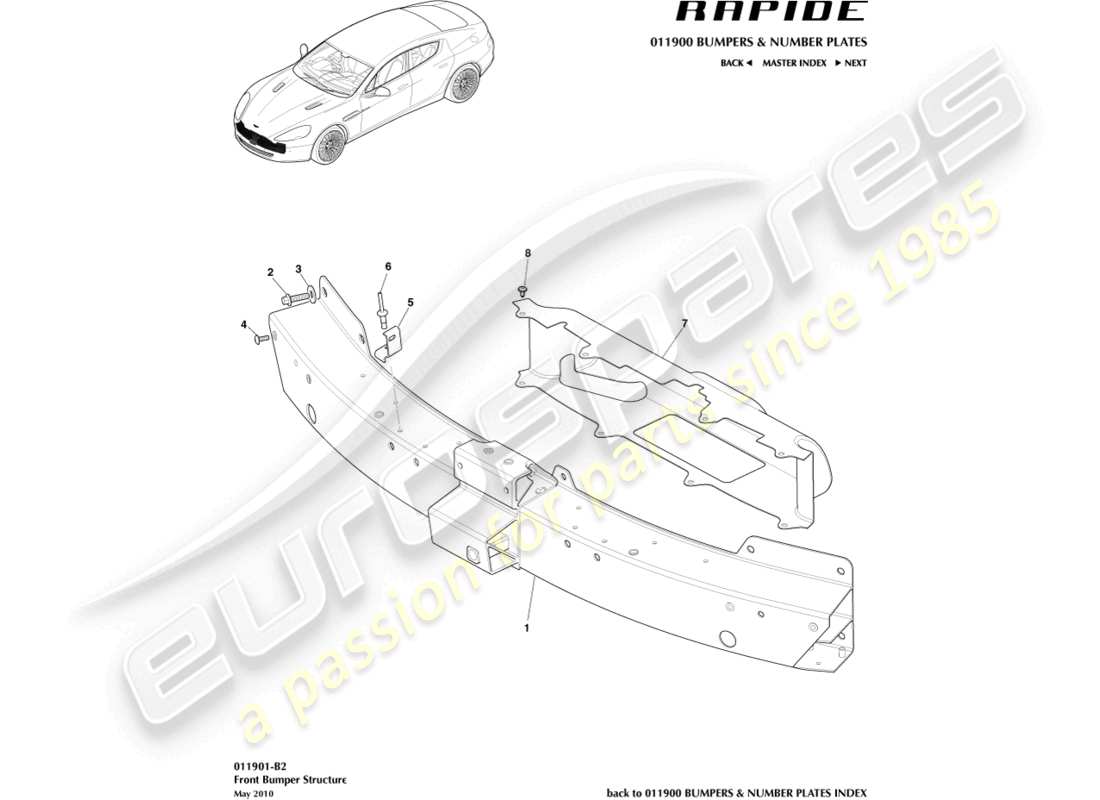

Aston Martin Rapide (2016) Front Bumper Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: AD43-17F033-AC
                BEAM, BUMPER FRONT
                RoW
                BEAM, BUMPER FRONT Genuine Aston Martin - New (to order)
                # 2
                MPN: 703201
                SCREW, M8 X 30
                from £0.47
                from £0.47
                SCREW M8X30 HEX FLNG Genuine Aston Martin - New (to order)
                # 3
                MPN: 697452
                WASHER
                from £4.39
                from £4.39
                WASHER M8 LARGE OD Genuine Aston Martin - New (to order)
                # 4
                MPN: 703149
                SCREW, M6 X16
                from £0.47
                from £0.47
                SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                # 5
                MPN: 7G43-17754-AA
                Bracket, mounting air sensor
                from £29.71
                from £29.71
                AIR SENSOR MOUNTING BRACKET Genuine Aston Martin - New (to order)
                # 6
                MPN: 6G33-68676-AC
                RIVET, STRUCTURAL 6.5 X 14
                from £0.70
                from £0.70
                STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
                # 7
                MPN: 4G43-16F078-AH
                Divider, Front Grille
                from £251.77
                from £251.77
                Divider, Front Grille Genuine Aston Martin - New (to order)
                Divider, Front Grille Genuine Aston Martin - Used In stock
                # 8
                MPN: 4G43-78-10814
                FASTENER ASSY 6.2 X 3-5.8
                from £0.47
                from £0.47
                SCRIVET Genuine Aston Martin - New (to order)
