aston martin rapide (2016) engine cooling, line fit parts diagram

030300-S1 - Engine Cooling, Line Fit

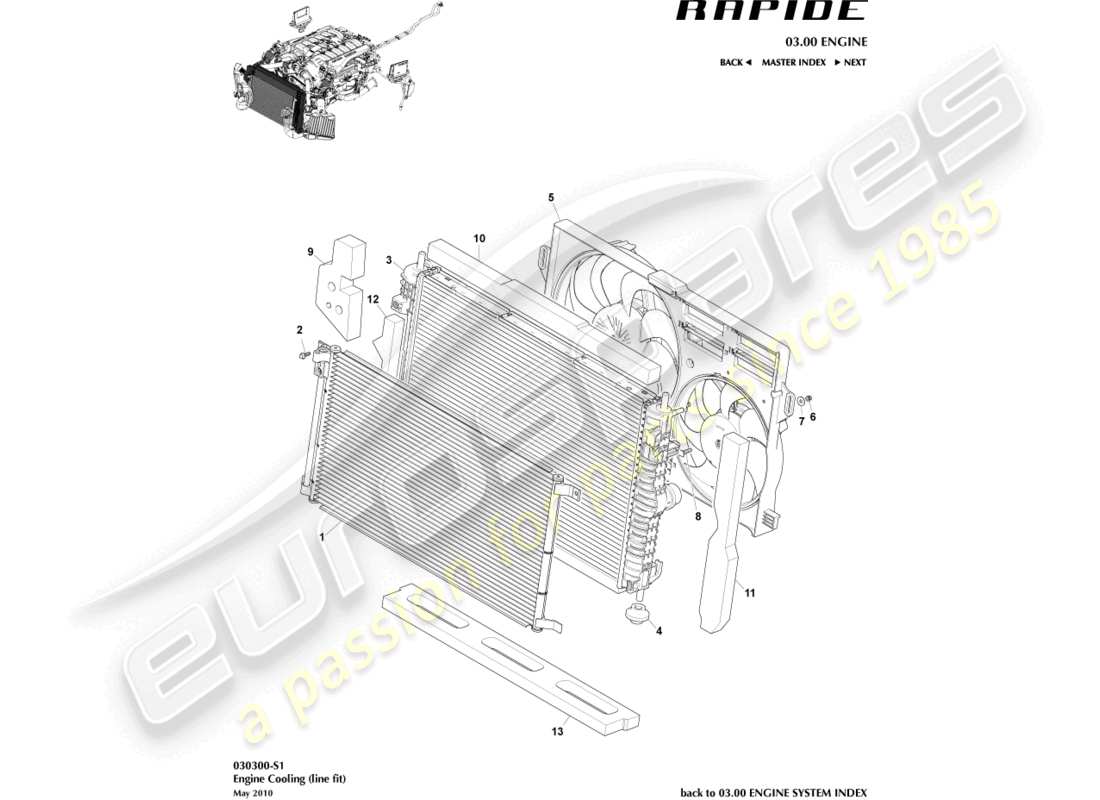

Aston Martin Rapide (2016) Engine Cooling, Line Fit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 9G43-19710-AA
                              CONDENSER
                              from £404.21
                              from £404.21
                              CONDENSER ASSEMBLY Genuine Aston Martin - New (to order)
                              # 2
                              MPN: 703750
                              BOLT, FLG, M6 X 20
                              from £1.70
                              from £1.70
                              SCREW-M6X20 HEX FLD Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 8D33-8005-AC
                              RADIATOR ASSY
                              from £866.35
                              from £866.35
                              This part replaces part number 8D33-8005-AB
                              Radiator assembly Genuine Aston Martin - New (to order)
                              # 4
                              MPN: 32-85101-PK
                              BUSH, MOUNTING
                              from £3.17
                              from £3.17
                              BUSH, MOUNTING Genuine Aston Martin - New (to order)
                              BUSH, MOUNTING Genuine Aston Martin - Used In stock
                              # 5
                              MPN: 8D33-8C607-AC
                              FAN AND MOTOR ASSY, RADIATOR
                              FAN AND MOTOR ASSEMBLY, RADIATOR Genuine Aston Martin - New (to order)
                              # 6
                              MPN: 703168
                              NUT, FLG, M6
                              Supersession
                              Supersession
                              Genuine Aston Martin (no longer available to order)
                              # 7
                              MPN: 699614
                              WASHER, PLAIN
                              from £10.52
                              from £10.52
                              WASHER 22X6.8X2 ST Genuine Aston Martin - New (to order)
                              # 8
                              MPN: 703728
                              BOLT, M6 X 19 SQUARE HEAD
                              from £7.41
                              from £7.41
                              SCREW-M6X19 SQUAREHD Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 4G43-C8585-BA
                              FOAM PAD
                              from £3.88
                              from £3.88
                              FOAM PAD Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 8D33-8N301-AA
                              SEAL, RADIATOR AIR UPPER
                              from £12.13
                              from £12.13
                              SEAL, RADIATOR UPPER Genuine Aston Martin - New (to order)
                              # 11
                              MPN: 8D33-F8B171-AA
                              SEAL, RADIATOR LH
                              from £14.07
                              from £14.07
                              SEAL, RADIATOR LH Genuine Aston Martin - New (to order)
                              # 12
                              MPN: 8D33-F8B170-AA
                              SEAL, RADIATOR RH
                              from £14.07
                              from £14.07
                              SEAL, RADIATOR RH Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 8D33-8C477-AA
                              SEAL, RADIATOR AIR LOWER
                              from £13.40
                              from £13.40
                              FOAM SEAL - LOWER Genuine Aston Martin - New (to order)
                              # -
                              -
                              FUSE, 80A, COOLING FAN MOTOR
                              # -
                              -
                              ANTIFREEZE, 1LTR (X12)
