aston martin rapide (2016) transmission oil cooler parts diagram

070200-P1 - Transmission Oil Cooler

Aston Martin Rapide (2016) Transmission Oil Cooler Parts Diagram

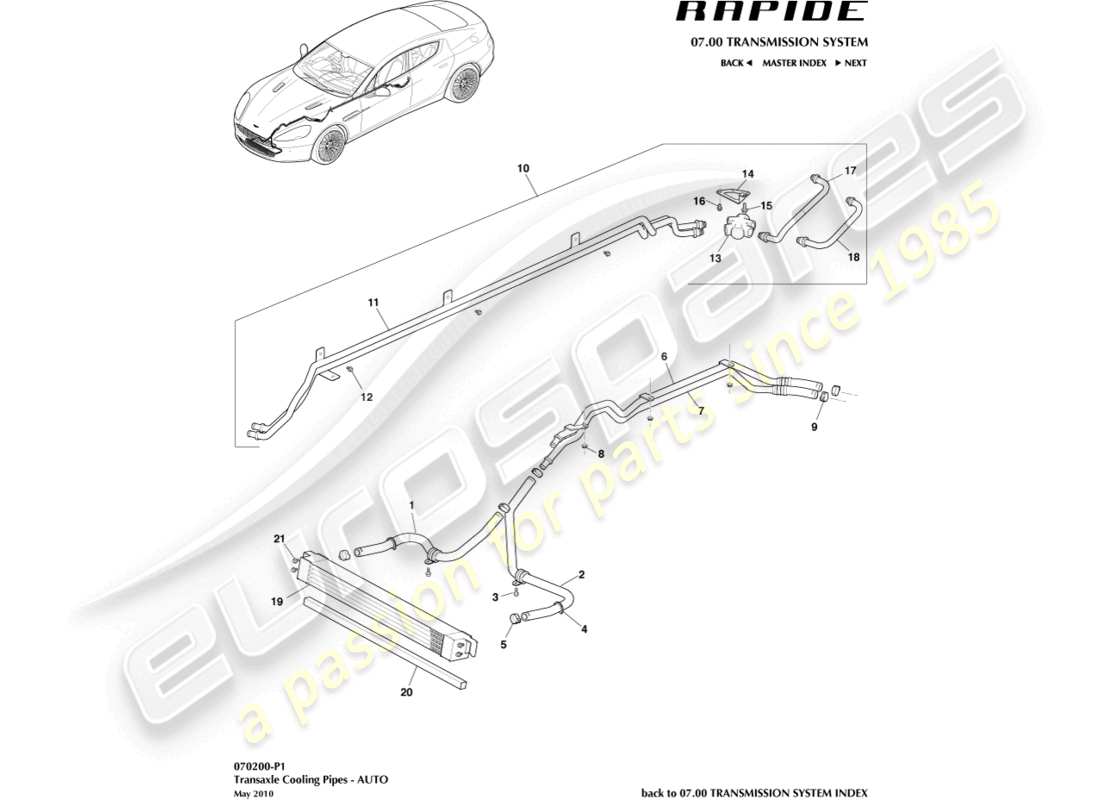

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 9G43-7F120-AA
                          HOSE ASSY, COOLER OUTLET
                          S'. Incl. P clips
                          from £87.21
                          from £87.21
                          HOSE-AIR/OIL ASSEMBLY Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 9D33-7F120-AB
                          HOSE ASSY, COOLER OUTLET
                          AMR 19MY. Incl. P clips
                          from £173.69
                          from £173.69
                          HOSE OIL COOLER Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9G43-7F120-BA
                          HOSE ASSY, COOLER INLET
                          S'. Incl. P clips
                          from £123.02
                          from £123.02
                          HOSE, AIR/ OIL COOLER INLET Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 9D33-7F120-BB
                          HOSE ASSY, COOLER INLET
                          AMR 19MY. Incl. P clips
                          from £122.56
                          from £122.56
                          HOSE OIL COOLER Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 703265
                          SCREW, M6X16, FLANGE HEAD
                          from £0.47
                          from £0.47
                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 9G43-7R041-AA
                          GROMMET, HOSE SUPPORT
                          from £11.43
                          from £11.43
                          GROMMET, OIL COOLER HOSE SUPPORT Genuine Aston Martin - New (to order)
                          # 5
                          MPN: 9G43-8777-CA
                          CLAMP, OETIKER 25.5
                          from £3.87
                          from £3.87
                          CLAMP HOSE Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 9G43-7W093-AA
                          PIPE ASSY, ENGINE BAY, INLET
                          from £87.69
                          from £87.69
                          PIPE, ENGINE BAY INLET Genuine Aston Martin - New (to order)
                          # 6
                          MPN: CD33-7W093-AC
                          PIPE ASSY, ENGINE BAY, INLET
                          Rapide S
                          from £170.56
                          from £170.56
                          PIPE ENG BAY Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 9G43-7W093-BA
                          PIPE ASSY, ENGINE BAY, OUTLET
                          from £131.86
                          from £131.86
                          PIPE - ENG BAY OTLT Genuine Aston Martin - New (to order)
                          # 7
                          MPN: CD33-7W093-BC
                          PIPE ASSY, ENGINE BAY, OUTLET
                          Rapide S
                          from £152.67
                          from £152.67
                          PIPE ENG BAY Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 702944
                          NUT, M6
                          from £0.58
                          from £0.58
                          NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                          LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                          # 9
                          MPN: 9G43-8777-CA
                          CLAMP, OETIKER 025.5
                          from £3.87
                          from £3.87
                          CLAMP HOSE Genuine Aston Martin - New (to order)
                          # 10
                          MPN: AD43-321363-AC
                          PIPE ASSY
                          Up to 15MY, 6 speed
                          from £539.20
                          from £539.20
                          PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 10
                          MPN: FD43-321363-AA
                          PIPE ASSY
                          From 15MY, 8 speed
                          from £707.66
                          from £707.66
                          PIPE ASSEMBLY Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 9G43-7D353-AA
                          PIPE ASSY, OIL COOLING
                          Up to 15MY, 6 speed
                          TUB & BRACKET ASSEMBLY Genuine Aston Martin - New (to order)
                          # 11
                          MPN: FD43-7D353-AA
                          PIPE ASSY, OIL COOLING
                          From 15MY, 8 speed
                          PIPE ASSEMBLY, OIL COOLING Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 700606
                          SCREW, FLG M6X12, TUBE ASSY
                          from £0.47
                          from £0.47
                          SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 4G43-6L635-AA
                          THERMOSTAT, OIL CONTROL
                          from £640.00
                          from £640.00
                          THERM ASSEMBLY OIL TEMP Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 4G43-6A626-AA
                          BRACKET, OIL PIPE
                          Up to 15MY
                          from £35.54
                          from £35.54
                          BRACKET, OIL PIPE Genuine Aston Martin - New (to order)
                          BRACKET, OIL PIPE Genuine Aston Martin - Used In stock
                          # 14
                          MPN: FD43-6A626-AA
                          BRACKET, OIL PIPE
                          FROM 15MY
                          BRACKET, OIL PIPE Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 703189
                          SCREW, FLG, M8X16
                          from £0.47
                          from £0.47
                          BOLT M8X16 HEX FLANGE Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 700606
                          SCREW, FLG, M6X12
                          from £0.47
                          from £0.47
                          SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 4G43-35568-BA
                          PIPE, INLET
                          Up to 15MY, 6 speed
                          PIPE TRANS OIL Genuine Aston Martin - New (to order)
                          # 17
                          MPN: FD43-35568-BA
                          PIPE, INLET
                          From 15MY, 8 speed
                          PIPE, TRANS OIL, INLET Genuine Aston Martin - New (to order)
                          # 18
                          MPN: 4G43-35568-AA
                          PIPE, OUTLET
                          Up to 15MY, 6 speed
                          PIPE TRANS OIL Genuine Aston Martin - New (to order)
                          # 18
                          MPN: FD43-35568-AA
                          PIPE, OUTLET
                          From 15MY, 8 speed
                          PIPE, TRANS OIL, OUTLET Genuine Aston Martin - New (to order)
                          # 19
                          MPN: 9G43-445396-AA
                          COOLER ASSY, OIL
                          from £821.13
                          from £821.13
                          OIL COOLER, AUTO TRANSMISSION Genuine Aston Martin - New (to order)
                          # 20
                          MPN: 32-85306
                          SEAL, COOLER, LOWER
                          from £9.99
                          from £9.99
                          SEAL-RADIATOR UPPER Genuine Aston Martin - New (to order)
                          # 21
                          MPN: 703265
                          SCREW, M6X16, FLANGE HEAD
                          from £0.47
                          from £0.47
                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
