aston martin rapide (2016) fuse panels parts diagram

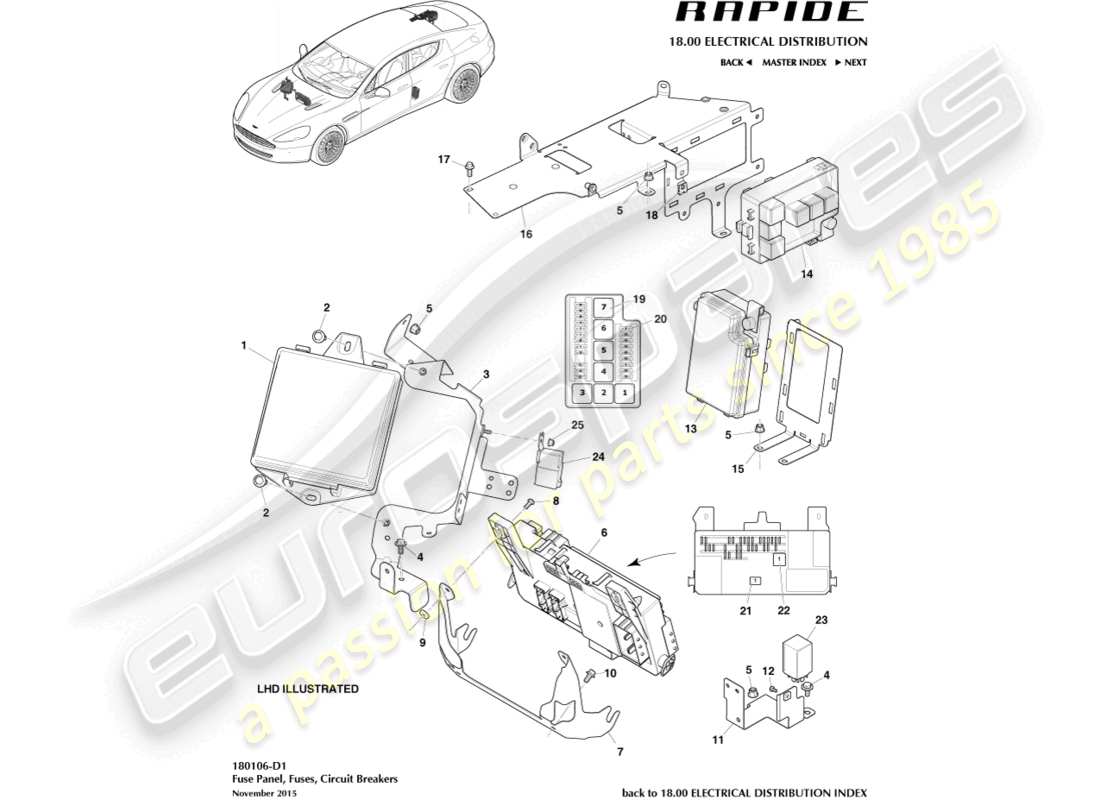

180106-D1 - Fuse Panels

Aston Martin Rapide (2016) Fuse Panels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: AD43-14A173-AA
                                        FUSEBOX, ENGINE BAY
                                        FUSEBOX, ENGINE BAY Genuine Aston Martin - New (to order)
                                        # 1
                                        MPN: BG33-14A173-AB
                                        FUSEBOX , ENGINE BAY
                                        -12MY
                                        from £287.42
                                        from £287.42
                                        ENGINE BAY FUSE BOX Genuine Aston Martin - New (to order)
                                        # 2
                                        MPN: 702839-PK
                                        SCREW & WASHER, M6X20
                                        from £3.14
                                        from £3.14
                                        SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: 4G43-14A173-BK
                                        BRACKET, ENGINE BAY FUSEBOX, RHD
                                        Up to 13MY
                                        from £21.51
                                        from £21.51
                                        BRACKET, ENGINE BAY RHD Genuine Aston Martin - New (to order)
                                        BRACKET, ENGINE BAY RHD Genuine Aston Martin - Used In stock
                                        # 3
                                        MPN: DG43-14A173-BA
                                        BRACKET, ENGINE BAY FUSEBOX, RHD
                                        From 13MY To 15MY
                                        from £37.09
                                        from £37.09
                                        BRACKET, ENGINE BAY FUSEBOX, RHD Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: FD43-14A173-BA
                                        BRACKET, ENGINE BAY FUSEBOX, RHD
                                        From VIN: F04345. For vehicles with A/C Gas R134a only
                                        BRACKET, ENGINE BAY FUSEBOX, RHD Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: FD43-14A173-BB
                                        BRACKET, ENGINE BAY FUSEBOX, RHD
                                        For vehicles with A/C Gas HFO1234a only
                                        from £105.60
                                        from £105.60
                                        BRACKET, ENGINE BAY FUSEBOX, RHD Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: 4G43-14A173-CH
                                        BRACKET, ENGINE BAY FUSEBOX, LHD
                                        Up to 15MY
                                        from £99.60
                                        from £99.60
                                        BRACKET, ENGINE BAY FUSEBOX, LHD Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: FD43-14A173-CA
                                        BRACKET, ENGINE BAY FUSEBOX, LHD
                                        From VIN: F04321
                                        from £105.49
                                        from £105.49
                                        BRACKET, ENGINE BAY FUSEBOX, LHD Genuine Aston Martin - New (to order)
                                        # 3
                                        MPN: FD43-14A173-CB
                                        BRACKET, ENGINE BAY FUSE BOX, LHD
                                        For vehicles with A/C Gas HFO1234a only
                                        from £105.60
                                        from £105.60
                                        BRACKET, ENGINE BAY FUSE BOX, LHD Genuine Aston Martin - New (to order)
                                        # 4
                                        MPN: 703151
                                        SCREW & WASHER, M6X16
                                        from £0.47
                                        from £0.47
                                        SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                        LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                                        # 5
                                        MPN: 703164
                                        NUT, M6 HEX FLANGE HEAD
                                        from £0.47
                                        from £0.47
                                        M6 LOCKNUT FLANGE NYL Genuine Aston Martin - New (to order)
                                        # 6
                                        MPN: 8G43-14C245-AA
                                        Central Electronic Module
                                        Order 702802 Car Config when ordering CEM
                                        from £556.26
                                        from £556.26
                                        Central Electronic Module Genuine Aston Martin - New (to order)
                                        # 7
                                        MPN: 4G43-13B525-BG
                                        BRACKET, CABIN FUSEBOX
                                        from £14.58
                                        from £14.58
                                        BRACKET CABIN F/BOX CEM Genuine Aston Martin - New (to order)
                                        BRACKET CABIN F/BOX CEM Genuine Aston Martin - Used In stock
                                        # 9
                                        MPN: 703164
                                        NUT, M5
                                        from £0.47
                                        from £0.47
                                        M6 LOCKNUT FLANGE NYL Genuine Aston Martin - New (to order)
                                        # 10
                                        MPN: 700606
                                        SCREW, M6X12 HEX FLANGE HEAD
                                        from £0.47
                                        from £0.47
                                        SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: 8D33-14N072-AE
                                        BRACKET, FUSEBOX LHD
                                        from £25.47
                                        from £25.47
                                        BRACKET FUSEBOX LHD Genuine Aston Martin - New (to order)
                                        # 11
                                        MPN: 8D33-14N072-BD
                                        BRACKET, FUSEBOX RHD
                                        from £29.67
                                        from £29.67
                                        BRACKET, FUSEBOX RHD Genuine Aston Martin - New (to order)
                                        # -
                                        -
                                        EDGING STRIP
                                        Bracket, Fusebox mounting
                                        # 12
                                        MPN: 700963
                                        SCREW, M4X8 PAN HEAD
                                        from £0.47
                                        from £0.47
                                        SCREW M4X8 PAN HEAD Genuine Aston Martin - New (to order)
                                        # 13
                                        MPN: AD43-14A074-AA
                                        FUSEBOX, UNDERSEAT
                                        from £279.97
                                        from £279.97
                                        FUSEBOX, UNDERSEAT Genuine Aston Martin - New (to order)
                                        # 14
                                        MPN: AD43-14A073-AB
                                        FUSEBOX, REAR 22W RPDB
                                        from £287.42
                                        from £287.42
                                        FUSEBOX, REAR 22W RPDB Genuine Aston Martin - New (to order)
                                        # 15
                                        MPN: AD43-14A301-BB
                                        BRACKET, REAR UNDER SEAT FUSEBOX
                                        from £19.04
                                        from £19.04
                                        BRACKET, REAR UNDER SEAT FUSEBOX Genuine Aston Martin - New (to order)
                                        # 16
                                        MPN: AD43-14A301-AC
                                        BRACKET, REAR FUSEBOX MOUNTING
                                        from £76.12
                                        from £76.12
                                        BRACKET, REAR FUSEBOX MOUNTING Genuine Aston Martin - New (to order)
                                        # 16
                                        MPN: AD43-14A301-AD
                                        BRACKET, REAR FUSEBOX MOUNTING
                                        Rapide S
                                        BRACKET, REAR FUSEBOX MOUNTING Genuine Aston Martin - New (to order)
                                        # 17
                                        MPN: 703729
                                        SCREW, M6X16 HEX FLG HD
                                        Rear fusebox bracket
                                        from £0.47
                                        from £0.47
                                        SCREW-M6X16 HEX FLANGE Genuine Aston Martin - New (to order)
                                        # 18
                                        MPN: 701448
                                        NUT, ST4.2 U TYPE SPL SPRING
                                        from £0.47
                                        from £0.47
                                        NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                                        SPLITTER NUTS Genuine Ferrari Part - New (to order)
                                        # 19
                                        MPN: 1R12-37-10526
                                        RELAY, FULL
                                        from £3.49
                                        from £3.49
                                        RELAY-CHANGE OVER Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-37-10962
                                        FUSE, 80A, FAN PACK
                                        from £11.10
                                        from £11.10
                                        FUSE 80 AMP-CLG FAN Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 37-23422
                                        FUSE MIDI 5A
                                        257 005
                                        from £1.12
                                        from £1.12
                                        FUSE-5 AMP Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 37-23423
                                        FUSE MIDI 7.5A
                                        257 07.5
                                        from £1.23
                                        from £1.23
                                        FUSE MIDI 7.5A Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 37-23424
                                        FUSE MIDI 10A
                                        257 010
                                        from £1.12
                                        from £1.12
                                        FUSE-10 AMP Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 37-23425
                                        FUSE MIDI 15A
                                        257 015
                                        from £1.12
                                        from £1.12
                                        FUSE 15 AMP Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 37-23426
                                        FUSE MIDI 20A
                                        257 020
                                        from £1.12
                                        from £1.12
                                        FUSE 20 AMP Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 37-23427
                                        FUSE MIDI 25A
                                        257 025
                                        from £1.12
                                        from £1.12
                                        FUSE 25 AMP Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 37-23428
                                        FUSE MIDI 30A
                                        257 030
                                        from £2.54
                                        from £2.54
                                        FUSE 30 AMP Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-37-10578-PK
                                        FUSE MINI 5A
                                        from £19.32
                                        from £19.32
                                        FUSE, MINI 5A Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-37-10579-PK
                                        FUSE MINI 7.5A
                                        from £14.81
                                        from £14.81
                                        FUSE MINI 7.5A Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-37-10580-PK
                                        FUSE MINI 10A
                                        from £32.81
                                        from £32.81
                                        FUSE, MINI 10A Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-37-10581-PK
                                        FUSE MINI 15A
                                        from £14.81
                                        from £14.81
                                        FUSE, MINI 15A Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-37-10582-PK
                                        FUSE MINI 20A
                                        from £14.81
                                        from £14.81
                                        FUSE, MINI 20A Genuine Aston Martin - New (to order)
                                        # 20
                                        MPN: 4G43-37-10583-PK
                                        FUSE MINI 25A
                                        from £14.81
                                        from £14.81
                                        FUSE, MINI 25A Genuine Aston Martin - New (to order)
                                        # 21
                                        MPN: 4G43-37-10526
                                        RELAY, MICRO
                                        RELAY, MICRO Genuine Aston Martin - New (to order)
                                        # 22
                                        MPN: 4G43-37-10526
                                        RELAY, ISO
                                        RELAY, MICRO Genuine Aston Martin - New (to order)
                                        # 23
                                        MPN: AD43-3F826-AA
                                        MODULE ASSY, POWER STEERING
                                        Module, power steering control Genuine Aston Martin - New (to order)
                                        # -
                                        -
                                        PROTECTOR, POWER STUD
                                        # 24
                                        MPN: 6G33-14N089-BA
                                        Relay, High Power 70 Amp, Starter
                                        from £16.57
                                        from £16.57
                                        SNDARY AIR RLAY Genuine Aston Martin - New (to order)
                                        # 25
                                        MPN: 703165
                                        NUT, HEX FLANGED, M5
                                        from £0.47
                                        from £0.47
                                        NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
