aston martin rapide (2017) underbody, rear parts diagram

010101-B2 - Underbody, Rear

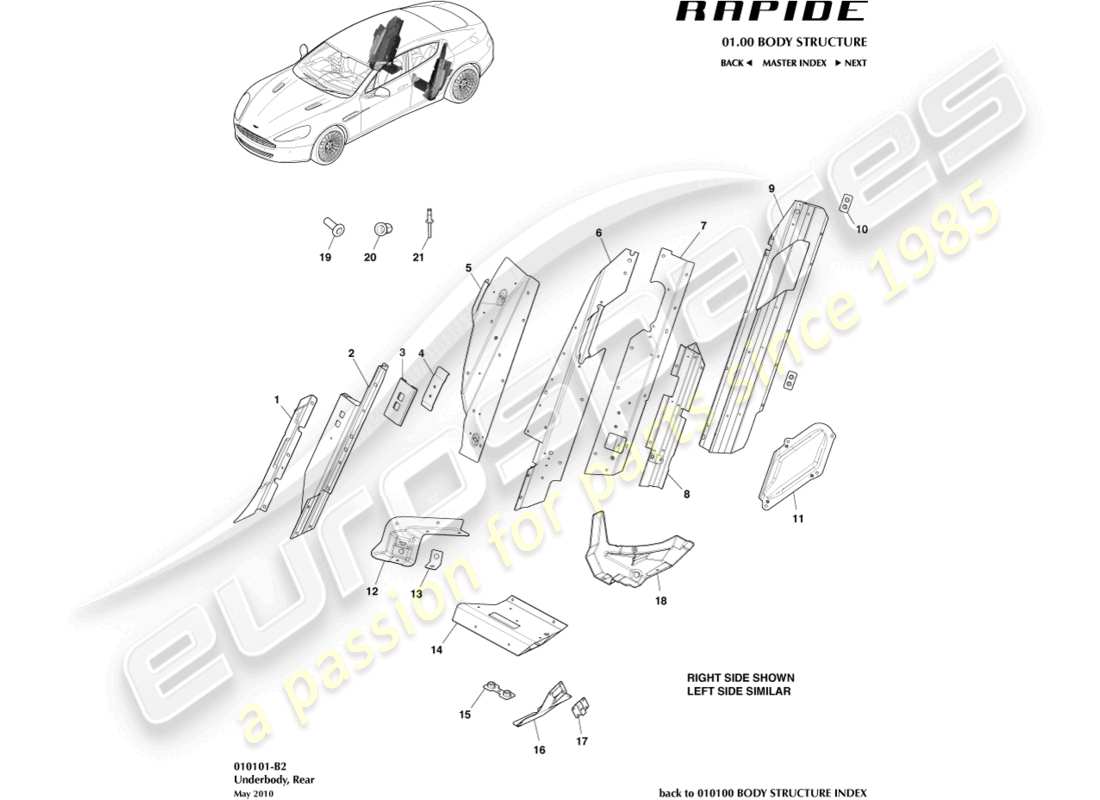

Aston Martin Rapide (2017) Underbody, Rear Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: GOAD43-F200A38-AB
      BODY SIDE, REINFORCED RH
      Structural Cat. A only
      from £17.12
      from £17.12
      BODY SIDE, REINFORCED RH Genuine Aston Martin - New (to order)
      # 1
      MPN: GOAD43-F200A39-AB
      BODY SIDE, REINFORCED LH
      Structural Cat. A only
      from £17.12
      from £17.12
      BODY SIDE, REINFORCED LH Genuine Aston Martin - New (to order)
      # 2
      MPN: GOAD43-F410A60-AC
      CENTRE PILLAR OUTER RH
      Structural Cat. A only
      from £95.09
      from £95.09
      CENTRE PILLAR OUTER RH Genuine Aston Martin - New (to order)
      # 2
      MPN: GOAD43-F410A61-AC
      CENTRE PILLAR OUTER LH
      Structural Cat. A only
      from £95.09
      from £95.09
      CENTRE PILLAR OUTER LH Genuine Aston Martin - New (to order)
      # 3
      MPN: GOAD43-F5394Y-AA
      STRIKER REINFORCEMENT, CENTRE PILLAR
      Structural Cat. A only
      from £6.31
      from £6.31
      STRIKER REINFORCEMENT, CENTRE PILLAR Genuine Aston Martin - New (to order)
      # 4
      MPN: AD43-F5420A62-AA
      NUT PLATE, CENTRE PILLAR
      Structural Cat. A only
      from £6.66
      from £6.66
      NUT PLATE, CENTRE PILLAR Genuine Aston Martin - New (to order)
      # 5
      MPN: AD43-F68272-AB
      PANEL 'C' PILLAR CLOSING RH
      Structural Cat. A only
      from £875.15
      from £875.15
      PANEL 'C' PILLAR CLOSING RH Genuine Aston Martin - New (to order)
      # 5
      MPN: AD43-F68273-AB
      PANEL 'C' PILLAR CLOSING LH
      Structural Cat. A only
      PANEL 'C' PILLAR CLOSING LH Genuine Aston Martin - New (to order)
      # 6
      MPN: AD43-F71080-AB
      CENTRE PILLAR INTERMEDIATE RH
      Structural Cat. A only
      from £104.58
      from £104.58
      CENTRE PILLAR INTERMEDIATE RH Genuine Aston Martin - New (to order)
      # 6
      MPN: AD43-F71081-AB
      CENTRE PILLAR INTERMEDIATE LH
      Structural Cat. A only
      CENTRE PILLAR INTERMEDIATE LH Genuine Aston Martin - New (to order)
      # 7
      MPN: AD43-A24312-AA
      CENTRE PILLAR INNER RH
      Structural Cat. A only
      from £47.49
      from £47.49
      CENTRE PILLAR INNER RH Genuine Aston Martin - New (to order)
      # 7
      MPN: AD43-A24313-AA
      CENTRE PILLAR INNER LH
      Structural Cat. A only
      CENTRE PILLAR INNER LH Genuine Aston Martin - New (to order)
      # 8
      MPN: GOAD43-A28B00-AB
      CENTRE PILLAR INNER REINFORCEMENT RH
      Structural Cat. A only
      from £66.53
      from £66.53
      CENTRE PILLAR INNER REINFORCEMENT RH Genuine Aston Martin - New (to order)
      # 8
      MPN: GOAD43-A28B01-AB
      CENTRE PILLAR INNER REINFORCEMENT LH
      Structural Cat. A only
      CENTRE PILLAR INNER REINFORCEMENT LH Genuine Aston Martin - New (to order)
      # 9
      MPN: GOAD43-F71110-AA
      CENTRE PILLAR INTERMEDIATE REAR RH
      from £79.81
      from £79.81
      CENTRE PILLAR INTERMEDIATE REAR RH Genuine Aston Martin - New (to order)
      # 9
      MPN: GOAD43-F71111-AA
      CENTRE PILLAR INTERMEDIATE REAR LH
      Structural Cat. A only
      from £79.81
      from £79.81
      CENTRE PILLAR INTERMEDIATE REAR LH Genuine Aston Martin - New (to order)
      # 10
      MPN: AD43-80997-AA
      NUTPLATE REAR SEAT BELT MOUNTING
      Structural Cat. A only
      from £3.98
      from £3.98
      NUTPLATE REAR SEAT BELT MOUNTING Genuine Aston Martin - New (to order)
      # 11
      MPN: AD43-14N200-AA
      CENTRE PILLAR LOOM CHANNEL RH
      Structural Cat. A only
      from £95.09
      from £95.09
      CENTRE PILLAR LOOM CHANNEL RH Genuine Aston Martin - New (to order)
      # 11
      MPN: AD43-14N201-AA
      CENTRE PILLAR LOOM CHANNEL LH
      Structural Cat. A only
      CENTRE PILLAR LOOM CHANNEL LH Genuine Aston Martin - New (to order)
      # 12
      MPN: GOAD43-F10760-AA
      REINFORCEMENT REAR FLOOR CENTRE MEMBER RH
      Structural Cat. A only
      from £92.11
      from £92.11
      REINFORCEMENT REAR FLOOR CENTRE MEMBER RH Genuine Aston Martin - New (to order)
      # 12
      MPN: GOAD43-F10761-AA
      REINFORCEMENT REAR FLOOR CENTRE MEMBER LH
      Structural Cat. A only
      from £92.11
      from £92.11
      REINFORCEMENT REAR FLOOR CENTRE MEMBER LH Genuine Aston Martin - New (to order)
      # 13
      MPN: GOAD43-A243B13-AA
      REINFORCEMENT REAR ST BLT RET MOUNTING
      Structural Cat. A only
      from £153.54
      from £153.54
      REINFORCEMENT REAR ST BOLT RET MOUNTING Genuine Aston Martin - New (to order)
      # 14
      MPN: AD43-F109A68-AB
      MEMBER, FRONT FLOOR CS REAR RH
      Structural Cat. A only
      MEMBER, FRONT FLOOR CS REAR RH Genuine Aston Martin - New (to order)
      # 14
      MPN: GOAD43-F109A69-AB
      MEMBER, FRONT FLOOR CS REAR RH
      Structural Cat. A only
      MEMBER, FRONT FLOOR CS REAR RH Genuine Aston Martin - New (to order)
      # 15
      MPN: AD43-F425A50-AA
      NUTPLATE, REAR SUBFRAME FRONT
      Structural Cat. A only
      from £25.93
      from £25.93
      NUTPLATE, REAR SUBFRAME FRONT Genuine Aston Martin - New (to order)
      # 16
      MPN: GOAD43-F10798-AA
      REINFORCMENT FRONT FLOOR CS REAR RH
      Structural Cat. A only
      REINFORCMENT FRONT FLOOR CS REAR RH Genuine Aston Martin - New (to order)
      # 16
      MPN: GOAD43-F10799-AA
      REINFORCMENT FRONT FLOOR CS REAR RH
      Structural Cat. A only
      REINFORCMENT FRONT FLOOR CS REAR RH Genuine Aston Martin - New (to order)
      # 17
      MPN: GOAD43-F60108-AA
      NUTPLATE REAR ST BEL ANC LOWER INNER
      Structural Cat. A only
      NUTPLATE REAR ST BEL ANC LOWER INNER Genuine Aston Martin - New (to order)
      # 18
      MPN: GOAD43-F74200-BA
      CENTRE PILLAR REINFORCMENT CASTING LH
      Structural Cat. A only
      from £114.11
      from £114.11
      CENTRE PILLAR REINFORCMENT CASTING LH Genuine Aston Martin - New (to order)
      # 18
      MPN: GOAD43-F74201-BA
      CENTRE PILLAR REINFORCMENT CASTING LH
      Structural Cat. A only
      from £187.48
      from £187.48
      CENTRE PILLAR REINFORCMENT CASTING LH Genuine Aston Martin - New (to order)
      # 20
      MPN: 6G33-33800-AA
      RIVNUT 7/16 UNF HEX FLG 4-7MM
      from £0.94
      from £0.94
      RIVNUT, 7/16UNF HEX FLANGE Genuine Aston Martin - New (to order)
      # 21
      MPN: 6G33-68676-AB
      RIVET, STRUCTURAL 6.5X14 BLIND
      RIVET, STRUCTURAL 6.5X14 BLIND Genuine Aston Martin - New (to order)
