010507-B2 - C Pillar Trim

Aston Martin Rapide (2017) C Pillar Trim Parts Diagram

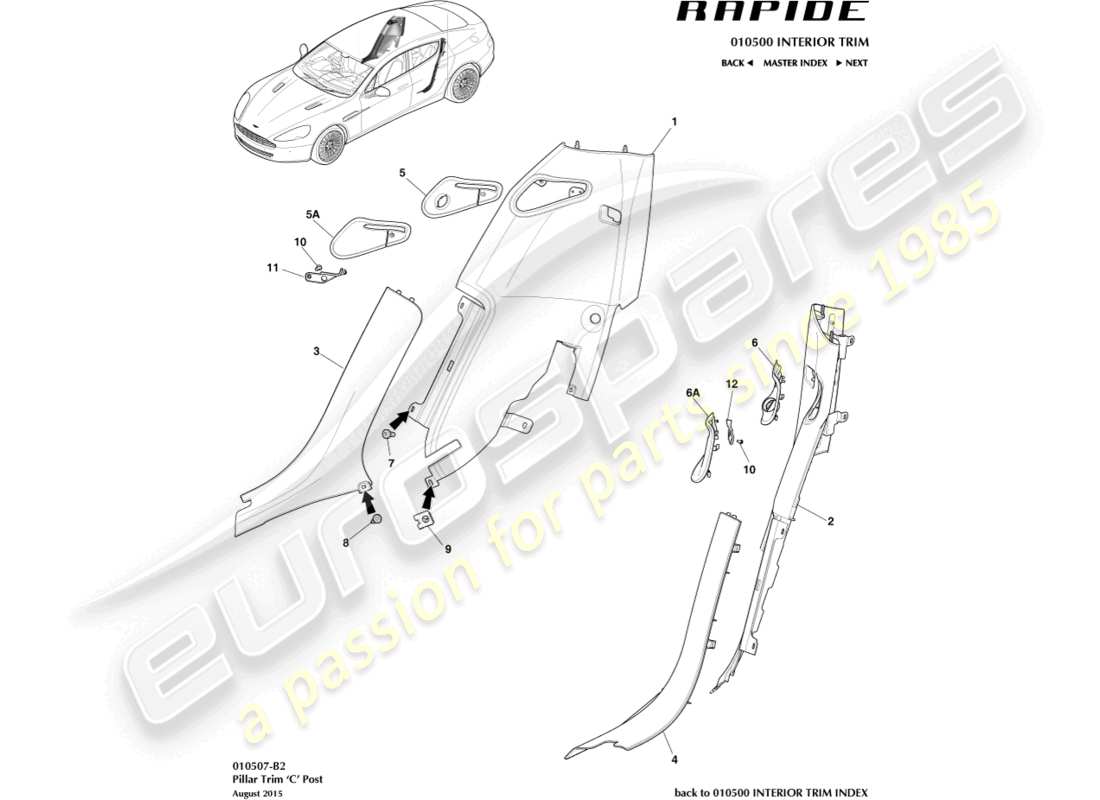

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: AD43-50206-AEW
                PANEL ASSY, MID SIDE REAR TRIM, RH
                from £1,187.84
                from £1,187.84
                PANEL ASSEMBLY, MID SIDE REAR TRIM, RH Genuine Aston Martin - New (to order)
                # 2
                MPN: AD43-50207-AEW
                PANEL ASSY, MID SIDE REAR TRIM, LH
                PANEL ASSEMBLY, MID SIDE REAR TRIM, LH Genuine Aston Martin - New (to order)
                # 3
                MPN: AD43-13220-ABW
                SCUFF PLATE INSERT ASSY, REAR RH
                from £346.93
                from £346.93
                SCUFF PLATE INSERT ASSEMBLY, REAR RH Genuine Aston Martin - New (to order)
                # 4
                MPN: AD43-13221-ABW
                SCUFF PLATE INSERT ASSY, REAR LH
                from £191.28
                from £191.28
                SCUFF PLATE INSERT ASSEMBLY, REAR LH Genuine Aston Martin - New (to order)
                # 5
                MPN: AD43-611B90-BA
                BEZEL, REAR SEAT BELT TRIM, UPPER, RH
                Folding Seat, Chrome
                from £259.75
                from £259.75
                BEZEL, REAR SEAT BELT TRIM, UPPER, RH Genuine Aston Martin - New (to order)
                # 5
                MPN: KD43-611B90-BA
                BEZEL, REAR SEAT BELT TRIM, UPPER, RH
                AMR
                from £416.20
                from £416.20
                BEZEL, REAR SEAT BELT TRIM, UPPER, RH Genuine Aston Martin - New (to order)
                # 5A
                MPN: GD43-F6988-AAW
                BEZEL, REAR SEAT BELT TRIM, UPPER, RH
                Fixed Seat, Leather Wrapped
                BEZEL, REAR SEAT BELT TRIM, UPPER, RH Genuine Aston Martin - New (to order)
                # 6
                MPN: AD43-611B91-BA
                BEZEL, REAR SEAT BELT TRIM, UPPER, LH
                Folding Seat, Chrome
                from £259.75
                from £259.75
                BEZEL, REAR SEAT BELT TRIM, UPPER, LH Genuine Aston Martin - New (to order)
                # 6
                MPN: KD43-611B91-BA
                BEZEL, REAR SEAT BELT TRIM, UPPER, LH
                AMR
                from £416.20
                from £416.20
                BEZEL, REAR SEAT BELT TRIM, UPPER, LH Genuine Aston Martin - New (to order)
                # 6A
                MPN: GD43-F6989-AAW
                BEZEL, REAR SEAT BELT TRIM, UPPER, LH
                Fixed Seat, Leather Wrapped
                BEZEL, REAR SEAT BELT TRIM, UPPER, LH Genuine Aston Martin - New (to order)
                # 7
                MPN: 702084
                SCREW, M5X10
                5 per panel
                Supersession
                Supersession
                Genuine Aston Martin (no longer available to order)
                # 8
                MPN: 701441-PK
                SCREW 4.2X13 SMALL WASHER HEAD
                1 per panel
                from £1.31
                from £1.31
                SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
                # 9
                MPN: 701448
                NUT, U TYPE
                1 per panel
                from £0.47
                from £0.47
                NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                SPLITTER NUTS Genuine Ferrari Part - New (to order)
                # 10
                MPN: 4G43-80899-AA
                SCREW, M4X8
                from £0.47
                from £0.47
                SCREW 4 X 8 PAN Genuine Aston Martin - New (to order)
                # 11
                MPN: GD43-613D10-AA
                PLASTIC BELT GUIDE RH
                PLASTIC BELT GUIDE RH Genuine Aston Martin - New (to order)
                # 12
                MPN: GD43-613D11-AA
                PLASTIC BELT GUIDE LH
                PLASTIC BELT GUIDE LH Genuine Aston Martin - New (to order)
