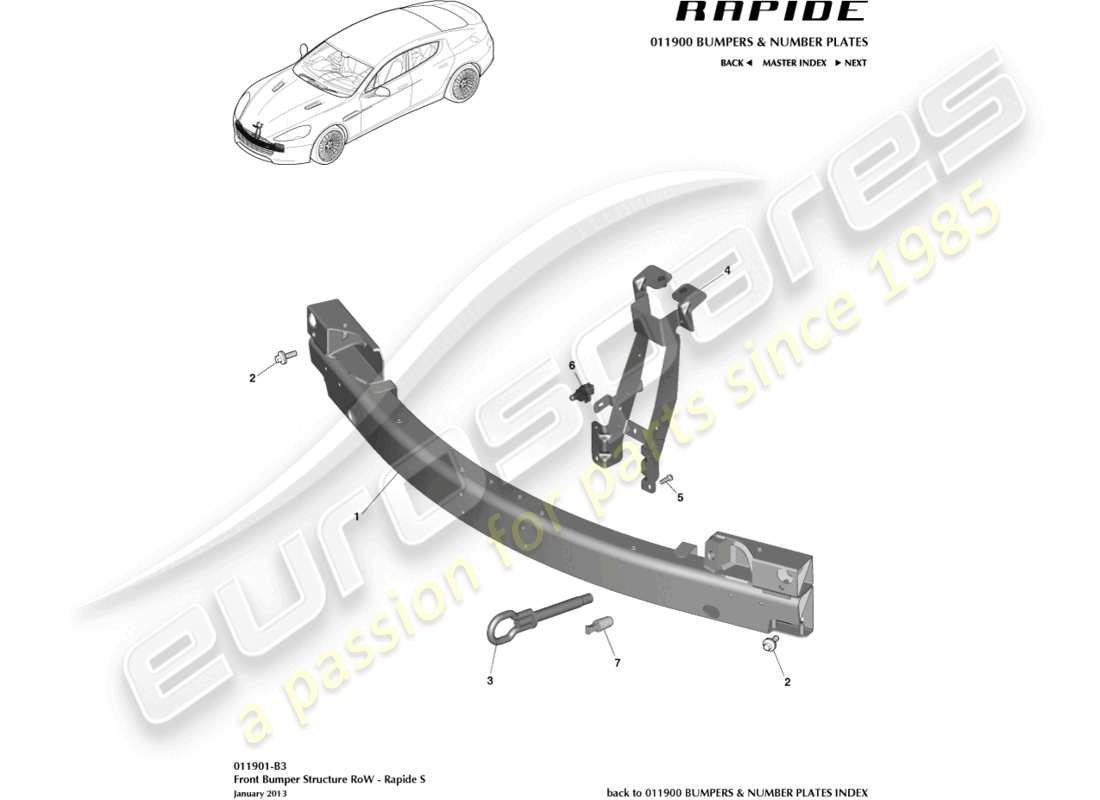

011901-B3 - Front Bumper Structure, S RoW

Aston Martin Rapide (2017) Front Bumper Structure, S RoW Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
            #
            Part number
            Description
            Key
            Price
            # 1
            MPN: DD43-17757-CA
            BUMPER BEAM, FRONT
            SEE SA-01-0247V2
            BUMPER BEAM, FRONT Genuine Aston Martin - New (to order)
            # 2
            MPN: 703155
            SCREW AND WASHER, M8 X 25
            from £1.56
            from £1.56
            SCREW/WASHER M8X25 Genuine Aston Martin - New (to order)
            # 3
            MPN: CD33-17B804-AC
            TOWING EYE
            See SA-01-0247V2, LH Thread
            from £57.51
            from £57.51
            TOWING EYE Genuine Aston Martin - New (to order)
            # 3
            MPN: CD33-17B804-BA
            TOWING EYE
            See SA-01-0247V2, RH Thread
            from £57.51
            from £57.51
            TOWING EYE Genuine Aston Martin - New (to order)
            # 4
            MPN: CD33-3804-AC
            BRACKET, BONNET LATCH MOUNTING
            from £184.53
            from £184.53
            BRACKET, BONNET LATCH MOUNTING Genuine Aston Martin - New (to order)
            # 5
            MPN: 700607
            SCREW, M6 X 20, HEX FLANGE HEAD
            from £0.47
            from £0.47
            SCREW M6X20 HEX FLANGE Genuine Aston Martin - New (to order)
            # 6
            MPN: 7G33-19E642-AA
            SENSOR, AMBIENT AIR
            Supersession
            Supersession
            Genuine Aston Martin (no longer available to order)
            # 7
            MPN: DG43-17K906-AA
            PLUG & GRIP, 15MM
            from £4.84
            from £4.84
            PLUG AND GRIP, 15MM Genuine Aston Martin - New (to order)
