aston martin rapide (2017) active damping module parts diagram

040304-C1 - Active Damping Module

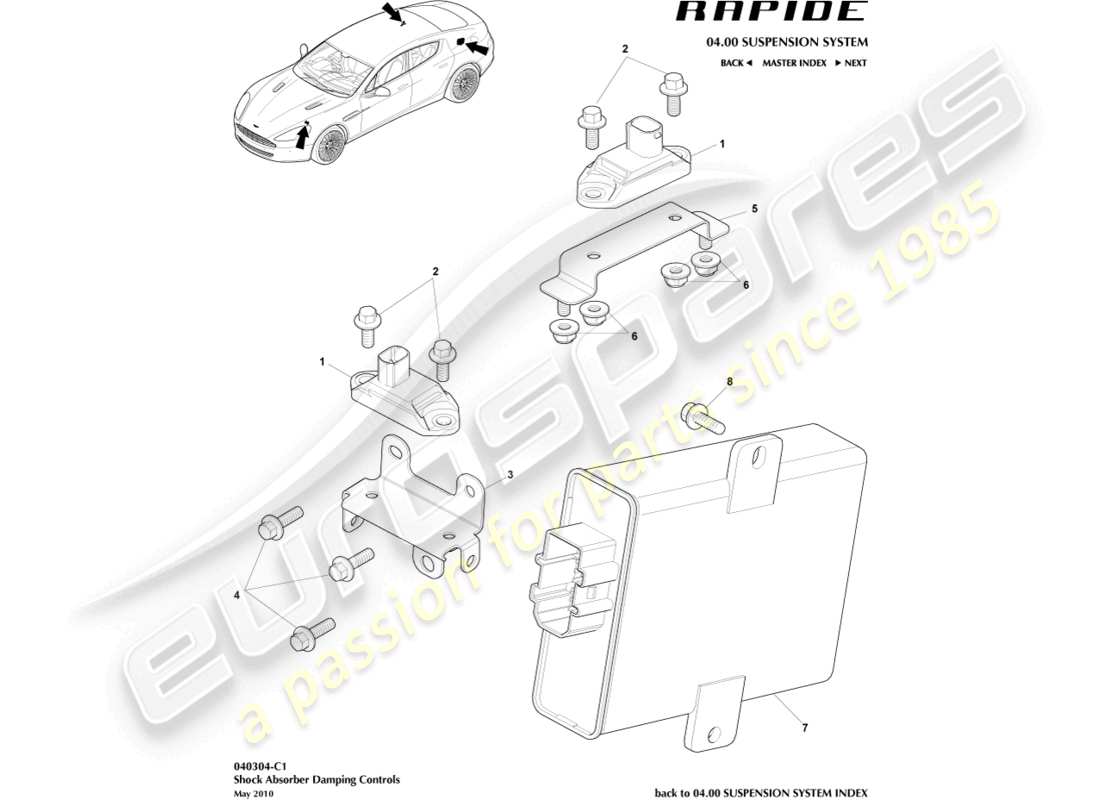

Aston Martin Rapide (2017) Active Damping Module Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 8D33-3C190-AA
                ACCELEROMETER, LOW-G
                LOW-G ACCELEROMETER Genuine Aston Martin - New (to order)
                # 2
                MPN: 703264
                SCREW, M6 X 14 HEX FLANGE HEAD
                2 per Accelerometer
                SCREW, M6X12 HEX HD Genuine Aston Martin - New (to order)
                # 3
                MPN: 8D33-3C480-AC
                BRACKET, ACCELEROMETER, FRONT
                from £14.86
                from £14.86
                BRACKET, ACCELEROMETER, FRONT Genuine Aston Martin - New (to order)
                # 4
                MPN: 703203
                SCREW, M6 X 25 HEX FLANGE HEAD
                from £0.47
                from £0.47
                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                # 5
                MPN: AD43-3C480-BA
                BRACKET, ACCELEROMETER, REAR
                from £12.55
                from £12.55
                BRACKET, ACCELEROMETER, REAR Genuine Aston Martin - New (to order)
                # 6
                MPN: 703169
                NUT, M6
                from £0.71
                from £0.71
                This part replaces part number 703168
                NUT M6 HEX FLANGE Genuine Aston Martin - New (to order)
                # 7
                MPN: 8D33-14C540-AA
                ADAPTIVE DAMPING ELECTRONIC ASSY
                from £514.80
                from £514.80
                ADS MODULE Genuine Aston Martin - New (to order)
                # 8
                MPN: 703265
                SCREW, M6 X 16
                from £0.47
                from £0.47
                SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
