aston martin rapide (2017) front brake system parts diagram

060300-C1 - Front Brake System

Aston Martin Rapide (2017) Front Brake System Parts Diagram

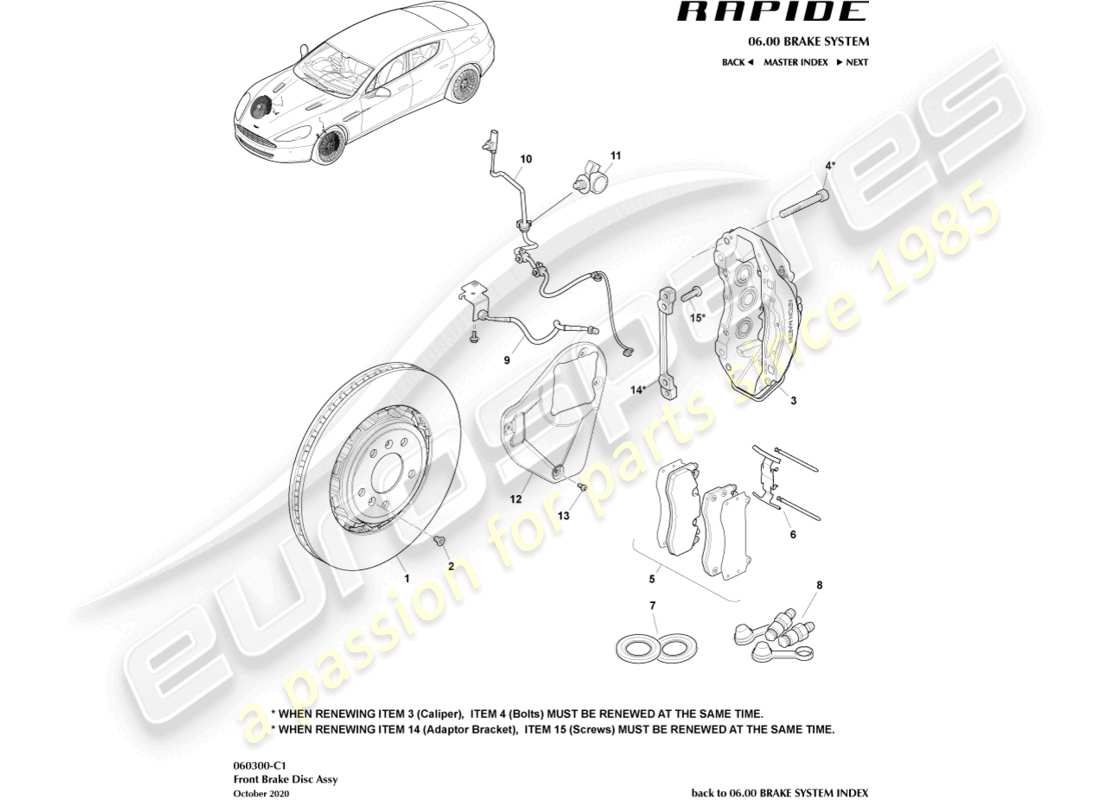

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: AD43-1125-AA
        DISC, BRAKE
        Up To VIN F02200, Plain Disc
        DISC, BRAKE Genuine Aston Martin - New (to order)
        # 1
        MPN: AD43-1125-AB
        DISC, BRAKE
        From VIN F02201 To 15MY, 390mm Grooved Disc
        from £516.45
        from £516.45
        DISC, BRAKE Genuine Aston Martin - New In stock
        # 1
        MPN: FD43-1125-AB
        DISC, BRAKE
        From 15MY, 400mm Grooved Disc
        from £494.72
        from £494.72
        FRONT BRAKE DISC Genuine Aston Martin - New (to order)
        # 1
        MPN: AY93-1125-AA
        DISC, BRAKE
        AMR
        from £8,109.56
        from £8,109.56
        DISC, BRAKE Genuine Aston Martin - New (to order)
        # 2
        MPN: 4G43-2N389-AA
        SCREW, M8X14 FLAT HD CSK
        from £0.47
        from £0.47
        SCREW M8X14 FLAT COUNTERSUNK Genuine Aston Martin - New In stock
        # 3
        MPN: AD43-2C463-AA
        CALIPER, LESS PADS, LH
        Up To 15MY, Grey
        from £748.24
        from £748.24
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C462-AA
        CALIPER, LESS PADS, RH
        Up To 15MY, Grey
        from £748.24
        from £748.24
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C463-CA
        CALIPER, LESS PADS, LH
        Up To 15MY, Black
        from £716.41
        from £716.41
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C462-CA
        CALIPER, LESS PADS, RH
        Up To 15MY, Black
        from £716.41
        from £716.41
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C463-DA
        CALIPER, LESS PADS, LH
        Up To 15MY, Red
        from £748.24
        from £748.24
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C462-DA
        CALIPER, LESS PADS, RH
        Up To 15MY, Red
        from £748.24
        from £748.24
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C463-EA
        CALIPER, LESS PADS, LH
        Up To 15MY, Silver
        from £748.24
        from £748.24
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C462-EA
        CALIPER, LESS PADS, RH
        Up To 15MY, Silver
        from £748.24
        from £748.24
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C463-FA
        CALIPER, LESS PADS, LH
        Up To 15MY, Yellow
        from £748.24
        from £748.24
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: AD43-2C462-FA
        CALIPER, LESS PADS, RH
        Up To 15MY, Yellow
        from £748.24
        from £748.24
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C463-AA
        CALIPER, LESS PADS, LH
        From 15MY, Grey
        from £972.67
        from £972.67
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C462-AA
        CALIPER, LESS PADS, RH
        From 15MY, Grey
        from £972.67
        from £972.67
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C463-CA
        CALIPER, LESS PADS, LH
        From 15MY, Black
        from £937.79
        from £937.79
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C462-CA
        CALIPER, LESS PADS, RH
        From 15MY, Black
        from £937.79
        from £937.79
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C463-DA
        CALIPER, LESS PADS, LH
        From 15MY, Red
        from £972.67
        from £972.67
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C462-DA
        CALIPER, LESS PADS, RH
        From 15MY, Red
        from £972.67
        from £972.67
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C463-EA
        CALIPER, LESS PADS, LH
        From 15MY, Silver
        from £972.67
        from £972.67
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C462-EA
        CALIPER, LESS PADS, RH
        From 15MY, Silver
        from £972.67
        from £972.67
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C463-FA
        CALIPER, LESS PADS, LH
        From 15MY, Yellow
        from £972.67
        from £972.67
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C462-FA
        CALIPER, LESS PADS, RH
        From 15MY, Yellow
        from £972.67
        from £972.67
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C463-JA
        CALIPER, LESS PADS, LH
        From 15MY, Black Anodised
        from £876.80
        from £876.80
        CALIPER, LESS PADS, LH Genuine Aston Martin - New (to order)
        # 3
        MPN: FD43-2C462-JA
        CALIPER, LESS PADS, RH
        From 15MY, Black Anodised
        from £876.80
        from £876.80
        CALIPER, LESS PADS, RH Genuine Aston Martin - New (to order)
        # 4
        MPN: 8D33-2C564-AA
        BOLT, CALIPER FIXING
        Always Replace, Do Not Re-use
        from £6.27
        from £6.27
        BOLT-M12 X 1.5 X 95 Genuine Aston Martin - New In stock
        # 4
        MPN: 8D33-CD60-AA
        BOLT, CALIPER FIXING
        AMR, Always Replace, Do Not Re-use
        from £5.56
        from £5.56
        SCW FRONT ADPT BRACKET CLP Genuine Aston Martin - New (to order)
        # 5
        MPN: AD43-2D007-AB
        KIT, BRAKE PADS, AXLE SET
        RoW
        from £685.01
        from £685.01
        KIT, BRAKE PADS, FRONT CCC Genuine Aston Martin - New (to order)
        # 5
        MPN: AD43-2D007-AC
        KIT, BRAKE PADS, AXLE SET, CCC
        CHINA
        KIT, BRAKE PADS, AXLE SET, CCC Genuine Aston Martin - New (to order)
        # 5
        MPN: CD33-2D007-AA
        KIT, BRAKE PADS, AXLE SET
        AMR
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 6
        MPN: AD43-2C588-AA
        KIT, PAD SPRING AND PIN
        per caliper
        from £64.90
        from £64.90
        KIT, PAD SPRING AND PIN Genuine Aston Martin - New (to order)
        # 6
        MPN: 8D33-2C588-AA
        KIT, PAD SPRING AND PIN
        AMR, Per Caliper
        from £48.62
        from £48.62
        KIT, PAD SPRING AND PIN Genuine Aston Martin - New (to order)
        # 7
        MPN: AD43-32180-AA
        KIT, DUST BOOT
        Up to 15MY. Per Caliper
        from £56.32
        from £56.32
        KIT, DUST BOOT Genuine Aston Martin - New (to order)
        # 7
        MPN: BG33-32180-AA
        KIT, DUST BOOT
        From 15MY. Per Caliper
        from £58.04
        from £58.04
        KIT, DUST BOOT Genuine Aston Martin - New (to order)
        # 7
        MPN: 8D33-32180-AA
        KIT, DUST BOOT
        AMR
        from £36.56
        from £36.56
        KIT, DUST BOOT, FRONT Genuine Aston Martin - New (to order)
        # 8
        MPN: 4G43-2C563-AA
        KIT, BLEED SCREW
        per caliper
        from £10.05
        from £10.05
        KIT, BLEED SCREW Genuine Aston Martin - New (to order)
        # 8
        MPN: 4G43-33693-AA
        CAP, BLEED SCREW
        per caliper
        from £16.52
        from £16.52
        CAP, BLEED SCREW Genuine Aston Martin - New (to order)
        # 9
        MPN: AD43-2078-AD
        HOSE ASSEMBLY, FLEXIBLE, LH
        per caliper
        from £136.59
        from £136.59
        HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
        # 9
        MPN: AD43-2078-BD
        HOSE ASSEMBLY, FLEXIBLE, RH
        per caliper
        from £77.60
        from £77.60
        HOSE ASSEMBLY FRONT WHEEL BRK Genuine Aston Martin - New (to order)
        # 10
        MPN: 8D33-2L507-AA
        WEAR LEAD, BRAKE PAD
        from £39.69
        from £39.69
        PAD WEAR LEAD FRONT Genuine Aston Martin - New (to order)
        # 11
        MPN: 4G43-65-10059-PK
        FIRTREE CLIP, PAD WEAR LEAD ATTACHMENT
        Pack of 100
        from £38.52
        from £38.52
        CLIP-FIRTREE PK 100 Genuine Aston Martin - New (to order)
        # 12
        MPN: 4G43-2K005-AA
        SHIELD, DISC, LH
        SHIELD, DISC, LH Genuine Aston Martin - New (to order)
        # 12
        MPN: CD33-2K005-AA
        SHIELD, DISC, LH
        AMR
        from £129.86
        from £129.86
        SHIELD, FRONT BRAKE DISC, LH Genuine Aston Martin - New (to order)
        # 12
        MPN: 4G43-2K004-AA
        SHIELD, DISC, RH
        SHIELD, DISC, RH Genuine Aston Martin - New (to order)
        # 12
        MPN: CD33-2K004-AA
        SHIELD, DISC, RH
        AMR
        from £129.86
        from £129.86
        SHIELD, FRONT BRAKE DISC, RH Genuine Aston Martin - New (to order)
        # 13
        MPN: 4G43-13D026-AA
        SCREW, RETAINING DISC SHIELD
        from £0.47
        from £0.47
        SCREW M6 X 1.0 X 14 Genuine Aston Martin - New (to order)
        # 14
        MPN: ED23-2D204-AB
        ADAPTOR BRACKET, FRONT CALIPER
        AMR only
        from £546.02
        from £546.02
        ADAPTOR BRACKET Genuine Aston Martin - New (to order)
        # 15
        MPN: 8D33-YA64-AA
        SCREW, ADAPTOR BRACKET TO KNUCKLE
        AMR only, Always Replace, Do Not Re-use
        from £5.42
        from £5.42
        SCW FRONT ADPT BRK KNUC Genuine Aston Martin - New (to order)
