010106-B3 - Body Rear End Composites

Aston Martin Rapide (2018) Body Rear End Composites Parts Diagram

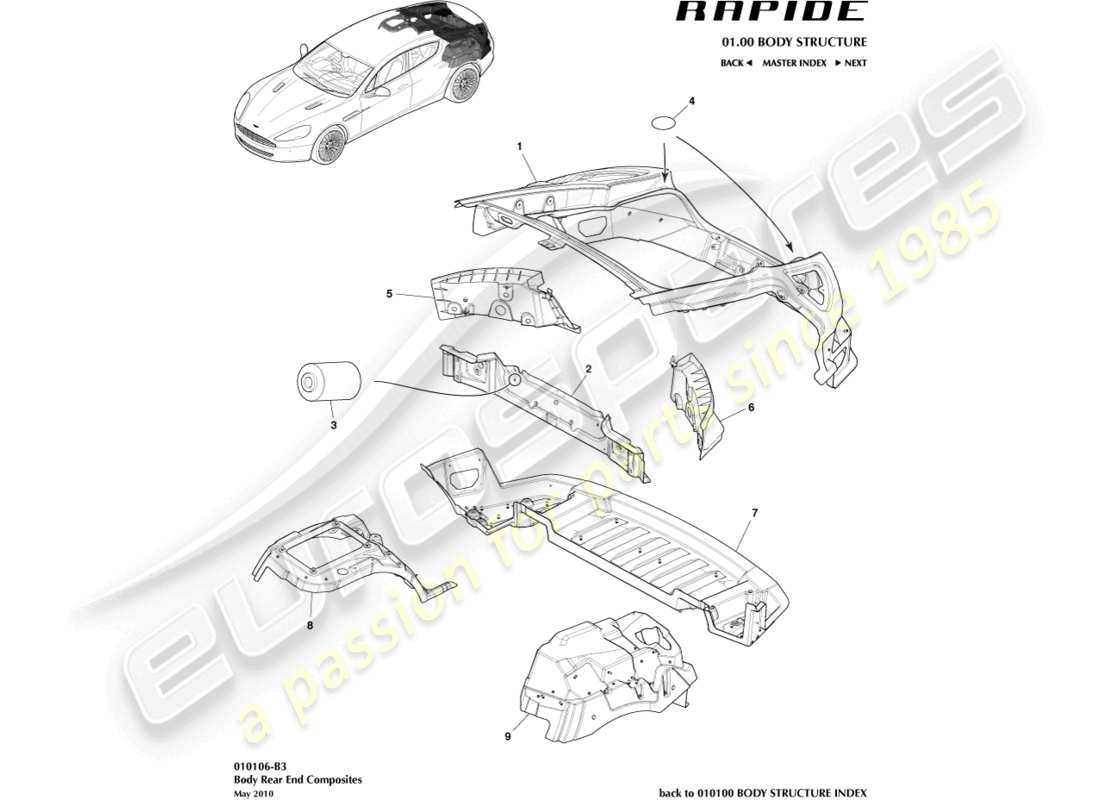

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: AD43-F22B88-AA
SURROUND ASSY, BOOT LID
Service Assy,Structural. Cat A only
from £3,190.24
from £3,190.24
SURROUND ASSEMBLY, BOOT LID Genuine Aston Martin - New (to order)
# 2
MPN: AD43-F65454-AC
PANEL, TLS STRIKER REINFORCMENT
Structural. Cat A Only
PANEL, TLS STRIKER REINFORCMENT Genuine Aston Martin - New (to order)
# 3
MPN: AD43-F65455-AA
BRACE, TLS, STRIKER REINFORMENT
Structural. Cat A Only
BRACE, TLS, STRIKER REINFORMENT Genuine Aston Martin - New (to order)
# 4
MPN: 6G33-200B10-AA
PROTECTION, PAINT
Structural. Cat A Only
Supersession
Supersession
Genuine Aston Martin (no longer available to order)
# 5
MPN: AD43-F13B452-AE
PANEL, REAR LAMP FINISHER RH
Structural. Cat A Only
PANEL, REAR LAMP FINISHER RH Genuine Aston Martin - New (to order)
# 6
MPN: AD43-F13B453-AF
PANEL, REAR LAMP FINISHER LH
Structural. Cat A Only
from £46.76
from £46.76
PANEL, REAR LAMP FINISHER LH Genuine Aston Martin - New (to order)
# 7
MPN: AD43-F47124-AB
PANEL, BOOT FLOOR
Structural. Cat A Only
from £409.38
from £409.38
PANEL, BOOT FLOOR Genuine Aston Martin - New (to order)
# 8
MPN: AD43-F279A54-AD
PANEL, QUARTER WHEEL INNER REAR RH
Structural. Cat A Only
from £169.81
from £169.81
PANEL, QUARTER WHEEL INNER REAR RH Genuine Aston Martin - New (to order)
# 8
MPN: ED43-F279A54-AA
PANEL, QUARTER WHEEL INNER REAR, RH
Rapide S 14.5MY, Structural. Cat A only
from £148.35
from £148.35
PANEL, QUARTER WHEEL INNER REAR, RH Genuine Aston Martin - New (to order)
# 9
MPN: AD43-F279A55-AD
PANEL, QUARTER WHEEL INNER REAR LH
Up To 16MY, Structural. Cat A only
from £169.81
from £169.81
PANEL, QUARTER WHEEL INNER REAR LH Genuine Aston Martin - New (to order)
# 9
MPN: GD43-F279A55-AB
PANEL, QUARTER WHEEL INNER REAR LH
From 16MY, Structural. Cat A only
from £360.82
from £360.82
PANEL, QUARTER WHEEL INNER REAR LH Genuine Aston Martin - New (to order)
