aston martin rapide (2018) centre stack trim panel, amr parts diagram

011201-70 - Centre Stack Trim Panel, AMR

Aston Martin Rapide (2018) Centre Stack Trim Panel, AMR Parts Diagram

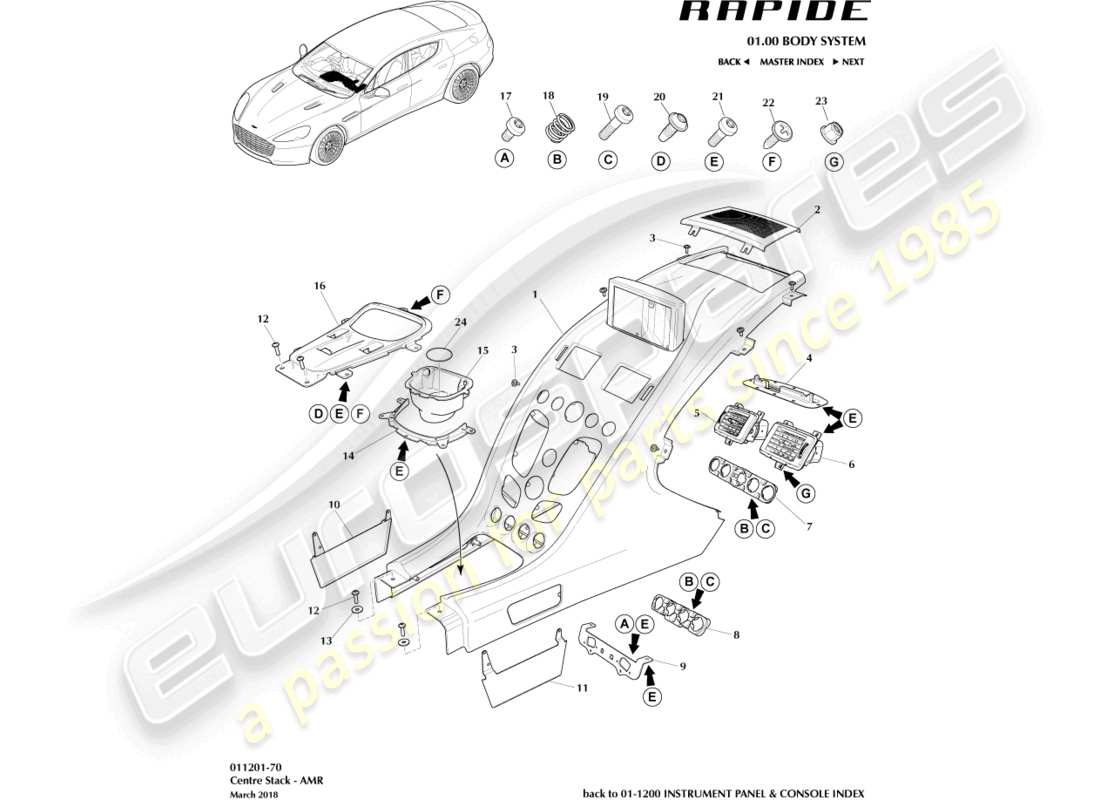

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 1
                                            MPN: KD43-55210-AB
                                            PANEL, CONSOLE ASSEMBLY
                                            from £6,240.42
                                            from £6,240.42
                                            PANEL, CONSOLE ASSEMBLY Genuine Aston Martin - New (to order)
                                            # 2
                                            MPN: 9D33-C046A26-AC
                                            GRILLE, CENTRE SPEAKER
                                            from £296.83
                                            from £296.83
                                            I/PNL CTR SPEAKER GRILL Genuine Aston Martin - New (to order)
                                            # 3
                                            MPN: 701157-PK
                                            SCREW AND WASHER, 4.2X16MM FLG TAP HD
                                            Pack of 10
                                            from £1.59
                                            from £1.59
                                            SCREW&WSHR 4.2X16(10 Genuine Aston Martin - New (to order)
                                            # 4
                                            MPN: KD43-18C917-AA
                                            BRACKET, NAV MOUNTING
                                            BRACKET, NAV MOUNTING Genuine Aston Martin - New (to order)
                                            # 5
                                            MPN: GD2Y-046B31-AA
                                            REGISTER ASSEMBLY, AC LH
                                            from £126.62
                                            from £126.62
                                            REGISTER ASSEMBLY, AIR CONDITIONING LH Genuine Aston Martin - New (to order)
                                            # 6
                                            MPN: GD2Y-046B30-AA
                                            REGISTER ASSEMBLY, AC RH
                                            from £126.62
                                            from £126.62
                                            REGISTER ASSEMBLY, AIR CONDITIONING RH Genuine Aston Martin - New (to order)
                                            # 7
                                            MPN: DD33-14A462-AB
                                            SWITCH CARRIER, UPPER
                                            from £7.30
                                            from £7.30
                                            SWITCH CARRIER, UPPER Genuine Aston Martin - New (to order)
                                            # 8
                                            MPN: DD33-14A462-BB
                                            SWITCH CARRIER, LOWER
                                            from £7.72
                                            from £7.72
                                            SWITCH CARRIER, LOWER Genuine Aston Martin - New (to order)
                                            # 9
                                            MPN: KD43-C04350-AA
                                            SWITCH MOUNT AND SURROUND
                                            SWITCH MOUNT AND SURROUND Genuine Aston Martin - New (to order)
                                            # 10
                                            MPN: KD43-130B15-AA
                                            BRACKET, CARPET MOUNTING LH
                                            from £259.30
                                            from £259.30
                                            BRACKET, CARPET MOUNTING LH Genuine Aston Martin - New (to order)
                                            # 11
                                            MPN: KD43-130B14-AA
                                            BRACKET, CARPET MOUNTING RH
                                            from £259.30
                                            from £259.30
                                            BRACKET, CARPET MOUNTING RH Genuine Aston Martin - New (to order)
                                            # 12
                                            MPN: FD43-10512F-AA
                                            SCREW, M5X0.8X20MM PAN HD
                                            from £0.47
                                            from £0.47
                                            M5X20 FLNC PN HD Genuine Aston Martin - New (to order)
                                            # 14
                                            MPN: KD43-19N487-AA
                                            CLAMP, TRINKET TRAY
                                            CLAMP, TRINKET TRAY Genuine Aston Martin - New (to order)
                                            # 15
                                            MPN: KD43-115A00-AA
                                            TRINKET TRAY
                                            TRINKET TRAY Genuine Aston Martin - New (to order)
                                            # 16
                                            MPN: KD43-06250-AD
                                            BEZEL ASSEMBLY, TRINKET TRAY
                                            from £224.03
                                            from £224.03
                                            BEZEL ASSEMBLY, TRINKET TRAY Genuine Aston Martin - New (to order)
                                            # 17
                                            MPN: 703176-PK
                                            SCREW, M4X16MM
                                            Pack of 10
                                            from £13.38
                                            from £13.38
                                            SCREW-M4X6 (PACK 10) Genuine Aston Martin - New (to order)
                                            # 18
                                            MPN: DD33-11A090-AB
                                            SPRING, COMPRESSION
                                            from £0.47
                                            from £0.47
                                            CTR STACK COMP SPRIN Genuine Aston Martin - New (to order)
                                            # 19
                                            MPN: DD33-0863-AA
                                            SCREW, M4X12 PAN HD PATCH LOCK
                                            from £0.47
                                            from £0.47
                                            SCREW-M4X12 PATCH LK Genuine Aston Martin - New (to order)
                                            # 20
                                            MPN: 703027
                                            SCREW, M4X10MM PAN HD TORX S/TAP
                                            from £0.47
                                            from £0.47
                                            SCREW M4X10 PAN HD Genuine Aston Martin - New (to order)
                                            # 21
                                            MPN: 703175
                                            SCREW, M4X10MM PAN TORX
                                            from £0.47
                                            from £0.47
                                            SCREW M4X10 PAN TORX Genuine Aston Martin - New (to order)
                                            # 22
                                            MPN: 4G43-51757-AA
                                            SCREW, M4 SELF TAP
                                            from £0.47
                                            from £0.47
                                            SCREW M4 SELF TAP Genuine Aston Martin - New (to order)
                                            # 23
                                            MPN: 700986-PK
                                            NUT, M4 HEX FLG
                                            Pack of 20
                                            Supersession
                                            Supersession
                                            Genuine Aston Martin (no longer available to order)
                                            # 24
                                            MPN: AD43-040K60-AA
                                            CUP HOLDER INSERT BASE
                                            from £23.72
                                            from £23.72
                                            CUP HOLDER INSERT BASE Genuine Aston Martin - New (to order)
