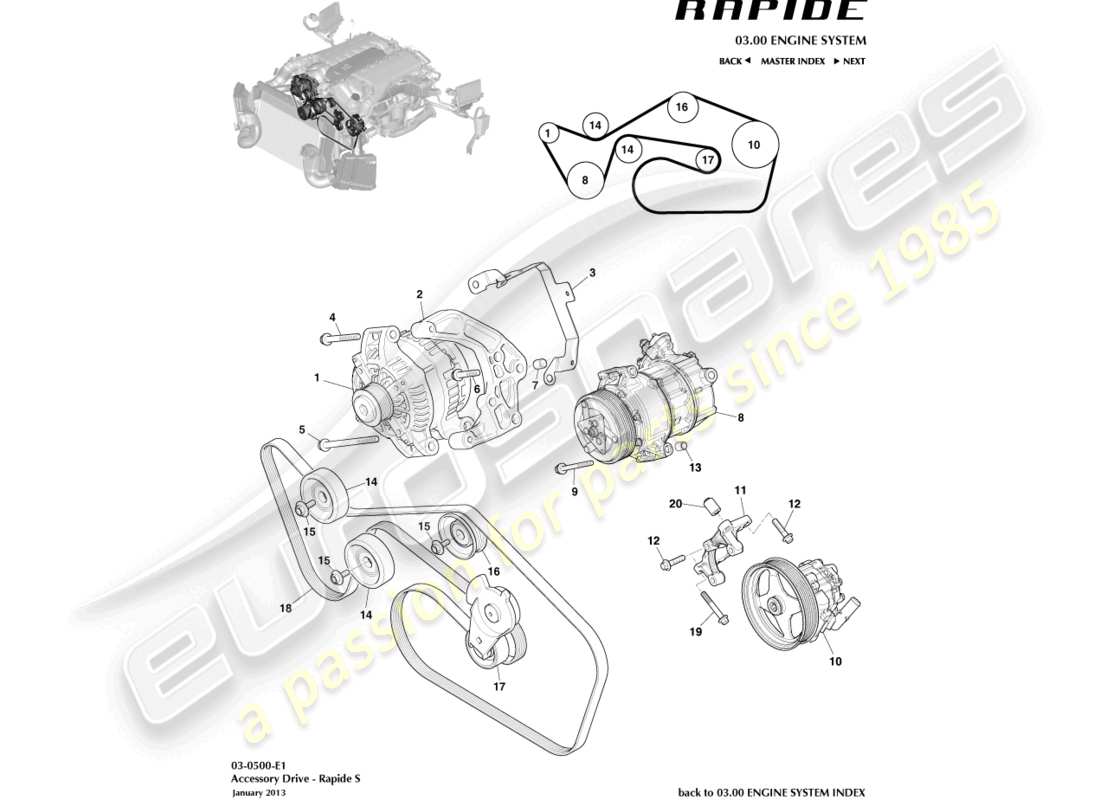

03-0500-E1 - Accessory Drive

Aston Martin Rapide (2018) Accessory Drive Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 8D33-10300-AA
                                  ALTERNATOR ASSY, 200A
                                  from £847.13
                                  from £847.13
                                  ALTERNATOR-200A Genuine Aston Martin - New In stock
                                  # 2
                                  MPN: 8G43-10239-CA
                                  BRACKET ASSY, ALTERNATOR MOUNTING
                                  BRACKET ASSEMBLY, ALTERNATOR MOUNTING Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: FD33-14W163-AA
                                  BRACKET, ALTERNATOR HARNESS SUPPORT
                                  from £25.03
                                  from £25.03
                                  BRACKET, ALTERNATOR HARNESS SUPPORT Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: 700140
                                  BOLT AND WASHER, M10X97.5
                                  from £23.75
                                  from £23.75
                                  BOLT AND WASHER, M10X97.5 Genuine Aston Martin - New (to order)
                                  # 5
                                  MPN: 704079
                                  BOLT, M10X150, HEX FLG HD
                                  from £4.88
                                  from £4.88
                                  BOLT, M10X150, HEX FLANGE HD Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 703692
                                  BOLT, M10X45
                                  from £13.13
                                  from £13.13
                                  BOLT M10X45 HF 8 Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 697759
                                  DOWEL, HOLLOW, 14X17.5
                                  PIN 14X17.5, HOLLOW DOWEL Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: AD43-19D629-AA
                                  COMPRESSOR, AIRCON
                                  Up to 17MY
                                  from £620.37
                                  from £620.37
                                  COMPRESSOR, AIRCON Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: HD23-19D629-AA
                                  COMPRESSOR, AIRCON
                                  FROM 17MY
                                  from £819.82
                                  from £819.82
                                  COMPRESSOR, AIRCON Genuine Aston Martin - New (to order)
                                  # 9
                                  MPN: 702557
                                  BOLT, M8X100
                                  from £14.69
                                  from £14.69
                                  BOLT M8 X 100 Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: DG43-3A696-AA
                                  PUMP AND PULLEY ASSEMBLY, POWER STEERING
                                  Up to 15MY
                                  from £2,092.89
                                  from £2,092.89
                                  PUMP AND PULLEY, PAS Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: FD43-3A696-AA
                                  PUMP AND PULLEY ASSEMBLY, POWER STEERING
                                  FROM 15MY
                                  from £823.15
                                  from £823.15
                                  PUMP AND PULLEY, PAS Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: ED23-3K738-AB
                                  SUPPORT BRACKET, PAS PUMP
                                  Up to 15MY
                                  from £108.08
                                  from £108.08
                                  SUPPORT BRACKET, PAS PUMP Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: FD43-3K738-AB
                                  SUPPORT BRACKET, PAS PUMP
                                  FROM 15MY
                                  SUPPORT BRACKET, PAS PUMP Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: 707752
                                  BOLT, M8X35MM
                                  from £0.68
                                  from £0.68
                                  This part replaces part number W702503-S301
                                  SCREW M8X35 HEX FLANGE HD Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: 702859
                                  PIN
                                  from £5.56
                                  from £5.56
                                  PIN, AIR CONDITIONING COMPRESSOR LOCATING Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: 1R12-05-10488
                                  PULLEY, ENGINE IDLER
                                  from £22.83
                                  from £22.83
                                  IDLER PULLEY Genuine Aston Martin - New In stock
                                  # 15
                                  MPN: 703702
                                  BOLT, M8X1.25X24.5, HEX FLANGE HD
                                  Supersession
                                  Supersession
                                  Genuine Aston Martin (no longer available to order)
                                  # 16
                                  MPN: 1R12-05-10530
                                  IDLER PULLEY, GROOVED
                                  from £26.27
                                  from £26.27
                                  IDLER PULLEY GROOVED Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: 05-85368
                                  TENSIONER, DRIVE BELT
                                  from £158.66
                                  from £158.66
                                  TENSIONER DRIVE BELT Genuine Aston Martin - New (to order)
                                  # 18
                                  MPN: ED23-8620-AA
                                  DRIVE BELT, FEAD
                                  from £52.36
                                  from £52.36
                                  This part replaces part number 4G4E-8620-AA
                                  DRIVE BELT Genuine Aston Martin - New In stock
                                  # 19
                                  MPN: 703193
                                  BOLT, M8X55MM
                                  from £0.47
                                  from £0.47
                                  BOLT M8X55 HEX FLANGE 8 Genuine Aston Martin - New (to order)
                                  # 20
                                  MPN: ED23-592072-AA
                                  SPACER ASSEMBLY
                                  Up to 15MY
                                  from £54.57
                                  from £54.57
                                  SPACER ASSEMBLY Genuine Aston Martin - New (to order)
