aston martin rapide (2018) engine structure parts diagram

030100-E1 - Engine Structure

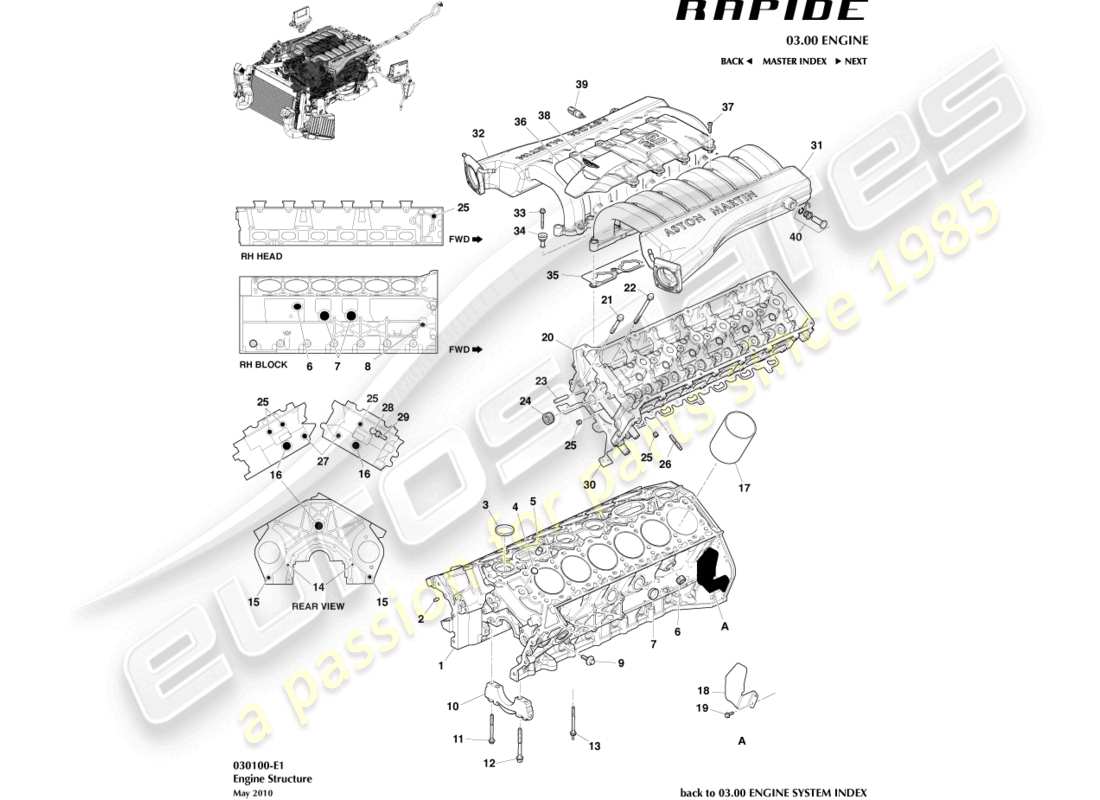

Aston Martin Rapide (2018) Engine Structure Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Key
                                                                            Price
                                                                            # -
                                                                            MPN: 091787
                                                                            ENGINE ASSEMBLY, 6.0 LTR V12, REMANUFACTURED
                                                                            AM16
                                                                            ENGINE ASSEMBLY, 6.0L V12, REMANUFACTURED Genuine Aston Martin - New (to order)
                                                                            # 2
                                                                            MPN: 01-84995
                                                                            PIN, 8.0X18.0, DOWEL
                                                                            from £0.66
                                                                            from £0.66
                                                                            DOWEL-8X18 Genuine Aston Martin - New (to order)
                                                                            # 3
                                                                            MPN: 01-85000
                                                                            PLUG, 52.6 DIA, CUP
                                                                            from £9.54
                                                                            from £9.54
                                                                            PLUG-CUP Genuine Aston Martin - New (to order)
                                                                            # 4
                                                                            MPN: 01-85001
                                                                            PLUG, 19.35 DIA, EXPANSION CUP
                                                                            from £4.49
                                                                            from £4.49
                                                                            PLUG-CUP-EXPANSION Genuine Aston Martin - New (to order)
                                                                            # 5
                                                                            MPN: 01-84994
                                                                            PIN, 16X19, HOLLOW DOWEL
                                                                            from £0.51
                                                                            from £0.51
                                                                            DOWEL-16X19 Genuine Aston Martin - New (to order)
                                                                            # 6
                                                                            MPN: 703705
                                                                            PLUG, 3/4 14 PTF, INTERNAL HEX
                                                                            from £4.50
                                                                            from £4.50
                                                                            PLUG 3/4X14 PIPE Genuine Aston Martin - New (to order)
                                                                            # 7
                                                                            MPN: 01-84997
                                                                            PLUG, 1.26, CUP (32MM)
                                                                            from £2.94
                                                                            from £2.94
                                                                            PLUG-CUP 1.25 Genuine Aston Martin - New (to order)
                                                                            # 8
                                                                            MPN: 01-84998
                                                                            PLUG, 1/4" - 18X10.8
                                                                            from £0.96
                                                                            from £0.96
                                                                            PLUG-PIPE 3/4X14 Genuine Aston Martin - New (to order)
                                                                            # 9
                                                                            MPN: 4G43-01-10819
                                                                            BOLT, CRANKSHAFT MAIN BEARING CAP (SIDE)
                                                                            from £22.29
                                                                            from £22.29
                                                                            BOLT-MAIN BRG CAP Genuine Aston Martin - New (to order)
                                                                            # 10
                                                                            MPN: 1R12-01-10678
                                                                            CAP, CRANKSHAFT MAIN BEARING
                                                                            from £50.72
                                                                            from £50.72
                                                                            CAP, CRANKSHAFT MAIN BEARING Genuine Aston Martin - New (to order)
                                                                            # 11
                                                                            MPN: 4G43-01-10203
                                                                            BOLT, CRANKSHAFT MAIN BEARING CAP
                                                                            from £8.82
                                                                            from £8.82
                                                                            BOLT-M10X1.5X91 Genuine Aston Martin - New (to order)
                                                                            # 12
                                                                            MPN: 4G43-01-10202
                                                                            BOLT, CRANKSHAFT MAIN BEARING CAP
                                                                            from £3.64
                                                                            from £3.64
                                                                            BOLT, CRANKSHAFT MAIN BEARING CAP Genuine Aston Martin - New (to order)
                                                                            # 13
                                                                            MPN: 01-85133
                                                                            BOLT, MAIN BEARING CAP, OUTER
                                                                            from £16.36
                                                                            from £16.36
                                                                            STUD BOLT-BRG CAPS Genuine Aston Martin - New (to order)
                                                                            # 14
                                                                            MPN: W701500-S300
                                                                            PIN, M6X16, DOWEL, CHAMFER HEAD
                                                                            PIN 6X16 DWL CHMFR H Genuine Aston Martin - New (to order)
                                                                            # 15
                                                                            MPN: 699134
                                                                            DOWEL
                                                                            from £10.55
                                                                            from £10.55
                                                                            DOWEL, HOLLOW Genuine Aston Martin - New (to order)
                                                                            # 16
                                                                            MPN: 703705
                                                                            PLUG, 3/4-14 PTF, INTERNAL HEX
                                                                            from £4.50
                                                                            from £4.50
                                                                            PLUG 3/4X14 PIPE Genuine Aston Martin - New (to order)
                                                                            # 17
                                                                            MPN: 7G43-6055-AA
                                                                            SLEEVE, CYLINDER BORE
                                                                            from £35.39
                                                                            from £35.39
                                                                            SLEEVE, CYLINDER BORE Genuine Aston Martin - New (to order)
                                                                            # 18
                                                                            MPN: 8G43-6K342-BB
                                                                            HEATSHIELD, CRANKSHAFT TIMING SENSOR
                                                                            from £28.51
                                                                            from £28.51
                                                                            SHLD-CSHAFT TM SNS H Genuine Aston Martin - New (to order)
                                                                            # 19
                                                                            MPN: 700606
                                                                            SCREW, M6X12, FLG HEAD
                                                                            from £0.47
                                                                            from £0.47
                                                                            SCREW M6X12 FLANGE Genuine Aston Martin - New (to order)
                                                                            # 20
                                                                            MPN: 8G43-6M099-AA
                                                                            CYLINDER HEAD ASSEMBLY, LH
                                                                            Includes Valves, Adjusters, Springs, Less Camshafts
                                                                            from £8,957.57
                                                                            from £8,957.57
                                                                            HD ASSEMBLY CYLINDER W CMPNT Genuine Aston Martin - New (to order)
                                                                            # 20
                                                                            MPN: 8G43-6F093-AA
                                                                            CYLINDER HEAD ASSEMBLY, RH
                                                                            Includes Valves, Adjusters, Springs, Less Camshafts
                                                                            CYLINDER HEAD ASSEMBLY RH (INC VALVES/SPRINGS/ADJUSTERS ETC, MINUS CAMS ETC) Genuine Aston Martin - New (to order)
                                                                            # 21
                                                                            MPN: 06-85052
                                                                            BOLT, M8X32, FLG
                                                                            BOLT, M8X32, FLANGE Genuine Aston Martin - New (to order)
                                                                            # 22
                                                                            MPN: 06-86044
                                                                            BOLT, M10X151.5, CYLINDER HEAD TO BLOCK
                                                                            from £11.88
                                                                            from £11.88
                                                                            BOLT-M10X1.5X151.5 Genuine Aston Martin - New (to order)
                                                                            # 23
                                                                            MPN: 01-84996
                                                                            PIN, 10X49.25
                                                                            from £1.56
                                                                            from £1.56
                                                                            DOWEL-10X49.25 Genuine Aston Martin - New (to order)
                                                                            # 24
                                                                            MPN: 01-85032
                                                                            PLUG, 1-11.5X18
                                                                            PLUG, 1-11.5X18 Genuine Aston Martin - New (to order)
                                                                            # 25
                                                                            MPN: 01-84999
                                                                            PLUG, 1/4-18X10.8
                                                                            PLUG, 1/4 18X10.8 Genuine Aston Martin - New (to order)
                                                                            # 26
                                                                            MPN: 703704
                                                                            STUD, M8
                                                                            from £6.12
                                                                            from £6.12
                                                                            STUD M8X13.6+16 Genuine Aston Martin - New (to order)
                                                                            # 27
                                                                            MPN: 06-85031
                                                                            PLUG, 3/8", 18 SOCKET HEAD
                                                                            PLUG, 3/8 18 SOCKET HEAD Genuine Aston Martin - New (to order)
                                                                            # 28
                                                                            MPN: 1R1E-9B339-AB
                                                                            ADAPTOR, OIL PRESSURE SENDER
                                                                            ADAPTOR, OIL PRESSURE SENDER Genuine Aston Martin - New (to order)
                                                                            # 29
                                                                            MPN: 1R12-39-10532
                                                                            OIL PRESSURE SWITCH
                                                                            from £5.06
                                                                            from £5.06
                                                                            SWITCH-OIL PRESSURE Genuine Aston Martin - New (to order)
                                                                            # 30
                                                                            MPN: 1R12-06-10469
                                                                            GASKET, CYLINDER HEAD, LH
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Aston Martin (no longer available to order)
                                                                            # 30
                                                                            MPN: 1R12-06-10468
                                                                            GASKET, CYLINDER HEAD, RH
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Aston Martin (no longer available to order)
                                                                            # 31
                                                                            MPN: 8G43-9424-DA
                                                                            MANIFOLD ASSEMBLY, INLET, LH
                                                                            from £1,066.78
                                                                            from £1,066.78
                                                                            MANIFOLD ASSEMBLY, INLET, LH Genuine Aston Martin - New (to order)
                                                                            # 32
                                                                            MPN: 8G43-9424-CA
                                                                            MANIFOLD ASSEMBLY, INLET, RH
                                                                            from £1,038.96
                                                                            from £1,038.96
                                                                            MANIFOLD ASSEMBLY, INLET, RH Genuine Aston Martin - New (to order)
                                                                            # 33
                                                                            MPN: 702852
                                                                            BOLT, M6X53, FLG
                                                                            from £8.10
                                                                            from £8.10
                                                                            BOLT-M6X1.0X47 HEX Genuine Aston Martin - New (to order)
                                                                            # 34
                                                                            MPN: 4G43-08-10002
                                                                            ISOLATOR, INLET MANIFOLD
                                                                            from £16.65
                                                                            from £16.65
                                                                            ISOLATOR Genuine Aston Martin - New (to order)
                                                                            # 35
                                                                            MPN: 1R12-08-10077-PK
                                                                            GASKET, INLET MANIFOLD TO CYLINDER HEAD
                                                                            Pack of 2
                                                                            from £164.10
                                                                            from £164.10
                                                                            This part replaces part number 1R13-08-10077-PK
                                                                            INTAKE MANIFOLD GASKETS (pack of 2) Genuine Aston Martin - New In stock
                                                                            Alternative (#1R12-08-10077) INTAKE MANIFOLD GASKET (Single) Genuine Aston Martin - New (to order)
                                                                            # 36
                                                                            MPN: 8G43-9J444-AA
                                                                            SUPPORT, INLET MANIFOLD
                                                                            from £337.38
                                                                            from £337.38
                                                                            SUPPORT BRACE - INT Genuine Aston Martin - New (to order)
                                                                            # 37
                                                                            MPN: 702847
                                                                            SCREW, M6X25, PAN HEAD
                                                                            from £0.81
                                                                            from £0.81
                                                                            SCREW-M6X25 PAN INT Genuine Aston Martin - New (to order)
                                                                            # 38
                                                                            MPN: 4G43-001B46-BB
                                                                            BADGE ASSEMBLY, SUPPORT
                                                                            from £66.23
                                                                            from £66.23
                                                                            MANIFOLD BADGE Genuine Aston Martin - New (to order)
                                                                            # 39
                                                                            MPN: 6G43-08-10064
                                                                            SENSOR, AIR CHARGING TEMPERATURE
                                                                            SENSOR, AIR CHARGING TEMPERATURE Genuine Aston Martin - New (to order)
                                                                            # 40
                                                                            MPN: 705136
                                                                            CARTRIDGE ASSEMBLY
                                                                            Supersession
                                                                            Supersession
                                                                            Genuine Aston Martin (no longer available to order)
