110203-C1 - PAS Hoses, LHD

Aston Martin Rapide (2018) PAS Hoses, LHD Parts Diagram

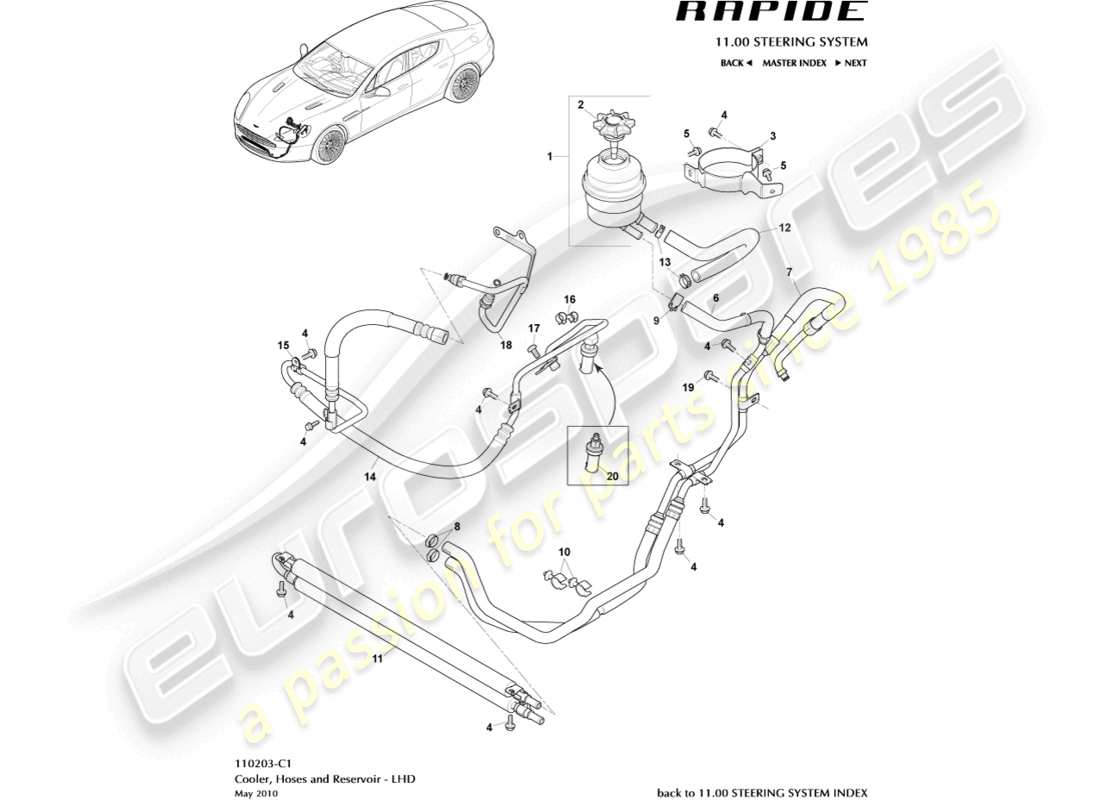

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 4G43-3R700-AA
                              RESERVOIR AND CAP ASSY
                              from £51.88
                              from £51.88
                              RESERVOIR AND CAP ASSEMBLY Genuine Aston Martin - New (to order)
                              RESERVOIR AND CAP ASSEMBLY Genuine Aston Martin - Used In stock
                              # 2
                              MPN: 4G43-34006-AA
                              CAP ASSY, POWER STEERING RESERVOIR
                              CAP ASSEMBLY POWER STEERING RESERVOIR Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 4G43-3489-AD
                              BRACKET, RESERVOIR
                              from £14.29
                              from £14.29
                              BRACKET ASSEMBLY - PAS RES Genuine Aston Martin - New (to order)
                              BRACKET ASSEMBLY - PAS RES Genuine Aston Martin - Used In stock
                              # 4
                              MPN: 703203
                              SCREW, FLG, M6 X 25
                              from £0.47
                              from £0.47
                              SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                              LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                              # 5
                              MPN: 703265
                              SCREW, M6 X 16
                              from £0.47
                              from £0.47
                              SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                              # 6
                              MPN: 8D33-3A713-AB
                              HOSE ASSY, STEERING COOLER TO RESERVOIR
                              from £298.99
                              from £298.99
                              HOSE ASSEMBLY, STEERING COOLER TO RESERVOIR Genuine Aston Martin - New (to order)
                              # 6
                              MPN: CD33-3A713-AB
                              RETURN HOSE, COOLER TO RESERVOIR
                              Rapide S
                              from £153.40
                              from £153.40
                              TUBE AY-PWR STNG RTN Genuine Aston Martin - New (to order)
                              # 7
                              MPN: 8D33-3F558-AC
                              HOSE ASSY, STEERING GEAR TO COOLER
                              from £335.81
                              from £335.81
                              TUB ASY-PWR STNG RTN Genuine Aston Martin - New (to order)
                              # 8
                              MPN: 8D33-60155-AA
                              CLAMP, PAS HOSE
                              from £3.39
                              from £3.39
                              CLAMP - PAS HOSE Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 701349
                              CLAMP
                              from £0.59
                              from £0.59
                              CLAMP HOSE 20 DIAMETER Genuine Aston Martin - New (to order)
                              # 10
                              MPN: 4G43-6C727-AA
                              PIPE CLIP
                              from £0.59
                              from £0.59
                              CLIP PIP OIL COOL Genuine Aston Martin - New (to order)
                              # 11
                              MPN: AD43-3D746-AA
                              PAS COOLER ASSY
                              from £244.43
                              from £244.43
                              PAS COOLER ASSEMBLY Genuine Aston Martin - New (to order)
                              # 11
                              MPN: CD33-3D746-AA
                              COOLING ASSY, POWER STEERING
                              Rapide S
                              from £312.17
                              from £312.17
                              COOLER ASY-PWR STNG Genuine Aston Martin - New (to order)
                              # 12
                              MPN: AD43-3E525-AA
                              HOSE ASSY, RESERVOIR
                              from £28.38
                              from £28.38
                              HOSE ASSEMBLY, RESERVOIR Genuine Aston Martin - New (to order)
                              # 12
                              MPN: DG43-3E525-AA
                              HOSE, RESERVOIR TO PUMP, SUCTION
                              Up to 15MY Rapide S
                              from £24.08
                              from £24.08
                              HOSE, RESERVOIR TO PUMP, SUCTION Genuine Aston Martin - New (to order)
                              # 12
                              MPN: FD33-3E525-AA
                              HOSE, RESERVOIR TO PUMP, SUCTION
                              From 15MY Rapide S
                              from £26.85
                              from £26.85
                              HOSE, RESERVOIR TO PUMP, SUCTION Genuine Aston Martin - New (to order)
                              # 13
                              MPN: 699545
                              CLAMP, 24MM DIA
                              from £1.83
                              from £1.83
                              HOSE CLAMP Genuine Aston Martin - New (to order)
                              # 14
                              MPN: 4G43-3A719-AC
                              HOSE ASSY, PAS PRESSURE LINE PUMP TO GEAR
                              HOSE ASSEMBLY, PAS PRESSURE LINE PUMP TO GEAR Genuine Aston Martin - New (to order)
                              # 14
                              MPN: CD33-3A719-AA
                              HOSE ASSY, PAS PRESSURE LINE PUMP TO GEAR
                              Up To 15MY, Rapide S
                              HOSE ASSEMBLY, PAS PUMP TO STEERING GEAR Genuine Aston Martin - New (to order)
                              # 14
                              MPN: FD33-3A719-AA
                              HOSE ASSY, PAS PRESSURE LINE PUMP TO GEAR
                              From 15MY, Rapide S
                              from £359.39
                              from £359.39
                              This part replaces part number 4G43-3A719-AE
                              HOSE ASSEMBLY, PRESSURE LINE, PUMP TO GEAR Genuine Aston Martin - New (to order)
                              # 15
                              MPN: 694891
                              P CLIP, 10MM
                              from £2.31
                              from £2.31
                              P-CLIP Genuine Aston Martin - New (to order)
                              # 16
                              MPN: 4G43-105050-AA
                              CLIP, DOUBLE PIPE
                              from £1.46
                              from £1.46
                              CLIP - DOUBLE Genuine Aston Martin - New (to order)
                              # 17
                              MPN: 703141
                              SCREW, PAN HEAD
                              from £1.25
                              from £1.25
                              SCREW M8X16 Genuine Aston Martin - New (to order)
                              FRONT UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                              # 18
                              MPN: 4G43-3494-AA
                              TUBE ASSY, PWR STEERING PUMP OUTLET
                              from £31.16
                              from £31.16
                              TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - New (to order)
                              TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - Used In stock
                              # 18
                              MPN: DG43-3494-AA
                              TUBE ASSY, OUTLET TUBE, HIGH PRESSURE
                              Up to 15MY AM11, Includes O Rings
                              from £58.30
                              from £58.30
                              TUB ASY-PWR STNG PMP Genuine Aston Martin - New (to order)
                              # 18
                              MPN: FD33-3494-AA
                              TUBE ASSY, OUTLET TUBE, HIGH PRESSURE
                              From 15MY AM29, Includes O Rings
                              from £551.89
                              from £551.89
                              TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - New (to order)
                              # 19
                              MPN: 703121
                              SCREW M8 X 20
                              from £0.47
                              from £0.47
                              SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
