110203-C2 - PAS Hoses, RHD

Aston Martin Rapide (2018) PAS Hoses, RHD Parts Diagram

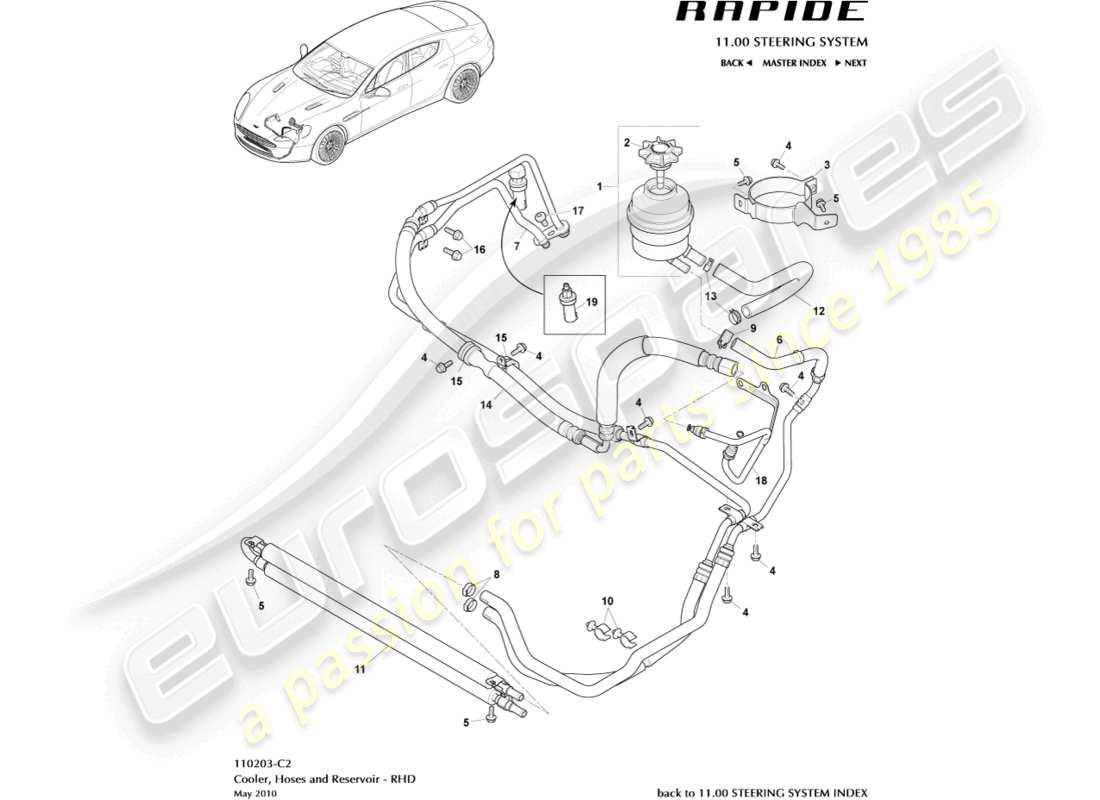

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 4G43-3R700-AA
                          RESERVOIR AND CAP ASSY
                          from £51.88
                          from £51.88
                          RESERVOIR AND CAP ASSEMBLY Genuine Aston Martin - New (to order)
                          RESERVOIR AND CAP ASSEMBLY Genuine Aston Martin - Used In stock
                          # 2
                          MPN: 4G43-34006-AA
                          CAP ASSY, POWER STEERING RESERVOIR
                          CAP ASSEMBLY POWER STEERING RESERVOIR Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 4G43-3489-AD
                          BRACKET, RESERVOIR
                          from £14.29
                          from £14.29
                          BRACKET ASSEMBLY - PAS RES Genuine Aston Martin - New (to order)
                          BRACKET ASSEMBLY - PAS RES Genuine Aston Martin - Used In stock
                          # 4
                          MPN: 703203
                          SCREW, FLG, M6 X 25
                          from £0.47
                          from £0.47
                          SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                          LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                          # 5
                          MPN: 703265
                          SCREW, M6 X 16
                          from £0.47
                          from £0.47
                          SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                          # 6
                          MPN: 8D33-3A713-AB
                          HOSE ASSY, STEERING COOLER TO RESERVOIR
                          from £298.99
                          from £298.99
                          HOSE ASSEMBLY, STEERING COOLER TO RESERVOIR Genuine Aston Martin - New (to order)
                          # 6
                          MPN: CD33-3A713-AB
                          RETURN HOSE, COOLER TO RESERVOIR
                          Rapide S
                          from £153.40
                          from £153.40
                          TUBE AY-PWR STNG RTN Genuine Aston Martin - New (to order)
                          # 7
                          MPN: 8D33-3F558-BC
                          HOSE ASSY, STEERING GEAR TO COOLER
                          from £335.81
                          from £335.81
                          HOSE ASSEMBLY, STEERING GEAR TO COOLER Genuine Aston Martin - New (to order)
                          # 7
                          MPN: CD33-3F558-BA
                          HOSE, RETURN, GEAR TO COOLER, RHD
                          Rapide S
                          from £113.17
                          from £113.17
                          TUBE ASY-P/STRG RTN Genuine Aston Martin - New (to order)
                          # 8
                          MPN: 8D33-60155-AA
                          CLAMP, PAS HOSE
                          from £3.39
                          from £3.39
                          CLAMP - PAS HOSE Genuine Aston Martin - New (to order)
                          # 9
                          MPN: 701349
                          CLAMP
                          from £0.59
                          from £0.59
                          CLAMP HOSE 20 DIAMETER Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 4G43-6C727-AA
                          PIPE CLIP
                          from £0.59
                          from £0.59
                          CLIP PIP OIL COOL Genuine Aston Martin - New (to order)
                          # 11
                          MPN: AD43-3D746-AA
                          PAS COOLER ASSY
                          from £244.43
                          from £244.43
                          PAS COOLER ASSEMBLY Genuine Aston Martin - New (to order)
                          # 11
                          MPN: CD33-3D746-AA
                          COOLING ASSY, POWER STEERING
                          Rapide S
                          from £312.17
                          from £312.17
                          COOLER ASY-PWR STNG Genuine Aston Martin - New (to order)
                          # 12
                          MPN: AD43-3E525-AA
                          HOSE ASSY, RESERVOIR
                          from £28.38
                          from £28.38
                          HOSE ASSEMBLY, RESERVOIR Genuine Aston Martin - New (to order)
                          # 12
                          MPN: DG43-3E525-AA
                          HOSE, RESERVOIR TO PUMP, SUCTION
                          Up to 15MY Rapide S
                          from £24.08
                          from £24.08
                          HOSE, RESERVOIR TO PUMP, SUCTION Genuine Aston Martin - New (to order)
                          # 12
                          MPN: FD33-3E525-AA
                          HOSE, RESERVOIR TO PUMP, SUCTION
                          From 15MY Rapide S
                          from £26.85
                          from £26.85
                          HOSE, RESERVOIR TO PUMP, SUCTION Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 699545
                          CLAMP, 24MM DIA
                          from £1.83
                          from £1.83
                          HOSE CLAMP Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 4G43-3A719-BE
                          HOSE ASSY, PWR STEERING PUMP TO GR LH
                          Up to 15MY
                          from £307.49
                          from £307.49
                          HOS-PWR STNG PRESS Genuine Aston Martin - New (to order)
                          HOS-PWR STNG PRESS Genuine Aston Martin - Used In stock
                          # 14
                          MPN: FD33-3A719-BA
                          HOSE ASSY, PWR STEERING PUMP TO GR LH
                          FROM 15MY
                          from £359.39
                          from £359.39
                          HOSE ASSEMBLY, POWER STEERING PUMP TO GR LH Genuine Aston Martin - New (to order)
                          # 15
                          MPN: 699711
                          P CLIP, 23MM
                          from £1.15
                          from £1.15
                          P CLIP DIAMETER 23X15XM6 Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 703121
                          SCREW M8 X 20
                          from £0.47
                          from £0.47
                          SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 703141
                          SCREW, PAN HEAD
                          from £1.25
                          from £1.25
                          SCREW M8X16 Genuine Aston Martin - New (to order)
                          FRONT UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                          # 18
                          MPN: AD43-3494-AA
                          TUBE ASSY, PWR STEERING PUMP OUTLET
                          from £373.93
                          from £373.93
                          TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - New (to order)
                          # 18
                          MPN: DG43-3494-AA
                          TUBE ASSY, OUTLET TUBE, HIGH PRESSURE
                          Up to 15MY Rapide S, Includes O Rings
                          from £58.30
                          from £58.30
                          TUB ASY-PWR STNG PMP Genuine Aston Martin - New (to order)
                          # 18
                          MPN: FD33-3494-AA
                          TUBE ASSY, OUTLET TUBE, HIGH PRESSURE
                          From 15MY Rapide S, Includes O Rings
                          from £551.89
                          from £551.89
                          TUBE ASSEMBLY, POWER STEERING PUMP OUTLET Genuine Aston Martin - New (to order)
