aston martin rapide (2018) tyre pressure module parts diagram

131400-00 - Tyre Pressure Module

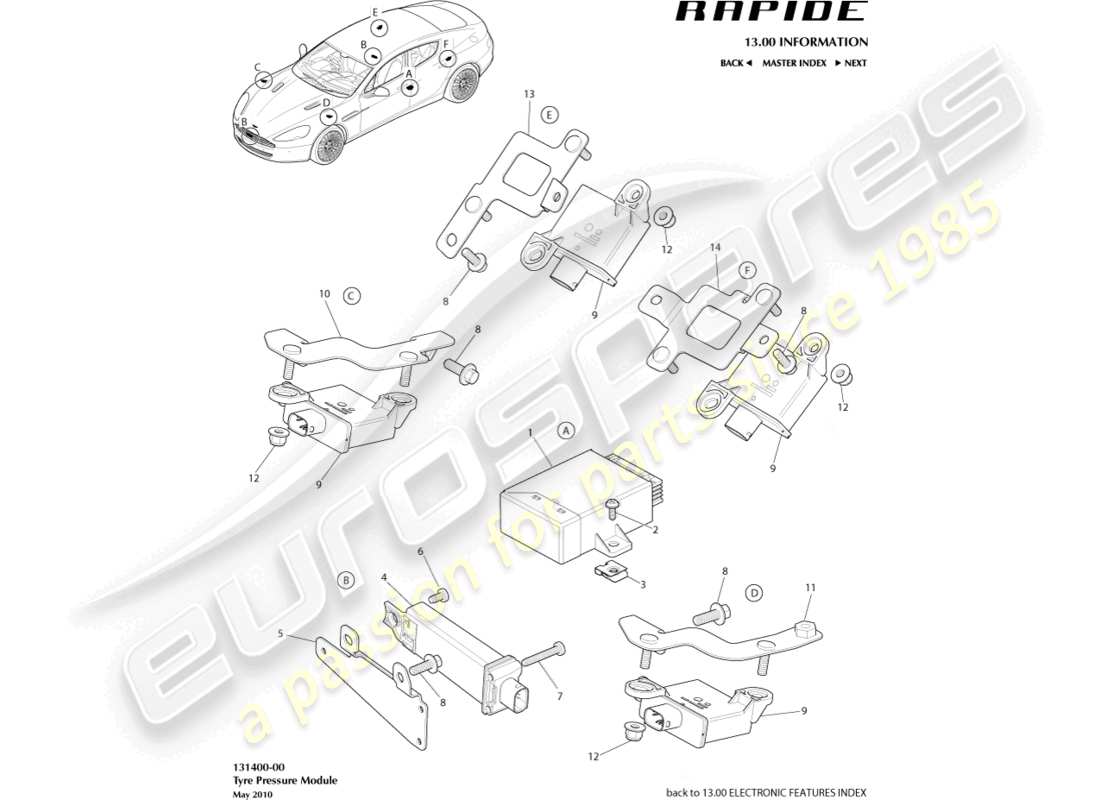

Aston Martin Rapide (2018) Tyre Pressure Module Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: AD43-370807-AD
                            MODULE, TYRE PRESSURE MONITORING ECU
                            MODULE, TYRE PRESSURE MONITORING ECU Genuine Aston Martin - New (to order)
                            # 2
                            MPN: 701441-PK
                            SCREW, 4.2 X 13 WASHER HEAD
                            from £1.31
                            from £1.31
                            SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
                            # 3
                            MPN: 701448
                            NUT, U TYPE
                            from £0.47
                            from £0.47
                            NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                            SPLITTER NUTS Genuine Ferrari Part - New (to order)
                            # 4
                            MPN: AD43-1A192-AA
                            ANTENNA, 433MHZ
                            Black
                            from £135.73
                            from £135.73
                            TPMS 433 ANTENNA Genuine Aston Martin - New (to order)
                            # 4
                            MPN: AD43-1A192-BA
                            ANTENNA, 315MHZ
                            GREY
                            from £135.73
                            from £135.73
                            TPMS 315 ANT Genuine Aston Martin - New (to order)
                            # 5
                            MPN: AD43-562019-EA
                            BRACKET, ANTENNA
                            from £13.18
                            from £13.18
                            BRACKET, TPMS ANTENNA Genuine Aston Martin - New (to order)
                            # 6
                            MPN: 704169
                            SCREW, M5 X 10
                            from £253.76
                            from £253.76
                            SCREW, M5 X10 Genuine Aston Martin - New (to order)
                            # 7
                            MPN: 703177
                            SCREW, M5 X 30
                            from £0.87
                            from £0.87
                            SCREW M5X30 TORX Genuine Aston Martin - New (to order)
                            # 8
                            MPN: 703265
                            SCREW, M5 X 16
                            from £0.47
                            from £0.47
                            SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                            # 9
                            MPN: AD43-1A166-AA
                            ANTENNA, LOW FREQUENCY
                            from £59.90
                            from £59.90
                            TPMS LF TRIG Genuine Aston Martin - New (to order)
                            # 10
                            MPN: AD43-562019-AA
                            BRACKET, ANTENNA RHS
                            from £10.96
                            from £10.96
                            BRACKET, ANTENNA RHS Genuine Aston Martin - New (to order)
                            # 11
                            MPN: AD43-562019-BA
                            BRACKET, ANTENNA LHS
                            from £10.96
                            from £10.96
                            BRACKET, ANTENNA LHS Genuine Aston Martin - New (to order)
                            # 13
                            MPN: AD43-562019-CA
                            BRACKET, ANTENNA REAR RHS
                            from £13.01
                            from £13.01
                            BRACKET, ANTENNA REAR RHS Genuine Aston Martin - New (to order)
                            # 14
                            MPN: AD43-562019-DA
                            BRACKET, ANTENNA REAR LHS
                            from £14.02
                            from £14.02
                            BRACKET, ANTENNA REAR LHS Genuine Aston Martin - New (to order)
