aston martin rapide (2018) bluetooth module parts diagram

190801 - BLUETOOTH MODULE

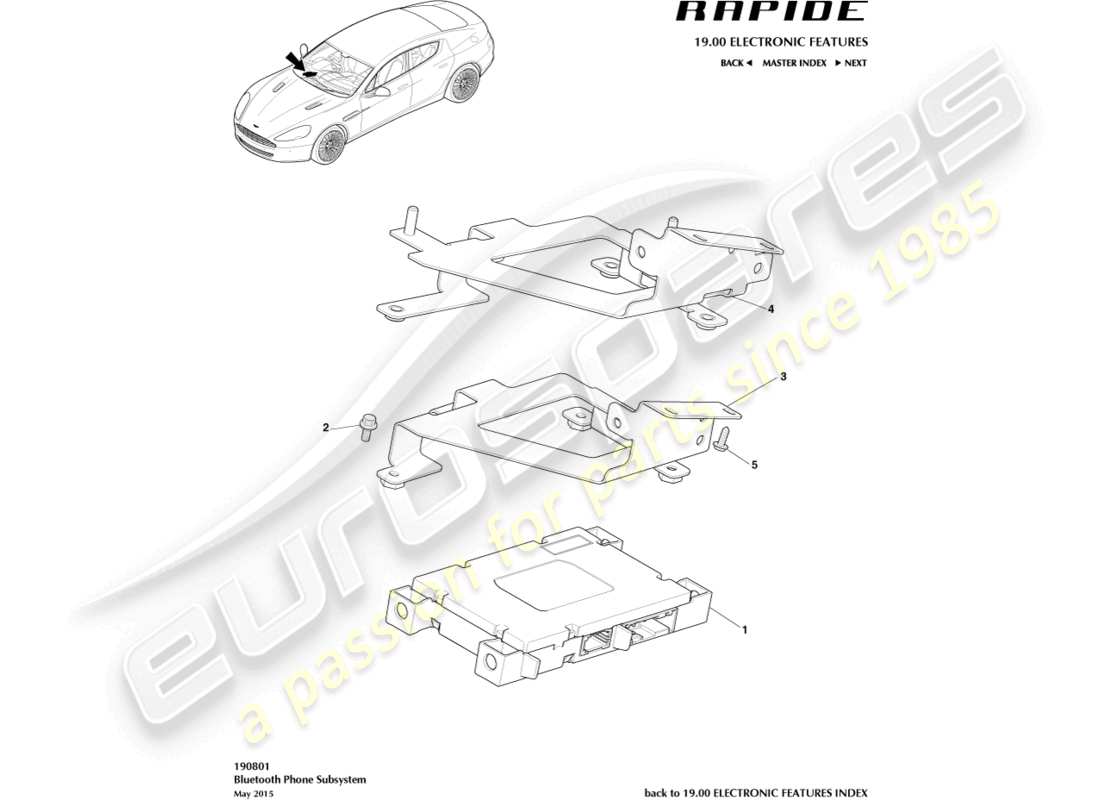

Aston Martin Rapide (2018) Bluetooth Module Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 1
    MPN: BG43-37-11156
    MODULE, BLUETOOTH PHONE
    Up To 15MY, "FoMoCo", Less USB
    MODULE, BLUETOOTH PHONE HARDWARE Genuine Aston Martin - New (to order)
    # 1
    MPN: FD43-14F191-AB
    MODULE, BLUETOOTH PHONE
    From 15MY, "Dension", with USB
    MODULE, BLUETOOTH PHONE Genuine Aston Martin - New (to order)
    # 2
    MPN: 703278
    SCREW, M5 X 12 PAN HEAD
    from £0.47
    from £0.47
    BOLT M6X10 HEX FLNG Genuine Aston Martin - New (to order)
    # 3
    MPN: 8D33-19A393-AB
    BRACKET, MODULE
    Up To 15MY, RHD
    from £60.90
    from £60.90
    BT PHONE BRACKET Genuine Aston Martin - New (to order)
    # 3
    MPN: 8D33-19A393-BA
    BRACKET, MODULE
    Up To 15MY, LHD
    BRACKET, PHONE MODULE, LHD Genuine Aston Martin - New (to order)
    # 4
    MPN: ED23-19A393-AB
    BRACKET, MODULE
    From 15MY, RHD
    BRACKET, MODULE Genuine Aston Martin - New (to order)
    # 4
    MPN: ED23-19A393-BB
    BRACKET, MODULE
    From 15MY, LHD
    BRACKET, MODULE Genuine Aston Martin - New (to order)
    # 5
    MPN: 701441-PK
    SCREW, ST 4.2 X 13
    Up to 15MY
    from £1.31
    from £1.31
    SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
    # 5
    MPN: 706346
    SCREW, ST 4.8 X 19
    FROM 15MY
    from £0.47
    from £0.47
    SCREW-4.8 X1.59 X19 Genuine Aston Martin - New (to order)
