010707-B1 - Door Watershields

Aston Martin Rapide (2019) Door Watershields Parts Diagram

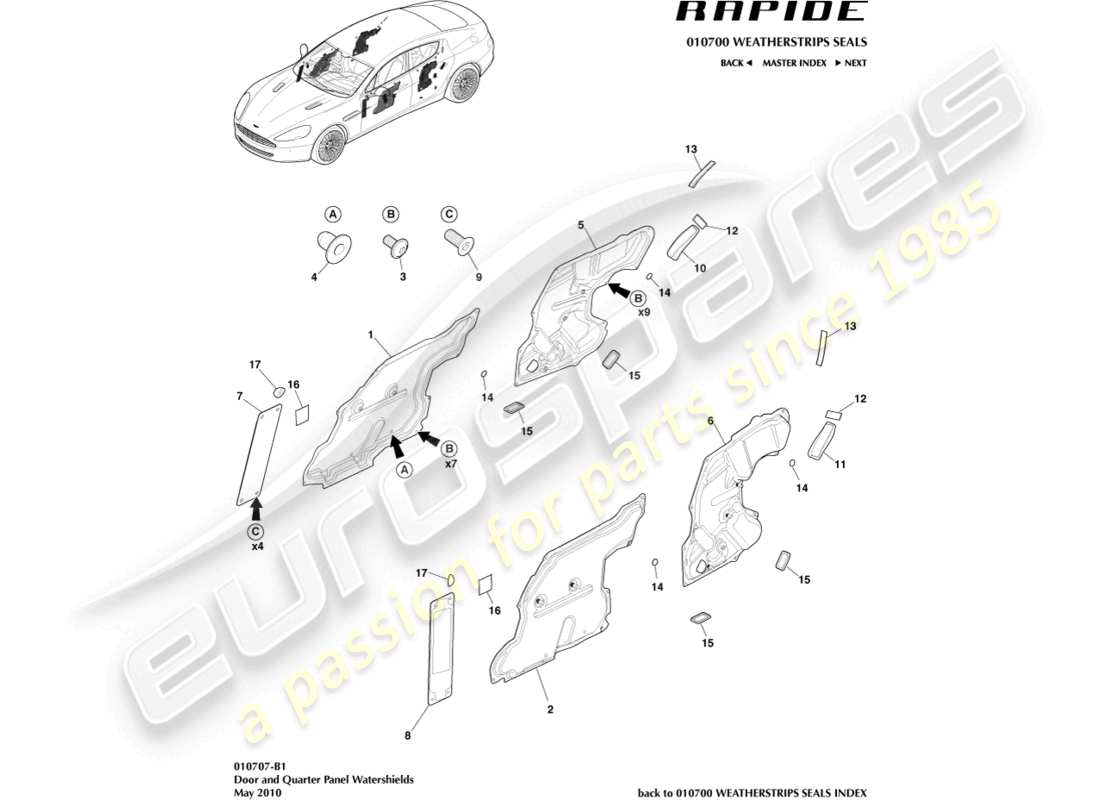

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: AD43-F237A04-BA
                              SHIELD, WATER TRAY, DOOR, RHF
                              from £399.07
                              from £399.07
                              SHIELD, WATER TRAY, DOOR, RHF Genuine Aston Martin - New (to order)
                              # 2
                              MPN: AD43-F237A05-CA
                              SHIELD, WATER TRAY, DOOR, LHF
                              SHIELD, WATER TRAY, DOOR, LHF Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 8D33-46058-AA
                              SCREW, M5X10MM
                              from £0.47
                              from £0.47
                              SCREW, M5X10MM Genuine Aston Martin - New (to order)
                              # 3
                              MPN: 7G43-25954-BA
                              SCREW AND WASHER, M5X16MM
                              FROM VIN F05223
                              SCREW AND WASHER, M5X16MM Genuine Aston Martin - New (to order)
                              # 4
                              MPN: 702212
                              NUT, 6.8 PUSH-ON
                              from £0.47
                              from £0.47
                              SNAPSAC 6.8MM PUSHON Genuine Aston Martin - New (to order)
                              # 5
                              MPN: AD43-F27458-BA
                              SHIELD, WATER TRAY, DOOR, RHR
                              SHIELD, WATER TRAY, DOOR, RHR Genuine Aston Martin - New (to order)
                              # 5
                              MPN: AD43-F27458-CA
                              SHIELD, WATER TRAY, DOOR, RHR
                              FROM VIN F05223
                              SHIELD, WATER TRAY, DOOR, RHR Genuine Aston Martin - New (to order)
                              # 6
                              MPN: AD43-F27459-BA
                              SHIELD, WATER TRAY, DOOR, LHR
                              from £92.77
                              from £92.77
                              SHIELD, WATER TRAY, DOOR, LHR Genuine Aston Martin - New (to order)
                              # 6
                              MPN: AD43-F27459-CA
                              SHIELD, WATER TRAY, DOOR, LHR
                              FROM VIN F05223
                              SHIELD, WATER TRAY, DOOR, LHR Genuine Aston Martin - New (to order)
                              # 7
                              MPN: AD43-F21122-BA
                              PLATE ASSEMBLY, FNT DR INSIDE PANEL CVR, RH
                              from £67.98
                              from £67.98
                              PLATE ASSEMBLY, FNT DR INSIDE PANEL CVR, RH Genuine Aston Martin - New (to order)
                              # 8
                              MPN: AD43-F21123-BA
                              PLATE ASSEMBLY, FNT DR INSIDE PANEL CVR, LH
                              from £67.98
                              from £67.98
                              PLATE ASSEMBLY, FNT DR INSIDE PANEL CVR, LH Genuine Aston Martin - New (to order)
                              # 9
                              MPN: 703267
                              SCREW, M6X14MM
                              from £1.70
                              from £1.70
                              SCREW, M6X14MM Genuine Aston Martin - New (to order)
                              # 10
                              MPN: AD43-F25832-AA
                              GROMMET, REAR DOOR GLASS, RH
                              from £11.48
                              from £11.48
                              GROMMET, REAR DOOR GLASS , RH Genuine Aston Martin - New (to order)
                              # 11
                              MPN: AD43-F25833-AA
                              GROMMET, REAR DOOR GLASS, LH
                              from £28.08
                              from £28.08
                              GROMMET, REAR DOOR GLASS , LH Genuine Aston Martin - New (to order)
                              # 12
                              MPN: 4G43-20127-AA
                              FELT PAD, REAR DOOR INNER PANEL
                              FELT PAD, REAR DOOR INNER PANEL Genuine Aston Martin - New (to order)
                              # 13
                              MPN: AD43-20126-AA
                              FELT PAD, 100MM, REAR DOOR
                              FELT PAD, 100MM, REAR DOOR Genuine Aston Martin - New (to order)
                              # 14
                              MPN: 6G33-200B10-AA
                              HELI-TAPE, PAINT PROTECTION
                              Supersession
                              Supersession
                              Genuine Aston Martin (no longer available to order)
                              # 15
                              MPN: AD43-F25834-AA
                              GROMMET, DOOR ACCESS HOLE
                              from £11.69
                              from £11.69
                              GROMMET, DOOR ACCESS HOLE Genuine Aston Martin - New (to order)
                              # 16
                              MPN: AD43-F78415-AA
                              PATCH, UPPER DOOR FRONT
                              from £0.47
                              from £0.47
                              PATCH, UPPER DOOR FRONT Genuine Aston Martin - New (to order)
                              # 17
                              MPN: AD43-F78411-AA
                              SEAL PATCH, MEDIUM, DIA 35MM
                              SEAL PATCH, MEDIUM, DIAMETER 35MM Genuine Aston Martin - New (to order)
                              # 17
                              MPN: 6G43-F78410-AA
                              SEALING PAD, AL BUTYL
                              from £0.94
                              from £0.94
                              SLNG PAD-AL BUTYL Genuine Aston Martin - New (to order)
                              # 17
                              MPN: 77-84981-PK
                              TAPE, ANTI-RATTLE
                              from £20.01
                              from £20.01
                              FOAM STRIP-10 Genuine Aston Martin - New (to order)
