aston martin rapide (2019) rke transmitter parts diagram

011401 - RKE Transmitter

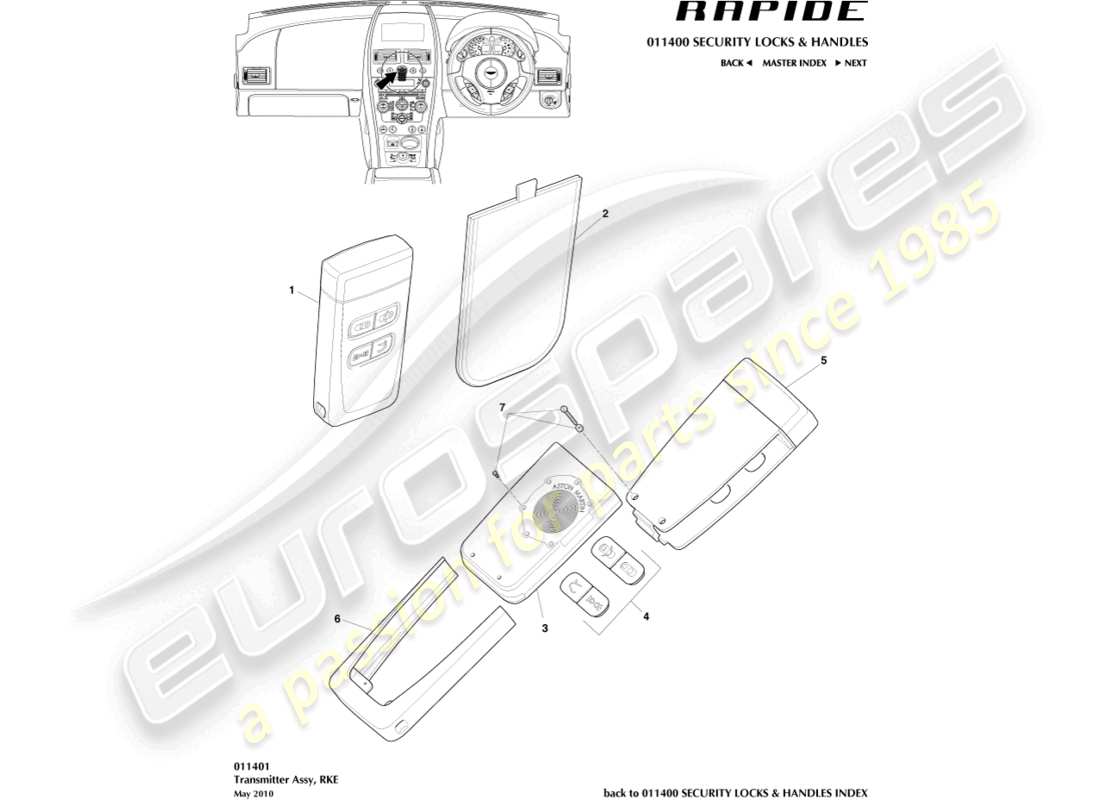

Aston Martin Rapide (2019) RKE Transmitter Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 9G43-19H481-AC
        PRIMARY GLASS FOB ASSY
        Federal, Japan, HongKong, Singapore
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 1
        MPN: 9G43-19H481-BB
        PRIMARY GLASS FOB ASSY
        RoW
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 1
        MPN: 8D33-19H483-AB
        SECONDARY PLASTIC FOB ASSY
        Federal, Japan, HongKong, Singapore
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 1
        MPN: 8D33-19H483-BA
        SECONDARY PLASTIC FOB ASSY
        RoW
        Supersession
        Supersession
        Genuine Aston Martin (no longer available to order)
        # 2
        MPN: 9G43-19H419-AA
        COVER, ECU LOCKET
        COVER, ECU LOCKET Genuine Aston Martin - New (to order)
        # 3
        MPN: 9G43-19H479-AA
        RKE SUB ASSY
        FED/JPN. 315MHz
        from £586.50
        from £586.50
        RKE SUB ASSEMBLY NAS Genuine Aston Martin - New (to order)
        # 3
        MPN: 9G43-19H479-BA
        RKE SUB ASSY
        RoW. 433 MHz
        from £586.50
        from £586.50
        RKE SUB AST-ROW 433M Genuine Aston Martin - New (to order)
        # 4
        MPN: 8D33-19H478-AA
        BUTTON KIT
        from £194.81
        from £194.81
        RKE LEXAN BUTTON KIT Genuine Aston Martin - New (to order)
        # 5
        MPN: 9G43-19H477-AC
        FOB REPAIR KIT, GLASS/LEXAN
        315Mhz, Federal/Japan
        from £738.62
        from £738.62
        FOB REPAIR KIT, GLASS/LEXAN Genuine Aston Martin - New (to order)
        # 5
        MPN: 9G43-19H477-BB
        FOB REPAIR KIT, GLASS/LEXAN
        433Mhz, ROW
        from £612.28
        from £612.28
        FOB REPAIR KIT, GLASS/LEXAN Genuine Aston Martin - New (to order)
        # 5
        MPN: 9G43-19H477-CA
        FOB REPAIR KIT, PLASTIC
        315Mhz, Federal/Japan
        from £95.62
        from £95.62
        315 KEY REPAIR KIT Genuine Aston Martin - New (to order)
        # 5
        MPN: 9G43-19H477-DA
        FOB REPAIR KIT, PLASTIC
        433Mhz, ROW
        from £105.69
        from £105.69
        433 KEY REPAIR KIT Genuine Aston Martin - New (to order)
        # 6
        MPN: 9G43-19H478-AA
        COVER, U SHAPE
        No longer availble - Part of Primary FOB
        COVER, U SHAPE Genuine Aston Martin - New (to order)
        # 7
        MPN: 8D33-19H480-AA
        SCREW KIT, (BATTERY COVER AND FOB LENS)
        from £50.26
        from £50.26
        SCREW KIT, BATTERY COVER AND LENS Genuine Aston Martin - New (to order)
