aston martin rapide (2019) wiper linkage, s parts diagram

011602-01 - Wiper Linkage, S

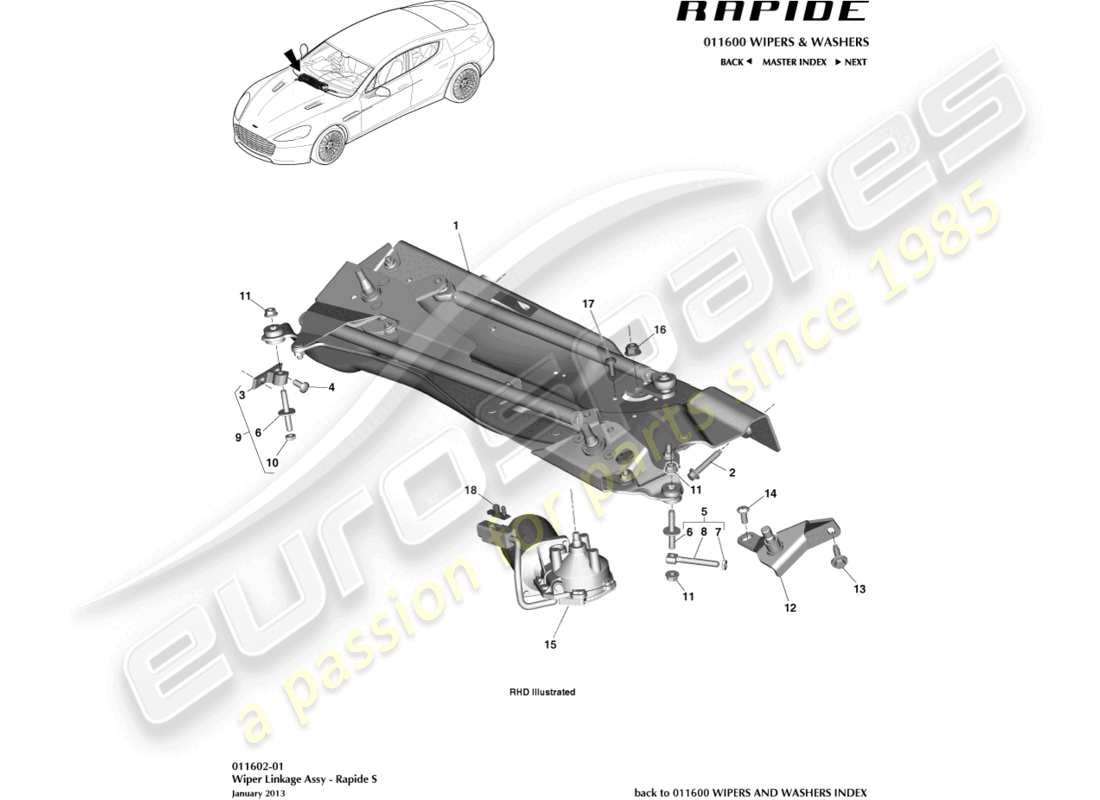

Aston Martin Rapide (2019) Wiper Linkage, S Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: DG43-17504-DA
                                LINKAGE ASSEMBLY, WINDSCREEN WIPER, RHD
                                Includes Wiper Motor. R134a Coolant System
                                from £830.67
                                from £830.67
                                LINKAGE ASSEMBLY, WINDSCREEN WIPER, RHD Genuine Aston Martin - New (to order)
                                # 1
                                MPN: DG43-17504-DB
                                LINKAGE ASSEMBLY, WINDSCREEN WIPER, RHD
                                Includes Wiper Motor. HFO1234yf Coolant System
                                from £980.25
                                from £980.25
                                LINKAGE ASSEMBLY, WINDSCREEN WIPER, RHD Genuine Aston Martin - New (to order)
                                # 1
                                MPN: DG43-17504-CA
                                LINKAGE ASSEMBLY, WINDSCREEN WIPER, LHD
                                Includes Wiper Motor
                                from £855.59
                                from £855.59
                                LINKAGE ASSEMBLY, WINDSCREEN WIPER, LHD Genuine Aston Martin - New (to order)
                                # 2
                                MPN: 702946
                                BOLT, M6X35MM
                                from £0.47
                                from £0.47
                                BOLT M6X35 HEX Genuine Aston Martin - New (to order)
                                # 3
                                MPN: DG43-17510-AA
                                OUTBOARD MOUNT, WIPER LINKAGE
                                from £22.53
                                from £22.53
                                OUTBOARD MOUNT, WIPER LINKAGE Genuine Aston Martin - New (to order)
                                # 4
                                MPN: 702293
                                SCREW, M6X12MM, PAN HEAD
                                from £0.47
                                from £0.47
                                SCREW M6X12 PAN HD Genuine Aston Martin - New (to order)
                                # 5
                                MPN: DG43-17506-AA
                                ADJUSTER ASSEMBLY, INBOARD
                                from £12.60
                                from £12.60
                                ADJUSTER ASSEMBLY, INBOARD Genuine Aston Martin - New (to order)
                                # 6
                                MPN: DG43-17508-AA
                                ADJUSTER
                                from £6.91
                                from £6.91
                                ADJUSTER Genuine Aston Martin - New (to order)
                                # 8
                                MPN: DG43-17505-AB
                                EYEBOLT, WIPER MECHANISM
                                EYEBOLT, WIPER MECHANISM Genuine Aston Martin - New (to order)
                                # 9
                                MPN: DG43-17507-AA
                                ADJUSTER ASSEMBLY, OUTBOARD
                                from £21.29
                                from £21.29
                                ADJUSTER ASSEMBLY, OUTBOARD Genuine Aston Martin - New (to order)
                                # 10
                                MPN: 702994
                                NUT, M6, THIN
                                from £0.47
                                from £0.47
                                NUT M6 HEX THIN Genuine Aston Martin - New In stock
                                # 11
                                MPN: 703749
                                NUT, M6, HEX FLANGE HEAD
                                from £0.47
                                from £0.47
                                This part replaces part number 699877
                                NUT-M6 HEX FLANGE GRD 8 Genuine Aston Martin - New (to order)
                                # 12
                                MPN: DG43-17500-DA
                                SLAVE SPINDLE BRACKET, RHD
                                from £324.45
                                from £324.45
                                SLAVE SPINDLE BRACKET, RHD Genuine Aston Martin - New (to order)
                                # 12
                                MPN: DG43-17500-CA
                                SLAVE SPINDLE BRACKET, LHD
                                from £324.45
                                from £324.45
                                SLAVE SPINDLE BRACKET, LHD Genuine Aston Martin - New (to order)
                                # 13
                                MPN: 702839-PK
                                SCREW & WASHER, M6X20MM, HEX HD
                                Pack of 10
                                from £3.14
                                from £3.14
                                SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                # 14
                                MPN: 703149
                                SCREW, M6 X 16MM, TORX PAN HD
                                from £0.47
                                from £0.47
                                SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                                # 15
                                MPN: AG43-67350-AA
                                wiper motor
                                from £292.47
                                from £292.47
                                wiper motor Genuine Aston Martin - New (to order)
                                # 16
                                MPN: 703739
                                NUT, M8, HEX FLANGE HEAD
                                from £0.70
                                from £0.70
                                NUT-M8 HEX FLANGE Genuine Aston Martin - New (to order)
                                # 18
                                MPN: 6G43-01-10042
                                RETAINER, CONNECTOR
                                from £0.47
                                from £0.47
                                CONNECTOR RETAINER Genuine Aston Martin - New (to order)
