070300-R1 - Transaxle, Manual

Aston Martin V12 Vantage (2010) Transaxle, Manual Parts Diagram

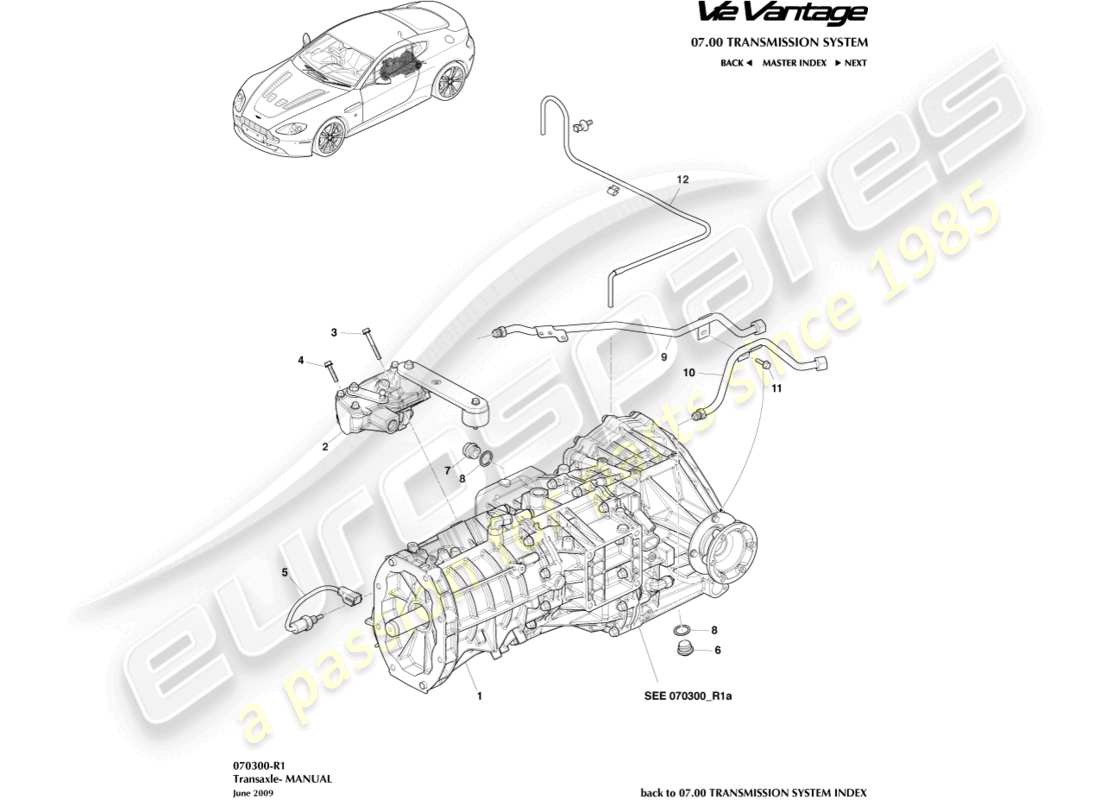

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: AD23-7002-AA
                    TRANSMISSION ASSY, MANUAL
                    Complete
                    TRANSMISSION ASSEMBLY, MANUAL Genuine Aston Martin - New (to order)
                    # 2
                    MPN: 8D33-7N372-AA
                    GEAR SHIFT ASSY, BELLCRANK, TRANSAXLE
                    GEAR SHIFT ASSEMBLY, BELLCRANK, TRANSAXLE Genuine Aston Martin - New (to order)
                    # 3
                    MPN: 6G33-XSC2159-AA
                    BOLT, FLG, M6X50 BELL CRANK ATTACH
                    BOLT, FLANGE , M6X50 BELL CRANK ATTACH Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 6G33-106205-AA
                    BOLT, FLG, M6X30 BELL CRANK ATTACH
                    BOLT, FLANGE , M6X30 BELL CRANK ATTACH Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 6G33-8F875-AA
                    SWITCH, REVERSE LIGHT
                    from £166.87
                    from £166.87
                    SWITCH, REVERSE LIGHT Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 4G43-27-10244
                    PLUG, OIL DRAIN, MAGNETIC
                    from £31.38
                    from £31.38
                    PLUG, OIL DRAIN, MAGNETIC Genuine Aston Martin - New (to order)
                    # 7
                    MPN: 4G43-27-10493
                    PLUG, OIL FILLER/LEVEL
                    from £8.56
                    from £8.56
                    PLUG - OIL LEVEL M22 Genuine Aston Martin - New (to order)
                    # 8
                    MPN: 4G43-27-10245
                    WASHER, OIL FILLER/DRAIN PLUGS
                    from £2.67
                    from £2.67
                    SEAL, FLAT 22X28X1.5 Genuine Aston Martin - New (to order)
                    # 9
                    MPN: 6G33-7F113-CA
                    TUBE ASSY, TRANS OIL INLET
                    from £119.44
                    from £119.44
                    TUBE ASSEMBLY, TRANS OIL INLET Genuine Aston Martin - New (to order)
                    # 10
                    MPN: 6G33-7F112-CA
                    TUBE ASSY, TRANS OIL OUTLET
                    from £130.32
                    from £130.32
                    TUBE ASSEMBLY, TRANS OIL OUTLET Genuine Aston Martin - New (to order)
                    # 11
                    MPN: 6G33-E606403-AA
                    BOLT, FLG, M6X16
                    Output shft Bearing Retainer
                    from £0.55
                    from £0.55
                    BOLT, FLANGE , M6X16 Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 6G33-7A245-AA
                    PIPE ASSY, TRANSAXLE BREATHER, MANUAL
                    from £39.85
                    from £39.85
                    PIPEASY-TRANS BREATH Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 701575
                    CLIP, PIPE
                    Breather, Transaxle
                    from £0.47
                    from £0.47
                    CLIP 6.0X6.5X0.8-6 Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 702284
                    CLIP, EDGE
                    Breather, Transaxle
                    from £1.21
                    from £1.21
                    CLIP, EDGE Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 4G43-19G506-AA
                    GREASE, MANUAL TRANSMISSION
                    As required
                    GREASE, TRANSMISSION MANUAL Genuine Aston Martin - New (to order)
                    # 12
                    MPN: 6G33-75106-AA/S
                    OIL, TRANSAXLE
                    As required
                    from £23.22
                    from £23.22
                    OIL, TRANSAXLE Genuine Aston Martin - New (to order)
