aston martin v12 vantage (2011) body dash and cowl, coupe parts diagram

010102-B2 - body dash and cowl, coupe

Aston Martin V12 Vantage (2011) Body Dash and Cowl, Coupe Parts Diagram

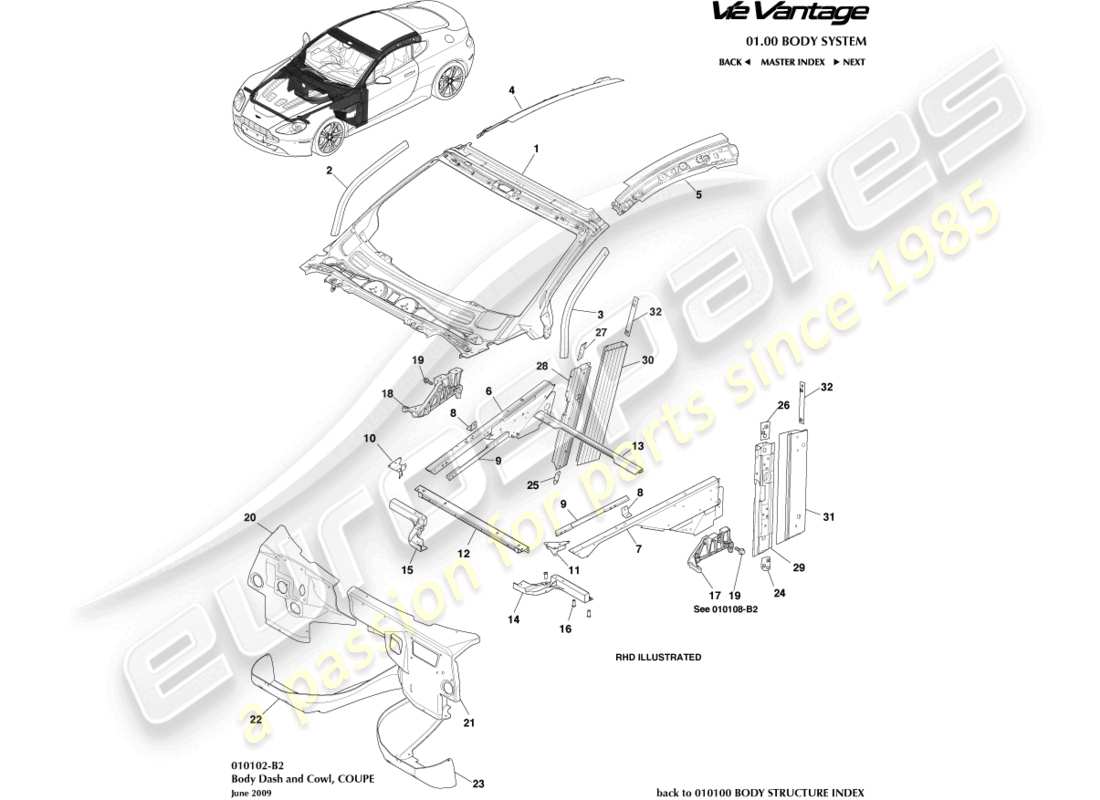

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 4G43-C03014-BR
FRAME ASSEMBLY, WINDSHIELD, RHD
Structural. Cat A Only
FRAME ASSEMBLY, WINDSHIELD, RHD Genuine Aston Martin - New (to order)
# 1
MPN: 4G43-C03014-1
FRAME ASSEMBLY, WINDSHIELD, LHD
Structural. Cat A Only
FRAME ASSEMBLY, WINDSHIELD, LHD Genuine Aston Martin - New (to order)
# 2
MPN: AG33-F02526-AA
PILLAR, FRONT BODY REINFORCED, RH
Structural. Cat A Only
PILLAR, FRONT BODY REINFORCED, RH Genuine Aston Martin - New (to order)
# 3
MPN: AG33-F02527-AA
PILLAR, FRONT BODY REINFORCED, LH
Structural. Cat A Only
PILLAR, FRONT BODY REINFORCED, LH Genuine Aston Martin - New (to order)
# 4
MPN: 6G33-C513A08-BA
RAIL, ROOF SIDE REINFORCED, RH
Structural. Cat A Only
from £75.98
from £75.98
RAIL, ROOF SIDE REINFORCED, RH Genuine Aston Martin - New (to order)
# 5
MPN: 6G33-C513A09-BA
RAIL, ROOF SIDE REINFORCED, LH
Structural. Cat A Only
from £95.09
from £95.09
RAIL, ROOF SIDE REINFORCED, LH Genuine Aston Martin - New (to order)
# 6
MPN: 6G33-20-10442
EXTRUSION, FRONT FENDER APRON, RH
Structural. Cat A Only
from £381.31
from £381.31
ASSEMBLY FRONT FENDER SUPPORT RH Genuine Aston Martin - New (to order)
# 7
MPN: 6G33-20-10443
EXTRUSION, FRONT FENDER APRON, LH
Structural. Cat A Only
from £381.31
from £381.31
ASSEMBLY FRONT FENDER SUPPORT LH Genuine Aston Martin - New (to order)
# 8
MPN: 6G33-C18178-AB
BRACKET, GAS DAMPER MOUNTING
Structural. Cat A Only
from £4.42
from £4.42
BRACKET, GAS DAMPER MOUNTING Genuine Aston Martin - New (to order)
# 9
MPN: GODG43-17F790-BA
NUTPLATE, M10
Structural. Cat A Only
from £28.82
from £28.82
NUTPLATE SHOTGUN M10 Genuine Aston Martin - New (to order)
# 10
MPN: P0AD23-5048-AA
BRACKET, F/FENDER APRON TO F/CROSS MEMBER, RH
Structural. Cat A Only
from £51.90
from £51.90
BRACKET, F/FENDER APRON TO F/CROSS MEMBER, RH Genuine Aston Martin - New (to order)
# 11
MPN: P0AD23-5049-AA
BRACKET, F/FENDER APRON TO F/CROSS MEMBER, LH
Structural. Cat A Only
from £51.90
from £51.90
BRACKET, F/FENDER APRON TO F/CROSS MEMBER, LH Genuine Aston Martin - New (to order)
# 12
MPN: AD23-5D066-AA
CROSS MEMBER, FRONT UPPER
Structural. Cat A Only
from £114.85
from £114.85
CROSS MEMBER, FRONT UPPER Genuine Aston Martin - New (to order)
# 13
MPN: 6G33-10414-AB
MEMBER, FRONT CROSS AT DASH
Structural. Cat A Only
MEMBER, FRONT CS AT DH Genuine Aston Martin - New (to order)
# 14
MPN: AD23-16431-AA
CASTING, FRT S/M TO C/M LH
Structural. Cat A Only
from £270.00
from £270.00
CASTING, FRONT S/M TO C/M LH Genuine Aston Martin - New (to order)
# 15
MPN: AD23-16430-AA
CASTING, FRT S/M TO C/M RH
Structural. Cat A Only
from £405.00
from £405.00
CASTING, FRONT S/M TO C/M RH Genuine Aston Martin - New (to order)
# 16
MPN: 6G33-46768-AA
RIVNUT M6 FLAT HD 1.5-3MM
Structural. Cat A only, 3 per side
from £1.10
from £1.10
RIVNUT M6/M10L Genuine Aston Martin - New In stock
# 17
MPN: 6G33-16798-BA
BRACKET, BONNET HINGE SUPPORT, RH
Structural. Cat A Only
from £59.02
from £59.02
BRACKET, BONNET HINGE SUPT, RH Genuine Aston Martin - New (to order)
BRACKET, BONNET HINGE SUPT, RH Genuine Aston Martin - Used In stock
# 18
MPN: 6G33-16799-BA
BRACKET, BONNET HINGE SUPPORT, LH
Structural. Cat A Only
from £59.02
from £59.02
BRACKET, BONNET HINGE SUPT, LH Genuine Aston Martin - New (to order)
BRACKET, BONNET HINGE SUPT, LH Genuine Aston Martin - Used In stock
# 19
MPN: 703120
SCREW, M8 X 25
Structural. Cat A only, 4 per side
from £3.45
from £3.45
SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
# 22
MPN: 9G33-F01612-AA
PANEL, DASH SIDE, RH
Structural. Cat A Only
PANEL, DASH SIDE, RH Genuine Aston Martin - New (to order)
# 23
MPN: 9G33-F01613-AD
PANEL, DASH SIDE, LH
Structural. Cat A Only
PANEL, DASH SIDE, LH Genuine Aston Martin - New (to order)
# 24
MPN: 6G33-15110-AA
NUTPLATE M8, A POST HINGE, LOWER, RH
Structural. Cat A Only
from £4.99
from £4.99
NUTPLATE M8, A POST LOWER HINGE RH Genuine Aston Martin - New (to order)
# 25
MPN: 6G33-15111-AA
NUTPLATE M8, A POST HINGE, LOWER, LH
Structural. Cat A Only
from £4.99
from £4.99
NUTPLATE A POST LOWER Genuine Aston Martin - New (to order)
# 26
MPN: 6G33-71490-AA
NUTPLATE M8, A POST HINGE, UPPER, RH
Structural. Cat A Only
from £5.54
from £5.54
NUTPLATE, A POST HINGE, UPPER, RH Genuine Aston Martin - New (to order)
# 27
MPN: 6G33-94545-AA
NUTPLATE M8, A POST HINGE, UPPER, LH
Structural. Cat A Only
from £5.44
from £5.44
NUTPLATE A POST HNG Genuine Aston Martin - New (to order)
# 28
MPN: P06G33-F02660-BA
PILLAR, BODY LOWER FRONT, RH
Structural. Cat A Only
PILLAR, FRONT BODY LOWER FRONT, RH Genuine Aston Martin - New (to order)
# 29
MPN: P06G33-F02661-BA
PILLAR, BODY LOWER FRONT, LH
Structural. Cat A Only
PILLAR, FRONT BODY LOWER FRONT, LH Genuine Aston Martin - New (to order)
# 30
MPN: P06G33-F02662-BA
EXTRUSION, FRONT BODY PILLAR LOWER, RH
Structural. Cat A Only
EXTRUSION, FRONT BODY PILLAR LOWER, RH Genuine Aston Martin - New (to order)
# 31
MPN: P06G33-F02663-BA
EXTRUSION, FRONT BODY PILLAR LOWER, LH
Structural. Cat A Only
EXTRUSION, FRONT BODY PILLAR LOWER, LH Genuine Aston Martin - New (to order)
# 32
MPN: 6G33-486226-AA
NUTPLATE M8, IP BEAM
Structural. Cat A Only
from £5.54
from £5.54
NUTPLATE IP BEAM M8 Genuine Aston Martin - New (to order)
