aston martin v12 vantage (2011) body dash and cowl, roadster parts diagram

010102-B4 - Body Dash and Cowl, Roadster

Aston Martin V12 Vantage (2011) Body Dash and Cowl, Roadster Parts Diagram

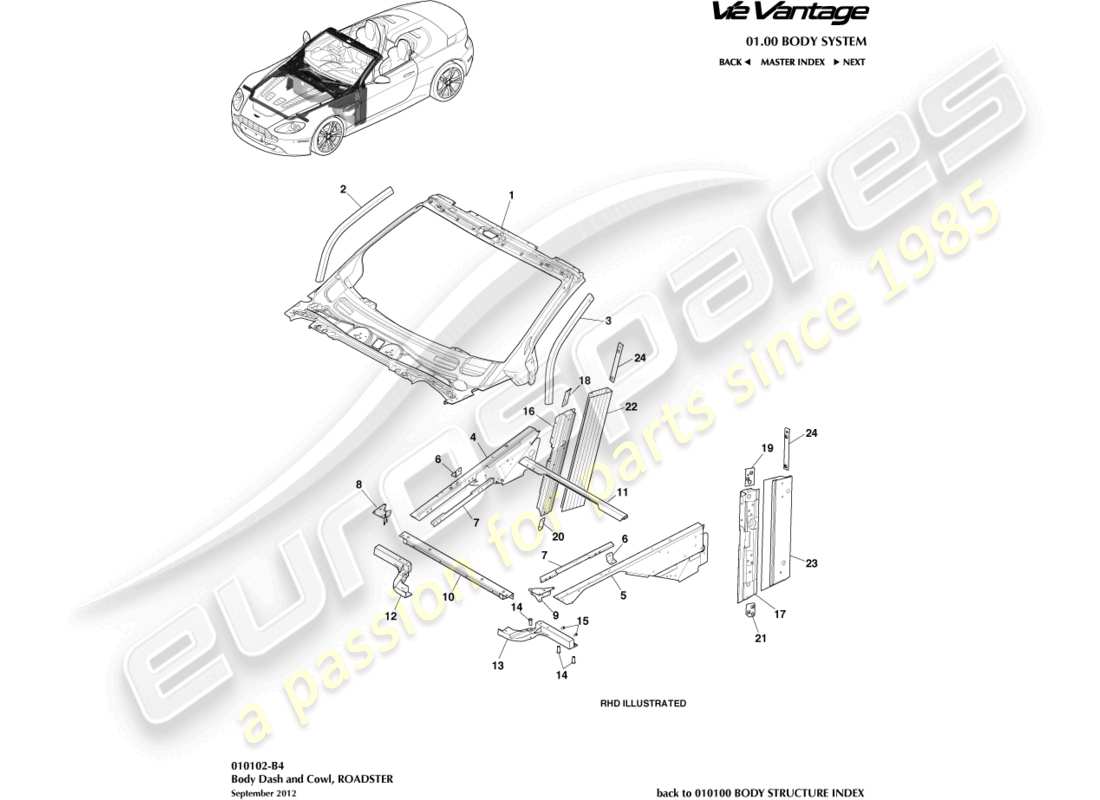

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 6G33-L03014-BF
                    FRAME ASSY, WINDSHIELD, RHD
                    Structural. Cat A Only
                    FRAME ASSEMBLY, WINDSHIELD, RHD Genuine Aston Martin - New (to order)
                    # 1
                    MPN: 6G33-L03014-AE
                    FRAME ASSY, WINDSHIELD, LHD
                    Structural. Cat A Only
                    FRAME ASSEMBLY WINDSHIELD, LHD Genuine Aston Martin - New (to order)
                    # 2
                    MPN: GOAG33-F02526-AA
                    REINFORCEMENT, FRONT BODY PILLAR, RH
                    Structural. Cat A Only
                    REINFORCEMENT FRONT BODY PILLAR, RH Genuine Aston Martin - New (to order)
                    # 3
                    MPN: GOAG33-F02527-AA
                    REINFORCEMENT, FRONT BODY PILLAR, LH
                    Structural. Cat A Only
                    from £53.74
                    from £53.74
                    REINFORCEMENT, FRONT BODY PILLAR, LH Genuine Aston Martin - New (to order)
                    # 4
                    MPN: 6G33-20-10442
                    FRONT FENDER SUPPORT ASSY, RH
                    Includes Item 6, Structural. Cat A only
                    from £381.31
                    from £381.31
                    ASSEMBLY FRONT FENDER SUPPORT RH Genuine Aston Martin - New (to order)
                    # 5
                    MPN: 6G33-20-10443
                    FRONT FENDER SUPPORT ASSY, LH
                    Includes Item 6, Structural. Cat A only
                    from £381.31
                    from £381.31
                    ASSEMBLY FRONT FENDER SUPPORT LH Genuine Aston Martin - New (to order)
                    # 6
                    MPN: 6G33-C18178-AB
                    BRACKET, GAS DAMPER MOUNTING
                    from £4.42
                    from £4.42
                    BRACKET, GAS DAMPER MOUNTING Genuine Aston Martin - New (to order)
                    # 7
                    MPN: GODG43-17F790-BA
                    NUTPLATE, M10
                    from £28.82
                    from £28.82
                    NUTPLATE SHOTGUN M10 Genuine Aston Martin - New (to order)
                    # 8
                    MPN: P0AD23-5048-AA
                    BRACE, FRONT SIDE MEMBER TO CROSS MEMBER, FRONT, RH
                    Structural. Cat A Only
                    from £51.90
                    from £51.90
                    BRACKET, F/FENDER APRON TO F/CROSS MEMBER, RH Genuine Aston Martin - New (to order)
                    # 9
                    MPN: P0AD23-5049-AA
                    BRACE, FRONT SIDE MEMBER TO CROSS MEMBER, FRONT, LH
                    Structural. Cat A Only
                    from £51.90
                    from £51.90
                    BRACKET, F/FENDER APRON TO F/CROSS MEMBER, LH Genuine Aston Martin - New (to order)
                    # 10
                    MPN: AD23-5D066-AA
                    CROSS MEMBER, FRONT UPPER
                    Structural. Cat A Only
                    from £114.85
                    from £114.85
                    CROSS MEMBER, FRONT UPPER Genuine Aston Martin - New (to order)
                    # 11
                    MPN: AG33-10414-AB
                    MEMBER, FRONT CROSS AT DASH
                    Structural. Cat A Only
                    MEMBER, FRONT CROSS AT DASH Genuine Aston Martin - New (to order)
                    # 12
                    MPN: AD23-16430-AA
                    CASTING, FRONT SIDE MEMBER TO CROSS MEMBER, FRONT, RH
                    Includes Items 14 and 15, Structural. Cat A only
                    from £405.00
                    from £405.00
                    CASTING, FRONT S/M TO C/M RH Genuine Aston Martin - New (to order)
                    # 13
                    MPN: AD23-16431-AA
                    CASTING, FRONT SIDE MEMBER TO CROSS MEMBER, FRONT, LH
                    Includes Items 14 and 15, Structural. Cat A only
                    from £270.00
                    from £270.00
                    CASTING, FRONT S/M TO C/M LH Genuine Aston Martin - New (to order)
                    # 14
                    MPN: 6G33-46768-AA
                    RIVNUT, M6/M10L, FLAT HEAD, 1.5-3MM
                    from £1.10
                    from £1.10
                    RIVNUT M6/M10L Genuine Aston Martin - New In stock
                    # 15
                    MPN: 6G33-54428-AA
                    RIVNUT, M6, FLAT HEAD KNURLED, 1.5-3MM
                    from £0.47
                    from £0.47
                    RIVNUT M6 Genuine Aston Martin - New (to order)
                    # 16
                    MPN: GOAG33-F02660-AB
                    PILLAR, FRONT BODY LOWER FRONT, RH
                    Structural. Cat A Only
                    from £102.86
                    from £102.86
                    PILLAR, FRONT BODY LOWER FRONT, RH Genuine Aston Martin - New (to order)
                    # 17
                    MPN: GOAG33-F02661-AB
                    PILLAR, FRONT BODY LOWER FRONT, LH
                    Structural. Cat A Only
                    from £95.09
                    from £95.09
                    PILLAR, FRONT BODY LOWER FRONT, LH Genuine Aston Martin - New (to order)
                    # 18
                    MPN: 6G33-71490-AA
                    NUTPLATE, A POST HINGE, UPPER, RH
                    from £5.54
                    from £5.54
                    NUTPLATE, A POST HINGE, UPPER, RH Genuine Aston Martin - New (to order)
                    # 19
                    MPN: 6G33-94545-AA
                    NUTPLATE, A POST HINGE, UPPER, LH
                    from £5.44
                    from £5.44
                    NUTPLATE A POST HNG Genuine Aston Martin - New (to order)
                    # 20
                    MPN: 6G33-15110-AB
                    NUTPLATE, A POST HINGE, LOWER, RH
                    from £7.64
                    from £7.64
                    NUTPLATE A POST LOWER Genuine Aston Martin - New (to order)
                    # 21
                    MPN: 6G33-15111-AB
                    NUTPLATE, A POST HINGE, LOWER, LH
                    from £4.99
                    from £4.99
                    NUTPLATE A POST LOWER Genuine Aston Martin - New (to order)
                    # 22
                    MPN: GOAG33-F02662-AB
                    EXTRUSION, FRONT BODY PILLAR, LOWER, RH
                    Structural. Cat A Only
                    from £66.56
                    from £66.56
                    EXTRUSION, FRONT BODY PILLAR, LOWER, RH Genuine Aston Martin - New (to order)
                    # 23
                    MPN: GOAG33-F02663-AB
                    EXTRUSION, FRONT BODY PILLAR, LOWER, LH
                    Structural. Cat A Only
                    from £53.25
                    from £53.25
                    EXTRUSION, FRONT BODY PILLAR, LOWER, LH Genuine Aston Martin - New (to order)
                    # 24
                    MPN: 6G33-486226-AA
                    NUTPLATE, M8, IP BEAM
                    from £5.54
                    from £5.54
                    NUTPLATE IP BEAM M8 Genuine Aston Martin - New (to order)
