aston martin v12 vantage (2011) body rear end, coupe parts diagram

010106-B1 - Body Rear End, Coupe

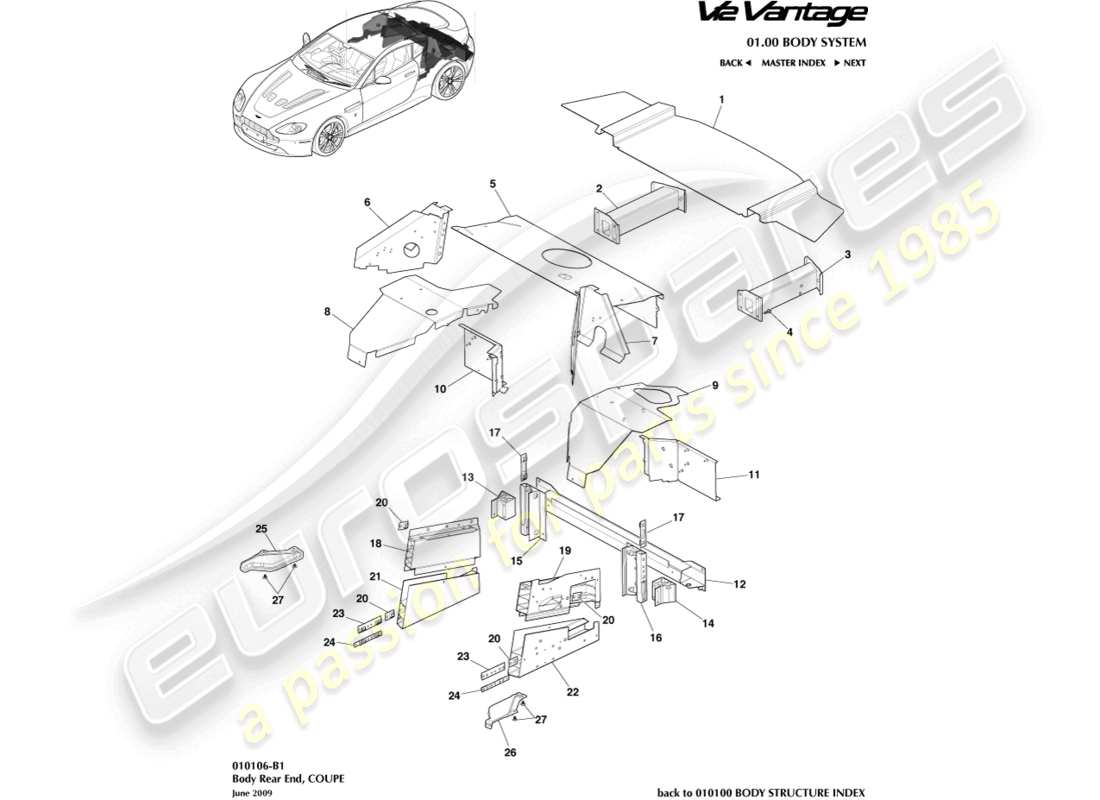

Aston Martin V12 Vantage (2011) Body Rear End, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 1
      MPN: AD23-47124-AA
      PANEL, BOOT FLOOR
      Structural Cat. A only
      from £245.66
      from £245.66
      PANEL, BOOT FLOOR Genuine Aston Martin - New (to order)
      # 2
      MPN: 6G3317F034-AE
      ABS ASSY,REAR BUMPER RH
      Structural Cat. A only
      ABS ASSEMBLY,REAR BUMPER RH Genuine Aston Martin - New (to order)
      # 3
      MPN: 6G3317F035-AE
      ABS ASSY, REAR BUMPER LH
      Structural Cat. A only
      ABS ASSEMBLY, REAR BUMPER LH Genuine Aston Martin - New (to order)
      # 4
      MPN: 703120
      SCREW, M8 X 25
      from £3.45
      from £3.45
      SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
      INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
      # 5
      MPN: 6G33-C278A71-AE
      PANEL, FUEL TANK COMPARTMENT, UPPER
      Structural Cat. A only
      PANEL, FUEL TANK COMPARTMENT, UPPER Genuine Aston Martin - New (to order)
      # 5
      MPN: DG33-C278A71-AA
      PANEL, FUEL TANK COMPARTMENT, UPPER
      12.5MY, Structural Cat. A only
      PANEL, FUEL TANK COMPARTMENT, UPPER Genuine Aston Martin - New (to order)
      # 6
      MPN: 6G33-410A82-AE
      BAF, CENTRE PILLAR REINFORCE RH
      Structural Cat. A only
      from £86.60
      from £86.60
      BAFFLE, C PILLAR REINFORCEMENT, RH Genuine Aston Martin - New (to order)
      # 7
      MPN: 6G33-410A83-AD
      BAF, CENTRE PILLAR REINFORCE LH
      Structural Cat. A only
      BAFFLE, C PILLAR REINFORCEMENT, LH Genuine Aston Martin - New (to order)
      # 8
      MPN: 6G33-C279A54-AC
      PANEL, QTR WHEEL INNER RH
      Structural Cat. A only
      from £139.01
      from £139.01
      PANEL, WHEEL HOUSE, RH Genuine Aston Martin - New (to order)
      # 9
      MPN: 6G33-C279A55-AD
      PANEL, QTR WHEEL INNER LH
      Structural Cat. A only
      PANEL, WHEEL HOUSE, LH Genuine Aston Martin - New (to order)
      # 9
      MPN: CG33-C279A55-AA
      PANEL, QTR WHEEL INNER LH
      12MY, Structural Cat. A only
      from £134.97
      from £134.97
      PANEL, QUARTER WHEEL INNER LH Genuine Aston Martin - New (to order)
      # 10
      MPN: 6G33-C10514-AE
      PANEL, REAR FLOOR SIDE OUTER RH
      Structural Cat. A only
      PANEL, REAR FLOOR SIDE OUTER RH Genuine Aston Martin - New (to order)
      # 11
      MPN: 6G33-C10515-AE
      PANEL, REAR FLOOR SIDE OUTER LH
      Structural Cat. A only
      PANEL, REAR FLOOR SIDE OUTER, LH Genuine Aston Martin - New (to order)
      # 12
      MPN: 6G33-C40338-AC
      PANEL, REINFORCED LOWER BACK, CENTRE
      Structural Cat. A only
      PANEL, REINFORCED LOWER BACK, CENTRE Genuine Aston Martin - New (to order)
      # 13
      MPN: 9G33-5A355-AA
      SUPPORT,SUB FRAME REAR, RH
      Structural Cat. A only
      SUPPORT,SUB FRAME REAR, RH Genuine Aston Martin - New (to order)
      # 14
      MPN: 9G33-5A356-AA
      SUPPORT,SUB FRAME REAR, LH
      Structural Cat. A only
      SUPPORT,SUB FRAME REAR, LH Genuine Aston Martin - New (to order)
      # 15
      MPN: 6G33-C101C84-AE
      BRACKET, SIDE MEMBER REAR, RH
      Structural Cat. A only
      BRACKET, SIDE MEMBER REAR, RH Genuine Aston Martin - New (to order)
      # 16
      MPN: 6G33-C101C85-AE
      BRACKET, SIDE MEMBER REAR, LH
      Structural Cat. A only
      BRACKET, SIDE MEMBER REAR, LH Genuine Aston Martin - New (to order)
      # 17
      MPN: 8G43-334177-AA
      NUTPLATE, REAR DAMPER MOUNT, M12
      Structural Cat. A only
      from £8.64
      from £8.64
      NUTPLATE REAR DMPR MNT Genuine Aston Martin - New (to order)
      # 18
      MPN: 6G33-C10282-AG
      MEMBER ASSY, REAR FLOOR SIDE UPPER, RH
      Structural Cat. A only
      MEMBER ASSEMBLY, REAR FLOOR SIDE UPPER, RH Genuine Aston Martin - New (to order)
      # 19
      MPN: 6G33-C10283-AH
      MEMBER ASSY, REAR FLOOR SIDE UPPER, LH
      Structural Cat. A only
      MEMBER ASSEMBLY, REAR FLOOR SIDE UPPER, LH Genuine Aston Martin - New (to order)
      # 20
      MPN: 6G33-80997-AA
      NUTPLATE, REAR DAMPER MOUNT FRONT, M12
      Structural Cat. A only
      from £3.88
      from £3.88
      NUTPLATE REAR DMPR MNT Genuine Aston Martin - New (to order)
      # 21
      MPN: 6G33-10456-AC
      MEMBER ASSY, REAR FLOOR SIDE, RH
      Structural Cat. A only
      from £65.44
      from £65.44
      MEMBER ASSEMBLY, REAR FLOOR SIDE, RH Genuine Aston Martin - New (to order)
      # 22
      MPN: 6G33-10457-AC
      MEMBER ASSY, REAR FLOOR SIDE, LH
      Structural Cat. A only
      MEMBER ASSEMBLY, REAR FLOOR SIDE, LH Genuine Aston Martin - New (to order)
      # 23
      MPN: 6G33-5N394-AB
      NUTPLATE, BRKT REAR SB FR STAB, UPPER
      Structural Cat. A only
      from £10.07
      from £10.07
      NUTPLATE BRACKET REAR SBF Genuine Aston Martin - New (to order)
      # 24
      MPN: 6G33-5N393-AB
      NUTPLATE, BRKT REAR SB FR STAB, LOWER
      Structural Cat. A only
      from £6.12
      from £6.12
      NUTPLATE BRACKET REAR SBF Genuine Aston Martin - New (to order)
      # 25
      MPN: 6G33-243A86-AA
      PANEL ASSY, REAR QTR CLSR, RH
      Structural Cat. A only
      from £19.32
      from £19.32
      PANEL ASSEMBLY, REAR QUARTER CLSR, RH Genuine Aston Martin - New (to order)
      # 26
      MPN: 6G33-243A87-AA
      PANEL ASSY, REAR QTR CLSR, LH
      Structural Cat. A only
      from £19.32
      from £19.32
      PANEL ASSEMBLY, REAR QUARTER CLSR, LH Genuine Aston Martin - New (to order)
      # 27
      MPN: 1R12-642790-AA-PK
      SCRIVET, 8MM
      from £3.88
      from £3.88
      SCRIVET-PACK OF 5 Genuine Aston Martin - New (to order)
