010106-B2 - Body Rear End, Roadster

Aston Martin V12 Vantage (2011) Body Rear End, Roadster Parts Diagram

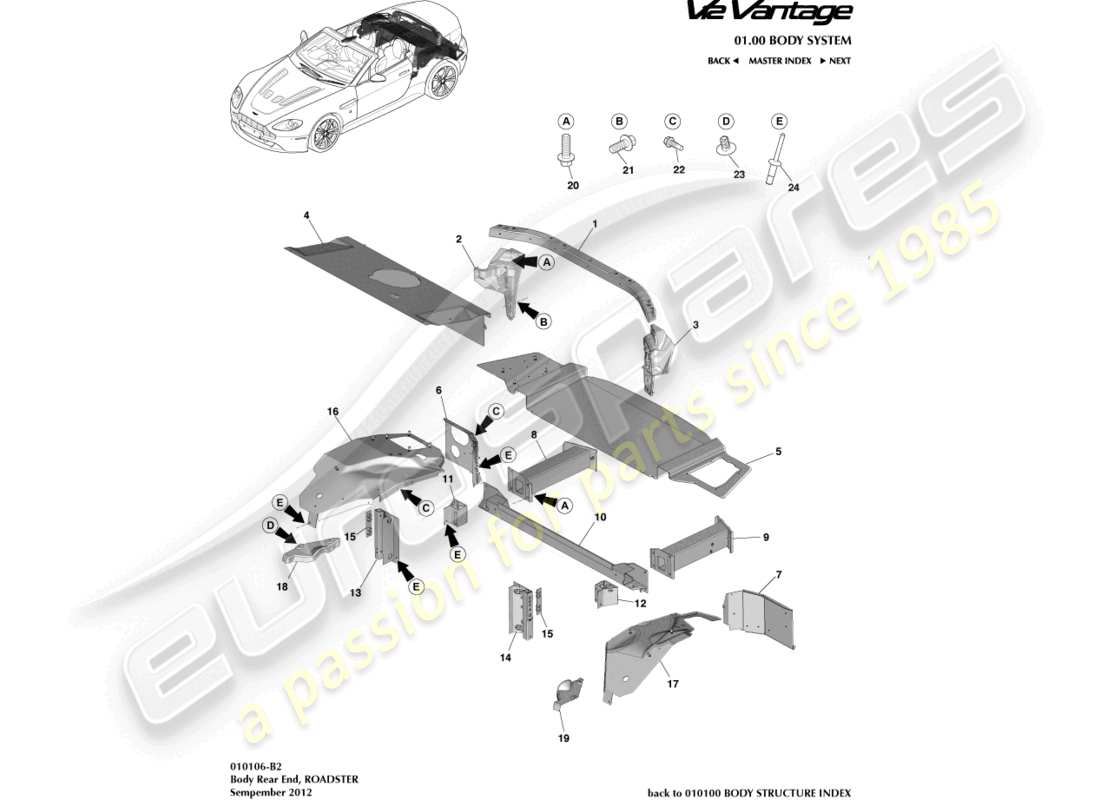

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 6G33-L41623-AF
          SUPPORT BEAM, TAILGATE
          Structural. Cat A Only
          from £158.91
          from £158.91
          SUPPORT BEAM, TAILGATE Genuine Aston Martin - New (to order)
          # 2
          MPN: 6G33-L416W20-AF
          MOUNTING BRACKET, TAILGATE SUPPORT BEAM, RH
          Structural. Cat A Only
          from £147.73
          from £147.73
          MOUNTING BRACKET, TAILGATE SUPPORT BEAM, RH Genuine Aston Martin - New (to order)
          # 3
          MPN: 6G33-L416W21-AF
          MOUNTING BRACKET, TAILGATE SUPPORT BEAM, LH
          Structural. Cat A Only
          from £112.50
          from £112.50
          MOUNTING BRACKET, TAILGATE SUPPORT BEAM, LH Genuine Aston Martin - New (to order)
          # 4
          MPN: DG33-L278A71-AA
          PANEL, FUEL TANK COMPARTMENT, UPPER
          Structural. Cat A Only
          PANEL, FUEL TANK COMPARTMENT, UPPER Genuine Aston Martin - New (to order)
          # 5
          MPN: 6G33-L47124-AD
          PANEL, TRUNK FLOOR
          Structural. Cat A Only
          from £264.02
          from £264.02
          PANEL, TRUNK FLOOR Genuine Aston Martin - New (to order)
          # 6
          MPN: 6G33-L10514-AK
          PANEL, REAR FLOOR SIDE OUTER, RH
          Structural. Cat A Only
          from £76.01
          from £76.01
          PANEL, REAR FLOOR SIDE OUTER, RH Genuine Aston Martin - New (to order)
          # 7
          MPN: 6G33-L10515-AL
          PANEL, REAR FLOOR SIDE OUTER, LH
          Structural. Cat A Only
          PANEL, REAR FLOOR SIDE OUTER, LH Genuine Aston Martin - New (to order)
          # 8
          MPN: AG33-17F034-AA
          ABSORBER ASSY, REAR BUMPER, RH
          Structural. Cat A Only
          from £140.45
          from £140.45
          ABSORBER ASSEMBLY, REAR BUMPER, RH Genuine Aston Martin - New (to order)
          # 9
          MPN: AG33-17F035-AA
          ABSORBER ASSY, REAR BUMPER, LH
          Structural. Cat A Only
          ABSORBER ASSEMBLY, REAR BUMPER, LH Genuine Aston Martin - New (to order)
          # 10
          MPN: AG33-L40338-AA
          REINFORCEMENT, LOWER BACK CENTRE PANEL
          Structural. Cat A Only
          from £218.69
          from £218.69
          REINFORCEMENT, LOWER BACK CENTRE PANEL Genuine Aston Martin - New (to order)
          # 11
          MPN: GOAG33-5A355-AA
          SUPPORT, SUB-FRAME REAR, RH
          Structural. Cat A Only
          from £29.93
          from £29.93
          SUPPORT S/FRAME REAR RH Genuine Aston Martin - New (to order)
          # 12
          MPN: GOAG33-5A356-AA
          SUPPORT, SUB-FRAME REAR, LH
          Structural. Cat A Only
          from £29.93
          from £29.93
          SUPPORT S/FRAME REAR LH Genuine Aston Martin - New (to order)
          # 13
          MPN: 6G33-L101C84-AF
          BRACKET, SIDE MEMBER REAR, RH
          Structural. Cat A Only
          BRACKET, SIDE MEMBER REAR, RH Genuine Aston Martin - New (to order)
          # 14
          MPN: 6G33-L101C85-AF
          BRACKET, SIDE MEMBER REAR, LH
          Structural. Cat A Only
          BRACKET, SIDE MEMBER REAR, LH Genuine Aston Martin - New (to order)
          # 15
          MPN: DD23-334177-AA
          NUTPLATE, REAR DAMPER MOUNTING, M12
          Structural. Cat A Only
          from £46.34
          from £46.34
          NUTPLATE, REAR DAMPER MOUNTING, M12 Genuine Aston Martin - New (to order)
          # 16
          MPN: 6G33-L279A54-AG
          PANEL, QUARTER WHEEL HOUSING INNER REAR, RH
          Structural. Cat A Only
          from £139.01
          from £139.01
          PANEL, WHEELHOUSE, RH Genuine Aston Martin - New (to order)
          # 17
          MPN: DD23-L279A55-AA
          PANEL, QUARTER WHEEL HOUSING INNER REAR, LH
          Structural. Cat A Only
          PANEL, QUARTER WHEEL HOUSING INNER REAR, LH Genuine Aston Martin - New (to order)
          # 18
          MPN: 6G33-L243A86-AA
          PANEL, REAR QUARTER CLOSER, RH
          Structural. Cat A Only
          from £24.94
          from £24.94
          PANEL, REAR QUARTER CLOSER, RH Genuine Aston Martin - New (to order)
          # 19
          MPN: 6G33-L243A87-AA
          PANEL, REAR QUARTER CLOSER, LH
          Structural. Cat A Only
          from £24.94
          from £24.94
          PANEL, REAR QUARTER CLOSER, LH Genuine Aston Martin - New (to order)
          # 20
          MPN: 703120
          SCREW, M8 X 25, HEX FLANGE HEAD
          from £3.45
          from £3.45
          SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
          INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
          # 21
          MPN: 703121
          SCREW, M8 X 20, HEX FLANGE HEAD
          from £0.47
          from £0.47
          SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
          # 22
          MPN: 6G33-375732-AA
          SCREW, 5.5 X 19, SELF DRILL
          from £0.47
          from £0.47
          SCREW SS HEX FLANGE HD Genuine Aston Martin - New (to order)
          # 23
          MPN: 1R12-642790-AA-PK
          SCRIVET, 8MM
          Pack of 5
          from £3.88
          from £3.88
          SCRIVET-PACK OF 5 Genuine Aston Martin - New (to order)
          # 24
          MPN: 6G33-68676-AC
          RIVET, STRUCTURAL, 6.5 X 14
          from £0.72
          from £0.72
          STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
