aston martin v12 vantage (2011) body rear end composite, coupe parts diagram

010106-B3 - Body Rear End Composite, Coupe

Aston Martin V12 Vantage (2011) Body Rear End Composite, Coupe Parts Diagram

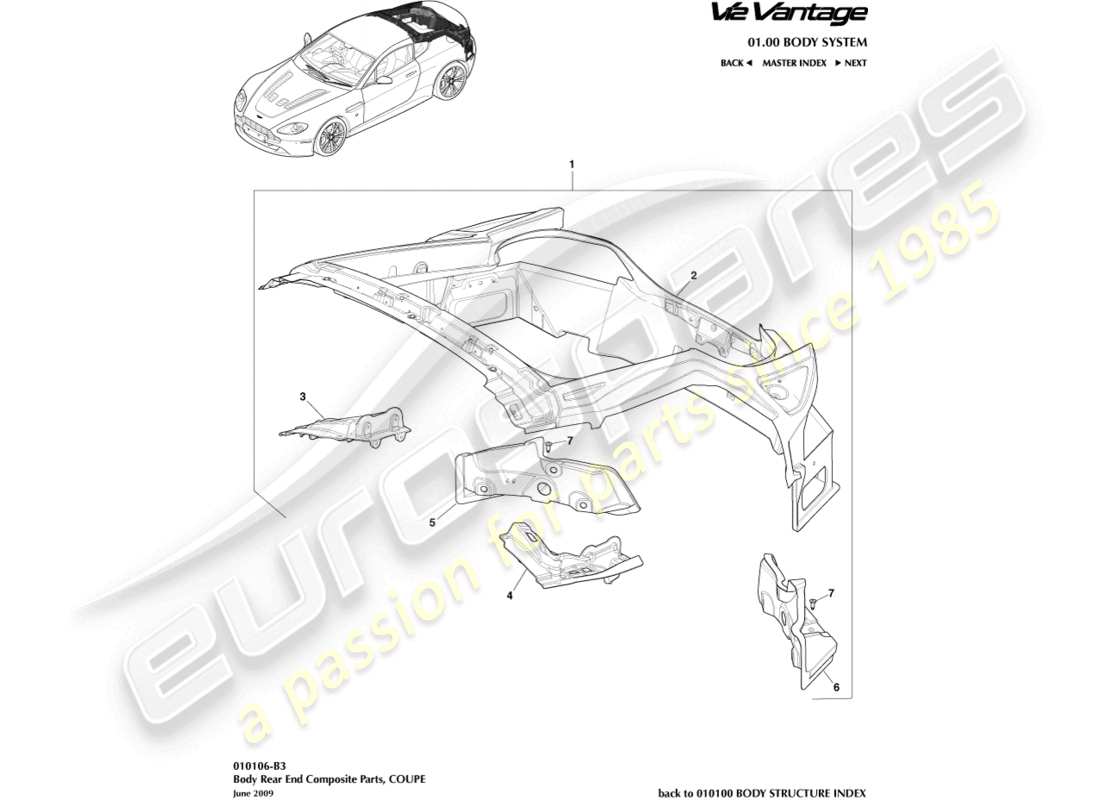

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: 6G33-22-10649
REAR COMPOSITE COMPLETE ASSEMBLY
Includes items 2 to 7, Structural Cat. A only
from £2,039.52
from £2,039.52
REAR COMPOSITE COMPLETE ASSEMBLY Genuine Aston Martin - New (to order)
# 2
MPN: 8G33-C45108-AA
Bare Surround, Trunk Lid
For Cut Panel Repairs, Structural Cat. A only
Bare Surround, Trunk Lid Genuine Aston Martin - New (to order)
# 3
MPN: 6G33-314A10-BA
CASTING, UPPER STRUT MOUNTING, RH
Structural Cat. A only
from £149.16
from £149.16
REINFORCEMENT, HINGE, RH Genuine Aston Martin - New (to order)
# 4
MPN: 6G33-314A11-BA
CASTING, UPPER STRUT MOUNTING, LH
Structural Cat. A only
from £149.16
from £149.16
REINFORCEMENT, HINGE, LH Genuine Aston Martin - New (to order)
# 5
MPN: 6G33-13B452-AF
Panel, Rear Light Finish RH
Structural Cat. A only
from £186.37
from £186.37
PANEL, REAR LIGHT SURROUND, RH Genuine Aston Martin - New (to order)
# 6
MPN: 6G33-13B453-AD
Panel, Rear Light Finish LH
Structural Cat. A only
from £186.37
from £186.37
PANEL, REAR LIGHT SURROUND, LH Genuine Aston Martin - New (to order)
# 7
MPN: 4G43-E826280-BA-PK
ADJUSTER, M6
Pack of 5, Structural Cat. A only
from £11.74
from £11.74
M6 NUT-FLEXAX (5) Genuine Aston Martin - New (to order)
# -
-
RIVNUT, M6
Structural Cat. A only
