aston martin v12 vantage (2011) body components, coupe parts diagram

010108-B2 - body components, coupe

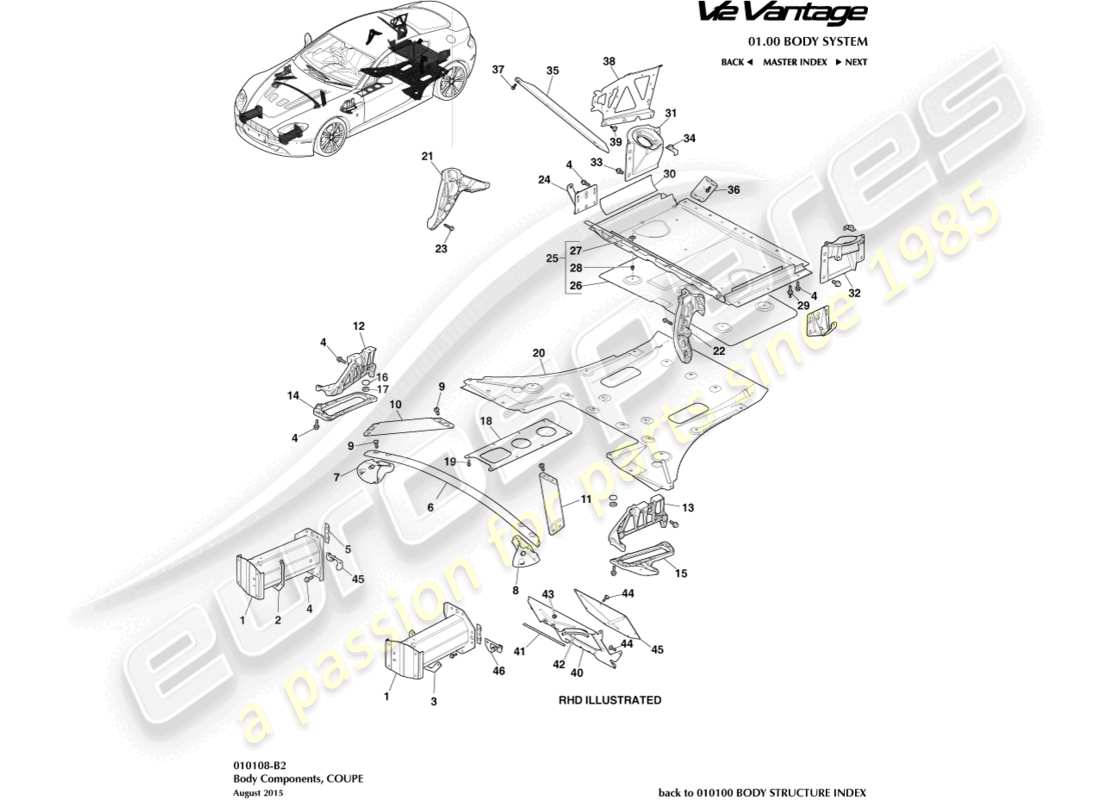

Aston Martin V12 Vantage (2011) Body Components, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Key
                                                                                Price
                                                                                # 1
                                                                                MPN: BD23-V17N800-BA
                                                                                CRUSH CAN, BUMPER FRONT, RH
                                                                                Structural Cat. A Only. Also require 1x item 45.
                                                                                CRUSH CAN, BUMPER FRONT, RH Genuine Aston Martin - New (to order)
                                                                                # 1
                                                                                MPN: BD23-V17N801-BA
                                                                                CRUSH CAN, BUMPER FRONT, LH
                                                                                Structural Cat. A Only. Also require 1x item 46.
                                                                                CRUSH CAN, BUMPER FRONT, LH Genuine Aston Martin - New (to order)
                                                                                # 2
                                                                                MPN: 6G33-6367912-AB
                                                                                NUTPLATE, CRUSH CAN, RH
                                                                                from £6.67
                                                                                from £6.67
                                                                                NUTPLATE, CRUSH CAN, RH Genuine Aston Martin - New (to order)
                                                                                FRONT RH CRASH CAN NUT PLATE Genuine Ferrari Part - New (to order)
                                                                                # 3
                                                                                MPN: 6G33-6367913-AB
                                                                                NUTPLATE, CRUSH CAN, LH
                                                                                from £7.16
                                                                                from £7.16
                                                                                NUTPLATE, CRUSH CAN, LH Genuine Aston Martin - New (to order)
                                                                                # 4
                                                                                MPN: 703120
                                                                                SCREW, M8X25
                                                                                from £3.45
                                                                                from £3.45
                                                                                SCREW M8X25 HEX FLNG Genuine Aston Martin - New (to order)
                                                                                INTERMEDIATE HEAT SHIELD BOLTS Genuine Ferrari Part - New (to order)
                                                                                # 5
                                                                                MPN: AD23-71470-AA
                                                                                NUTPLATE
                                                                                from £4.05
                                                                                from £4.05
                                                                                NUTPLATE, FRONT CRASH STRUCTURE Genuine Aston Martin - New (to order)
                                                                                # 6
                                                                                MPN: AD23-108A75-AA
                                                                                BRACE, FRONT CROSS
                                                                                from £148.32
                                                                                from £148.32
                                                                                BRACE, FRONT CROSS Genuine Aston Martin - New (to order)
                                                                                # 7
                                                                                MPN: 4G43-108A86-CA
                                                                                BRACKET, FRONT CROSS BRACE, RH
                                                                                from £76.08
                                                                                from £76.08
                                                                                BRACKET, FRONT CROSS BRACE, RH Genuine Aston Martin - New (to order)
                                                                                # 8
                                                                                MPN: 4G43-108A87-CA
                                                                                BRACKET, FRONT CROSS BRACE, LH
                                                                                from £114.12
                                                                                from £114.12
                                                                                This part replaces part number 4G43-108A87-BA which we have in stock
                                                                                BRACKET, FRONT CROSS BRACE, LH Genuine Aston Martin - New (to order)
                                                                                # 9
                                                                                MPN: 702209
                                                                                SCREW, M10 X 25
                                                                                from £0.81
                                                                                from £0.81
                                                                                BOLT-M10X25 T/DRIVE Genuine Aston Martin - New (to order)
                                                                                # 10
                                                                                MPN: P04G43-F00198-AF
                                                                                BRACE, REINFORCEMENT, ENG, RH
                                                                                Order in pairs
                                                                                BRACE, REINFORCEMENT, ENG, RH Genuine Aston Martin - New (to order)
                                                                                # 11
                                                                                MPN: P04G43-F00199-AF
                                                                                BRACE, REINFORCEMENT, ENG, LH
                                                                                Order in pairs
                                                                                BRACE, REINFORCEMENT, ENG, LH Genuine Aston Martin - New (to order)
                                                                                # 12
                                                                                MPN: 6G33-16798-BA
                                                                                BRACKET, BONNET HINGE SUPT, RH
                                                                                from £59.02
                                                                                from £59.02
                                                                                BRACKET, BONNET HINGE SUPT, RH Genuine Aston Martin - New (to order)
                                                                                BRACKET, BONNET HINGE SUPT, RH Genuine Aston Martin - Used In stock
                                                                                # 13
                                                                                MPN: 6G33-16799-BA
                                                                                BRACKET, BONNET HINGE SUPT, LH
                                                                                from £59.02
                                                                                from £59.02
                                                                                BRACKET, BONNET HINGE SUPT, LH Genuine Aston Martin - New (to order)
                                                                                BRACKET, BONNET HINGE SUPT, LH Genuine Aston Martin - Used In stock
                                                                                # 14
                                                                                MPN: 6G33-5340-BA
                                                                                BRACKET, ECU MOUNTING, RH
                                                                                from £41.90
                                                                                from £41.90
                                                                                BRACKET, ECU MOUNTING, RH Genuine Aston Martin - New (to order)
                                                                                BRACKET, ECU MOUNTING, RH Genuine Aston Martin - Used In stock
                                                                                # 15
                                                                                MPN: 6G33-5341-BA
                                                                                BRACKET, ECU MOUNTING, LH
                                                                                from £37.05
                                                                                from £37.05
                                                                                BRACKET, ECU MOUNTING, LH Genuine Aston Martin - New (to order)
                                                                                BRACKET, ECU MOUNTING, LH Genuine Aston Martin - Used In stock
                                                                                # 16
                                                                                MPN: 4G43-061B70-AA
                                                                                CAP, DUST COVER
                                                                                from £0.47
                                                                                from £0.47
                                                                                CAP DUST COVER Genuine Aston Martin - New (to order)
                                                                                # 17
                                                                                MPN: 4G43-16740-AA
                                                                                PAD, COWL
                                                                                from £10.21
                                                                                from £10.21
                                                                                PAD, COWL Genuine Aston Martin - New (to order)
                                                                                # 18
                                                                                MPN: AD23-111K37-CA
                                                                                PLATE, REINFORCEMENT, TUNNEL
                                                                                from £20.91
                                                                                from £20.91
                                                                                This part replaces part number AD23-111K37-BA which we have in stock
                                                                                REINFORCEMENT, CENTRE TUNNEL Genuine Aston Martin - New (to order)
                                                                                # 19
                                                                                MPN: 703203
                                                                                SCREW, M6 X 20
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                                                                LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                                                                # 20
                                                                                MPN: BG33-L17C857-KB
                                                                                SHIELD, REAR BUMPER OPENING
                                                                                SHIELD, REAR BUMPER OPENING Genuine Aston Martin - New (to order)
                                                                                # 21
                                                                                MPN: 6G33-611D38-BA
                                                                                BRACKET ASSEMBLY, FRONT SEAT BELT, RH
                                                                                from £47.55
                                                                                from £47.55
                                                                                BRACKET, FRONT SEAT BELT RETAINER, RH Genuine Aston Martin - New (to order)
                                                                                BRACKET, FRONT SEAT BELT RETAINER, RH Genuine Aston Martin - Used In stock
                                                                                # 22
                                                                                MPN: 6G33-611D39-BA
                                                                                BRACKET ASSEMBLY, FRONT SEAT BELT, LH
                                                                                from £47.55
                                                                                from £47.55
                                                                                BRACKET, FRONT SEAT BELT RETAINER, LH Genuine Aston Martin - New (to order)
                                                                                BRACKET, FRONT SEAT BELT RETAINER, LH Genuine Aston Martin - Used In stock
                                                                                # 23
                                                                                MPN: 702635
                                                                                BOLT, M8 X 33
                                                                                from £0.47
                                                                                from £0.47
                                                                                BOLT, M8X38 Genuine Aston Martin - New (to order)
                                                                                # 24
                                                                                MPN: 6G33-5D022-AD
                                                                                BRACKET, REAR, SUBFRAME STABILISER
                                                                                from £38.64
                                                                                from £38.64
                                                                                BRACKET REAR SB/FR STAB Genuine Aston Martin - New (to order)
                                                                                # 25
                                                                                MPN: 6G33-9N172-AE
                                                                                PANEL ASSEMBLY, FUEL TANK COMP, LOWER
                                                                                from £400.81
                                                                                from £400.81
                                                                                ASSEMBLY PANEL FU/TNK COM Genuine Aston Martin - New (to order)
                                                                                # 25
                                                                                MPN: ED23-9N172-AA
                                                                                PANEL ASSEMBLY, FUEL TANK COMP, LOWER
                                                                                13MY
                                                                                from £389.12
                                                                                from £389.12
                                                                                PANEL, FUEL TANK COMPARTMENT, LOWER Genuine Aston Martin - New (to order)
                                                                                # 26
                                                                                MPN: 6G33-9A032-AE
                                                                                HEATSHIELD, FUEL TANK
                                                                                from £76.08
                                                                                from £76.08
                                                                                HEATSHIELD, FUEL TANK Genuine Aston Martin - New (to order)
                                                                                # 27
                                                                                MPN: 6G33-WE600041-AB
                                                                                WASHER, STARLOCK
                                                                                from £0.77
                                                                                from £0.77
                                                                                WASHER, STARLOCK Genuine Aston Martin - New (to order)
                                                                                # 29
                                                                                MPN: 702509
                                                                                STUD
                                                                                from £1.53
                                                                                from £1.53
                                                                                M8X23+M6X14 STUD Genuine Aston Martin - New (to order)
                                                                                # 30
                                                                                MPN: 4G43-9N070-AB
                                                                                INSULATION, FUEL TANK SUPPORT
                                                                                from £1.59
                                                                                from £1.59
                                                                                INSULATION, FUEL TANK SUPPORT Genuine Aston Martin - New (to order)
                                                                                # 31
                                                                                MPN: 6G33-18A000-AD
                                                                                MOUNTING, REAR SHOCK ABSORBER, RH
                                                                                from £286.04
                                                                                from £286.04
                                                                                MBR REAR SHOCK ABS MTNG Genuine Aston Martin - New (to order)
                                                                                MBR REAR SHOCK ABS MTNG Genuine Aston Martin - Used In stock
                                                                                # 32
                                                                                MPN: 6G33-18A001-AD
                                                                                MOUNTING, REAR SHOCK ABSORBER, LH
                                                                                from £286.04
                                                                                from £286.04
                                                                                MBR REAR SHOCK ABS MTNG Genuine Aston Martin - New (to order)
                                                                                MBR REAR SHOCK ABS MTNG Genuine Aston Martin - Used In stock
                                                                                # 33
                                                                                MPN: 703185
                                                                                SCREW, M12 X 25
                                                                                from £6.33
                                                                                from £6.33
                                                                                M12X1.75X25 HEX Genuine Aston Martin - New (to order)
                                                                                # 34
                                                                                MPN: 4G43-501B0-AC
                                                                                NUTPLATE, REAR SUBFRAME
                                                                                from £9.54
                                                                                from £9.54
                                                                                NUT PLTE REAR SFRME REAR Genuine Aston Martin - New (to order)
                                                                                # 35
                                                                                MPN: P06G33-28442-AG
                                                                                BRACE, BODY REAR CENTRE PANEL, RH
                                                                                Order in pairs
                                                                                BRACE, BODY REAR CENTRE PANEL, RH Genuine Aston Martin - New (to order)
                                                                                # 36
                                                                                MPN: P06G33-28443-AG
                                                                                BRACE, BODY REAR CENTRE PANEL, LH
                                                                                Order in pairs
                                                                                BRACE, BODY REAR CENTRE PANEL, LH Genuine Aston Martin - New (to order)
                                                                                # 37
                                                                                MPN: 703121
                                                                                SCREW, M8 X 20
                                                                                from £0.47
                                                                                from £0.47
                                                                                SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                                                                # 38
                                                                                MPN: AG33-10N873-AA
                                                                                MOUNTING PANEL, AMP
                                                                                from £32.49
                                                                                from £32.49
                                                                                MOUNTING PANEL, AMP Genuine Aston Martin - New (to order)
                                                                                # 39
                                                                                MPN: 703152-PK
                                                                                SCREW AND WASHER, M6 X 20
                                                                                from £3.17
                                                                                from £3.17
                                                                                SCREW/WSHR M6X20(10) Genuine Aston Martin - New (to order)
                                                                                # 40
                                                                                MPN: 4G43-111C61-AD
                                                                                PANEL, DUMMY FRONT FLOOR, RHD
                                                                                from £104.24
                                                                                from £104.24
                                                                                PANEL DUMMY FLR FRONT Genuine Aston Martin - New (to order)
                                                                                PANEL DUMMY FLR FRONT Genuine Aston Martin - Used In stock
                                                                                # 40
                                                                                MPN: 9G43-111C60-GF
                                                                                PANEL, DUMMY FRONT FLOOR, LHD
                                                                                Not illustrated
                                                                                from £255.72
                                                                                from £255.72
                                                                                PANEL DUMMY FLR FRONT Genuine Aston Martin - New (to order)
                                                                                # 41
                                                                                MPN: 37-86191
                                                                                EDGE PROTECTOR, 280MM
                                                                                from £1.04
                                                                                from £1.04
                                                                                EDGE PROTECTOR, 280MM Genuine Aston Martin - New (to order)
                                                                                # 42
                                                                                MPN: 37-86250
                                                                                EDGE PROTECTOR, 150MM
                                                                                EDGE PROTECTION STRIP Genuine Aston Martin - New (to order)
                                                                                # 43
                                                                                MPN: 703163
                                                                                NUT, M6
                                                                                from £0.47
                                                                                from £0.47
                                                                                NUT M6 FLANGE LOCKING Genuine Aston Martin - New (to order)
                                                                                # 44
                                                                                MPN: 4G43-111B48-AB
                                                                                PANEL, COVER
                                                                                from £13.89
                                                                                from £13.89
                                                                                PANEL DUMMY FLR COVER FT Genuine Aston Martin - New (to order)
                                                                                PANEL DUMMY FLR COVER FT Genuine Aston Martin - Used In stock
                                                                                # 45
                                                                                MPN: BD23-71470-AC
                                                                                NUTPLATE, RH
                                                                                from £14.18
                                                                                from £14.18
                                                                                NUTPLATE, RH Genuine Aston Martin - New (to order)
                                                                                # 46
                                                                                MPN: BD23-71471-AC
                                                                                NUTPLATE, LH
                                                                                from £16.12
                                                                                from £16.12
                                                                                NUTPLATE, LH Genuine Aston Martin - New (to order)
